Mouse Monoclonal Hsp47 antibody. Suitable for WB, ICC/IF and reacts with Human samples. Immunogen corresponding to Recombinant Full Length Protein corresponding to Human SERPINH1.

Be the first to review this product! Submit a review

Images

Western blot - Anti-Hsp47 antibody [1C4-1A6] (AB242006), expandable thumbnail
  • Immunocytochemistry/ Immunofluorescence - Anti-Hsp47 antibody [1C4-1A6] (AB242006), expandable thumbnail
  • Immunocytochemistry/ Immunofluorescence - Anti-Hsp47 antibody [1C4-1A6] (AB242006), expandable thumbnail

Key facts

Isotype
IgG1
Host species
Mouse
Storage buffer

Preservative: 0.09% Sodium azide
Constituents: PBS, 50% Glycerol (glycerin, glycerine)

Form
Liquid
Clonality
Monoclonal

Immunogen

  • Recombinant Full Length Protein corresponding to Human SERPINH1. Database link P50454

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
WBICC/IF
Human
Tested
Tested

Tested
Tested

Species
Human
Dilution info
1/1000
Notes

-

Tested
Tested

Species
Human
Dilution info
1/100
Notes

-

Associated Products

Select an associated product type

4 products for Alternative Product

Target data

Function

Binds specifically to collagen. Could be involved as a chaperone in the biosynthetic pathway of collagen.

Alternative names

Recommended products

Mouse Monoclonal Hsp47 antibody. Suitable for WB, ICC/IF and reacts with Human samples. Immunogen corresponding to Recombinant Full Length Protein corresponding to Human SERPINH1.

Key facts

Isotype
IgG1
Form
Liquid
Clonality
Monoclonal
Immunogen
  • Recombinant Full Length Protein corresponding to Human SERPINH1. Database link P50454
Clone number
1C4-1A6
Purification technique
Affinity purification Protein G
Light chain type
kappa
Concentration
Loading...
Purification notes

Purified from TCS.

Storage

Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.
Activity summary

Hsp47 also known as the heat shock protein 47 is a molecular chaperone with a molecular weight of approximately 47 kDa. It mainly resides in the endoplasmic reticulum and participates in collagen synthesis. Hsp47 binds specifically to unfolded procollagen chains ensures their proper folding and prevents premature aggregation. Due to its specialized function Hsp47 is highly expressed in collagen-producing cells like fibroblasts. Researchers commonly study this protein using techniques like Hsp47 ELISA to measure its expression or activity levels.

Biological function summary

Hsp47 ensures the quality control of collagen within the secretory pathway. It does not form part of any large protein complexes but operates closely with collagen molecules. By stabilizing procollagen's triple-helix structure Hsp47 plays an important role in collagen biosynthesis. Dysfunctional collagen processes can arise without this protein's presence potentially leading to cellular stress or structural weaknesses within tissues rich in collagen.

Pathways

Hsp47's activity integrates into the collagen synthesis and secretion pathways. This protein is related to other molecular chaperones such as Hsp70 that assist in maintaining protein homeostasis within the cell. Hsp47’s function links to fibrosis pathways because of its role in collagen maturation. In terms of fibrotic pathologies this involvement makes the chaperoning of procollagen a critical control point.

Associated diseases and disorders

Disrupted Hsp47 function frequently associates with fibrotic conditions and osteogenesis imperfecta. Fibrosis results from excessive collagen deposition in which Hsp47 is deeply implicated. Additionally certain cancer types have shown altered Hsp47 expression correlating with increased cancer cell invasiveness due to extracellular matrix remodeling. Studies have noted interactions between Hsp47 and TGF-beta signaling in fibrotic tissues reinforcing its role in pathological collagen turnover.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

3 product images

  • Western blot - Anti-Hsp47 antibody [1C4-1A6] (ab242006), expandable thumbnail

    Western blot - Anti-Hsp47 antibody [1C4-1A6] (ab242006)

    Primary incubation for 1 hour at room temperature.

    Block: 5% milk + TBST for 1 hour at room temperature.

    Lane 1: Western blot - Anti-Hsp47 antibody [1C4-1A6] (ab242006) at 1/250 dilution

    Lane 2: Western blot - Anti-Hsp47 antibody [1C4-1A6] (ab242006) at 1/500 dilution

    Lane 3: Western blot - Anti-Hsp47 antibody [1C4-1A6] (ab242006) at 1/1000 dilution

    All lanes: A431 (human epidermoid carcinoma cell line) cell lysate at 20 µg

    Secondary

    All lanes: HRP Goat Anti-Mouse at 1/50 dilution

    Predicted band size: 46 kDa

  • Immunocytochemistry/ Immunofluorescence - Anti-Hsp47 antibody [1C4-1A6] (ab242006), expandable thumbnail

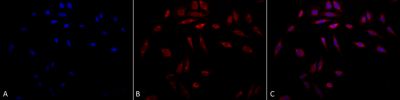

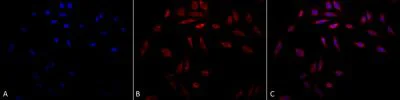

    Immunocytochemistry/ Immunofluorescence - Anti-Hsp47 antibody [1C4-1A6] (ab242006)

    2% paraformaldehyde-fixed heat shocked HeLa (human epithelial cell line from cervix adenocarcinoma) cells stained for Hsp47 (red, B) using ab242006 at 1/100 dilution in ICC/IF. The nuclear counter stain is DAPI (blue, A). Panel C shows the merged images.

    Primary incubation for 12 hours at 4°.

    Secondary antibody: APC Goat Anti-Mouse (red) at 1:200 for 2 hours at RT.

    Cell were heat shocked at 42°C for 1 hour.

  • Immunocytochemistry/ Immunofluorescence - Anti-Hsp47 antibody [1C4-1A6] (ab242006), expandable thumbnail

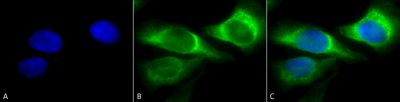

    Immunocytochemistry/ Immunofluorescence - Anti-Hsp47 antibody [1C4-1A6] (ab242006)

    2% paraformaldehyde-fixed heat shocked HeLa (human epithelial cell line from cervix adenocarcinoma) cells stained for Hsp47 (green, B) using ab242006 at 1/100 dilution in ICC/IF. The nuclear counter stain is DAPI (blue, A). Panel C shows the merged images.

    Primary incubation for 12 hours at 4°.

    Secondary antibody: FITC Goat Anti-Mouse (green) at 1:200 for 2 hours at RT.

    Cell were heat shocked at 42°C for 1 hour.

Downloads

Product protocols

For this product, it's our understanding that no specific protocols are required. You can:

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
