Anti-Hsp60 antibody [LK-1] - Mitochondrial Marker

8 product images

•

  Western blot - Anti-Hsp60 antibody [LK-1] - Mitochondrial Marker (ab59457)

  Hsp60 Western blot staining using mouse Anti-Hsp60 antibody

  All lanes: Western blot - Anti-Hsp60 antibody [LK-1] - Mitochondrial Marker (ab59457) at 0.05 µg/mL

  Lane 1: Rat Brain tissue lysates at 10 µg

  Lane 2: Rat Heart tissue lysates at 10 µg

  Lane 3: Rat Kidney tissue lysates at 10 µg

  Lane 4: Rat Liver tissue lysates at 10 µg

  Lane 5: Rat Lung tissue lysates at 10 µg

  Lane 6: Rat Pancreas tissue lysates at 10 µg

  Lane 7: Rat skeletal muscle tissue lysate at 10 µg

  Lane 8: Rat Spleen tissue lysate at 10 µg

  Lane 9: Rat Testes tissue lysate at 10 µg

  Lane 10: Rat Thymus tisuue lysate at 10 µg

  Lane 11: Cell lysates prepared from rat heart H9C2 cells at 10 µg

  Lane 12: Cell lysates prepared from mouse NIH3T3 cells at 10 µg

  Lane 13: Cell lysates prepared from mouse Pam212 cells at 10 µg

  Secondary

  All lanes: HRP-conjugated goat polyclonal to mouse IgG1 at 1/10 dilution

  Predicted band size: 61 kDa

•

  Immunocytochemistry/ Immunofluorescence - Anti-Hsp60 antibody [LK-1] - Mitochondrial Marker (ab59457)

  Hsp60 Immunocytochemistry/ Immunofluorescence staining using mouse Anti-Hsp60 antibody

  ICC/IF image of ab59457 stained HepG2 cells. The cells were 100% methanol fixed (5 min) and then incubated in 1%BSA / 10% normal goat serum / 0.3M glycine in 0.1% PBS-Tween for 1h to permeabilise the cells and block non-specific protein-protein interactions. The cells were then incubated with the antibody (ab59457, 1µg/ml) overnight at +4°C. The secondary antibody (green) was Alexa Fluor® 488 goat anti-mouse IgG (H+L) used at a 1/1000 dilution for 1h. Alexa Fluor® 594 WGA was used to label plasma membranes (red) at a 1/200 dilution for 1h. DAPI was used to stain the cell nuclei (blue) at a concentration of 1.43µM.



•

  Flow Cytometry - Anti-Hsp60 antibody [LK-1] - Mitochondrial Marker (ab59457)

  Hsp60 Flow Cytometry staining using mouse Anti-Hsp60 antibody

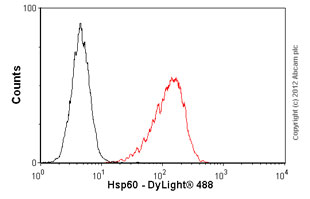

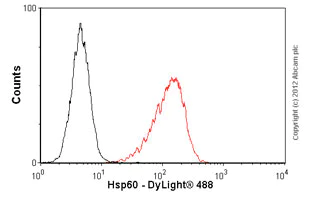

  Overlay histogram showing HeLa cells stained with ab59457 (red line). The cells were fixed with 80% methanol (5 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab59457, 1µg/1x10⁶ cells) for 30 min at 22ºC. The secondary antibody used was DyLight® 488 goat anti-mouse IgG (H+L) (Goat Anti-Mouse IgG H&L (DyLight® 488) preadsorbed ab96879) at 1/500 dilution for 30 min at 22ºC. Isotype control antibody (black line) was mouse IgG1 [ICIGG1] (Mouse IgG1, Kappa Monoclonal [B11/6] - Isotype Control ab91353, 2µg/1x10⁶ cells) used under the same conditions. Acquisition of >5,000 events was performed.



•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Hsp60 antibody [LK-1] - Mitochondrial Marker (ab59457)

  Hsp60 Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) staining using mouse Anti-Hsp60 antibody

  ab59457 staining human normal skin tissue. Staining is localised to mitochondria.
  Left panel: with primary antibody at 2 ug/ml. Right panel: isotype control.
  Sections were stained using an automated system DAKO Autostainer Plus , at room temperature. Sections were rehydrated and antigen retrieved with the Dako 3-in-1 antigen retrieval buffer EDTA pH 9.0 in a DAKO PT Link. Slides were peroxidase blocked in 3% H2O2 in methanol for 10 minutes. They were then blocked with Dako Protein block for 10 minutes (containing casein 0.25% in PBS) then incubated with primary antibody for 20 minutes and detected with Dako Envision Flex amplification kit for 30 minutes. Colorimetric detection was completed with diaminobenzidine for 5 minutes. Slides were counterstained with Haematoxylin and coverslipped under DePeX. Please note that for manual staining we recommend to optimize the primary antibody concentration and incubation time (overnight incubation), and amplification may be required.

•

  This is image is courtesy of a customer review submitted by Aamir Ahmed.

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Hsp60 antibody [LK-1] - Mitochondrial Marker (ab59457)

  Hsp60 Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) staining using mouse Anti-Hsp60 antibody

  ab59457 staining Hsp60 in Human malignant colon tissue sections by Immunohistochemistry. Antigen retrieval was by heat mediation using retrieval buffer, pH6. Cells were fixed with paraformaldehyde and blocked with 3% H₂O₂ for 10 minutes at 22°C. Samples were incubated with primary antibody at 1/2000 dilution for 2 hours at 22°C. A HRP conjugated goat polyclonal was used as a secondary antibody.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Hsp60 antibody [LK-1] - Mitochondrial Marker (ab59457)

  Hsp60 Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) staining using mouse Anti-Hsp60 antibody

  Immunohistochemical analysis of paraffin-embedded human colon carcinoma tissue labelling Hsp60 with ab59457 at 1/100,000 dilution for 1 hour at room temperature, followed by secondary antibody Goat Anti-Mouse (Biotin) at 1/2000 dilution for 1 hour at room temperature. Predominantly mitochondrial staining on Inflammatory cells in human colon carcinoma is observed. Counter stained with Hematoxylin.

•

  Immunoprecipitation - Anti-Hsp60 antibody [LK-1] - Mitochondrial Marker (ab59457)

  Hsp60 was immunoprecipitated using 0.5mg Rat Brain tissue lysate, 5µg of Mouse monoclonal to Hsp60 and 50µl of protein G magnetic beads (+). No antibody was added to the control (-).
  The antibody was incubated under agitation with Protein G beads for 10min, Rat Brain tissue lysate lysate diluted in RIPA buffer was added to each sample and incubated for a further 10min under agitation.
  Proteins were eluted by addition of 40µl SDS loading buffer and incubated for 10min at 70^oC; 10µl of each sample was separated on a SDS PAGE gel, transferred to a nitrocellulose membrane, blocked with 5% BSA and probed with ab59457.
  Secondary: Goat polyclonal to mouse IgG light chain specific (HRP) at 1/20,000 dilution.
  Band: 60kDa; Hsp60: non specific bands - 50kDa: We are unsure as to the identity of this extra band.

  All lanes: Immunoprecipitation - Anti-Hsp60 antibody [LK-1] - Mitochondrial Marker (ab59457)

  Predicted band size: 61 kDa

•

  Immunocytochemistry/ Immunofluorescence - Anti-Hsp60 antibody [LK-1] - Mitochondrial Marker (ab59457)

  Hsp60 Immunocytochemistry/ Immunofluorescence staining of HaCaT cells using mouse Anti-Hsp60 antibody

  Immunofluorescent analysis of 100% methanol-fixed HaCaT cells labeling Hsp60 with ab59457 at 1/100 dilution. Secondary antibody: FITC Goat Anti-Mouse (green) at 1/50 dilution.
