Anti-Hsp70 antibody [2A4]

15 product images

•

  Western blot - Anti-Hsp70 antibody [2A4] (ab5442)

  All lanes: Western blot - Anti-Hsp70 antibody [2A4] (ab5442) at 1 µg/mL

  Lane 1: HeLa (human epithelial cell line from cervix adenocarcinoma) whole cell lysate at 30 µg

  Lane 2: HEK-293T (human epithelial cell line from embryonic kidney transformed with large T antigen) whole cell lysate at 30 µg

  Lane 3: HepG2 (human liver hepatocellular carcinoma cell line) whole cell lysate at 30 µg

  Lane 4: A431 (human epidermoid carcinoma cell line) whole cell lysate at 30 µg

  Lane 5: K562 (human chronic myelogenous leukemia cell line from bone marrow) whole cell lysate at 30 µg

  Lane 6: MCF7 (human breast adenocarcinoma cell line) whole cell lysate at 30 µg

  Secondary

  All lanes: Goat anti-Mouse IgG H+L (HRP) at 1/4000 dilution

  Predicted band size: 70 kDa

  Observed band size: 70 kDa

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Hsp70 antibody [2A4] (ab5442)

  IHC image of Hsp70 staining in human lung formalin fixed paraffin embedded tissue section*. The section was pre-treated using pressure cooker heat mediated antigen retrieval with sodium citrate buffer (pH6) for 30mins. The section was incubated with ab5442, 1/2000 dilution overnight at +4°C. An HRP-conjugated secondary (Goat Anti-Mouse IgM mu chain (HRP) ab97230, 1/2000 dilution) was used for 1hr at room temperature. The section was counterstained with haematoxylin and mounted with DPX.

  The inset negative control image is secondary-only at 1/500 dilution.

  *Tissue obtained from the Human Research Tissue Bank, supported by the NIHR Cambridge Biomedical Research Centre

•

  Immunocytochemistry/ Immunofluorescence - Anti-Hsp70 antibody [2A4] (ab5442)

  Immunocytochemistry/Immunofluorescence analysis of Hsp70 (green) in Hela cells. Formalin-fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 5-10 minutes at room temperature and blocked with 3% BSA-PBS for 30 minutes at room temperature. Cells were probed with ab5442 at a dilution of 1:100 and incubated overnight in a humidified chamber. Cells were washed with PBST and incubated with a DyLight-conjugated secondary antibody for 45 minutes at room temperature in the dark. F-actin (red) was stained with a fluorescent phalloidin and nuclei (blue) were stained with DAPI. Images were taken at a 60X magnification.

•

  Immunocytochemistry/ Immunofluorescence - Anti-Hsp70 antibody [2A4] (ab5442)

  Immunocytochemistry/Immunofluorescence analysis of Hsp70 (green) in A431 cells. Formalin-fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 5-10 minutes at room temperature and blocked with 3% BSA-PBS for 30 minutes at room temperature. Cells were probed with ab5442 at a dilution of 1:100 and incubated overnight in a humidified chamber. Cells were washed with PBST and incubated with a DyLight-conjugated secondary antibody for 45 minutes at room temperature in the dark. F-actin (red) was stained with a fluorescent phalloidin and nuclei (blue) were stained with DAPI. Images were taken at a 60X magnification.

•

  Immunocytochemistry/ Immunofluorescence - Anti-Hsp70 antibody [2A4] (ab5442)

  Immunocytochemistry/Immunofluorescence analysis of Hsp70 (green) in NIH-3T3 cells. Formalin-fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 5-10 minutes at room temperature and blocked with 3% BSA-PBS for 30 minutes at room temperature. Cells were probed with ab5442 at a dilution of 1:200 and incubated overnight in a humidified chamber. Cells were washed with PBST and incubated with a DyLight-conjugated secondary antibody for 45 minutes at room temperature in the dark. F-actin (red) was stained with a fluorescent phalloidin and nuclei (blue) were stained with DAPI. Images were taken at a 60X magnification.

•

  Immunoprecipitation - Anti-Hsp70 antibody [2A4] (ab5442)

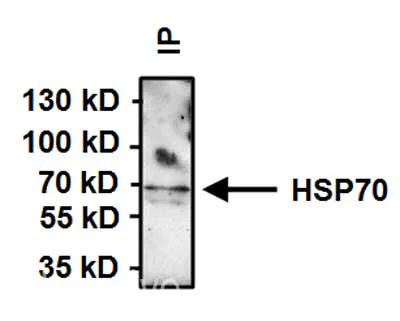

  Immunoprecipitation of Hsp70 was performed on HeLa cells. Antigen-antibody complexes were formed by incubating 500ug of whole cell lysate with 2ug of HSP70 monoclonal antibody (ab5442) overnight on a rocking platform at 4°C. The immune complexes were captured on 50ul Protein A/G Agarose and eluted with Buffer. Samples were then resolved on a 4-20% Tris-HCl polyacrylamide gel, transferred to a PVDF membraneand blocked with 5% BSA/TBST for at least 1 hour. The membrane was probed with a Hsp70 monoclonal antibody (ab5442) at a dilution of 1:1000 overnight rotating at 4°C then washed in TBST and probed with a goat anti-mouse IgM secondary antibody at a dilution of 1:20000 for at least 1 hour. Chemiluminescent detection was performed.

  All lanes: Immunoprecipitation - Anti-Hsp70 antibody [2A4] (ab5442)

  Predicted band size: 70 kDa

•

  Immunocytochemistry/ Immunofluorescence - Anti-Hsp70 antibody [2A4] (ab5442)

  Immunocytochemistry/Immunofluorescence analysis of Hsp70 in HeLa Cells. Cells were grown on chamber slides and fixed with formaldehyde prior to staining. Cells were incubated without (control) or with ab5442 at a dilution of 1:200 overnight at 4 C, washed with PBS and incubated with a DyLight-488 conjugated secondary antibody. Hsp70 staining (green), F-Actin staining with Phalloidin (red) and nuclei with DAPI (blue) is shown. Images were taken at 60X magnification.

•

  Immunocytochemistry/ Immunofluorescence - Anti-Hsp70 antibody [2A4] (ab5442)

  Immunocytochemistry/Immunofluorescence analysis of Hsp70 in NCI-H1299 Cells. Cells were grown on chamber slides and fixed with formaldehyde prior to staining. Cells were probed without (control) or with ab5442 at a dilution of 1:100 overnight at 4 C, washed with PBS and incubated with a DyLight-488 conjugated secondary antibody. Hsp70 staining (green), F-Actin staining with Phalloidin (red) and nuclei with DAPI (blue) is shown. Images were taken at 60X magnification.

•

  Immunocytochemistry/ Immunofluorescence - Anti-Hsp70 antibody [2A4] (ab5442)

  Immunocytochemistry/Immunofluorescence analysis of Hsp70 in NIH-3T3 Cells. Cells were grown on chamber slides and fixed with formaldehyde prior to staining. Cells were probed without (control) or with ab5442 at a dilution of 1:100 overnight at 4 C, washed with PBS and incubated with a DyLight-488 conjugated secondary antibody. Hsp70 staining (green), F-Actin staining with Phalloidin (red) and nuclei with DAPI (blue) is shown. Images were taken at 60X magnification.

•

  Flow Cytometry - Anti-Hsp70 antibody [2A4] (ab5442)

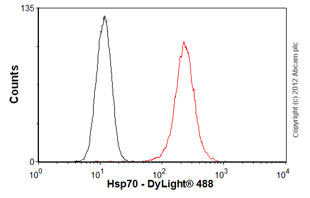

  Overlay histogram showing Jurkat cells stained with ab5442 (red line). The cells were fixed with 4% paraformaldehyde (10 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab5442, 1µg/1x10⁶ cells) for 30 min at 22ºC. The secondary antibody used was DyLight® 488 goat anti-mouse IgM (mu chain) (Goat Anti-Mouse IgM mu chain (DyLight® 488) ab97007) at 1/500 dilution for 30 min at 22ºC. Isotype control antibody (black line) was mouse IgM [ICIGM] (Mouse IgM [B11/7] - Isotype control ab91545, 2µg/1x10⁶ cells) used under the same conditions. Acquisition of >5,000 events was performed. This antibody gave a positive signal in Jurkat cells fixed with 80% methanol (5 min)/permeabilized with 0.1% PBS-Tween for 20 min used under the same conditions.



•

  Immunocytochemistry/ Immunofluorescence - Anti-Hsp70 antibody [2A4] (ab5442)

  Immunocytochemistry/Immunofluorescence analysis of Hsp70 (green) in HeLa and NIH3T3 cells. Formalin fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 10 minutes at room temperature and blocked with 1% Blocker BSA for 15 minutes at room temperature. Cells were probed with ab5442 at a dilution of 1:50 for at least 1 hour at room temperature, washed with PBS, and incubated with fluorescently labeled goat anti-mouse IgM secondary antibody at a dilution of 1:400 for 30 minutes at room temperature. Nuclei (blue) were stained with Hoechst 33342 dye. Images were taken at 20X magnification.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Hsp70 antibody [2A4] (ab5442)

  ab5442 staining human normal skin. Staining is localised to the cytoplasm and nucleus.
  Left panel: with primary antibody at 1 ug/ml. Right panel: isotype control.
  Sections were stained using an automated system DAKO Autostainer Plus , at room temperature. Sections were rehydrated and antigen retrieved with the Dako 3-in-1 antigen retrieval buffer EDTA pH 9.0 in a DAKO PT Link. Slides were peroxidase blocked in 3% H2O2 in methanol for 10 minutes. They were then blocked with Dako Protein block for 10 minutes (containing casein 0.25% in PBS) then incubated with primary antibody for 20 minutes and detected with Dako Envision Flex amplification kit for 30 minutes. Colorimetric detection was completed with diaminobenzidine for 5 minutes. Slides were counterstained with Haematoxylin and coverslipped under DePeX. Please note that for manual staining we recommend to optimize the primary antibody concentration and incubation time (overnight incubation), and amplification may be required

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Hsp70 antibody [2A4] (ab5442)

  Immunohistochemistry was performed on normal biopsies of deparaffinized Human tonsil tissue. To expose target proteins heat induced antigen retrieval was performed using 10mM sodium citrate (pH6.0) buffer microwaved for 8-15 minutes. Following antigen retrieval tissues were blocked in 3% BSA-PBS for 30 minutes at room temperature. Tissues were then probed at a dilution of 1:200 with a mouse monoclonal antibody recognizing Heat Shock Protein 70 ab5442 or without primary antibody (negative control) overnight at 4°C in a humidified chamber. Tissues were washed extensively with PBST and endogenous peroxidase activity was quenched with a peroxidase suppressor. Detection was performed using a biotin-conjugated secondary antibody and SA-HRP followed by colorimetric detection using DAB. Tissues were counterstained with hematoxylin and prepped for mounting.



•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Hsp70 antibody [2A4] (ab5442)

  Immunohistochemistry was performed on cancer biopsies of deparaffinized Human prostate carcinoma tissue. To expose target proteins heat induced antigen retrieval was performed using 10mM sodium citrate (pH6.0) buffer microwaved for 8-15 minutes. Following antigen retrieval tissues were blocked in 3% BSA-PBS for 30 minutes at room temperature. Tissues were then probed at a dilution of 1:200 with a mouse monoclonal antibody recognizing Heat Shock Protein 70 ab5442 or without primary antibody (negative control) overnight at 4°C in a humidified chamber. Tissues were washed extensively with PBST and endogenous peroxidase activity was quenched with a peroxidase suppressor. Detection was performed using a biotin-conjugated secondary antibody and SA-HRP followed by colorimetric detection using DAB. Tissues were counterstained with hematoxylin and prepped for mounting.



•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Hsp70 antibody [2A4] (ab5442)

  Immunohistochemistry was performed on normal biopsies of deparaffinized Human breast tissue. To expose target proteins heat induced antigen retrieval was performed using 10mM sodium citrate (pH6.0) buffer microwaved for 8-15 minutes. Following antigen retrieval tissues were blocked in 3% BSA-PBS for 30 minutes at room temperature. Tissues were then probed at a dilution of 1:200 with a mouse monoclonal antibody recognizing Heat Shock Protein 70 ab5442 or without primary antibody (negative control) overnight at 4°C in a humidified chamber. Tissues were washed extensively with PBST and endogenous peroxidase activity was quenched with a peroxidase suppressor. Detection was performed using a biotin-conjugated secondary antibody and SA-HRP followed by colorimetric detection using DAB. Tissues were counterstained with hematoxylin and prepped for mounting.
