Anti-HUS1 antibody [EPR5132] - BSA and Azide free

• Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Anti-HUS1 antibody [EPR5132] - BSA and Azide free (AB247838)

This data was developed using ab109371, the same antibody clone in a different buffer formulation.

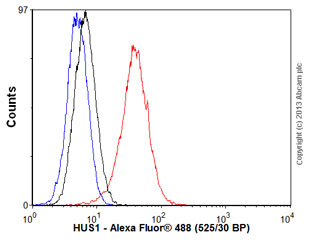

Overlay histogram showing HeLa cells stained with ab109371 (red line). The cells were fixed with 4% paraformaldehyde (10 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab109371, 1/1000 dilution) for 30 min at 22°C. The secondary antibody used was Alexa Fluor^® 488 goat anti-rabbit IgG (H+L) (ab150077) at 1/2000 dilution for 30 min at 22°C. Isotype control antibody (black line) was rabbit IgG (monoclonal) (0.1µg/1x10⁶ cells) used under the same conditions. Unlabelled sample (blue line) was also used as a control. Acquisition of >5,000 events were collected using a 20mW Argon ion laser (488nm) and 525/30 bandpass filter. This antibody gave a positive signal in HeLa cells fixed with 80% methanol (5 min)/permeabilized with 0.1% PBS-Tween for 20 min used under the same conditions.

• WB

Unknown

Western blot - Anti-HUS1 antibody [EPR5132] - BSA and Azide free (AB247838)

This data was developed using ab109371, the same antibody clone in a different buffer formulation.

All lanes:

Western blot - Anti-HUS1 antibody [EPR5132] - BSA and Azide free (ab247838) at 1/1000 dilution

Lane 1:

HeLa cell lysate at 10 µg

Lane 2:

K562 cell lysate at 10 µg

Lane 3:

A431 cell lysate at 10 µg

Predicted band size: 32 kDa

Observed band size: 34 kDa
