Anti-Iba1 antibody [EPR6136(2)] (ab178680) is a rabbit monoclonal antibody that is used to detect Iba1 in Western Blot, Flow Cytometry (Intra), Flow Cytometry, IHC-P, ICC/IF. Suitable for Human samples.



- Using biophysical QC, antibody identity is confirmed at a molecular level for unrivalled batch-batch consistency

-Over 20 publications


Images

Immunocytochemistry/ Immunofluorescence - Anti-Iba1 antibody [EPR6136(2)] (AB178680), expandable thumbnail
  • Western blot - Anti-Iba1 antibody [EPR6136(2)] (AB178680), expandable thumbnail
  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Iba1 antibody [EPR6136(2)] (AB178680), expandable thumbnail
  • Flow Cytometry (Intracellular) - Anti-Iba1 antibody [EPR6136(2)] (AB178680), expandable thumbnail
  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Iba1 antibody [EPR6136(2)] (AB178680), expandable thumbnail

Publications

Key facts

Isotype
IgG
Host species
Rabbit
Storage buffer

pH: 7.2 - 7.4
Preservative: 0.01% Sodium azide
Constituents: 59% PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA

Form
Liquid
Clonality
Monoclonal

Immunogen

  • The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
IHC-PWBICC/IFFlow Cyt (Intra)
Human
Tested
Tested
Tested
Tested

Tested
Tested

Species
Human
Dilution info
1/16000
Notes

For unpurified use at 1/250 - 1/500.

Perform heat-mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.

Tested
Tested

Species
Human
Dilution info
1/1000
Notes

-

Tested
Tested

Species
Human
Dilution info
1/100
Notes

-

Tested
Tested

Species
Human
Dilution info
1/100 - 1/500
Notes

ab172730 - Rabbit monoclonal IgG, is suitable for use as an isotype control with this antibody.

Associated Products

Select an associated product type

13 products for Alternative Product

Target data

Function

Actin-binding protein that enhances membrane ruffling and RAC activation. Enhances the actin-bundling activity of LCP1. Binds calcium. Plays a role in RAC signaling and in phagocytosis. May play a role in macrophage activation and function. Promotes the proliferation of vascular smooth muscle cells and of T-lymphocytes. Enhances lymphocyte migration. Plays a role in vascular inflammation.

Alternative names

G1, IBA1, AIF1, Allograft inflammatory factor 1, AIF-1, Ionized calcium-binding adapter molecule 1, Protein G1

Recommended products

Anti-Iba1 antibody [EPR6136(2)] (ab178680) is a rabbit monoclonal antibody that is used to detect Iba1 in Western Blot, Flow Cytometry (Intra), Flow Cytometry, IHC-P, ICC/IF. Suitable for Human samples.



- Using biophysical QC, antibody identity is confirmed at a molecular level for unrivalled batch-batch consistency

-Over 20 publications

Key facts

Isotype
IgG
Form
Liquid
Clonality
Monoclonal
Immunogen
  • The exact immunogen used to generate this antibody is proprietary information.
Clone number
EPR6136(2)
Purification technique
Affinity purification Protein A
Concentration
Loading...

Storage

Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle

Notes

Find all reagents to label astrocytes in our "Microglia markers guide".

Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.
Activity summary

Iba1 also known as Allograft Inflammatory Factor 1 (AIF-1) is a 17 kDa protein notable for its involvement in immune responses. It is expressed mainly in microglia and macrophages key components of the central nervous system's immune system. Researchers often use Iba1 in Western blots and immunohistochemistry (IHC) to study microglial activation. The protein's expression is a strong marker of microglial activation making it a focal point in neuroinflammation studies. Anti-Iba1 antibodies have gained popularity for their effectiveness in identifying microglia in brain tissue sections through Iba1 staining techniques.

Biological function summary

Iba1 modulates actin bundling facilitating changes in microglial morphology and motility. It does not form part of a multiprotein complex but is significantly involved in cytoskeletal dynamics. This protein's expression increases during brain injury indicating its role in response to neural trauma. Iba1 has calcium-binding properties which suggest that it might interact with proteins involved in calcium signaling pathways.

Pathways

Calcium signaling and actin cytoskeletal rearrangement are significant biological processes that involve Iba1. Within these pathways Iba1 interacts closely with other actin-binding proteins that affect microglial movement and morphology. Such interactions illustrate how Iba1 helps microglia navigate and respond to changes within the brain environment.

Associated diseases and disorders

Iba1 is often associated with neurodegenerative diseases like Alzheimer's disease and amyotrophic lateral sclerosis (ALS). In these conditions elevated Iba1 levels mark increased microglial activity which correlates with disease progression. Connections with proteins such as amyloid-beta in Alzheimer's disease suggest its role in mediating inflammatory responses and linking inflammation to disease pathology.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

8 product images

  • Immunocytochemistry/ Immunofluorescence - Anti-Iba1 antibody [EPR6136(2)] (ab178680), expandable thumbnail

    Immunocytochemistry/ Immunofluorescence - Anti-Iba1 antibody [EPR6136(2)] (ab178680)

    Immunocytochemistry analysis of Jurkat (Human T cell leukemia T lymphocyte) cells labeling Iba1 with purified ab178680 at 1:100 dilution (9.7 µg/ml). Cells were fixed in 4% Paraformaldehyde and permeabilized with 0.1% tritonX-100. Cells were counterstained with Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor® 594) at 1/200 dilution (2.5 µg/ml) (Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889) (red). Goat anti-rabbit IgG (Alexa Fluor® 488) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) was used as the secondary antibody at 1:1000 (2 µg/ml) dilution. DAPI (blue) was used as a nuclear counterstain. PBS instead of the primary antibody was used as the secondary antibody only control.

  • Western blot - Anti-Iba1 antibody [EPR6136(2)] (ab178680), expandable thumbnail

    Western blot - Anti-Iba1 antibody [EPR6136(2)] (ab178680)

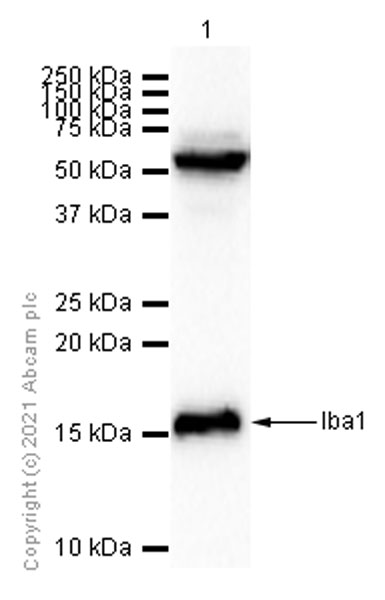

    All lanes: Western blot - Anti-Iba1 antibody [EPR6136(2)] (ab178680) at 1/1000 dilution

    All lanes: THP-1 (Human monocytic leukemia monocyte) whole cell lysate at 20 µg

    Secondary

    All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution

    Predicted band size: 16 kDa

    Observed band size: 17 kDa

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Iba1 antibody [EPR6136(2)] (ab178680), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Iba1 antibody [EPR6136(2)] (ab178680)

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human kidney tissue sections labeling Iba1 with purified ab178680 at 1:16000 (0.06 μg/ml). Heat mediated antigen retrieval was performed using Antigen Retrieval Buffer (100X Citrate Buffer) ab93678 (citrate buffer, pH 6.0). Tissue was counterstained with Hematoxylin. ImmunoHistoProbe one step HRP Polymer (ready to use) was used at 1:0 dilution. PBS instead of the primary antibody was used as the negative control.

  • Flow Cytometry (Intracellular) - Anti-Iba1 antibody [EPR6136(2)] (ab178680), expandable thumbnail

    Flow Cytometry (Intracellular) - Anti-Iba1 antibody [EPR6136(2)] (ab178680)

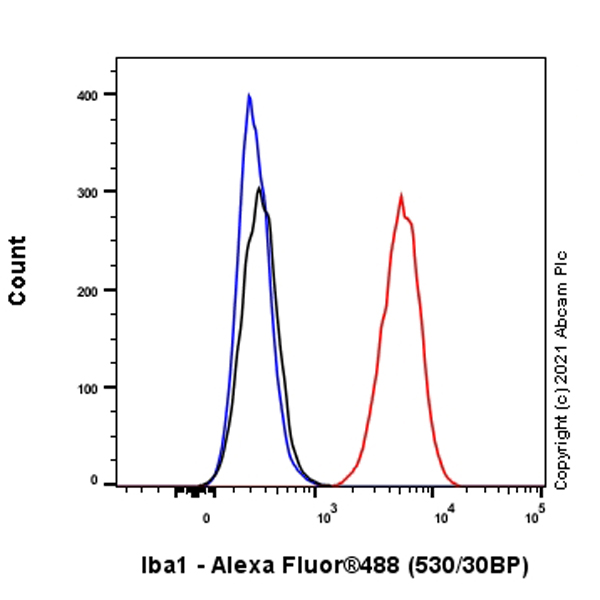

    Flow Cytometry analysis of K-562 (Human chronic myelogenous leukemia lymphoblast) cells labelling Iba1 with purified ab178680 at 1/100 dilution (10 µg/ml) (red). Cells were fixed with 4% Paraformaldehyde and permeabilised with 90% Methanol. A Goat anti-rabbit IgG (Alexa Fluor® 488) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081) secondary antibody was used at 1/2000. Isotype control - Rabbit monoclonal IgG (black). Unlabelled control - Cell without incubation with primary antibody and secondary antibody (blue).

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Iba1 antibody [EPR6136(2)] (ab178680), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Iba1 antibody [EPR6136(2)] (ab178680)

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human cerebrum tissue sections labeling Iba1 with purified ab178680 at 1:16000 (0.06 μg/ml). Heat mediated antigen retrieval was performed using Antigen Retrieval Buffer (100X Citrate Buffer) ab93678 (citrate buffer, pH 6.0). Tissue was counterstained with Hematoxylin. ImmunoHistoProbe one step HRP Polymer (ready to use) was used at 1:0 dilution. PBS instead of the primary antibody was used as the negative control.

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Iba1 antibody [EPR6136(2)] (ab178680), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Iba1 antibody [EPR6136(2)] (ab178680)

    Immunohistochemical analysis of Paraffin-embedded sections Human tonsil tissue labelling Iba1 with ab178680 at 1/100000 dilution, followed by a ready to use secondary LeicaDS9800 (BondTM Polymer Refine Detection). Counter stained with Haematoxylin.
    Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is ready to use LeicaDS9800 (BondTM Polymer Refine Detection).

    Heat mediated antigen retrieval using Bond™ Epitope Retrieval Solution 2 (pH 9.0) for 20 minutes.

    Positive staining on human tonsil.

    The section was incubated with ab178680 for 30 mins at room temperature.

    The immunostaining was performed on a Leica Biosystems BOND® RX instrument.

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Iba1 antibody [EPR6136(2)] (ab178680), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Iba1 antibody [EPR6136(2)] (ab178680)

    Immunohistochemical analysis of Paraffin-embedded sections Human cerebrum tissue labelling Iba1 with ab178680 at 1/100000 dilution, followed by a ready to use secondary LeicaDS9800 (BondTM Polymer Refine Detection). Counter stained with Haematoxylin.
    Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is ready to use LeicaDS9800 (BondTM Polymer Refine Detection).

    Heat mediated antigen retrieval using Bond™ Epitope Retrieval Solution 2 (pH 9.0) for 20 minutes.

    Positive staining on human cerebrum.

    The section was incubated with ab178680 for 30 mins at room temperature.

    The immunostaining was performed on a Leica Biosystems BOND® RX instrument

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Iba1 antibody [EPR6136(2)] (ab178680), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Iba1 antibody [EPR6136(2)] (ab178680)

    Immunohistochemical analysis of Paraffin-embedded sections Human glioma tissue labelling Iba1 with ab178680 at 1/100000 dilution, followed by a ready to use secondary LeicaDS9800 (BondTM Polymer Refine Detection). Counter stained with Haematoxylin.
    Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is ready to use LeicaDS9800 (BondTM Polymer Refine Detection).

    Heat mediated antigen retrieval using Bond™ Epitope Retrieval Solution 2 (pH 9.0) for 20 minutes.

    Positive staining on human glioma.

    The section was incubated with ab178680 for 30 mins at room temperature.

    The immunostaining was performed on a Leica Biosystems BOND® RX instrument.
