AB251479

Anti-ICA 512/PTPRN antibody [EPR20718] - BSA and Azide free

Be the first to review this product! Submit a review

|

(0 Publication)

Rabbit Recombinant Monoclonal ICA 512/PTPRN antibody. Carrier free. Suitable for IP, WB, IHC-Fr, IHC-P and reacts with Mouse, Human, Rat samples.

View Alternative Names

ICA3, ICA512, PTPRN, Receptor-type tyrosine-protein phosphatase-like N, R-PTP-N, Islet cell antigen 512, Islet cell autoantigen 3, PTP IA-2, ICA 512

8 Images
Western blot - Anti-ICA 512/PTPRN antibody [EPR20718] - BSA and Azide free (AB251479)
  • WB

Supplier Data

Western blot - Anti-ICA 512/PTPRN antibody [EPR20718] - BSA and Azide free (AB251479)

This data was developed using ab207750, the same antibody clone in a different buffer formulation.

Blocking and dilution buffer : 5% NFDM/TBST.

Exposure times : Lane 1 : 3 minutes; Lane 2 : 5 seconds.

The molecular weight observed is consistent with what has been described in the literature (PMID : 15596545; 18824546).

All lanes:

Western blot - Anti-ICA 512/PTPRN antibody [EPR20718] (<a href='/en-us/products/primary-antibodies/ica-512-ptprn-antibody-epr20718-ab207750'>ab207750</a>) at 1/1000 dilution

Lane 1:

Rat pancreas tissue lysate at 20 µg

Lane 2:

Human pancreas tissue lysate at 20 µg

Secondary

Lane 1:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Lane 2:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/50000 dilution

Predicted band size: 106 kDa

Observed band size: 65 kDa

false

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ICA 512/PTPRN antibody [EPR20718] - BSA and Azide free (AB251479)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ICA 512/PTPRN antibody [EPR20718] - BSA and Azide free (AB251479)

This data was developed using ab207750, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded rat pancreas tissue labeling ICA 512/PTPRN with ab207750 at 1/500 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) Ready to use. Cytoplasmic staining on rat pancreatic islets is observed (PMID : 8641276). Counter stained with hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) Ready to use.

Perform heat mediated antigen retrieval using ab93684 (Tris/EDTA buffer, pH 9.0).

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ICA 512/PTPRN antibody [EPR20718] - BSA and Azide free (AB251479)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ICA 512/PTPRN antibody [EPR20718] - BSA and Azide free (AB251479)

This data was developed using ab207750, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded mouse adrenal gland tissue labeling ICA 512/PTPRN with ab207750 at 1/500 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) Ready to use. Cytoplasmic staining on chromaffin cells of mouse adrenal medulla is observed (PMID : 8641276). Counter stained with hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) Ready to use.

Perform heat mediated antigen retrieval using ab93684 (Tris/EDTA buffer, pH 9.0).

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ICA 512/PTPRN antibody [EPR20718] - BSA and Azide free (AB251479)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ICA 512/PTPRN antibody [EPR20718] - BSA and Azide free (AB251479)

This data was developed using ab207750, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded human pancreas tissue labeling ICA 512/PTPRN with ab207750 at 1/500 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) Ready to use. Cytoplasmic staining on human pancreatic islets is observed (PMID : 8641276). Counter stained with hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) Ready to use.

Perform heat mediated antigen retrieval using ab93684 (Tris/EDTA buffer, pH 9.0).

Immunohistochemistry (Frozen sections) - Anti-ICA 512/PTPRN antibody [EPR20718] - BSA and Azide free (AB251479)
  • IHC-Fr

Supplier Data

Immunohistochemistry (Frozen sections) - Anti-ICA 512/PTPRN antibody [EPR20718] - BSA and Azide free (AB251479)

This data was developed using ab207750, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of 4% PFA-fixed, 0.2 % Triton X-100 permeabilized mouse pancreas tissue labeling ICA 512/PTPRN with ab207750 at 1/500 dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (ab150077) at 1/1000 dilution (green). Positive cytoplasmic staining in mouse pancreatic islet cells is observed (PMID : 10820150).

The nuclear counter stain is DAPI (blue).

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (ab150077) at 1/500 dilution.

Antigen retrieval : Heated citrate solution (10mM citrate pH 6.0 + 0.05% Tween-20).

Immunohistochemistry (Frozen sections) - Anti-ICA 512/PTPRN antibody [EPR20718] - BSA and Azide free (AB251479)
  • IHC-Fr

Supplier Data

Immunohistochemistry (Frozen sections) - Anti-ICA 512/PTPRN antibody [EPR20718] - BSA and Azide free (AB251479)

This data was developed using ab207750, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of 4% PFA-fixed, 0.2 % Triton X-100 permeabilized rat pancreas tissue labeling ICA 512/PTPRN with ab207750 at 1/500 dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (ab150077) at 1/1000 dilution (green). Weak positive cytoplasmic staining in rat pancreatic islet cells is observed (PMID : 10820150).

The nuclear counter stain is DAPI (blue).

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (ab150077) at 1/500 dilution.

Antigen retrieval : Heated citrate solution (10mM citrate pH 6.0 + 0.05% Tween-20).

Immunoprecipitation - Anti-ICA 512/PTPRN antibody [EPR20718] - BSA and Azide free (AB251479)
  • IP

Supplier Data

Immunoprecipitation - Anti-ICA 512/PTPRN antibody [EPR20718] - BSA and Azide free (AB251479)

This data was developed using ab207750, the same antibody clone in a different buffer formulation.

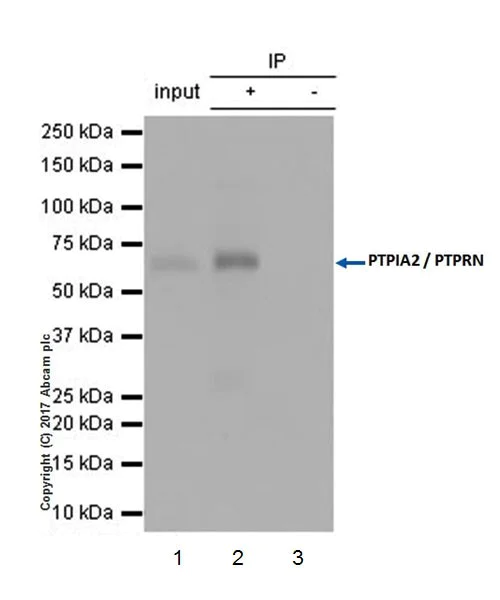

ICA 512/PTPRN was immunoprecipitated from 0.35 mg of mouse hypothalamus tissue lysate with ab207750 at 1/40 dilution. Western blot was performed from the immunoprecipitate using ab207750 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP) (ab131366), was used for detection at 1/10000 dilution.

Lane 1 : Mouse hypothalamus lysate 10 μg (Input).

Lane 2 : ab207750 IP in mouse hypothalamus tissue lysate (+).

Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab207750 in mouse hypothalamus tissue lysate (-).

Blocking and dilution buffer : 5% NFDM/TBST.

Exposure time : 1 second.

All lanes:

Immunoprecipitation - Anti-ICA 512/PTPRN antibody [EPR20718] (<a href='/en-us/products/primary-antibodies/ica-512-ptprn-antibody-epr20718-ab207750'>ab207750</a>)

Predicted band size: 106 kDa

Observed band size: 65 kDa

false

Western blot - Anti-ICA 512/PTPRN antibody [EPR20718] - BSA and Azide free (AB251479)
  • WB

Supplier Data

Western blot - Anti-ICA 512/PTPRN antibody [EPR20718] - BSA and Azide free (AB251479)

This data was developed using ab207750, the same antibody clone in a different buffer formulation.

Blocking and dilution buffer : 5% NFDM/TBST.

The molecular weight observed is consistent with what has been described in the literature (PMID : 15596545 and 18824546).

All lanes:

Western blot - Anti-ICA 512/PTPRN antibody [EPR20718] (<a href='/en-us/products/primary-antibodies/ica-512-ptprn-antibody-epr20718-ab207750'>ab207750</a>) at 1/5000 dilution

Lane 1:

Human hippocampus lysate at 20 µg

Lane 2:

Mouse hypothalamus lysate at 20 µg

Lane 3:

Mouse brain lysate at 20 µg

Lane 4:

Mouse hippocampus lysate at 20 µg

Lane 5:

Rat hippocampus lysate at 20 µg

Lane 6:

Rat brain lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Predicted band size: 106 kDa

Observed band size: 65 kDa

true

Exposure time: 30s

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR20718

Isotype

IgG

Carrier free

Yes

Reacts with

Mouse, Rat, Human

Applications

IHC-P, IP, WB, IHC-Fr

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "IP" : {"fullname" : "Immunoprecipitation", "shortname":"IP"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"}, "IHCFr" : {"fullname" : "Immunohistochemistry (Frozen sections)", "shortname":"IHC-Fr"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "IP-species-checked": "guaranteed", "IP-species-dilution-info": "", "IP-species-notes": "", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "", "WB-species-notes": "<p></p>", "IHCFr-species-checked": "guaranteed", "IHCFr-species-dilution-info": "", "IHCFr-species-notes": "", "IHCP-species-checked": "guaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": "" }, "Mouse": { "IP-species-checked": "testedAndGuaranteed", "IP-species-dilution-info": "", "IP-species-notes": "<p></p>", "WB-species-checked": "guaranteed", "WB-species-dilution-info": "", "WB-species-notes": "", "IHCFr-species-checked": "testedAndGuaranteed", "IHCFr-species-dilution-info": "", "IHCFr-species-notes": "<p></p>", "IHCP-species-checked": "guaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": "" }, "Rat": { "IP-species-checked": "guaranteed", "IP-species-dilution-info": "", "IP-species-notes": "", "WB-species-checked": "guaranteed", "WB-species-dilution-info": "", "WB-species-notes": "", "IHCFr-species-checked": "guaranteed", "IHCFr-species-dilution-info": "", "IHCFr-species-notes": "", "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": "<p></p>" } } }
style
left-column

You may be interested in:

AB226903

Human ICA 512 / PTPRN ELISA Kit

0

0 Reviews

View product

We recommend this product because it’s often used in the same experiment or related research.

We advise that you always check the datasheet to ensure it fits your experiments, or contact ourtechnical teamfor help.

style
left-column

Product details

ab251479 is the carrier-free version of ab207750.

Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Conjugation ready
Our carrier-free antibodies are typically supplied in a PBS-only formulation, purified and free of BSA, sodium azide and glycerol. This conjugation-ready format is designed for use with fluorochromes, metal isotopes, oligonucleotides, and enzymes, which makes them ideal for antibody labelling, functional and cell-based assays, flow-based assays (e.g. mass cytometry) and Multiplex Imaging applications.

Use our conjugation kits for antibody conjugates that are ready-to-use in as little as 20 minutes with 1 minute hands-on-time and 100% antibody recovery: available for fluorescent dyes, HRP, biotin and gold.

Compatibility
This product is compatible with the Maxpar® Antibody Labeling Kit from Fluidigm, without the need for antibody preparation. Maxpar® is a trademark of Fluidigm Canada Inc.

style
left-column

Properties and storage information

Form
Liquid
Purification technique
Affinity purification Protein A
Storage buffer
pH: 7.2 - 7.4 Constituents: PBS
Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
Do Not Freeze
style
left-column
style
left-column
style
left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:
style
left-column

Target data

Plays a role in vesicle-mediated secretory processes (PubMed : 24843546). Required for normal accumulation of secretory vesicles in hippocampus, pituitary and pancreatic islets (By similarity). Required for the accumulation of normal levels of insulin-containing vesicles and preventing their degradation (PubMed : 24843546). Plays a role in insulin secretion in response to glucose stimuli (PubMed : 24843546). Required for normal accumulation of the neurotransmitters norepinephrine, dopamine and serotonin in the brain (By similarity). In females, but not in males, required for normal accumulation and secretion of pituitary hormones, such as luteinizing hormone (LH) and follicle-stimulating hormone (FSH) (By similarity). Required to maintain normal levels of renin expression and renin release (By similarity). Seems to lack intrinsic enzyme activity (By similarity). May regulate catalytic active protein-tyrosine phosphatases such as PTPRA through dimerization (By similarity).. ICA512-transmembrane fragment. ICA512-TMF regulates dynamics and exocytosis of insulin secretory granules (SGs); binding of ICA512-TMF to SNTB2/beta-2-syntrophin is proposed to restrain SGs mobility and exocytosis by tethering them to the actin cytoskeleton depending on UTRN; the function is inhibited by cytoplasmic ICA512-CFF dimerizing with ICA512-TMF and displacing SNTB2.. ICA512-cleaved cytosolic fragment. ICA512-CCF translocated to the nucleus promotes expression of insulin and other granule-related genes; the function implicates binding to and regulating activity of STAT5B probably by preventing its dephosphorylation and potentially by inducing its sumoylation by recruiting PIAS4 (PubMed : 15596545, PubMed : 16622421, PubMed : 18178618). Enhances pancreatic beta-cell proliferation by converging with signaling by STAT5B and STAT3 (PubMed : 15596545, PubMed : 16622421, PubMed : 18178618). ICA512-CCF located in the cytoplasm regulates dynamics and exocytosis of insulin secretory granules (SGs) by dimerizing with ICA512-TMF and displacing SNTB2 thus enhancing SGs mobility and exocytosis (PubMed : 18824546, PubMed : 20886068).
See full target information PTPRN
style
left-column
style
left-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.
