Anti-ICOS antibody [EPR20560] - BSA and Azide free

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ICOS antibody [EPR20560] - BSA and Azide free (AB225577)

Immunohistochemical analysis of paraffin-embedded human stomach tissue labeling ICOS with ab224644 at 1/1000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) Ready to use. Cytoplasmic and membranous staining in a population of lymphoid cells of human stomach (magnification x200) is observed. Counter stained with hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) Ready to use.

Perform heat mediated antigen retrieval using ab93684 (Tris/EDTA buffer, pH 9.0).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab224644).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ICOS antibody [EPR20560] - BSA and Azide free (AB225577)

Immunohistochemical analysis of paraffin-embedded human cervix cancer tissue labeling ICOS with ab224644 at 1/1000 dilution, followed by a ready to use Goat Anti-Rabbit IgG H&L (HRP). Cytoplasmic and membranous staining in tumor infiltrating lymphoid cells of human cervix cancer (PMID : 23802069) is observed. Counter stained with hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is a ready to use Goat Anti-Rabbit IgG H&L (HRP).

Perform heat mediated antigen retrieval using ab93684 (Tris/EDTA buffer, pH 9.0).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab224644).

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ICOS antibody [EPR20560] - BSA and Azide free (AB225577)

Immunohistochemical analysis of paraffin-embedded human tonsil tissue labeling ICOS with ab224644 at 1/1000 dilution, followed by a ready to use Goat Anti-Rabbit IgG H&L (HRP). Cytoplasmic and membranous staining in a population of lymphoid cells of human tonsil (PMID : 20207847), (magnification x200) is observed. Counter stained with hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is a ready to use Goat Anti-Rabbit IgG H&L (HRP).

Perform heat mediated antigen retrieval using ab93684 (Tris/EDTA buffer, pH 9.0).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab224644).

• IP

Supplier Data

Immunoprecipitation - Anti-ICOS antibody [EPR20560] - BSA and Azide free (AB225577)

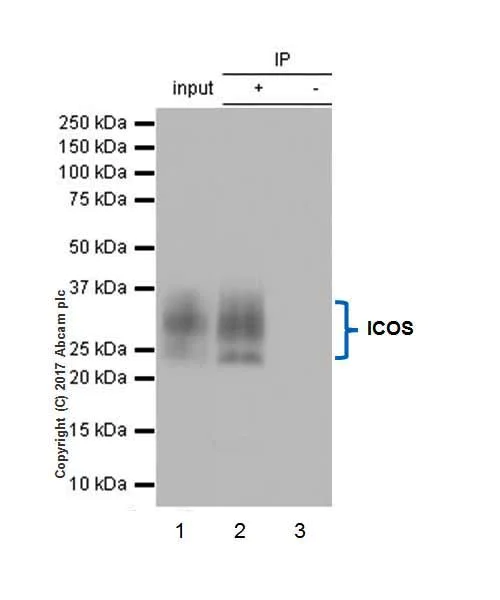

ICOS was immunoprecipitated from 0.35 mg of human tonsil tissue lysate with ab224644 at 1/30 dilution. Western blot was performed from the immunoprecipitate using ab224644 at 1/500 dilution. VeriBlot for IP Detection Reagent (HRP) (ab131366), was used for detection at 1/1000 dilution.

Lane 1 : Human tonsil tissue lysate 10 μg (Input).
Lane 2 : ab224644 IP in human tonsil tissue lysate (+).
Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab224644 in human tonsil tissue lysate (-).

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

Exposure time : 1 second.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab224644).

All lanes:

Immunoprecipitation - Anti-ICOS antibody [EPR20560] (<a href='/en-us/products/primary-antibodies/icos-antibody-epr20560-ab224644'>ab224644</a>)

Predicted band size: 22 kDa

Observed band size: 27-29 kDa

true

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ICOS antibody [EPR20560] - BSA and Azide free (AB225577)

Immunohistochemical analysis of paraffin-embedded rat spleen tissue labeling ICOS with ab224644 at 1/500 dilution, followed by a ready to use Goat Anti-Rabbit IgG H&L (HRP). Cytoplasmic and membranous staining in a population of lymphoid cells of rat spleen is observed. Counter stained with hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is a ready to use Goat Anti-Rabbit IgG H&L (HRP).

Perform heat mediated antigen retrieval using ab93684 (Tris/EDTA buffer, pH 9.0).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab224644).

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ICOS antibody [EPR20560] - BSA and Azide free (AB225577)

Immunohistochemical analysis of paraffin-embedded mouse spleen tissue labeling ICOS with ab224644 at 1/500 dilution, followed by a ready to use Goat Anti-Rabbit IgG H&L (HRP). Cytoplasmic and membranous staining in a population of lymphoid cells of mouse spleen is observed. Counter stained with hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is a ready to use Goat Anti-Rabbit IgG H&L (HRP).

Perform heat mediated antigen retrieval using ab93684 (Tris/EDTA buffer, pH 9.0).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab224644).
