Anti-IFRD1 antibody [EPR28794-89] - BSA and Azide free

• Flow Cyt (Intra)

Supplier Data

Flow Cytometry (Intracellular) - Anti-IFRD1 antibody [EPR28794-89] - BSA and Azide free (AB318975)

This data was developed using ab318974, the same antibody clone in a different buffer formulation.

Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized HeLa (human cervical adenocarcinoma epithelial cell) cells labelling IFRD1 with ab318974 at 1/50 dilution (1ug) / Magenta compared with a Rabbit monoclonal IgG (ab172730) (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue).

Goat Anti-Rabbit IgG (Alexa Fluor® 488, ab150081) at 1/5000 dilution was used as the secondary antibody.

• WB

Supplier Data

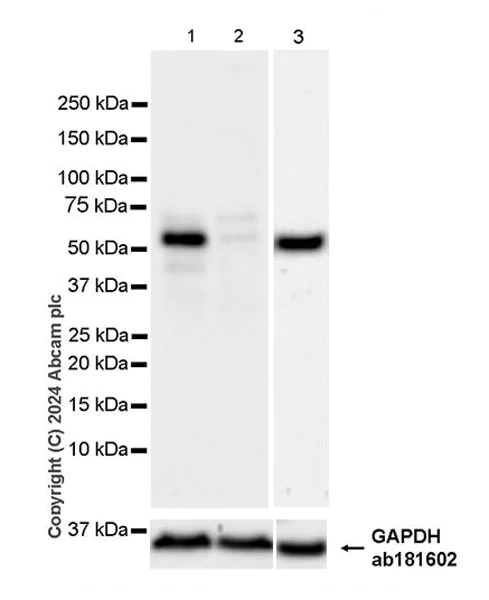

Western blot - Anti-IFRD1 antibody [EPR28794-89] - BSA and Azide free (AB318975)

This data was developed using ab318974, the same antibody clone in a different buffer formulation.

In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) staining at 1/200000 dilution.

All lanes:

Western blot - Anti-IFRD1 antibody [EPR28794-89] (<a href='/en-us/products/primary-antibodies/ifrd1-antibody-epr28794-89-ab318974'>ab318974</a>) at 1/1000 dilution

Lane 1:

HeLa (human cervical adenocarcinoma epithelial cell) transfected with scrambled siRNA control whole cell lysate at 20 µg with NFDM/TBST

Lane 2:

HeLa transfected with siRNA specifically targeting IFRD1 whole cell lysate at 20 µg with NFDM/TBST

Lane 3:

Raji (human Burkitts lymphoma B lymphocyte) whole cell lysate at 20 µg with NFDM/TBST

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 51 kDa,36 kDa

false

Exposure time: 180s

• WB

Supplier Data

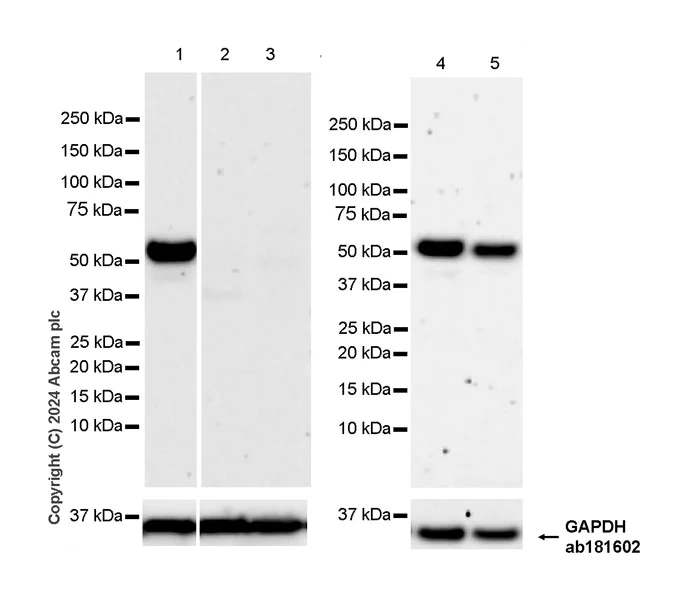

Western blot - Anti-IFRD1 antibody [EPR28794-89] - BSA and Azide free (AB318975)

This data was developed using ab318974, the same antibody clone in a different buffer formulation.

Low expression : liver, kidney (PMID : 9722946).

In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) staining at 1/200000 dilution.

All lanes:

Western blot - Anti-IFRD1 antibody [EPR28794-89] (<a href='/en-us/products/primary-antibodies/ifrd1-antibody-epr28794-89-ab318974'>ab318974</a>) at 1/1000 dilution

Lane 1:

Mouse pancreas tissue lysate at 50 µg with NFDM/TBST

Lane 2:

Mouse liver tissue lysate at 50 µg with NFDM/TBST

Lane 3:

Mouse kidney tissue lysate at 50 µg with NFDM/TBST

Lane 4:

F9 (mouse embryonal carcinoma epithelial cell) whole cell lysate at 20 µg with NFDM/TBST

Lane 5:

NIH/3T3 (mouse embryonic fibroblast) whole cell lysate at 20 µg with NFDM/TBST

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 51 kDa,36 kDa

false

Exposure time: 180s

• Dot

Supplier Data

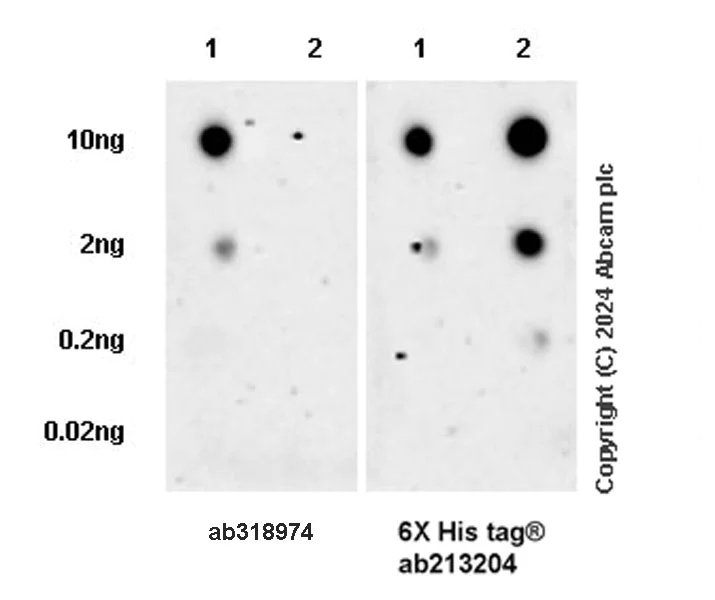

Dot Blot - Anti-IFRD1 antibody [EPR28794-89] - BSA and Azide free (AB318975)

This data was developed using ab318974, the same antibody clone in a different buffer formulation.

Dot blot analysis of IFRD1 using ab318974 at 1 : 1000 (0.506 ug/ml) followed by a Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated (ab97051) at 1 : 100,000 dilution.

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

This antibody does not cross-react with human IFRD2.

All lanes:

Dot Blot - Anti-IFRD1 antibody [EPR28794-89] (<a href='/en-us/products/primary-antibodies/ifrd1-antibody-epr28794-89-ab318974'>ab318974</a>) at 1/1000 dilution

Lane 1:

His-tagged human IFRD1 recombinant fragment

Lane 2:

His-tagged human IFRD2 recombinant protein

Secondary

All lanes:

Dot Blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

false

Exposure time: 180s
