AB5681

Anti-IGF1 Receptor (phospho Y1131+ Y1135+ Y1136) + INSR (phospho Y1158+ Y1162+ Y1163) antibody

4

(1 Review)

|

(11 Publications)

Rabbit Polyclonal IGF1 Receptor phospho Y1131 + Y1135 + Y1136 antibody. Suitable for WB and reacts with Recombinant full length protein - Human samples. Cited in 11 publications. Immunogen corresponding to Synthetic Peptide within Human IGF1R phospho Y1131 + Y1135 + Y1136.

View Alternative Names

CD221, Insulin-like growth factor 1 receptor, Insulin-like growth factor I receptor, IGF-I receptor, CD220, Insulin receptor, IR

1 Images

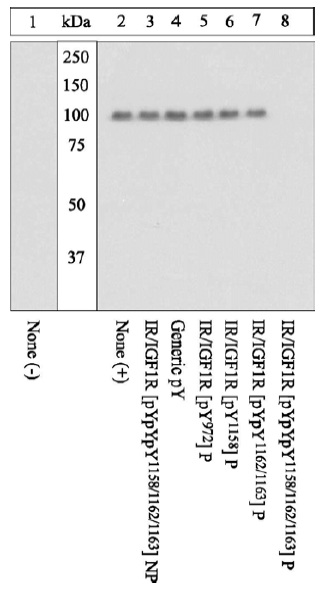

Western blot - Anti-IGF1 Receptor (phospho Y1131+ Y1135+ Y1136) + INSR (phospho Y1158+ Y1162+ Y1163) antibody (AB5681)
  • WB

Unknown

Western blot - Anti-IGF1 Receptor (phospho Y1131+ Y1135+ Y1136) + INSR (phospho Y1158+ Y1162+ Y1163) antibody (AB5681)

Peptide Competition - prior primary antibody incubation :

1 and 2 - no peptide,

3 - non-phosphorylated peptide corresponding to the immunogen,

4 - generic phosphotyrosine-containing peptide,

5 to 7 - phosphopeptides corresponding to other IR/IGF1R sites,

8 - phosphopeptide immunogen.

10% SDS-PAGE transferred to PVDF.

Method of detection : Pierce SuperSignal method.

The data show that only the phosphopeptide corresponding to IR/IGF1R [pYpYpY1158/1162/1163] completely blocks the antibody signal, thereby demonstrating the specificty.

All lanes:

Western blot - Anti-IGF1 Receptor (phospho Y1131+ Y1135+ Y1136) + INSR (phospho Y1158+ Y1162+ Y1163) antibody (ab5681) at 1/1000 dilution

Lane 1:

Unstimulated (-), CHO-T transfected with insulin receptor containing vector whole cell extract

Lanes 2 - 8:

Insulin stimulated (+), CHO-T transfected with insulin receptor containing vector whole cell extract

Secondary

All lanes:

goat F(ab’ 2 anti-rabbit IgG HRP conjugate

Predicted band size: 154 kDa

false

Key facts

Host species

Rabbit

Clonality

Polyclonal

Isotype

IgG

Carrier free

No

Reacts with

Human

Applications

WB

applications

Immunogen

Synthetic Peptide within Human IGF1R phospho Y1131 + Y1135 + Y1136. The exact immunogen used to generate this antibody is proprietary information.

P08069

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "WB-species-checked": "predicted", "WB-species-dilution-info": "", "WB-species-notes": "" }, "Mouse": { "WB-species-checked": "predicted", "WB-species-dilution-info": "", "WB-species-notes": "" }, "Rat": { "WB-species-checked": "predicted", "WB-species-dilution-info": "", "WB-species-notes": "" }, "Recombinant full length protein - Human": { "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/1000", "WB-species-notes": "<p></p>" } } }

Product details

The antiserum was produced against a chemically synthesized phosphopeptide derived from the region of IR/IGF1R that contains tyrosines 1158, 1162 and 1163 of the human insulin receptor (IR) as numbered according to Ebina, et al. (1146, 1150 and 1151 according to Ullrich, et al.). The corresponding residues in the IGF1R are 1131, 1135 and 1136. The sequence is conserved in human, mouse and rat for both the IR and IGF1R.

The two relevant papers are:
Ebina, Y., et al. (1985) The human insulin receptor cDNA: the structural basis for hormone-activated transmembrane signalling. Cell 40(4):747-758.
Ullrich, A., et al. (1985) Human insulin receptor and its relationship to the tyrosine kinase family of oncogenes. Nature 313(6005):756-761.

There are a long and a short isoform of this protein. This is why we are listing 1158, 1162 and 1163 in the name (where these phospho sites in the long isoform) as well as 1146, 1150 and 1151 (for the short isoform).

Properties and storage information

Form
Liquid
Purification technique
Affinity purification Immunogen
Purification notes
The antibody has been negatively preadsorbed using a non-phosphopeptide corresponding to the site of phosphorylation to remove antibody that is reactive with non-phosphorylated Insulin Receptor (IR). The final product is generated by affinity chromatography using an IR-derived peptide phosphorylated at tyrosines 1158, 1162 and 1163 (1131, 1135 and 1136 for IGF1R).
Storage buffer
pH: 7.3 Preservative: 0.05% Sodium azide Constituents: PBS, 50% Glycerol (glycerin, glycerine), 0.1% BSA
Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

The IGF1 Receptor often referred to as IGF-1R is a transmembrane receptor protein composed of alpha and beta subunits. Studies indicate that the IGF1R protein is involved in mediating the effects of insulin-like growth factor 1 (IGF-1) and plays an important role in cellular signaling. It has a molecular weight of approximately 180 kDa and is widely expressed in various tissues with high concentrations in the liver muscle and brain. Being a tyrosine kinase receptor IGF1R plays an essential role in growth and metabolism.
Biological function summary

IGF1R contributes to several cellular processes including cell proliferation differentiation and survival. This receptor forms a complex upon ligand binding and undergoes autophosphorylation to activate intracellular signaling cascades. IGF1R activation recruits and phosphorylates insulin receptor substrates enabling the downstream signaling pathways that promote cell growth and survival. Its function in cellular responses makes it a focal point in understanding cell biology.

Pathways

IGF1R holds a central position in the PI3K/AKT and MAPK signaling cascades. These pathways play significant roles in cellular growth proliferation and survival. IGF1R phosphorylates various downstream effectors such as IRS-1 and Shc linking it to the activation of AKT and ERK respectively. Therefore it shares pathways with related proteins like the insulin receptor highlighting its importance in mediating similar biological responses.

IGF1R has been implicated in cancers and diabetes. Overexpression of IGF1R has been observed in various malignancies including breast cancer where it relates to resistance in treatment and poor prognosis with cell lines like MCF-7 often being studied in this context. Additionally disruptions in IGF1R signaling link to insulin resistance an important feature of type 2 diabetes. These connections make IGF1R a potential therapeutic target with IGF1R inhibitors currently under exploration to address these health challenges.

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:

Target data

Receptor tyrosine kinase which mediates actions of insulin-like growth factor 1 (IGF1). Binds IGF1 with high affinity and IGF2 and insulin (INS) with a lower affinity. The activated IGF1R is involved in cell growth and survival control. IGF1R is crucial for tumor transformation and survival of malignant cell. Ligand binding activates the receptor kinase, leading to receptor autophosphorylation, and tyrosines phosphorylation of multiple substrates, that function as signaling adapter proteins including, the insulin-receptor substrates (IRS1/2), Shc and 14-3-3 proteins. Phosphorylation of IRSs proteins lead to the activation of two main signaling pathways : the PI3K-AKT/PKB pathway and the Ras-MAPK pathway. The result of activating the MAPK pathway is increased cellular proliferation, whereas activating the PI3K pathway inhibits apoptosis and stimulates protein synthesis. Phosphorylated IRS1 can activate the 85 kDa regulatory subunit of PI3K (PIK3R1), leading to activation of several downstream substrates, including protein AKT/PKB. AKT phosphorylation, in turn, enhances protein synthesis through mTOR activation and triggers the antiapoptotic effects of IGFIR through phosphorylation and inactivation of BAD. In parallel to PI3K-driven signaling, recruitment of Grb2/SOS by phosphorylated IRS1 or Shc leads to recruitment of Ras and activation of the ras-MAPK pathway. In addition to these two main signaling pathways IGF1R signals also through the Janus kinase/signal transducer and activator of transcription pathway (JAK/STAT). Phosphorylation of JAK proteins can lead to phosphorylation/activation of signal transducers and activators of transcription (STAT) proteins. In particular activation of STAT3, may be essential for the transforming activity of IGF1R. The JAK/STAT pathway activates gene transcription and may be responsible for the transforming activity. JNK kinases can also be activated by the IGF1R. IGF1 exerts inhibiting activities on JNK activation via phosphorylation and inhibition of MAP3K5/ASK1, which is able to directly associate with the IGF1R.. When present in a hybrid receptor with INSR, binds IGF1. PubMed : 12138094 shows that hybrid receptors composed of IGF1R and INSR isoform Long are activated with a high affinity by IGF1, with low affinity by IGF2 and not significantly activated by insulin, and that hybrid receptors composed of IGF1R and INSR isoform Short are activated by IGF1, IGF2 and insulin. In contrast, PubMed : 16831875 shows that hybrid receptors composed of IGF1R and INSR isoform Long and hybrid receptors composed of IGF1R and INSR isoform Short have similar binding characteristics, both bind IGF1 and have a low affinity for insulin.
See full target information IGF1R phospho Y1131 + Y1135 + Y1136

Publications (11)

Recent publications for all applications. Explore the full list and refine your search

Genetics research 2022:1500768 PubMed36325267

2022

Upregulation of Klotho Aggravates Insulin Resistance in Gestational Diabetes Mellitus Trophoblast Cells.

Applications

Unspecified application

Species

Unspecified reactive species

Li Lin,Xinyu Wang,Weihua Zhao,Yaxuan Chen

Acta biomaterialia 97:399-408 PubMed31421230

2019

Regulation of chitosan-mediated differentiation of human olfactory receptor neurons by insulin-like growth factor binding protein-2.

Applications

Unspecified application

Species

Unspecified reactive species

Tsung-Wei Huang,Sheng-Tien Li,Yu-Hsin Wang,Tai-Horng Young

Journal of cellular physiology 234:21817-21824 PubMed30471105

2018

Microtia patients: Auricular chondrocyte ECM is promoted by CGF through IGF-1 activation of the IGF-1R/PI3K/AKT pathway.

Applications

Unspecified application

Species

Unspecified reactive species

Xia Chen,Ruhong Zhang,Qun Zhang,Zhicheng Xu,Feng Xu,Datao Li,Yiyuan Li

International journal of molecular medicine 42:2329-2342 PubMed30226559

2018

Treatment of type 2 diabetes mellitus via reversing insulin resistance and regulating lipid homeostasis in vitro and in vivo using cajanonic acid A.

Applications

Unspecified application

Species

Unspecified reactive species

Ruiyi Yang,Lu Wang,Jie Xie,Xiang Li,Shan Liu,Shengxiang Qiu,Yingjie Hu,Xiaoling Shen

Scientific reports 6:25960 PubMed27180807

2016

Differential neuronal vulnerability identifies IGF-2 as a protective factor in ALS.

Applications

Unspecified application

Species

Unspecified reactive species

Ilary Allodi,Laura Comley,Susanne Nichterwitz,Monica Nizzardo,Chiara Simone,Julio Aguila Benitez,Ming Cao,Stefania Corti,Eva Hedlund

Journal of cellular and molecular medicine 19:2397-412 PubMed26248978

2015

Epithelial atrophy in oral submucous fibrosis is mediated by copper (II) and arecoline of areca nut.

Applications

WB

Species

Unspecified reactive species

Imran Khan,Ila Pant,Sivakrishna Narra,Rekha Radhesh,Kannan Ranganathan,Somanahalli Girish Rao,Paturu Kondaiah

Glia 60:1721-33 PubMed22821509

2012

The role of insulin-like growth factors signaling in merlin-deficient human schwannomas.

Applications

WB

Species

Human

Sylwia Ammoun,M Caroline Schmid,Natalia Ristic,Lu Zhou,David Hilton,Emanuela Ercolano,Camille Carroll,C Oliver Hanemann

PloS one 7:e34274 PubMed22590494

2012

Molecular characterisation of long-acting insulin analogues in comparison with human insulin, IGF-1 and insulin X10.

Applications

Unspecified application

Species

Unspecified reactive species

Bo F Hansen,Tine Glendorf,Anne C Hegelund,Anders Lundby,Anne Lützen,Rita Slaaby,Carsten Enggaard Stidsen

Cell transplantation 19:369-86 PubMed20021736

2009

Monocyte derivatives promote angiogenesis and myocyte survival in a model of myocardial infarction.

Applications

Unspecified application

Species

Unspecified reactive species

M Bouchentouf,P Paradis,K A Forner,J Cuerquis,M N Boivin,J Zheng,M R Boulassel,J P Routy,E L Schiffrin,J Galipeau

Diabetes 58:2344-54 PubMed19584310

2009

Foxo1 links hyperglycemia to LDL oxidation and endothelial nitric oxide synthase dysfunction in vascular endothelial cells.

Applications

WB

Species

Human

Jun Tanaka,Li Qiang,Alexander S Banks,Carrie L Welch,Michihiro Matsumoto,Tadahiro Kitamura,Yukari Ido-Kitamura,Ronald A DePinho,Domenico Accili
View all publications

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.
For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
