AB236764

Anti-Insulin Receptor beta antibody [EPR22167] - BSA and Azide free

RabMAb
Recombinant
KO Validated
What is this?

Be the first to review this product! Submit a review

(1 Publication)

Rabbit Recombinant Monoclonal Insulin Receptor beta antibody. Carrier free. Suitable for IP, WB, IHC-P and reacts with Human samples.

View Alternative Names

CD220, Insulin receptor, IR

6 Images

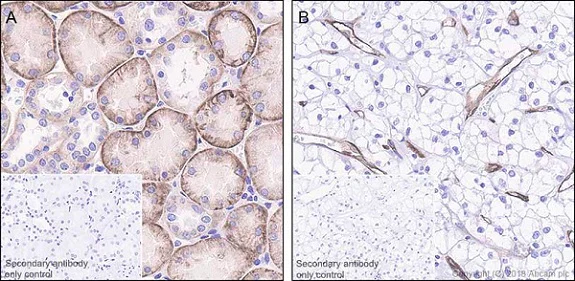

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Insulin Receptor beta antibody [EPR22167] - BSA and Azide free (AB236764)

IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Insulin Receptor beta antibody [EPR22167] - BSA and Azide free (AB236764)

Immunohistochemical analysis of paraffin-embedded human kidney (Panel A) and kidney carcinoma (Panel B) tissues labeling Insulin Receptor beta with ab227831 at 1/500 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) Ready to use. Cytoplasmic staining in human kidney tubules (panel A). Positive staining in endothelium of blood vessels in human kidney carcinoma (panel B), PMID : 25864925, PMID : 20182859. Counter stained with hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) Ready to use.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab227831).

Heat mediated antigen retrieval was performed with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

IHC-P

Supplier Data

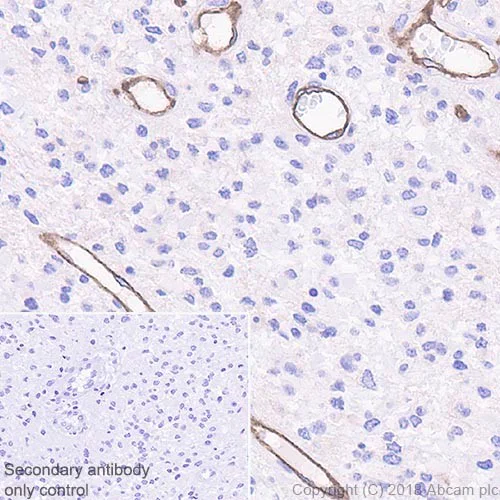

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Insulin Receptor beta antibody [EPR22167] - BSA and Azide free (AB236764)

Immunohistochemical analysis of paraffin-embedded human glioma tissue labeling Insulin Receptor beta with ab227831 at 1/500 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) Ready to use. Positive staining in endothelium of blood vessels in human glioma (PMID : 26136493) is observed. Counter stained with hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) Ready to use.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab227831).

Heat mediated antigen retrieval was performed with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Supplier Data

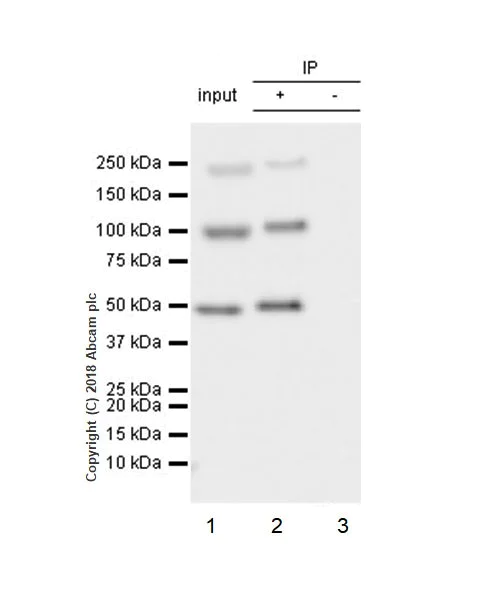

Immunoprecipitation - Anti-Insulin Receptor beta antibody [EPR22167] - BSA and Azide free (AB236764)

Insulin Receptor beta was immunoprecipitated from 0.35 mg of HEK-293T (human epithelial cell line from embryonic kidney transformed with large T antigen) whole cell lysate with ab227831 at 1/30 dilution. Western blot was performed from the immunoprecipitate using ab227831 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP) (ab131366), was used for detection at 1/5000 dilution.

Lane 1 : HEK-293T whole cell lysate 10 μg (Input).

Lane 2 : 227831 IP in HEK-293T whole cell lysate.

Lane 3 : Rabbit monoclonal IgG (ab172730) instead of 227831 in HEK-293T whole cell lysate.

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

Exposure time : 5 seconds.

The 210 kDa band is the pro-Insulin receptor, while the 95 kDa band is the insulin receptor beta subunit (PMID : 28765322, PMID : 28915606).

The 45-68 kDa bands are proteolytic cleavage fragments (PMID : 28915606, PMID : 6693383, PMID : 6315728).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab227831).

All lanes:

Immunoprecipitation - Anti-Insulin Receptor beta antibody [EPR22167] (<a href='/en-us/products/primary-antibodies/insulin-receptor-beta-antibody-epr22167-ab227831'>ab227831</a>)

false

Supplier Data

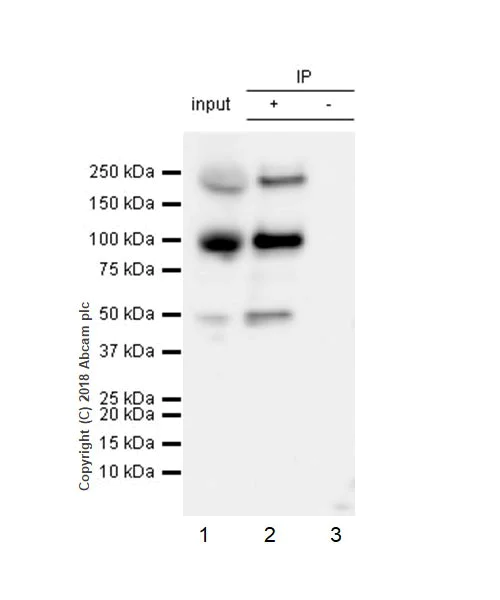

Immunoprecipitation - Anti-Insulin Receptor beta antibody [EPR22167] - BSA and Azide free (AB236764)

Insulin Receptor beta was immunoprecipitated from 0.35 mg of HepG2 (human liver hepatocellular carcinoma cell line) whole cell lysate with ab227831 at 1/30 dilution. Western blot was performed from the immunoprecipitate using ab227831 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP) (ab131366), was used for detection at 1/5000 dilution.

Lane 1 : HepG2 whole cell lysate 10 μg (Input).

Lane 2 : 227831 IP in HepG2 whole cell lysate.

Lane 3 : Rabbit monoclonal IgG (ab172730) instead of 227831 in HepG2 whole cell lysate.

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

Exposure time : 5 seconds.

The 210 kDa band is the pro-Insulin receptor, while the 95 kDa band is the insulin receptor beta subunit (PMID : 28765322, PMID : 28915606).

The 45-68 kDa bands are proteolytic cleavage fragments (PMID : 28915606, PMID : 6693383, PMID : 6315728).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab227831).

All lanes:

Immunoprecipitation - Anti-Insulin Receptor beta antibody [EPR22167] (<a href='/en-us/products/primary-antibodies/insulin-receptor-beta-antibody-epr22167-ab227831'>ab227831</a>)

false

Supplier Data

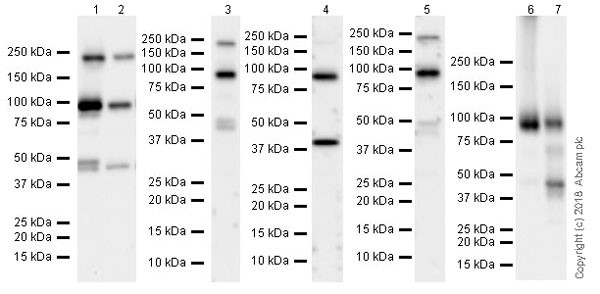

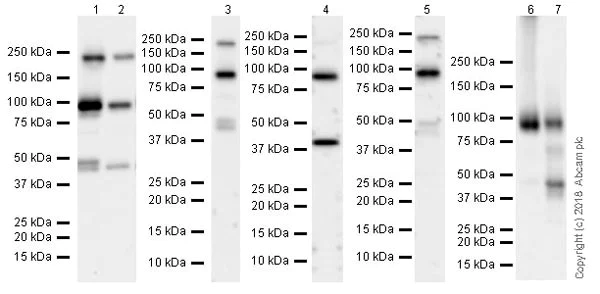

Western blot - Anti-Insulin Receptor beta antibody [EPR22167] - BSA and Azide free (AB236764)

Exposure time : Lanes 1-2 : 48 seconds; Lanes 3 : 59 seconds; Lanes 4&6-7 : 70 seconds; Lane 5 : 37 seconds.

Blocking/Dilution buffer : 5% NFDM/TBST.

The 210 kDa band is the pro-insulin receptor, while the 95 kDa band is the insulin receptor beta subunit (PMID : 28765322, PMID : 28915606).

The 45-68 kDa bands are proteolytic cleavage fragments (PMID : 28915606, PMID : 6693383, PMID : 6315728).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab227831).

All lanes:

Western blot - Anti-Insulin Receptor beta antibody [EPR22167] (<a href='/en-us/products/primary-antibodies/insulin-receptor-beta-antibody-epr22167-ab227831'>ab227831</a>) at 1/1000 dilution

Lane 1:

HepG2 (human liver hepatocellular carcinoma cell line) whole cell lysate at 20 µg

Lane 2:

HEK-293T (human epithelial cell line from embryonic kidney transformed with large T antigen) whole cell lysate at 20 µg

Lane 3:

LNCaP (human prostate cancer cell line) whole cell lysate at 10 µg

Lane 4:

HeLa (human epithelial cell line from cervix adenocarcinoma) whole cell lysate at 10 µg

Lane 5:

MCF7 (human breast adenocarcinoma cell line) whole cell lysate at 10 µg

Lane 6:

Human fetal brain lysate at 10 µg

Lane 7:

Human liver lysate at 10 µg

Secondary

Lanes 1 - 5:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Lanes 6 - 7:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Observed band size: 210 kDa,45 kDa,95 kDa

false

Lab

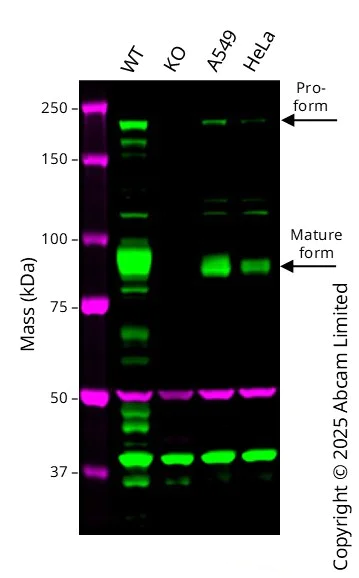

Western blot - Anti-Insulin Receptor beta antibody [EPR22167] - BSA and Azide free (AB236764)

This data was developed using ab227831, the same antibody clone in a different buffer formulation.

Western blot : Rabbit Monoclonal[EPR22167] to Insulin Receptor beta ab227831 staining at 1/1000 dilution, shown in green; Mouse anti alpha Tubulin (ab7291) loading control staining at 1/20,000 dilution, shown in magenta. A band was observed at 85, 200 kDa in Wild-type HepG2 cell lysates with no signal observed at this size in INSR knockout HepG2 cell line. To generate this image, samples were run on an SDS-PAGE gel then transferred onto a nitrocellulose membrane. Membranes were blocked in 3pc Milk in TBS-0.1 % Tween^® 20 (TBS-T) before incubation with primary antibodies overnight at 4°C. Blots were washed four times in TBS-T, incubated with secondary antibodies for 1 h at room temperature, washed again four times then imaged. Secondary antibodies used were Goat anti-Rabbit 800CW & Goat anti-Mouse 680RD at 1/20,000 dilution.

Lanes 1 - 4:

Western blot - Anti-Insulin Receptor beta antibody [EPR22167] (<a href='/en-us/products/primary-antibodies/insulin-receptor-beta-antibody-epr22167-ab227831'>ab227831</a>) at 1/1000 dilution

Lanes 1 - 4:

Western blot - Anti-Insulin Receptor beta antibody [EPR22167] - BSA and Azide free (ab236764) at 1/1000 dilution

Lane 1:

Wild-type HepG2 at 20 µg

Lane 2:

INSR knockout HepG2 at 20 µg

Lane 3:

A549 at 20 µg

Lane 4:

HeLa at 20 µg

Secondary

All lanes:

Goat anti-Rabbit 800CW & Goat anti-Mouse 680RD at 1/20000 dilution

Predicted band size: 156 kDa

Observed band size: 85 kDa,200 kDa

false

Unconjugated

Anti-Insulin Receptor beta antibody [EPR22167]

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR22167

Isotype

IgG

Carrier free

Yes

Reacts with

Human

Applications

IHC-P, WB, IP

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style

left-column

style

left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "IP" : {"fullname" : "Immunoprecipitation", "shortname":"IP"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "IP-species-checked": "testedAndGuaranteed", "IP-species-dilution-info": "", "IP-species-notes": "", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "", "WB-species-notes": "", "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": " Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol." } } }

style

left-column

Product details

ab236764 is the carrier-free version of ab227831.

Patented technology
Our RabMAb^® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb^® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

- High batch-to-batch consistency and reproducibility
- Improved sensitivity and specificity
- Long-term security of supply
- Animal-free batch production

For more information, read more on recombinant antibodies.

Conjugation ready
Our carrier-free antibodies are typically supplied in a PBS-only formulation, purified and free of BSA, sodium azide and glycerol. This conjugation-ready format is designed for use with fluorochromes, metal isotopes, oligonucleotides, and enzymes, which makes them ideal for antibody labelling, functional and cell-based assays, flow-based assays (e.g. mass cytometry) and Multiplex Imaging applications.

Use our conjugation kits for antibody conjugates that are ready-to-use in as little as 20 minutes with 1 minute hands-on-time and 100% antibody recovery: available for fluorescent dyes, HRP, biotin and gold.

Compatibility
This product is compatible with the Maxpar^® Antibody Labeling Kit from Fluidigm, without the need for antibody preparation. Maxpar^® is a trademark of Fluidigm Canada Inc.

style

left-column

Properties and storage information

Form

Liquid

Purification technique

Affinity purification Protein A

Storage buffer

pH: 7.2 - 7.4 Constituents: PBS

Shipped at conditions

Blue Ice

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

+4°C

Storage information

Do Not Freeze

style

left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

Insulin Receptor beta (IR beta) also known as IRB is a subunit of the insulin receptor which is a transmembrane protein deeply involved in cellular signal transduction. This receptor has two main subunits: alpha and beta. The insulin receptor beta is responsible for the transduction of insulin's metabolic and mitogenic signals through its intrinsic tyrosine kinase activity. This subunit has a molecular mass of approximately 95 kDa and is predominantly expressed on the surface of insulin-responsive cells like liver muscle and adipose tissue cells where it mediates glucose uptake and metabolism. Its expression is usually determined through methods such as insulin western blot.

Biological function summary

The function of insulin receptor beta involves both glucose homeostasis and growth regulation as part of the tetrameric insulin receptor complex. Upon insulin binding to the receptor IR beta undergoes autophosphorylation leading to the recruitment and phosphorylation of various intracellular substrates. This interaction plays a critical role in mediating the effects of insulin such as promoting glucose uptake in cells and modulating lipid metabolism. This receptor subunit is also referred to in studies as insulin 44 or insulin 37 referring to different conceptual sizes or regulatory stages.

Pathways

The insulin signaling pathway represents the main route facilitated by insulin receptor beta. This pathway is essential for regulating glucose transport lipid metabolism and protein synthesis. Perturbations in this cascade are commonly associated with insulin resistance. The insulin receptor beta interacts with other proteins like insulin receptor substrates (IRS) during this pathway which subsequently activate key downstream pathways such as the PI3K-AKT pathway critical for cell survival and growth. This protein also plays a role in MAP kinase signaling through which it impacts gene expression related to cell growth.

Insulin receptor beta relates prominently to type 2 diabetes mellitus and metabolic syndrome. Mutations or dysfunctions in IR beta can lead to defective insulin signaling causing insulin resistance a major hallmark of these conditions. Additionally it is implicated in polycystic ovary syndrome (PCOS) where altered insulin signaling influences the endocrine and metabolic profiles. Proteins like insulin receptor substrates are often examined in these contexts as they directly interact with IR beta and modulate the downstream effects seen in these diseases.

style

left-column

style

left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:

Visit the General protocols
Visit the Troubleshooting

style

left-column

Target data

Receptor tyrosine kinase which mediates the pleiotropic actions of insulin. Binding of insulin leads to phosphorylation of several intracellular substrates, including, insulin receptor substrates (IRS1, 2, 3, 4), SHC, GAB1, CBL and other signaling intermediates. Each of these phosphorylated proteins serve as docking proteins for other signaling proteins that contain Src-homology-2 domains (SH2 domain) that specifically recognize different phosphotyrosine residues, including the p85 regulatory subunit of PI3K and SHP2. Phosphorylation of IRSs proteins lead to the activation of two main signaling pathways : the PI3K-AKT/PKB pathway, which is responsible for most of the metabolic actions of insulin, and the Ras-MAPK pathway, which regulates expression of some genes and cooperates with the PI3K pathway to control cell growth and differentiation. Binding of the SH2 domains of PI3K to phosphotyrosines on IRS1 leads to the activation of PI3K and the generation of phosphatidylinositol-(3, 4, 5)-triphosphate (PIP3), a lipid second messenger, which activates several PIP3-dependent serine/threonine kinases, such as PDPK1 and subsequently AKT/PKB. The net effect of this pathway is to produce a translocation of the glucose transporter SLC2A4/GLUT4 from cytoplasmic vesicles to the cell membrane to facilitate glucose transport. Moreover, upon insulin stimulation, activated AKT/PKB is responsible for : anti-apoptotic effect of insulin by inducing phosphorylation of BAD; regulates the expression of gluconeogenic and lipogenic enzymes by controlling the activity of the winged helix or forkhead (FOX) class of transcription factors. Another pathway regulated by PI3K-AKT/PKB activation is mTORC1 signaling pathway which regulates cell growth and metabolism and integrates signals from insulin. AKT mediates insulin-stimulated protein synthesis by phosphorylating TSC2 thereby activating mTORC1 pathway. The Ras/RAF/MAP2K/MAPK pathway is mainly involved in mediating cell growth, survival and cellular differentiation of insulin. Phosphorylated IRS1 recruits GRB2/SOS complex, which triggers the activation of the Ras/RAF/MAP2K/MAPK pathway. In addition to binding insulin, the insulin receptor can bind insulin-like growth factors (IGFI and IGFII). Isoform Short has a higher affinity for IGFII binding. When present in a hybrid receptor with IGF1R, binds IGF1. PubMed : 12138094 shows that hybrid receptors composed of IGF1R and INSR isoform Long are activated with a high affinity by IGF1, with low affinity by IGF2 and not significantly activated by insulin, and that hybrid receptors composed of IGF1R and INSR isoform Short are activated by IGF1, IGF2 and insulin. In contrast, PubMed : 16831875 shows that hybrid receptors composed of IGF1R and INSR isoform Long and hybrid receptors composed of IGF1R and INSR isoform Short have similar binding characteristics, both bind IGF1 and have a low affinity for insulin. In adipocytes, inhibits lipolysis (By similarity).

See full target information Insulin receptor beta

style

left-column

Publications (1)

Recent publications for all applications. Explore the full list and refine your search

International journal of general medicine 17:3673-3687 PubMed39206267

2024

Phosphoglycerate Dehydrogenase Overexpression Inhibits Ferroptosis to Repress Calcification of Human Coronary Artery Vascular Smooth Muscle Cells via the P53/SLC7A11 Pathway.

Applications

Unspecified application

Species

Unspecified reactive species

Yuhai Zou,Dongdong Li,Ge Guan,Wenting Liu

View all publications
