Anti-Integrin alpha 5 antibody [EPR7854]

• WB

Lab

Western blot - Anti-Integrin alpha 5 antibody [EPR7854] (AB150361)

Observed band size : 19, 150 kDa

Exposure time : Lane 1-2 : 1 minutes, Lane 3-4 : 3 minutes

Blocking/Diluting buffer 5% NFDM/TBST

All lanes:

Western blot - Anti-Integrin alpha 5 antibody [EPR7854] (ab150361) at 1/2000 dilution

Lane 1:

Human bladder tissue lysate at 10 µg

Lane 2:

HT-1080 (Human urinary bladder carcinoma cell line) whole cell lysates at 10 µg

Lane 3:

HeLa (Human epithelial cell line from cervix adenocarcinoma) whole cell lysates at 10 µg

Lane 4:

U937 (Human histiocytic lymphoma cell line) whole cell lysates at 10 µg

Secondary

All lanes:

Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated at 1/1000 dilution

Predicted band size: 115 kDa

false

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Integrin alpha 5 antibody [EPR7854] (AB150361)

Immunohistochemical analysis of formalin fixed paraffin embedded human placenta labelling Integrin alpha 5 with ab150361 at a concentration of 0.1µg/ml. The immunostaining was performed on a Ventana DISCOVERY ULTRA (Roche Tissue Diagnostics) instrument with a OptiView DAB IHC Detection Kit. Heat mediated antigen retrieval was performed with DISCOVERY cell conditioning solution (CC1) 100°C, pH8.5 for 32mins. ab150361 anti-Integrin alpha 5 antibody [EPR7854] was incubated for 16mins at 37°C. Sections were counterstained with Hematoxylin II. Image inset shows absence of staining in secondary antibody only control.

Customers are encouraged to optimise antigen retrieval conditions, antibody concentration, incubation times and temperature for best results in their own IHC assay workflow (automated and manual).

• Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Anti-Integrin alpha 5 antibody [EPR7854] (AB150361)

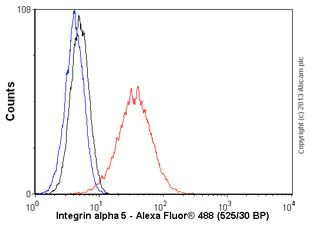

Intracellular Flow Cytometry analysis of HeLa (Human epithelial cell line from cervix adenocarcinoma) cells labeling Integrin alpha 5 with purified ab150361 at 1/20 dilution (10μg/ml) (Red). Cells were fixed with 4% Paraformaldehyde and permeabilised with 90% Methanol. A Goat anti rabbit IgG (Alexa Fluor^® 488, ab150077) secondary antibody was used at 1/2000. Isotype control - Rabbit monoclonal IgG (Black). Unlabeled control - Cell without incubation with primary antibody and secondary antibody (Blue).

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-Integrin alpha 5 antibody [EPR7854] (AB150361)

Immunocytochemistry/ Immunofluorescence analysis of U937 (Human histiocytic lymphoma monocyte) cells labeling Integrin alpha 5 with purified ab150361 at 1 : 50 dilution (4.3 µg/ml). Cells were fixed in 4% Paraformaldehyde and permeabilized with 0.1% tritonX-100. Cells were counterstained with ab195889 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor® 594) 1 : 200 (2.5 µg/ml). Goat anti rabbit IgG (Alexa Fluor® 488, ab150077) was used as the secondary antibody at 1 : 1000 (2 µg/ml) dilution. DAPI (blue) was used as nuclear counterstain. PBS instead of the primary antibody was used as the secondary antibody only control.

• Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Anti-Integrin alpha 5 antibody [EPR7854] (AB150361)

Overlay histogram showing HeLa cells stained with unpurifiedab150361 (red line). The cells were fixed with 4% paraformaldehyde (10 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab150361, 1/1000 dilution) for 30 min at 22°C. The secondary antibody used was goat anti-rabbit Alexa Fluor 488 IgG (H&L) (ab150077) at 1/2000 dilution for 30 min at 22°C. Isotype control antibody (black line) was rabbit IgG (monoclonal) (0.1μg/1x10⁶ cells) used under the same conditions. Unlabelled sample (blue line) was also used as a control. Acquisition of >5,000 events were collected using a 20mW Argon ion laser (488nm) and 525/30 bandpass filter. This antibody gave a positive signal in HeLa cells fixed with 80% methanol (5 min)/permeabilized with 0.1% PBS-Tween for 20 min used under the same conditions.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-Integrin alpha 5 antibody [EPR7854] (AB150361)

ab150361 staining Integrin alpha 5 in MCF7 (Human breast adenocarcinoma cell line) cells. The cells were fixed with 100% methanol (5min), permeabilized with 0.1% Tween for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated with unpurified ab150361 at 1μg/ml concentration and ab7291 at 1μg/ml concentration overnight at +4°C, followed by a further incubation at room temperature for 1h with a goat secondary antibody to Rabbit IgG (Alexa Fluor® 488) (ab150081) at 2 μg/ml (shown in green) and a goat secondary antibody to Mouse IgG (Alexa Fluor® 594) (ab150120) at 2 μg/ml (showed in pseudocolour red) . Nuclear DNA was labelled in blue with DAPI.

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-Integrin alpha 5 antibody [EPR7854] (AB150361)

Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized U937 (Human histiocytic lymphoma cell line) cells labeling Integrin alpha 5 with unpurified ab150361 at 1/500 dilution, followed by Goat anti-rabbit IgG (Alexa Fluor 488) (ab150077) secondary antibody at 1/400 dilution (green). Confocal image showing mainly membrane staining on U937 cell line. The nuclear counterstain is DAPI (blue).

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-Integrin alpha 5 antibody [EPR7854] (AB150361)

unpurified ab150361 staining Integrin alpha 5 in wild-type HAP1 cells (top panel) and ITGA5 knockout HAP1 cells (bottom panel). The cells were fixed with 100% methanol (5min), permeabilized with 0.1% Tween for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated with ab150361 at 1/250 dilution and ab7291 at 1μg/ml concentration overnight at +4°C, followed by a further incubation at room temperature for 1h with a goat secondary antibody to Rabbit IgG (Alexa Fluor® 488) (ab150081) at 2 μg/ml (shown in green) and a goat secondary antibody to Mouse IgG (Alexa Fluor® 594) (ab150120) at 2 μg/ml (showed in pseudocolour red) . Nuclear DNA was labelled in blue with DAPI.

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Integrin alpha 5 antibody [EPR7854] (AB150361)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human cerebral cortex tissue sections labeling Integrin alpha 5 with purified ab150361 at 1 : 400 dilution (0.54 µg/ml). Heat mediated antigen retrieval was performed using ab93684 (Tris/EDTA buffer, pH 9.0). ImmunoHistoProbe one step HRP Polymer (ready to use) was used as the secondary antibody. Negative control : PBS instead of the primary antibody. Hematoxylin was used as a counterstain.

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Integrin alpha 5 antibody [EPR7854] (AB150361)

Immunohistochemical analysis of paraffin embedded Human kidney tissue labelling Integrin alpha 5 with unpurified ab150361 antibody at a dilution of 1/100.

Perform heat mediated antigen retrieval before commencing with IHC staining protocol.

• IP

Unknown

Immunoprecipitation - Anti-Integrin alpha 5 antibody [EPR7854] (AB150361)

ab150361 (Purified) at 1 : 20 dilution (1 μg) immunoprecipitating Integrin alpha 5 in HeLa whole cell lysate.
Lane 1 (input) : HeLa (Human epithelial cell line from cervix adenocarcinoma) whole cell lysate 10 μg
Lane 2 (+) : ab150361 & HeLa whole cell lysate
Lane 3 (-) : Rabbit monoclonal IgG (ab172730) instead of ab150361 in HeLa whole cell lysate
For western blotting, VeriBlot for IP Detection Reagent (HRP) (ab131366) was used at 1 : 5000 dilution.
Blocking and diluting buffer : 5% NFDM/TBST.

All lanes:

Immunoprecipitation - Anti-Integrin alpha 5 antibody [EPR7854] (ab150361)

Predicted band size: 115 kDa

false

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Integrin alpha 5 antibody [EPR7854] (AB150361)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of rat cerebral cortex tissue sections labeling Integrin alpha 5 with purified ab150361 at 1 : 400 dilution (0.54 µg/ml). Heat mediated antigen retrieval was performed using ab93684 (Tris/EDTA buffer, pH 9.0). ImmunoHistoProbe one step HRP Polymer (ready to use) was used as the secondary antibody. Negative control : PBS instead of the primary antibody. Hematoxylin was used as a counterstain.

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Integrin alpha 5 antibody [EPR7854] (AB150361)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of mouse cerebral cortex tissue sections labeling Integrin alpha 5 with purified ab150361 at 1 : 400 dilution (0.54 µg/ml). Heat mediated antigen retrieval was performed using ab93684 (Tris/EDTA buffer, pH 9.0). ImmunoHistoProbe one step HRP Polymer (ready to use) was used as the secondary antibody. Negative control : PBS instead of the primary antibody. Hematoxylin was used as a counterstain.

• WB

Lab

Western blot - Anti-Integrin alpha 5 antibody [EPR7854] (AB150361)

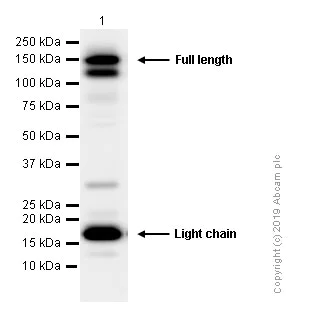

The bands detected by ab150361 are consistent with what have been described in PMID : 22740495. Full length : 150kDa; Light chain : 19kDa

All lanes:

Western blot - Anti-Integrin alpha 5 antibody [EPR7854] (ab150361) at 1/10000 dilution

All lanes:

HT-1080 (Human fibrosarcoma cell line) whole cell lysates at 15 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Predicted band size: 115 kDa

Observed band size: 150 kDa,19 kDa

false

• WB

Lab

Western blot - Anti-Integrin alpha 5 antibody [EPR7854] (AB150361)

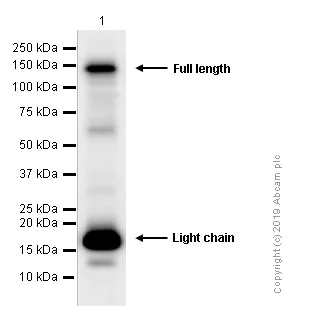

The bands detected by ab150361 are consistent with what have been described in PMID : 22740495. Full length : 150kDa; Light chain : 19kDa

Lane 1:

Western blot - Anti-Integrin alpha 5 antibody [EPR7854] (ab150361) at 1/1000 dilution

Lane 1:

Western blot - Anti-Integrin alpha 5 antibody [EPR7854] - Low endotoxin, Azide free (<a href='/en-us/products/primary-antibodies/integrin-alpha-5-antibody-epr7854-low-endotoxin-azide-free-ab221606'>ab221606</a>)

All lanes:

U937 (Human histiocytic lymphoma cell line) whole cell lysates at 15 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Predicted band size: 115 kDa

Observed band size: 150 kDa,19 kDa

false

• WB

Lab

Western blot - Anti-Integrin alpha 5 antibody [EPR7854] (AB150361)

Observed band size : 19, 150 kDa

Exposure time : 3 minutes

Blocking/Diluting buffer 5% NFDM/TBST

All lanes:

Western blot - Anti-Integrin alpha 5 antibody [EPR7854] (ab150361) at 1/2000 dilution

Lane 1:

Mouse heart tissue lysate at 10 µg

Lane 2:

Rat heart tissue lysate at 10 µg

Secondary

All lanes:

Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated at 1/1000 dilution

Predicted band size: 115 kDa

false

• WB

Lab

Western blot - Anti-Integrin alpha 5 antibody [EPR7854] (AB150361)

The bands detected by ab150361 are consistent with what have been described in PMID : 22740495. Full length : 150kDa; Light chain : 19kDa

All lanes:

Western blot - Anti-Integrin alpha 5 antibody [EPR7854] (ab150361) at 1/1000 dilution

Lane 1:

Rat1 (Rat fibroblast cell line) whole cell lysates at 20 µg

Lane 2:

Rat liver lysates at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Predicted band size: 115 kDa

Observed band size: 150 kDa,19 kDa

false

• WB

Lab

Western blot - Anti-Integrin alpha 5 antibody [EPR7854] (AB150361)

The bands detected by ab150361 are consistent with what have been described in PMID : 22740495. Full length : 150kDa; Light chain : 19kDa

All lanes:

Western blot - Anti-Integrin alpha 5 antibody [EPR7854] (ab150361) at 1/1000 dilution

Lane 1:

NIH/3T3 (Mouse embryo fibroblast cell line) whole cell lysates at 20 µg

Lane 2:

MEF (Mouse embryonic fibroblast cell line) whole cell lysates at 20 µg

Lane 3:

C2C12 (Mouse myoblast cell line) whole cell lysates at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Predicted band size: 115 kDa

Observed band size: 150 kDa,19 kDa

false
