Anti-Integrin alpha 5 antibody [EPR7854] - BSA and Azide free

11 product images

•

  Immunoprecipitation - Anti-Integrin alpha 5 antibody [EPR7854] - BSA and Azide free (ab239400)

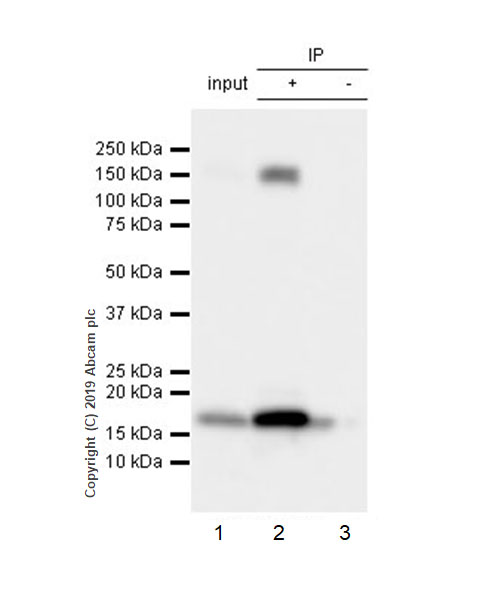

  Anti-Integrin alpha 5 antibody [EPR7854] ab150361 (Purified) at 1:20 dilution (1 μg) immunoprecipitating Integrin alpha 5 in HeLa whole cell lysate.
  Lane 1 (input): HeLa (Human epithelial cell line from cervix adenocarcinoma) whole cell lysate 10 μg
  Lane 2 (+): Anti-Integrin alpha 5 antibody [EPR7854] ab150361 & HeLa whole cell lysate
  Lane 3 (-): Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of Anti-Integrin alpha 5 antibody [EPR7854] ab150361 in HeLa whole cell lysate
  For western blotting, VeriBlot for IP Detection Reagent (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366) was used at 1:5000 dilution.
  Blocking and diluting buffer: 5% NFDM/TBST.


  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Integrin alpha 5 antibody [EPR7854] ab150361).

  All lanes: Immunoprecipitation - Anti-Integrin alpha 5 antibody [EPR7854] (Anti-Integrin alpha 5 antibody [EPR7854] ab150361)

  Predicted band size: 115 kDa

•

  Immunocytochemistry/ Immunofluorescence - Anti-Integrin alpha 5 antibody [EPR7854] - BSA and Azide free (ab239400)

  Immunocytochemistry/ Immunofluorescence analysis of U937 (Human histiocytic lymphoma monocyte) cells labeling Integrin alpha 5 with purified Anti-Integrin alpha 5 antibody [EPR7854] ab150361 at 1:50 dilution (4.3 μg/ml). Cells were fixed in 4% Paraformaldehyde and permeabilized with 0.1% tritonX-100. Cells were counterstained with Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor® 594) 1:200 (2.5 μg/ml). Goat anti rabbit IgG (Alexa Fluor® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) was used as the secondary antibody at 1:1000 (2 μg/ml) dilution. DAPI (blue) was used as nuclear counterstain. PBS instead of the primary antibody was used as the secondary antibody only control.


  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Integrin alpha 5 antibody [EPR7854] ab150361).

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Integrin alpha 5 antibody [EPR7854] - BSA and Azide free (ab239400)

  Immunohistochemical analysis of paraffin embedded Human kidney tissue labelling Integrin alpha 5 with unpurified Anti-Integrin alpha 5 antibody [EPR7854] ab150361 antibody at a dilution of 1/100.


  Perform heat mediated antigen retrieval before commencing with IHC staining protocol.

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Integrin alpha 5 antibody [EPR7854] ab150361).

•

  Flow Cytometry (Intracellular) - Anti-Integrin alpha 5 antibody [EPR7854] - BSA and Azide free (ab239400)

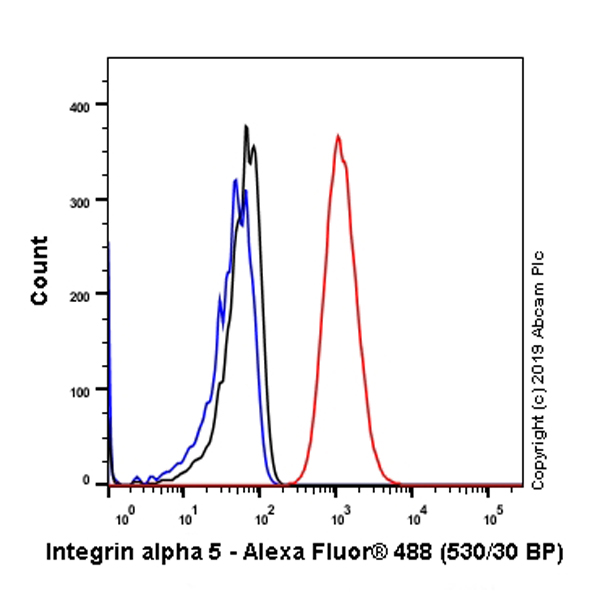

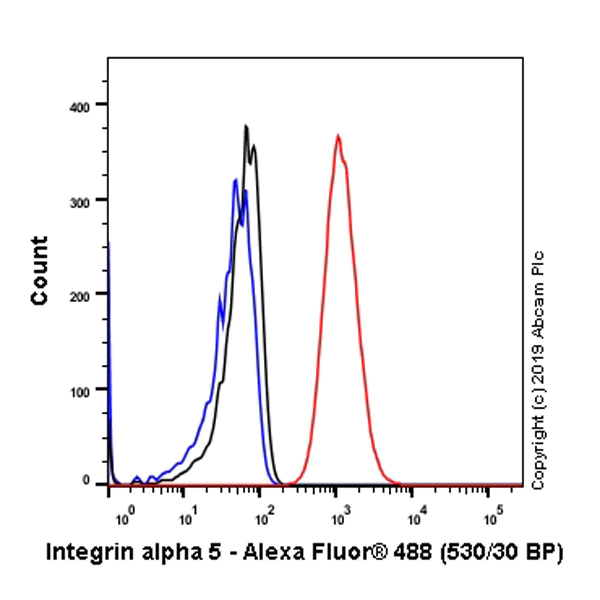

  Intracellular Flow Cytometry analysis of HeLa (Human epithelial cell line from cervix adenocarcinoma) cells labeling Integrin alpha 5 with purified Anti-Integrin alpha 5 antibody [EPR7854] ab150361 at 1/20 dilution (10μg/ml) (Red). Cells were fixed with 4% Paraformaldehyde and permeabilised with 90% Methanol. A Goat anti rabbit IgG (Alexa Fluor^® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) secondary antibody was used at 1/2000. Isotype control - Rabbit monoclonal IgG (Black). Unlabeled control - Cell without incubation with primary antibody and secondary antibody (Blue).


  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Integrin alpha 5 antibody [EPR7854] ab150361).

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Integrin alpha 5 antibody [EPR7854] - BSA and Azide free (ab239400)

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human cerebral cortex tissue sections labeling Integrin alpha 5 with purified Anti-Integrin alpha 5 antibody [EPR7854] ab150361 at 1:400 dilution (0.54 μg/ml). Heat mediated antigen retrieval was performed using Antigen Retrieval Buffer (100X Tris-EDTA Buffer, pH 9.0) ab93684 (Tris/EDTA buffer, pH 9.0). ImmunoHistoProbe one step HRP Polymer (ready to use) was used as the secondary antibody. Negative control: PBS instead of the primary antibody. Hematoxylin was used as a counterstain.


  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Integrin alpha 5 antibody [EPR7854] ab150361).

•

  Immunocytochemistry/ Immunofluorescence - Anti-Integrin alpha 5 antibody [EPR7854] - BSA and Azide free (ab239400)

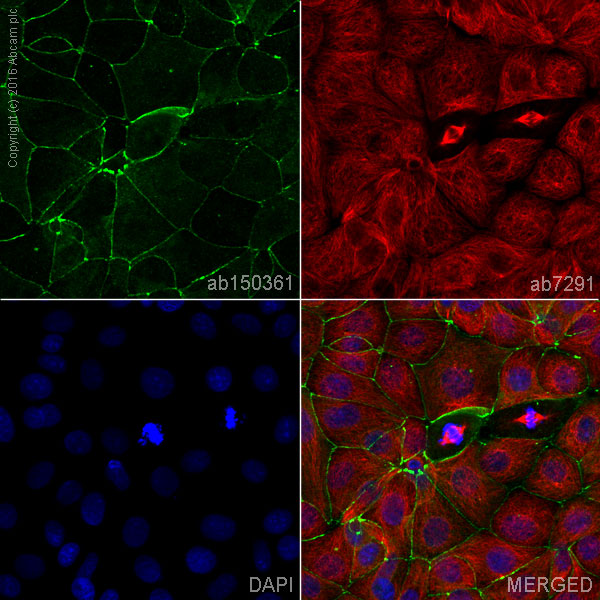

  Anti-Integrin alpha 5 antibody [EPR7854] ab150361 staining Integrin alpha 5 in MCF7 (Human breast adenocarcinoma cell line) cells. The cells were fixed with 100% methanol (5min), permeabilized with 0.1% Tween for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated with unpurified Anti-Integrin alpha 5 antibody [EPR7854] ab150361 at 1μg/ml concentration and Anti-alpha Tubulin antibody [DM1A] - Loading Control ab7291 at 1μg/ml concentration overnight at +4°C, followed by a further incubation at room temperature for 1h with a goat secondary antibody to Rabbit IgG (Alexa Fluor® 488) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081) at 2 μg/ml (shown in green) and a goat secondary antibody to Mouse IgG (Alexa Fluor® 594) (Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed ab150120) at 2 μg/ml (showed in pseudocolour red) . Nuclear DNA was labelled in blue with DAPI.


  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Integrin alpha 5 antibody [EPR7854] ab150361).

•

  Immunocytochemistry/ Immunofluorescence - Anti-Integrin alpha 5 antibody [EPR7854] - BSA and Azide free (ab239400)

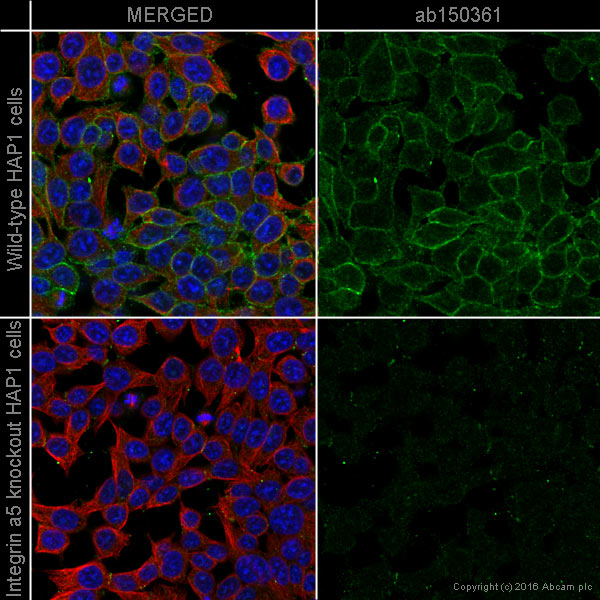

  Unpurified Anti-Integrin alpha 5 antibody [EPR7854] ab150361 staining Integrin alpha 5 in wild-type HAP1 cells (top panel) and ITGA5 knockout HAP1 cells (bottom panel). The cells were fixed with 100% methanol (5min), permeabilized with 0.1% Tween for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated with Anti-Integrin alpha 5 antibody [EPR7854] ab150361 at 1/250 dilution and Anti-alpha Tubulin antibody [DM1A] - Loading Control ab7291 at 1μg/ml concentration overnight at +4°C, followed by a further incubation at room temperature for 1h with a goat secondary antibody to Rabbit IgG (Alexa Fluor® 488) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081) at 2 μg/ml (shown in green) and a goat secondary antibody to Mouse IgG (Alexa Fluor® 594) (Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed ab150120) at 2 μg/ml (showed in pseudocolour red) . Nuclear DNA was labelled in blue with DAPI.


  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Integrin alpha 5 antibody [EPR7854] ab150361).

•

  Immunocytochemistry/ Immunofluorescence - Anti-Integrin alpha 5 antibody [EPR7854] - BSA and Azide free (ab239400)

  Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized U937 (Human histiocytic lymphoma cell line) cells labeling Integrin alpha 5 with unpurified Anti-Integrin alpha 5 antibody [EPR7854] ab150361 at 1/500 dilution, followed by Goat anti-rabbit IgG (Alexa Fluor 488) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) secondary antibody at 1/400 dilution (green). Confocal image showing mainly membrane staining on U937 cell line. The nuclear counterstain is DAPI (blue).


  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Integrin alpha 5 antibody [EPR7854] ab150361).

•

  Flow Cytometry (Intracellular) - Anti-Integrin alpha 5 antibody [EPR7854] - BSA and Azide free (ab239400)

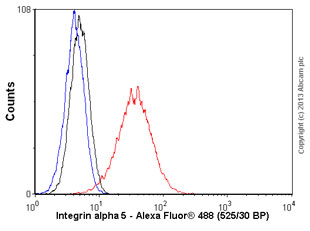

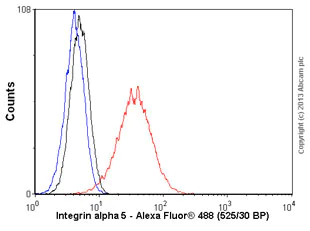

  Overlay histogram showing HeLa cells stained with unpurifiedab150361 (red line). The cells were fixed with 4% paraformaldehyde (10 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (Anti-Integrin alpha 5 antibody [EPR7854] ab150361, 1/1000 dilution) for 30 min at 22°C. The secondary antibody used was goat anti-rabbit Alexa Fluor 488 IgG (H&L) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) at 1/2000 dilution for 30 min at 22°C. Isotype control antibody (black line) was rabbit IgG (monoclonal) (0.1μg/1x10⁶ cells) used under the same conditions. Unlabelled sample (blue line) was also used as a control. Acquisition of >5,000 events were collected using a 20mW Argon ion laser (488nm) and 525/30 bandpass filter. This antibody gave a positive signal in HeLa cells fixed with 80% methanol (5 min)/permeabilized with 0.1% PBS-Tween for 20 min used under the same conditions.


  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Integrin alpha 5 antibody [EPR7854] ab150361).

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Integrin alpha 5 antibody [EPR7854] - BSA and Azide free (ab239400)

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of mouse cerebral cortex tissue sections labeling Integrin alpha 5 with purified Anti-Integrin alpha 5 antibody [EPR7854] ab150361 at 1:400 dilution (0.54 μg/ml). Heat mediated antigen retrieval was performed using Antigen Retrieval Buffer (100X Tris-EDTA Buffer, pH 9.0) ab93684 (Tris/EDTA buffer, pH 9.0). ImmunoHistoProbe one step HRP Polymer (ready to use) was used as the secondary antibody. Negative control: PBS instead of the primary antibody. Hematoxylin was used as a counterstain.


  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Integrin alpha 5 antibody [EPR7854] ab150361).

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Integrin alpha 5 antibody [EPR7854] - BSA and Azide free (ab239400)

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of rat cerebral cortex tissue sections labeling Integrin alpha 5 with purified Anti-Integrin alpha 5 antibody [EPR7854] ab150361 at 1:400 dilution (0.54 μg/ml). Heat mediated antigen retrieval was performed using Antigen Retrieval Buffer (100X Tris-EDTA Buffer, pH 9.0) ab93684 (Tris/EDTA buffer, pH 9.0). ImmunoHistoProbe one step HRP Polymer (ready to use) was used as the secondary antibody. Negative control: PBS instead of the primary antibody. Hematoxylin was used as a counterstain.


  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Integrin alpha 5 antibody [EPR7854] ab150361).
