AB326602

Anti-IRE1 (phospho S724) antibody [EPR26009-269] - BSA and Azide free

Be the first to review this product! Submit a review

|

(0 Publication)

Rabbit Recombinant Monoclonal IRE1 phospho S724 antibody. Carrier free. Suitable for Dot, ICC/IF, IHC-P, WB and reacts with Synthetic peptide, Human, Mouse samples.

View Alternative Names

IRE1, ERN1, Serine/threonine-protein kinase/endoribonuclease IRE1, Endoplasmic reticulum-to-nucleus signaling 1, Inositol-requiring protein 1, Ire1-alpha, hIRE1p, IRE1a

9 Images
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-IRE1 (phospho S724) antibody [EPR26009-269] - BSA and Azide free (AB326602)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-IRE1 (phospho S724) antibody [EPR26009-269] - BSA and Azide free (AB326602)

This data was developed using ab324051, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded Human tonsil tissue labeling IRE1 (phospho S724) with ab324051 at 1/2000 (0.264 ug/ml) dilution followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Positive staining on human tonsil without alkaline phosphatase treatment (A). No signal was detected when tissues were treated with alkaline phosphatase (B).
The section was incubated with ab324051 for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument

Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0 Epitope Retrieval Solution2) for 20 mins

Immunocytochemistry/ Immunofluorescence - Anti-IRE1 (phospho S724) antibody [EPR26009-269] - BSA and Azide free (AB326602)
  • ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-IRE1 (phospho S724) antibody [EPR26009-269] - BSA and Azide free (AB326602)

This data was developed using ab324051, the same antibody clone in a different buffer formulation.

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized HeLa (human cervical adenocarcinoma epithelial cell) cells labelling IRE1 (phospho S724) with ab324051 at 1/5000 (0.106 ug/ml) dilution, followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 2ug/ml dilution (Green).

Confocal image showing increased nuclear staining in HeLa cells (shown in green) treated with 10 mM for 1 hour, and the signal is decreased after Lambda Protein Phosphatase treatment at 30℃ for 2 hours. The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue). Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) was used to counterstain tubulin at 1/200 2.5ug/ml dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

Secondary antibody only control : Secondary antibody is ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 2ug/ml dilution.

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-IRE1 (phospho S724) antibody [EPR26009-269] - BSA and Azide free (AB326602)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-IRE1 (phospho S724) antibody [EPR26009-269] - BSA and Azide free (AB326602)

This data was developed using ab324051, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded (A) Untreated HeLa (human cervical adenocarcinoma epithelial cell) (B) HeLa treated with 10mM DTT for 1 hour (C) Untreated HeLa treated with alkaline phosphatase (D) HeLa treated with 10mM DTT for 1 hour then treated with alkaline phosphatase tissue labeling IRE1 (phospho S724) with ab324051 at 1/2000 (0.264 ug/ml) dilution followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Positive staining in (A) untreated HeLa cell pellets staining was enhanced in (B) HeLa cell pellets treated with 10mM DTT for 1 hour. No staining in all cell pellets after treatment with alkaline phosphatase (C and D).
The section was incubated with ab324051 for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument

Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0 Epitope Retrieval Solution2) for 20 mins

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-IRE1 (phospho S724) antibody [EPR26009-269] - BSA and Azide free (AB326602)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-IRE1 (phospho S724) antibody [EPR26009-269] - BSA and Azide free (AB326602)

This data was developed using ab324051, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded Human endometrium tissue labeling IRE1 (phospho S724) with ab324051 at 1/2000 (0.264 ug/ml) dilution followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Positive staining on human endometrium without alkaline phosphatase treatment (A). No signal was detected when tissues were treated with alkaline phosphatase (B).
The section was incubated with ab324051 for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument

Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0 Epitope Retrieval Solution2) for 20 mins

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-IRE1 (phospho S724) antibody [EPR26009-269] - BSA and Azide free (AB326602)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-IRE1 (phospho S724) antibody [EPR26009-269] - BSA and Azide free (AB326602)

This data was developed using ab324051, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded Mouse spleen tissue labeling IRE1 (phospho S724) with ab324051 at 1/2000 (0.264 ug/ml) dilution followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Positive staining on mouse spleen without alkaline phosphatase treatment (A). No signal was detected when tissues were treated with alkaline phosphatase (B).
The section was incubated with ab324051 for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument

Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0 Epitope Retrieval Solution2) for 20 mins

Western blot - Anti-IRE1 (phospho S724) antibody [EPR26009-269] - BSA and Azide free (AB326602)
  • WB

Supplier Data

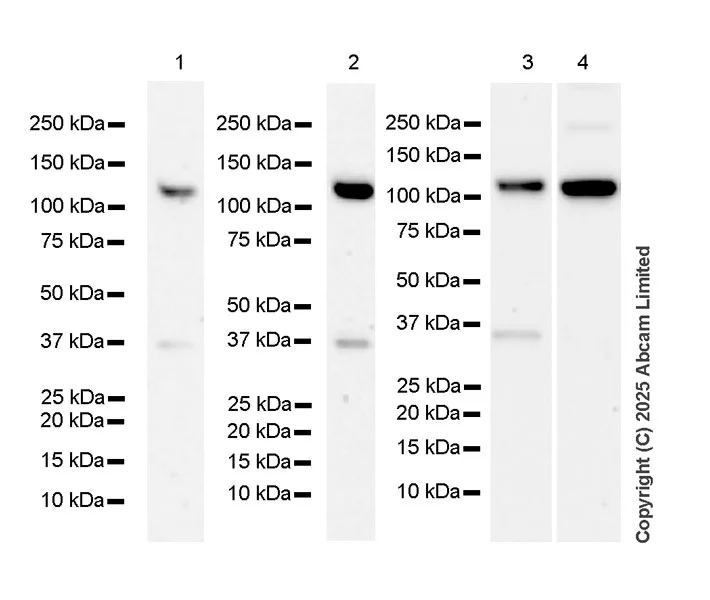

Western blot - Anti-IRE1 (phospho S724) antibody [EPR26009-269] - BSA and Azide free (AB326602)

This data was developed using ab324051, the same antibody clone in a different buffer formulation.

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

Extra bands around 37 kDa were observed.

Exposure time : Lane 1 4 : 3 minutes Lane 2 3 : 81 seconds

All lanes:

Western blot - Anti-IRE1 (phospho S724) antibody [EPR26009-269] (<a href='/en-us/products/primary-antibodies/ire1-phospho-s724-antibody-epr26009-269-ab324051'>ab324051</a>) at 1/1000 dilution

Lane 1:

Human cerebellum tissue lysate at 20 µg

Lane 2:

Mouse cerebellum tissue lysate at 20 µg

Lane 3:

SH-SY5Y (human neuroblastoma epithelial cell) whole cell lysate at 20 µg

Lane 4:

Mouse brain tissue lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 110 kDa

false

Western blot - Anti-IRE1 (phospho S724) antibody [EPR26009-269] - BSA and Azide free (AB326602)
  • WB

Supplier Data

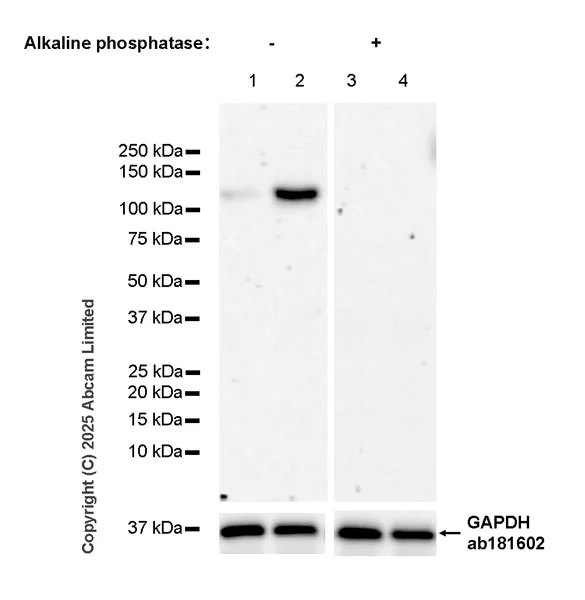

Western blot - Anti-IRE1 (phospho S724) antibody [EPR26009-269] - BSA and Azide free (AB326602)

This data was developed using ab324051, the same antibody clone in a different buffer formulation.

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

Phosphorylation of IRE1 at S724 can be induced by DTT treatment (PMID : 31453810).

In Western blot Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) staining at 1/200000 dilution.

All lanes:

Western blot - Anti-IRE1 (phospho S724) antibody [EPR26009-269] (<a href='/en-us/products/primary-antibodies/ire1-phospho-s724-antibody-epr26009-269-ab324051'>ab324051</a>) at 1/1000 dilution

Lane 1:

Untreated HeLa (human cervical adenocarcinoma epithelial cell) whole cell lysate (untreated membrane) at 20 µg

Lane 2:

HeLa treated with 10mM DTT for 1 hour whole cell lysate (untreated membrane) at 20 µg

Lane 3:

Untreated HeLa whole cell lysate (alkaline phosphatase treated membrane) at 20 µg

Lane 4:

HeLa treated with 10mM DTT for 1 hour whole cell lysate (alkaline phosphatase treated membrane) at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 110 kDa,36 kDa

false

Exposure time: 3min

Western blot - Anti-IRE1 (phospho S724) antibody [EPR26009-269] - BSA and Azide free (AB326602)
  • WB

Supplier Data

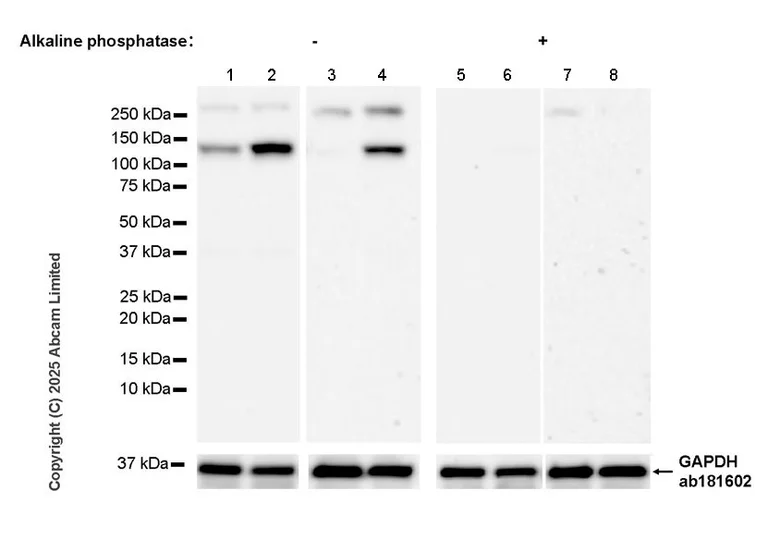

Western blot - Anti-IRE1 (phospho S724) antibody [EPR26009-269] - BSA and Azide free (AB326602)

This data was developed using ab324051, the same antibody clone in a different buffer formulation.

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

The band above 250 kDa may be caused by aggregation.

In Western blot Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) staining at 1/200000 dilution.

Exposure time : Lane 1 2 5 6 : 26 seconds Lane 3 4 7 8 : 3 minutes

All lanes:

Western blot - Anti-IRE1 (phospho S724) antibody [EPR26009-269] (<a href='/en-us/products/primary-antibodies/ire1-phospho-s724-antibody-epr26009-269-ab324051'>ab324051</a>) at 1/1000 dilution

Lane 1:

Untreated Neuro-2a (mouse neuroblastoma neuroblast) whole cell lysate (untreated membrane) at 20 µg

Lane 2:

Neuro-2a treated with 10mM DTT for 1 hour whole cell lysate (untreated membrane) at 20 µg

Lane 3:

Untreated RAW 264.7 (mouse Abelson murine leukemia virus-induced tumor macrophage)whole cell lysate (untreated membrane) at 20 µg

Lane 4:

RAW 264.7 treated with 10mM DTT for 1 hour whole cell lysate (untreated membrane) at 20 µg

Lane 5:

Untreated Neuro-2a whole cell lysate (alkaline phosphatase treated membrane) at 20 µg

Lane 6:

Neuro-2a treated with 10mM DTT for 1 hour whole cell lysate (alkaline phosphatase treated membrane) at 20 µg

Lane 7:

Untreated RAW 264.7 (mouse Abelson murine leukemia virus-induced tumor macrophage)whole cell lysate (alkaline phosphatase treated membrane) at 20 µg

Lane 8:

RAW 264.7 treated with 10mM DTT for 1 hour whole cell lysate (alkaline phosphatase treated membrane) at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 110 kDa,36 kDa

false

Dot Blot - Anti-IRE1 (phospho S724) antibody [EPR26009-269] - BSA and Azide free (AB326602)
  • Dot

Supplier Data

Dot Blot - Anti-IRE1 (phospho S724) antibody [EPR26009-269] - BSA and Azide free (AB326602)

This data was developed using ab324051, the same antibody clone in a different buffer formulation.

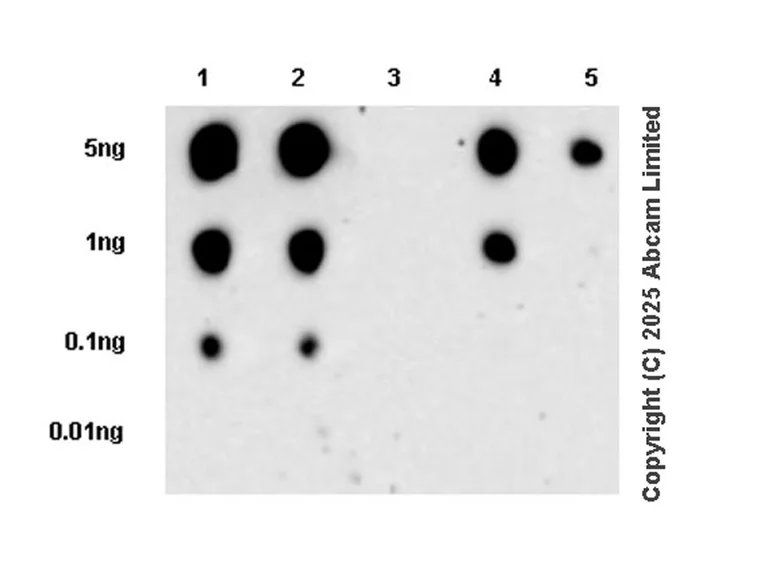

Dot blot analysis of IRE1 (phospho S724) using ab324051 at 1 : 1000 (0.528 ug/ml) followed by a Goat Anti-Rabbit IgG (H+L) Peroxidase conjugated (ab97051) at 1 : 100000 dilution.

Lane1 : IRE1 phospho S724 peptide a
Lane2 : IRE1 phospho S724 peptide b
Lane3 : IRE1 non-phospho peptide
Lane4 : IRE1 phospho S724+S726 peptide
Lane5 : IRE1 phospho S726 peptide

Exposure time : 3 minutes.

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

This antibody does cross-activity with IRE1 (phospho S726) at higher concentrations by dot blot.

All lanes:

Dot Blot - Anti-IRE1 (phospho S724) antibody [EPR26009-269] (<a href='/en-us/products/primary-antibodies/ire1-phospho-s724-antibody-epr26009-269-ab324051'>ab324051</a>) at 1/1000 dilution

Lane 1:

IRE1 phospho S724 peptide a

Lane 2:

IRE1 phospho S724 peptide b

Lane 3:

IRE1 non-phospho peptide

Lane 4:

IRE1 phospho S724+S726 peptide

Lane 5:

IRE1 phospho S726 peptide

Secondary

All lanes:

Dot Blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

false

Exposure time: 3min

  • Unconjugated

    Anti-IRE1 (phospho S724) antibody [EPR26009-269]

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR26009-269

Isotype

IgG

Carrier free

Yes

Reacts with

Human, Mouse

Applications

Dot, IHC-P, WB, ICC/IF

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

Specificity

Unsuitable for mouse ICC

style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "Dot" : {"fullname" : "Dot Blot", "shortname":"Dot"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "Dot-species-checked": "guaranteed", "Dot-species-dilution-info": "", "Dot-species-notes": "", "ICCIF-species-checked": "testedAndGuaranteed", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "<p></p>", "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": "<p></p>", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "", "WB-species-notes": "<p></p>" }, "Mouse": { "Dot-species-checked": "guaranteed", "Dot-species-dilution-info": "", "Dot-species-notes": "", "ICCIF-species-checked": "notRecommended", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "<p></p>", "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": "<p></p>", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "", "WB-species-notes": "<p></p>" }, "Synthetic peptide": { "Dot-species-checked": "testedAndGuaranteed", "Dot-species-dilution-info": "", "Dot-species-notes": "<p></p>", "ICCIF-species-checked": "notRecommended", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "IHCP-species-checked": "notRecommended", "IHCP-species-dilution-info": "", "IHCP-species-notes": "", "WB-species-checked": "notRecommended", "WB-species-dilution-info": "", "WB-species-notes": "" } } }
style
left-column

Product details

ab326602 is the carrier-free version of ab324051

Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Conjugation ready
Our carrier-free antibodies are typically supplied in a PBS-only formulation, purified and free of BSA, sodium azide and glycerol. This conjugation-ready format is designed for use with fluorochromes, metal isotopes, oligonucleotides, and enzymes, which makes them ideal for antibody labelling, functional and cell-based assays, flow-based assays (e.g. mass cytometry) and Multiplex Imaging applications.

Use our conjugation kits for antibody conjugates that are ready-to-use in as little as 20 minutes with 1 minute hands-on-time and 100% antibody recovery: available for fluorescent dyes, HRP, biotin and gold.

Compatibility
This product is compatible with the Maxpar® Antibody Labeling Kit from Fluidigm, without the need for antibody preparation. Maxpar® is a trademark of Fluidigm Canada Inc.

style
left-column

Properties and storage information

Form
Liquid
Purification technique
Affinity purification Protein A
Storage buffer
pH: 7.2 - 7.4 Constituents: PBS
Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
style
left-column
style
left-column
style
left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:
style
left-column

Target data

Serine/threonine-protein kinase and endoribonuclease that acts as a key sensor for the endoplasmic reticulum unfolded protein response (UPR) (PubMed : 11175748, PubMed : 11779464, PubMed : 12637535, PubMed : 19328063, PubMed : 21317875, PubMed : 28128204, PubMed : 30118681, PubMed : 36739529, PubMed : 9637683). In unstressed cells, the endoplasmic reticulum luminal domain is maintained in its inactive monomeric state by binding to the endoplasmic reticulum chaperone HSPA5/BiP (PubMed : 21317875). Accumulation of misfolded proteins in the endoplasmic reticulum causes release of HSPA5/BiP, allowing the luminal domain to homodimerize, promoting autophosphorylation of the kinase domain and subsequent activation of the endoribonuclease activity (PubMed : 21317875). The endoribonuclease activity is specific for XBP1 mRNA and excises 26 nucleotides from XBP1 mRNA (PubMed : 11779464, PubMed : 21317875, PubMed : 24508390). The resulting spliced transcript of XBP1 encodes a transcriptional activator protein that up-regulates expression of UPR target genes (PubMed : 11779464, PubMed : 21317875, PubMed : 24508390). Acts as an upstream signal for ER stress-induced GORASP2-mediated unconventional (ER/Golgi-independent) trafficking of CFTR to cell membrane by modulating the expression and localization of SEC16A (PubMed : 21884936, PubMed : 28067262).
See full target information ERN1 phospho S724
