AB320082

Anti-IRF3 (phospho S396) antibody [EPR28686-189]

20ul selling size
Recombinant
RabMAb
KO Validated
What is this?

Be the first to review this product! Submit a review

(1 Publication)

Knockout Tested Rabbit Recombinant Monoclonal IRF3 phospho S396 antibody. Suitable for Dot, WB and reacts with Synthetic peptide, Human samples. Cited in 1 publication.

View Alternative Names

Interferon regulatory factor 3, IRF-3, IRF3

3 Images

Supplier Data

Western blot - Anti-IRF3 (phospho S396) antibody [EPR28686-189] (AB320082)

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

The identity of the bands between 25 kDa and 35 kDa are unknown.

In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) staining at 1/200000 dilution.

In Western blot, Anti-IRF3 antibody [EPR2418Y] (ab68481) staining at 1/1000 dilution.

All lanes:

Western blot - Anti-IRF3 (phospho S396) antibody [EPR28686-189] (ab320082) at 1/1000 dilution

Lane 1:

Untreated THP-1 (human monocytic leukemia monocyte) whole cell lysate at 60 µg

Lane 2:

THP-1 treated first with 80nM TPA for 24h, then change fresh medium, transfect 10ug/ml poly(dA:dT) for 2h whole cell lysate at 60 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Observed band size: 60 kDa,36 kDa

false

Exposure time: 48s

Supplier Data

Western blot - Anti-IRF3 (phospho S396) antibody [EPR28686-189] (AB320082)

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

In Western blot, ab320082 was shown to bind specifically to IRF3. Target of interest was observed at 60 kDa in wild-type Hela cell lysates (lane 2) with no signal observed at this size in IRF3 knockout cell line (lane 4) (lane 4, knockout cell line ab255345 / knockout cell lysate ab263784).

Lysates were freshly made and used for Western blotting immediately to minimize protein degradation.

In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) staining at 1/200000 dilution.

In Western blot, Anti-IRF3 antibody [EPR2418Y] (ab68481) staining at 1/1000 dilution.

All lanes:

Western blot - Anti-IRF3 (phospho S396) antibody [EPR28686-189] (ab320082) at 1/1000 dilution

Lane 1:

Untreated wild-typeHeLa (human cervical adenocarcinoma epithelial cell) whole cell lysate (untreated membrane) at 60 µg

Lane 2:

Wild-type HeLa treated first with 80nM TPA for 24h, then change fresh medium, transfect 10ug/ml poly(dA:dT) for 2h whole cell lysate (untreated membrane) at 60 µg

Lane 3:

Untreated IRF3 knockout HeLa whole cell lysate (untreated membrane) at 60 µg

Lane 4:

IRF3 knockout HeLa treated first with 80nM TPA for 24h, then change fresh medium, transfect 10ug/ml poly(dA:dT) for 2h whole cell lysate (untreated membrane) at 60 µg

Lane 5:

Untreated wild-typeHeLa whole cell lysate (alkaline phosphatase treated membrane) at 60 µg

Lane 6:

Wild-type HeLa treated first with 80nM TPA for 24h, then change fresh medium, transfect 10ug/ml poly(dA:dT) for 2h whole cell lysate (alkaline phosphatase treated membrane) at 60 µg

Lane 7:

Untreated IRF3 knockout HeLa whole cell lysate (alkaline phosphatase treated membrane) at 60 µg

Lane 8:

IRF3 knockout HeLa treated first with 80nM TPA for 24h, then change fresh medium, transfect 10ug/ml poly(dA:dT) for 2h whole cell lysate (alkaline phosphatase treated membrane) at 60 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Observed band size: 60 kDa,36 kDa

false

Exposure time: 92s

Supplier Data

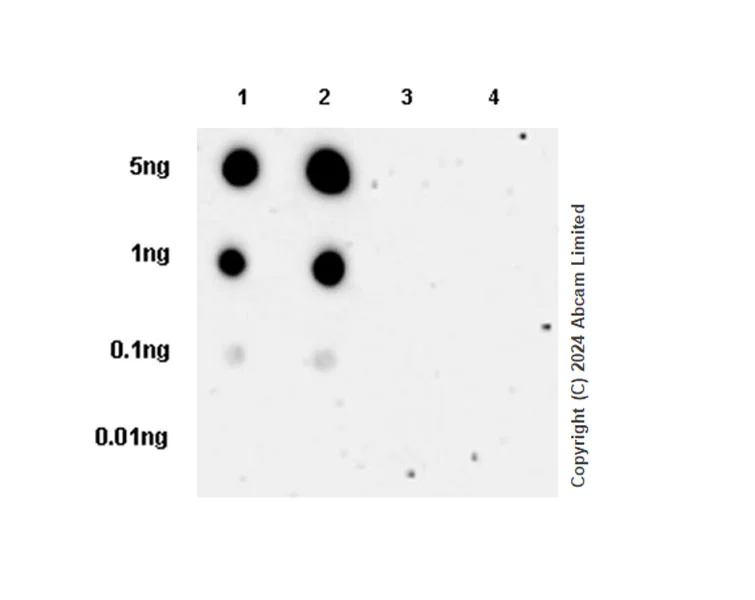

Dot Blot - Anti-IRF3 (phospho S396) antibody [EPR28686-189] (AB320082)

Dot blot analysis of IRF3 (phospho S396) using ab320082 at 1 : 1000 (0.509 ug/ml) followed by a Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated (ab97051) at 1 : 100,000 dilution.

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

All lanes:

Dot Blot - Anti-IRF3 (phospho S396) antibody [EPR28686-189] (ab320082) at 1/1000 dilution

Lane 1:

Human IRF3 (phospho S396) peptide 1

Lane 2:

Human IRF3 (phospho S396) peptide 2

Lane 3:

Human IRF3 non-phospho peptide

Lane 4:

Human IRF3 (phospho S398) peptide

Secondary

All lanes:

Dot Blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

false

Exposure time: 180s

Carrier free

Anti-IRF3 (phospho S396) antibody [EPR28686-189] - BSA and Azide free

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR28686-189

Isotype

IgG

Carrier free

Reacts with

Human

Applications

Dot, WB

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style

left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "Dot" : {"fullname" : "Dot Blot", "shortname":"Dot"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "Dot-species-checked": "guaranteed", "Dot-species-dilution-info": "", "Dot-species-notes": "", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/1000", "WB-species-notes": "", "ICCIF-species-checked": "notRecommended", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "" }, "Mouse": { "Dot-species-checked": "notRecommended", "Dot-species-dilution-info": "", "Dot-species-notes": "", "WB-species-checked": "notRecommended", "WB-species-dilution-info": "", "WB-species-notes": "", "ICCIF-species-checked": "notRecommended", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "" }, "Synthetic peptide": { "Dot-species-checked": "testedAndGuaranteed", "Dot-species-dilution-info": "1/1000", "Dot-species-notes": "", "WB-species-checked": "notRecommended", "WB-species-dilution-info": "", "WB-species-notes": "", "ICCIF-species-checked": "notRecommended", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "" } } }

style

left-column

Product details

Patented technology
Our RabMAb^® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb^® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

- High batch-to-batch consistency and reproducibility
- Improved sensitivity and specificity
- Long-term security of supply
- Animal-free batch production

For more information, read more on recombinant antibodies.

style

left-column

Properties and storage information

Form

Liquid

Purification technique

Affinity purification Protein A

Storage buffer

pH: 7.2 - 7.4 Preservative: 0.01% Sodium azide Constituents: PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA

Shipped at conditions

Blue Ice

Appropriate short-term storage duration

1-2 weeks

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

-20°C

Aliquoting information

Upon delivery aliquot

Storage information

Avoid freeze / thaw cycle

style

left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

IRF3 also known as Interferon Regulatory Factor 3 acts as an important transcription factor in the immune response. It has a molecular weight of approximately 47 kDa. The IRF3 protein is mainly expressed in the cytoplasm and nucleus of various cell types including immune cells such as macrophages and dendritic cells. The protein becomes activated through phosphorylation a process frequently identified in its phosphorylated form phospo-IRF3 or p-IRF3 which facilitates its role in immune function.

Biological function summary

IRF3 participates in the regulation of type I interferon (IFN) response a fundamental antiviral defense mechanism. IRF3 when phosphorylated forms a complex with CBP/p300 which then translocates to the nucleus to drive the expression of IFN-stimulated genes. This action strengthens the innate immune response and boosts the body's ability to counteract viral infections. Its activity and regulation are significant for maintaining a balanced immune response without excessive inflammation.

Pathways

IRF3 is involved in the Toll-like receptor (TLR) and RIG-I-like receptor (RLR) signaling pathways both essential in pathogen recognition and response. Within these pathways IRF3 interacts with proteins such as MAVS and TBK1 to propagate immune signaling. The activation of IRF3 in these pathways results in the production of type I interferons and other cytokines orchestrating an effective antiviral response. These interactions highlight the protein's central role in mediating immune signaling cascades.

IRF3's malfunction or deregulation can contribute to autoimmune diseases and antiviral deficiencies. Conditions such as systemic lupus erythematosus (SLE) and chronic hepatitis B infection are linked to IRF3 activity. During autoimmune responses or viral persistence the aberrant activation of IRF3 can lead to inappropriate immune responses. The connection with proteins like STAT1 in these conditions highlights the complex network IRF3 engages in facilitating its impact on disease progression and immune dysregulation.

style

left-column

style

left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:

Visit the General protocols
Visit the Troubleshooting

style

left-column

Target data

Key transcriptional regulator of type I interferon (IFN)-dependent immune responses which plays a critical role in the innate immune response against DNA and RNA viruses (PubMed : 22394562, PubMed : 24049179, PubMed : 25636800, PubMed : 27302953, PubMed : 31340999, PubMed : 36603579, PubMed : 8524823). Regulates the transcription of type I IFN genes (IFN-alpha and IFN-beta) and IFN-stimulated genes (ISG) by binding to an interferon-stimulated response element (ISRE) in their promoters (PubMed : 11846977, PubMed : 16846591, PubMed : 16979567, PubMed : 20049431, PubMed : 32972995, PubMed : 36603579, PubMed : 8524823). Acts as a more potent activator of the IFN-beta (IFNB) gene than the IFN-alpha (IFNA) gene and plays a critical role in both the early and late phases of the IFNA/B gene induction (PubMed : 16846591, PubMed : 16979567, PubMed : 20049431, PubMed : 36603579). Found in an inactive form in the cytoplasm of uninfected cells and following viral infection, double-stranded RNA (dsRNA), or toll-like receptor (TLR) signaling, is phosphorylated by IKBKE and TBK1 kinases (PubMed : 22394562, PubMed : 25636800, PubMed : 27302953, PubMed : 36603579). This induces a conformational change, leading to its dimerization and nuclear localization and association with CREB binding protein (CREBBP) to form dsRNA-activated factor 1 (DRAF1), a complex which activates the transcription of the type I IFN and ISG genes (PubMed : 16154084, PubMed : 27302953, PubMed : 33440148, PubMed : 36603579). Can activate distinct gene expression programs in macrophages and can induce significant apoptosis in primary macrophages (PubMed : 16846591). In response to Sendai virus infection, is recruited by TOMM70 : HSP90AA1 to mitochondrion and forms an apoptosis complex TOMM70 : HSP90AA1 : IRF3 : BAX inducing apoptosis (PubMed : 25609812). Key transcription factor regulating the IFN response during SARS-CoV-2 infection (PubMed : 33440148).

See full target information IRF3 phospho S396

style

left-column

Publications (1)

Recent publications for all applications. Explore the full list and refine your search

Bioactive materials 48:55-70 PubMed40303968

2025

cGAMP-targeting injectable hydrogel system promotes periodontal restoration by alleviating cGAS-STING pathway activation.

Applications

Unspecified application

Species

Unspecified reactive species

Xiang Liu,Hua Zhang,Lei Xu,Huayu Ye,Jinghuan Huang, Jing Xiang,Yunying He,Huan Zhou,Lingli Fang,Yunyan Zhang,Xuerong Xiang,Richard D Cannon,Ping Ji,Qiming Zhai
