Anti-IRF4 antibody [EP5699] - BSA and Azide free

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-IRF4 antibody [EP5699] - BSA and Azide free (AB240071)

Immunohistochemical analysis of paraffin embedded Human tonsil tissue labelling IRF4, using ab133590 at a dilution of 1/250.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab133590).

Perform heat mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-IRF4 antibody [EP5699] - BSA and Azide free (AB240071)

Immunohistochemical analysis of paraffin embedded Human lymphoma tissue labelling IRF4, using ab133590 at a dilution of 1/250.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab133590).

Perform heat mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.

• Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Anti-IRF4 antibody [EP5699] - BSA and Azide free (AB240071)

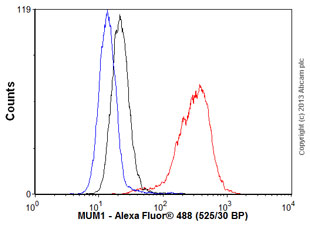

Overlay histogram showing Ramos cells stained with ab133590 (red line). The cells were fixed with 4% paraformaldehyde (10 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab133590, 1/1000 dilution) for 30 min at 22°C. The secondary antibody used was Alexa Fluor^® 488 goat anti-rabbit IgG (H&L) (ab150077) at 1/2000 dilution for 30 min at 22°C. Isotype control antibody (black line) was rabbit IgG (monoclonal) (0.1μg/1x10⁶ cells) used under the same conditions. Unlabelled sample (blue line) was also used as a control. Acquisition of >5,000 events were collected using a 20mW Argon ion laser (488nm) and 525/30 bandpass filter. This antibody gave a positive signal in Ramos cells fixed with 80% methanol (5 min)/permeabilized with 0.1% PBS-Tween for 20 min used under the same conditions. This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab133590).

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-IRF4 antibody [EP5699] - BSA and Azide free (AB240071)

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab133590). Immunocytochemistry/ Immunofluorescence analysis of IM-9 (human multiple myeloma B lymphoblast) labeling IRF4 with ab133590 at 1/500 dilution followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution. Cells were fixed with 4% Paraformaldehyde and permeabilised with 0.1% TritonX-100. DAPI was used as nuclear counterstain. ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) at 1/200 was used as the counterstain antibody. Confocal image showing mainly nuclear staining in IM-9 cell line. Negative control : 293T (PMID : 23804715) Image was taken with a confocal microscope(Leica-Microsystems, TCS SP8).

• IP

Lab

Immunoprecipitation - Anti-IRF4 antibody [EP5699] - BSA and Azide free (AB240071)

This data was developed using ab133590, the same antibody clone in a different buffer formulation.

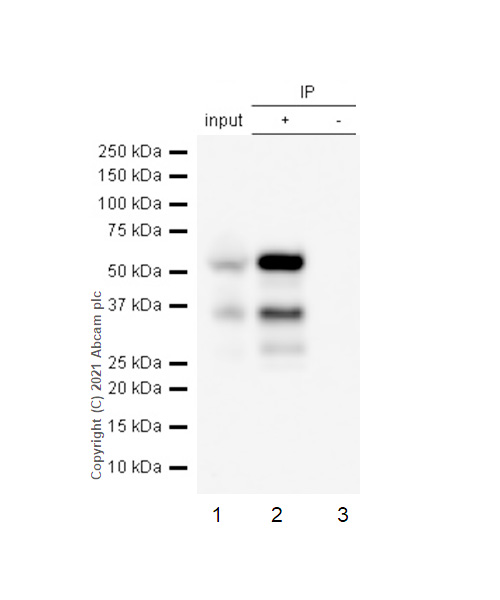

IRF4 was immunoprecipitated from 0.35 mg IM-9 (Human multiple myeloma B Lymphoblast) whole cell lysate 10 μg with ab133590 at 1/20 dilution (1μg). VeriBlot for IP Detection Reagent (HRP)(ab131366) was used at 1/5000 dilution.

Lane 1 : IM-9 (Human multiple myeloma B Lymphoblast) whole cell lysate 10 μg

Lane 2 : ab133590 IP in IM-9 whole cell lysate

Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab133590 in IM-9 whole cell lysate

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

Lower bands could be ubiquitin mediated protein degradation. (PMID : 23658517)

All lanes:

Immunoprecipitation - Anti-IRF4 antibody [EP5699] (<a href='/en-us/products/primary-antibodies/irf4-antibody-ep5699-ab133590'>ab133590</a>)

Predicted band size: 52 kDa

Observed band size: 52 kDa
