Anti-JDP2 antibody

• ICC/IF

Lab

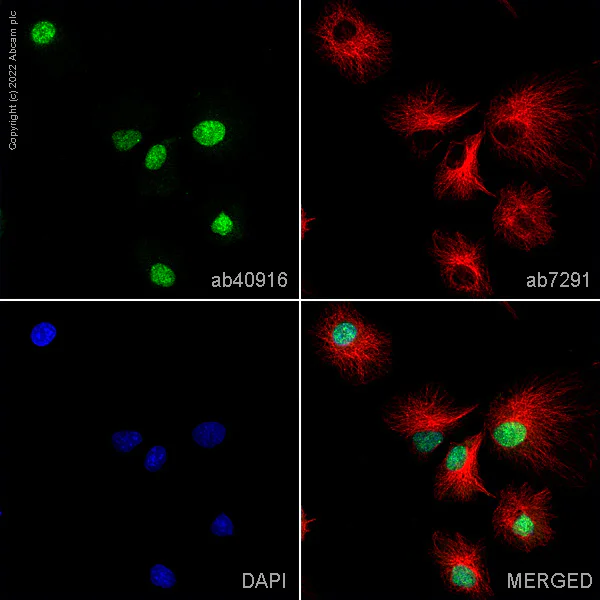

Immunocytochemistry/ Immunofluorescence - Anti-JDP2 antibody (AB40916)

ab40916 staining JDP2 in HepG2 cells. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4°C with ab40916 at 1µg/ml and ab7291, Mouse monoclonal [DM1A] to alpha Tubulin - Loading Control. Cells were then incubated with ab150081, Goat polyclonal Secondary Antibody to Rabbit IgG - H&L (Alexa Fluor® 488), pre-adsorbed at 1/1000 dilution (shown in green) and ab150120, Goat polyclonal Secondary Antibody to Mouse IgG - H&L (Alexa Fluor® 594), pre-adsorbed at 1/1000 dilution (shown in pseudocolour red). Nuclear DNA was labelled with DAPI (shown in blue). Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

• WB

Project

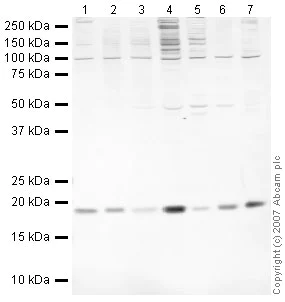

Western blot - Anti-JDP2 antibody (AB40916)

All lanes:

Western blot - Anti-JDP2 antibody (ab40916) at 1 µg/mL

Lane 1:

HeLa (Human epithelial carcinoma cell line) Whole Cell Lysate at 10 µg

Lane 2:

HeLa (Human epithelial carcinoma cell line) Nuclear Lysate at 10 µg

Lane 3:

Jurkat (Human T cell lymphoblast-like cell line) Whole Cell Lysate at 10 µg

Lane 4:

Jurkat nuclear extract lysate (<a href='/en-us/products/unavailable/jurkat-nuclear-extract-lysate-ab14844'>ab14844</a>) at 10 µg

Lane 5:

Western blot - Hep G2 nuclear extract lysate (<a href='/en-us/products/cell-lysates/hep-g2-nuclear-extract-lysate-ab14660'>ab14660</a>) at 10 µg

Lane 6:

Du145 (Human prostate carcinoma cell line) Whole Cell Lysate at 10 µg

Lane 7:

LNCaP (Human prostate adenocarcinoma cell line) Nuclear lysate at 10 µg

Secondary

All lanes:

IRDye 680 Conjugated Goat Anti-Rabbit IgG (H+L) at 1/10000 dilution

Predicted band size: 18 kDa

Observed band size: 19 kDa
