AB93804

Anti-KAT13D / CLOCK antibody

4

(1 Review)

|

(6 Publications)

Rabbit Polyclonal KAT13D / CLOCK antibody. Suitable for IP, WB and reacts with Human, Mouse samples. Cited in 6 publications.

View Alternative Names

BHLHE8, KIAA0334, CLOCK, Circadian locomoter output cycles protein kaput, hCLOCK, Class E basic helix-loop-helix protein 8, bHLHe8

4 Images
Immunoprecipitation - Anti-KAT13D / CLOCK antibody (AB93804)
  • IP

Unknown

Immunoprecipitation - Anti-KAT13D / CLOCK antibody (AB93804)

ab93804 at 1 µg/ml detecting KAT13D/CLOCK in HeLa whole cell lysate by WB following IP.
Lane 1 : IP with an antibody which recognizes an upstream epitope of KAT13D/CLOCK
Lane 2 : ab93804 at 3µg/mg of lysate
Lane 3 : control IgG.
In each case, 1 mg of lysate was used for IP and 20% of the IP was loaded.
Detection : Chemiluminescence with an exposure time of 30 seconds

All lanes:

Immunoprecipitation - Anti-KAT13D / CLOCK antibody (ab93804)

Predicted band size: 95 kDa

false

Western blot - Anti-KAT13D / CLOCK antibody (AB93804)
  • WB

Lab

Western blot - Anti-KAT13D / CLOCK antibody (AB93804)

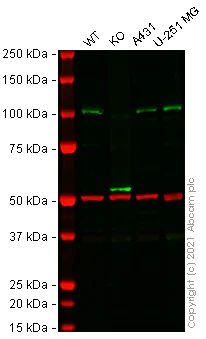

False colour image of Western blot : Anti-KAT13D / CLOCK antibody staining at 1/2000 dilution, shown in green; Mouse anti-Alpha Tubulin [DM1A] (ab7291) loading control staining at 1/20000 dilution, shown in red. In Western blot, ab93804 was shown to bind specifically to KAT13D / CLOCK. A band was observed at 100 kDa in wild-type HeLa cell lysates with no signal observed at this size in CLOCK knockout cell line ab266054 (knockout cell lysate ab258365). The band observed in the knockout lysate lane below 100 kDa is likely to represent a truncated form of KAT13D / CLOCK. This has not been investigated further and the functional properties of the gene product have not been determined. To generate this image, wild-type and CLOCK knockout HeLa cell lysates were analysed.First, samples were run on an SDS-PAGE gel then transferred onto a nitrocellulose membrane. Membranes were blocked in 5 % milk in TBS-0.1 % Tween® 20 (TBS-T) before incubation with primary antibodies overnight at 4 °C. Blots were washed four times in TBS-T, incubated with secondary antibodies for 1 h at room temperature, washed again four times then imaged. Secondary antibodies used were Goat anti-Rabbit IgG H&L (IRDye® 800CW) preabsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye® 680RD) preabsorbed (ab216776) at 1/20000 dilution.

All lanes:

Western blot - Anti-KAT13D / CLOCK antibody (ab93804) at 1/2000 dilution

Lane 1:

Wild-type HeLa cell lysate at 20 µg

Lane 2:

CLOCK knockout HeLa cell lysate at 20 µg

Lane 2:

Western blot - Human CLOCK (KAT13D) knockout HeLa cell line (<a href='/en-us/products/cell-lines/human-clock-kat13d-knockout-hela-cell-line-ab266054'>ab266054</a>)

Lane 3:

A431 cell lysate at 20 µg

Lane 4:

U-251 MG cell lysate at 20 µg

Predicted band size: 95 kDa

Observed band size: 100 kDa

false

Western blot - Anti-KAT13D / CLOCK antibody (AB93804)
  • WB

Supplier Data

Western blot - Anti-KAT13D / CLOCK antibody (AB93804)

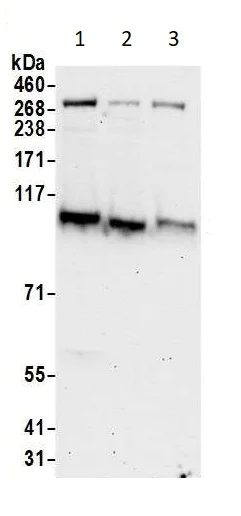

Detection : Chemiluminescence

All lanes:

Western blot - Anti-KAT13D / CLOCK antibody (ab93804) at 0.1 µg/mL

Lane 1:

HeLa cell lysate at 50 µg

Lane 2:

HEK293T cell lysate at 50 µg

Lane 3:

NIH3T3 cell lysate at 50 µg

Predicted band size: 95 kDa

false

Exposure time: 30s

Western blot - Anti-KAT13D / CLOCK antibody (AB93804)
  • WB

Lab

Western blot - Anti-KAT13D / CLOCK antibody (AB93804)

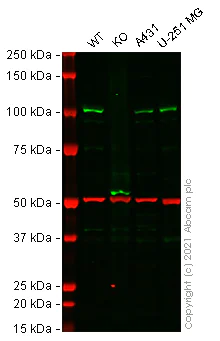

False colour image of Western blot : Anti-KAT13D / CLOCK antibody staining at 1/2000 dilution, shown in green; Mouse anti-Alpha Tubulin [DM1A] (ab7291) loading control staining at 1/20000 dilution, shown in red. In Western blot, ab93804 was shown to bind specifically to KAT13D / CLOCK. A band was observed at 100 kDa in wild-type HeLa cell lysates with no signal observed at this size in CLOCK knockout cell line ab265301 (knockout cell lysate ab258364). The band observed in the knockout lysate lane below 100 kDa is likely to represent a truncated form of KAT13D / CLOCK. This has not been investigated further and the functional properties of the gene product have not been determined. To generate this image, wild-type and CLOCK knockout HeLa cell lysates were analysed.First, samples were run on an SDS-PAGE gel then transferred onto a nitrocellulose membrane. Membranes were blocked in 5 % milk in TBS-0.1 % Tween® 20 (TBS-T) before incubation with primary antibodies overnight at 4 °C. Blots were washed four times in TBS-T, incubated with secondary antibodies for 1 h at room temperature, washed again four times then imaged. Secondary antibodies used were Goat anti-Rabbit IgG H&L (IRDye® 800CW) preabsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye® 680RD) preabsorbed (ab216776) at 1/20000 dilution.

All lanes:

Western blot - Anti-KAT13D / CLOCK antibody (ab93804) at 1/2000 dilution

Lane 1:

Wild-type HeLa cell lysate at 20 µg

Lane 2:

CLOCK knockout HeLa cell lysate at 20 µg

Lane 2:

Western blot - Human CLOCK (KAT13D) knockout HeLa cell line (<a href='/en-us/products/cell-lines/human-clock-kat13d-knockout-hela-cell-line-ab265301'>ab265301</a>)

Lane 3:

A431 cell lysate at 20 µg

Lane 4:

U-251 MG cell lysate at 20 µg

Predicted band size: 95 kDa

Observed band size: 100 kDa

false

Key facts

Host species

Rabbit

Clonality

Polyclonal

Isotype

IgG

Carrier free

No

Reacts with

Mouse, Human

Applications

WB, IP

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "IP" : {"fullname" : "Immunoprecipitation", "shortname":"IP"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "IP-species-checked": "testedAndGuaranteed", "IP-species-dilution-info": "2-5 µg/mL", "IP-species-notes": "<p></p>", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/2000 - 1/10000", "WB-species-notes": "<p></p>" }, "Mouse": { "IP-species-checked": "guaranteed", "IP-species-dilution-info": "", "IP-species-notes": "", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/2000 - 1/10000", "WB-species-notes": "<p></p>" }, "Chimpanzee": { "IP-species-checked": "predicted", "IP-species-dilution-info": "", "IP-species-notes": "", "WB-species-checked": "predicted", "WB-species-dilution-info": "", "WB-species-notes": "" }, "Gorilla": { "IP-species-checked": "predicted", "IP-species-dilution-info": "", "IP-species-notes": "", "WB-species-checked": "predicted", "WB-species-dilution-info": "", "WB-species-notes": "" }, "Guinea pig": { "IP-species-checked": "predicted", "IP-species-dilution-info": "", "IP-species-notes": "", "WB-species-checked": "predicted", "WB-species-dilution-info": "", "WB-species-notes": "" }, "Orangutan": { "IP-species-checked": "predicted", "IP-species-dilution-info": "", "IP-species-notes": "", "WB-species-checked": "predicted", "WB-species-dilution-info": "", "WB-species-notes": "" }, "Rhesus monkey": { "IP-species-checked": "predicted", "IP-species-dilution-info": "", "IP-species-notes": "", "WB-species-checked": "predicted", "WB-species-dilution-info": "", "WB-species-notes": "" } } }

Properties and storage information

Form
Liquid
Purification technique
Affinity purification Immunogen
Purification notes
ab93804 was affinity purified using an epitope specific to KAT13D/CLOCK immobilized on solid support.
Storage buffer
pH: 7 - 8 Preservative: 0.09% Sodium azide Constituents: Tris citrate/phosphate
Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

KAT13D also known as CLOCK is a gene coding for a protein weighing approximately 97 kDa. The CLOCK protein mainly functions as a transcription factor with histone acetyltransferase activity hence its involvement in chromatin remodeling. This protein is highly expressed in the suprachiasmatic nucleus of the brain pancreas and heart. It regulates expression of genes through folding DNA and influencing transcriptional activity playing a significant role in maintaining circadian rhythms. Scientists often use phrases such as 'anti-CLOCK' 'anticlock' or 'anti-clock' when studying its mechanisms as these highlight the protein's regulatory role.
Biological function summary

The CLOCK protein acts as an important component of the circadian rhythm machinery. It forms a heterodimer complex with BMAL1 which activates transcription of other core clock genes. This process drives the rhythmic expression of various genes essential for physiological and behavioral rhythms. Through this function CLOCK influences the timing of many body systems such as sleep-wake cycles feeding and metabolism. By doing so it sets a steady rhythm to coordinate bodily processes with environmental light-dark cycles ensuring optimal biological activity during appropriate times of the day.

Pathways

The CLOCK protein plays an important role in the circadian signaling pathway where its function involves intricate feedback loops. It controls the oscillation of gene expression alongside other clock proteins like PER and CRY. This feedback mechanism is part of the circadian rhythm regulation pathway which directly influences processes such as hormone regulation and cell cycle progression. CLOCK’s relationship with BMAL1 PER and CRY in these pathways highlights its indispensable role in maintaining the synchronization of endogenous biological rhythms with external time cues.

Disruption of the CLOCK gene is associated with diseases such as sleep disorders and mood disorders. Alterations in CLOCK function can lead to irregular sleep patterns such as in the case of delayed sleep phase disorder owing to its role in the circadian timing system. Moreover irregular rhythms in CLOCK expression have been linked to mood disorders like bipolar disorder. The association between CLOCK dysfunction and these disorders highlights its importance alongside its interaction with proteins like CRY and PER in maintaining mental health stability.

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:

Target data

Transcriptional activator which forms a core component of the circadian clock. The circadian clock, an internal time-keeping system, regulates various physiological processes through the generation of approximately 24 hour circadian rhythms in gene expression, which are translated into rhythms in metabolism and behavior. It is derived from the Latin roots 'circa' (about) and 'diem' (day) and acts as an important regulator of a wide array of physiological functions including metabolism, sleep, body temperature, blood pressure, endocrine, immune, cardiovascular, and renal function. Consists of two major components : the central clock, residing in the suprachiasmatic nucleus (SCN) of the brain, and the peripheral clocks that are present in nearly every tissue and organ system. Both the central and peripheral clocks can be reset by environmental cues, also known as Zeitgebers (German for 'timegivers'). The predominant Zeitgeber for the central clock is light, which is sensed by retina and signals directly to the SCN. The central clock entrains the peripheral clocks through neuronal and hormonal signals, body temperature and feeding-related cues, aligning all clocks with the external light/dark cycle. Circadian rhythms allow an organism to achieve temporal homeostasis with its environment at the molecular level by regulating gene expression to create a peak of protein expression once every 24 hours to control when a particular physiological process is most active with respect to the solar day. Transcription and translation of core clock components (CLOCK, NPAS2, BMAL1, BMAL2, PER1, PER2, PER3, CRY1 and CRY2) plays a critical role in rhythm generation, whereas delays imposed by post-translational modifications (PTMs) are important for determining the period (tau) of the rhythms (tau refers to the period of a rhythm and is the length, in time, of one complete cycle). A diurnal rhythm is synchronized with the day/night cycle, while the ultradian and infradian rhythms have a period shorter and longer than 24 hours, respectively. Disruptions in the circadian rhythms contribute to the pathology of cardiovascular diseases, cancer, metabolic syndromes and aging. A transcription/translation feedback loop (TTFL) forms the core of the molecular circadian clock mechanism. Transcription factors, CLOCK or NPAS2 and BMAL1 or BMAL2, form the positive limb of the feedback loop, act in the form of a heterodimer and activate the transcription of core clock genes and clock-controlled genes (involved in key metabolic processes), harboring E-box elements (5'-CACGTG-3') within their promoters. The core clock genes : PER1/2/3 and CRY1/2 which are transcriptional repressors form the negative limb of the feedback loop and interact with the CLOCK|NPAS2-BMAL1|BMAL2 heterodimer inhibiting its activity and thereby negatively regulating their own expression. This heterodimer also activates nuclear receptors NR1D1/2 and RORA/B/G, which form a second feedback loop and which activate and repress BMAL1 transcription, respectively. Regulates the circadian expression of ICAM1, VCAM1, CCL2, THPO and MPL and also acts as an enhancer of the transactivation potential of NF-kappaB. Plays an important role in the homeostatic regulation of sleep. The CLOCK-BMAL1 heterodimer regulates the circadian expression of SERPINE1/PAI1, VWF, B3, CCRN4L/NOC, NAMPT, DBP, MYOD1, PPARGC1A, PPARGC1B, SIRT1, GYS2, F7, NGFR, GNRHR, BHLHE40/DEC1, ATF4, MTA1, KLF10 and also genes implicated in glucose and lipid metabolism. Promotes rhythmic chromatin opening, regulating the DNA accessibility of other transcription factors. The CLOCK-BMAL2 heterodimer activates the transcription of SERPINE1/PAI1 and BHLHE40/DEC1. The preferred binding motif for the CLOCK-BMAL1 heterodimer is 5'-CACGTGA-3', which contains a flanking adenine nucleotide at the 3-prime end of the canonical 6-nucleotide E-box sequence (PubMed : 23229515). CLOCK specifically binds to the half-site 5'-CAC-3', while BMAL1 binds to the half-site 5'-GTGA-3' (PubMed : 23229515). The CLOCK-BMAL1 heterodimer also recognizes the non-canonical E-box motifs 5'-AACGTGA-3' and 5'-CATGTGA-3' (PubMed : 23229515). CLOCK has an intrinsic acetyltransferase activity, which enables circadian chromatin remodeling by acetylating histones and nonhistone proteins, including its own partner BMAL1. Represses glucocorticoid receptor NR3C1/GR-induced transcriptional activity by reducing the association of NR3C1/GR to glucocorticoid response elements (GREs) via the acetylation of multiple lysine residues located in its hinge region (PubMed : 21980503). The acetyltransferase activity of CLOCK is as important as its transcription activity in circadian control. Acetylates metabolic enzymes IMPDH2 and NDUFA9 in a circadian manner. Facilitated by BMAL1, rhythmically interacts and acetylates argininosuccinate synthase 1 (ASS1) leading to enzymatic inhibition of ASS1 as well as the circadian oscillation of arginine biosynthesis and subsequent ureagenesis (PubMed : 28985504). Drives the circadian rhythm of blood pressure through transcriptional activation of ATP1B1 (By similarity).
See full target information CLOCK

Publications (6)

Recent publications for all applications. Explore the full list and refine your search

Molecules (Basel, Switzerland) 28: PubMed36838862

2023

Berberine Ameliorates Metabolic-Associated Fatty Liver Disease Mediated Metabolism Disorder and Redox Homeostasis by Upregulating Clock Genes: Clock and Bmal1 Expressions.

Applications

Unspecified application

Species

Unspecified reactive species

Cunsi Ye,Yajing Zhang,Shaomin Lin,Yi Chen,Zimiao Wang,Haoyinghua Feng,Guangqing Fang,Shijian Quan

BMC pulmonary medicine 22:435 PubMed36419003

2022

Circadian clock gene Clock-Bmal1 regulates cellular senescence in Chronic obstructive pulmonary disease.

Applications

Unspecified application

Species

Unspecified reactive species

Lingling Li,Min Zhang,Chunyang Zhao,Yusheng Cheng,Chuanmei Liu,Minhua Shi

Neuropharmacology 172:108133 PubMed32413367

2020

A regulatory pathway linking caffeine action, mood and the diurnal clock.

Applications

Unspecified application

Species

Unspecified reactive species

Charlotte Trautmann,Dominika Burek,Christian A Hübner,Jean-Antoine Girault,Olivia Engmann

Molecules (Basel, Switzerland) 24: PubMed31408938

2019

Resveratrol Maintains Lipid Metabolism Homeostasis via One of the Mechanisms Associated with the Key Circadian Regulator Bmal1.

Applications

Unspecified application

Species

Unspecified reactive species

Jing Li,Liping Wei,Caicai Zhao,Junyi Li,Zhigang Liu,Min Zhang,Yutang Wang

Food and chemical toxicology : an international jo 122:181-193 PubMed30316844

2018

Tea polyphenols direct Bmal1-driven ameliorating of the redox imbalance and mitochondrial dysfunction in hepatocytes.

Applications

Unspecified application

Species

Unspecified reactive species

Guoyuan Qi,Wanqiang Wu,Yashi Mi,Renjie Shi,Keyu Sun,Runnan Li,Xiao Liu,Xuebo Liu

Biochimica et biophysica acta. Molecular and cell 1863:549-562 PubMed29501626

2018

Nobiletin protects against insulin resistance and disorders of lipid metabolism by reprogramming of circadian clock in hepatocytes.

Applications

WB

Species

Unspecified reactive species

Guoyuan Qi,Rui Guo,Haoyu Tian,Lixia Li,Hua Liu,Yashi Mi,Xuebo Liu
