Anti-KDEL antibody [EPR12668] - BSA and Azide free

• Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Anti-KDEL antibody [EPR12668] - BSA and Azide free (AB240190)

Intracellular flow cytometric analysis of permeabilized HeLa cells labeling KDEL with ab176333 at 1/10 dilution (red) or a rabbit IgG (negative) (green).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab176333).

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-KDEL antibody [EPR12668] - BSA and Azide free (AB240190)

Immunocytochemistry/Immunofluorescence analysis of Jurkat cells labelling KDEL with purified ab176333 at 1/200. Cells were fixed with 4% Paraformaldehyde and permeabilized using 0.1% Triton X-100. ab150077, Alexa Fluor^® 488-conjugated goat anti-rabbit IgG (1/1000) was used as the secondary antibody. Cells were co-stained with ab7291, a mouse anti-tubulin antibody (1/1000) using ab150120, an Alexa Fluor^® 594-conjugated goat anti-mouse IgG (1/1000) as the secondary. Nuclei were counterstained with DAPI (blue).

For negative control 1, ab150120 (Rabbit primary antibody) and anti-mouse secondary antibody were used and for negative control 2, ab7291 (Mouse primary antibody) and ab150077 (anti-rabbit secondary antibody) were used.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab176333).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-KDEL antibody [EPR12668] - BSA and Azide free (AB240190)

Immunohistochemical analysis of paraffin-embedded human liver sections labelling KDEL with purified ab176333 at dilution of 1 : 350. The secondary antibody used was ab97051; a goat anti-rabbit IgG H&L (HRP) at dilution of 1/500. The sample was counterstained with hematoxylin. Antigen retrieval was performed using EDTA Buffer; pH 9.0. PBS was used instead of the primary antibody as the negative control and is shown in the inset.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab176333).

• Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Anti-KDEL antibody [EPR12668] - BSA and Azide free (AB240190)

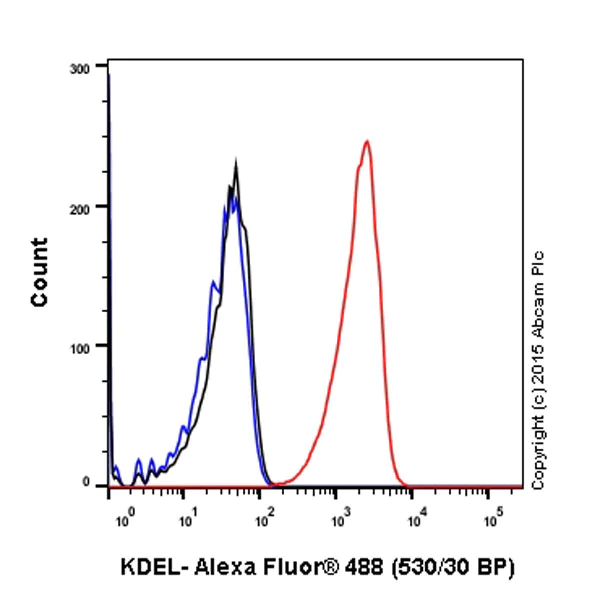

Overlay histogram showing 4% paraformaldehyde fixed HeLa cells labelling KDEL (red) with purified ab176333 at dilution of 1/100. The secondary antibody used was Alexa Fluor^® 488 goat-anti-rabbit IgG at dilution of 1/2000. A non-specific IgG antibody (rabbit monoclonal) was used as isotype control (black). The blue line shows cells without incubation with primary antibody and secondary antibody.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab176333).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-KDEL antibody [EPR12668] - BSA and Azide free (AB240190)

Immunohistochemical analysis of paraffin-embedded mouse liver sections labelling KDEL with purified ab176333 at dilution of 1 : 350. The secondary antibody used was ab97051; a goat anti-rabbit IgG H&L (HRP) at dilution of 1/500. The sample was counterstained with hematoxylin. Antigen retrieval was performed using EDTA Buffer; pH 9.0. PBS was used instead of the primary antibody as the negative control and is shown in the inset.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab176333).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-KDEL antibody [EPR12668] - BSA and Azide free (AB240190)

Immunohistochemical analysis of paraffin-embedded rat kidney sections labelling KDEL with purified ab176333 at dilution of 1 : 350. The secondary antibody used was ab97051; a goat anti-rabbit IgG H&L (HRP) at dilution of 1/500. The sample was counterstained with hematoxylin. Antigen retrieval was performed using EDTA Buffer; pH 9.0. PBS was used instead of the primary antibody as the negative control and is shown in the inset.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab176333).
