Anti-KIF13A antibody [EPR29130-81]

• ICC/IF

Supplier Data

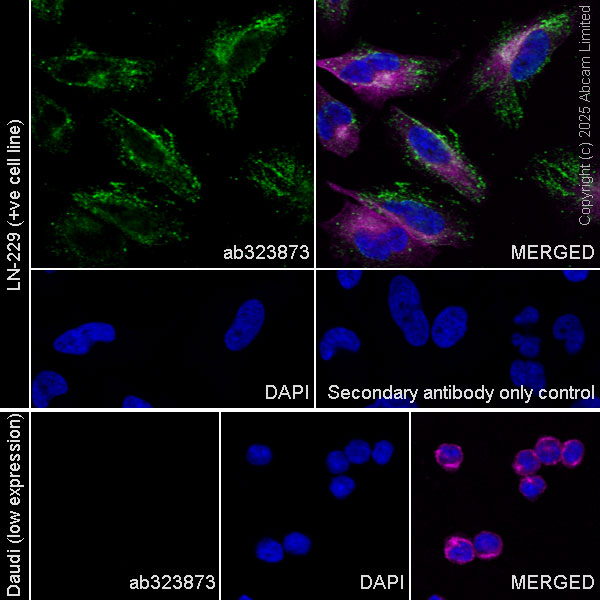

Immunocytochemistry/ Immunofluorescence - Anti-KIF13A antibody [EPR29130-81] (AB323873)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized LN-229 (human brain glioblastoma epithelial cell) cells labelling KIF13A with ab323873 at 1/100 (5.29 ug/ml) dilution, followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/ab150081 1000 2ug/ml dilution (Green).

Confocal image showing cytoplasmic staining in LN-229 cell line (shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue).
Low expression : Daudi.
Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) was used to counterstain tubulin at 1/ab195889 200 2.5ug/ml dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

Secondary antibody only control : Secondary antibody is ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/ab150081 1000 2ug/ml dilution.

• ICC/IF

Supplier Data

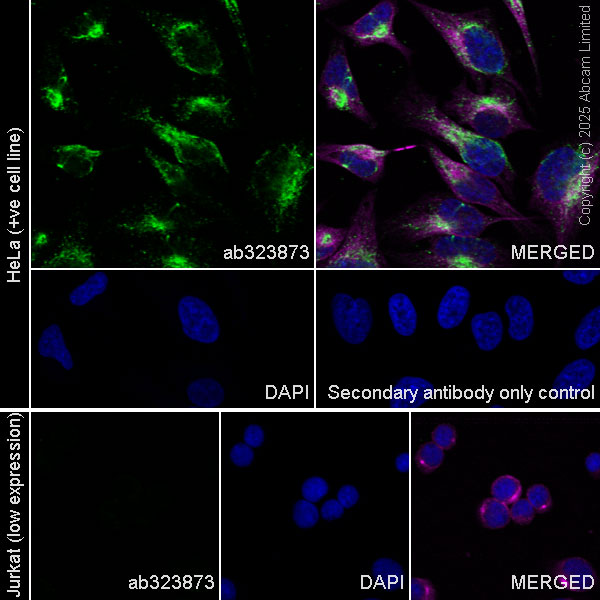

Immunocytochemistry/ Immunofluorescence - Anti-KIF13A antibody [EPR29130-81] (AB323873)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized HeLa (human cervical adenocarcinoma epithelial cell) cells labelling KIF13A with ab323873 at 1/100 (5.29 ug/ml) dilution, followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/ab150081 1000 2ug/ml dilution (Green).

Confocal image showing cytoplasmic staining in HeLa cell line (shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue).
Low expression : Jurkat.
Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) was used to counterstain tubulin at 1/ab195889 200 2.5ug/ml dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

Secondary antibody only control : Secondary antibody is ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/ab150081 1000 2ug/ml dilution.

• WB

Supplier Data

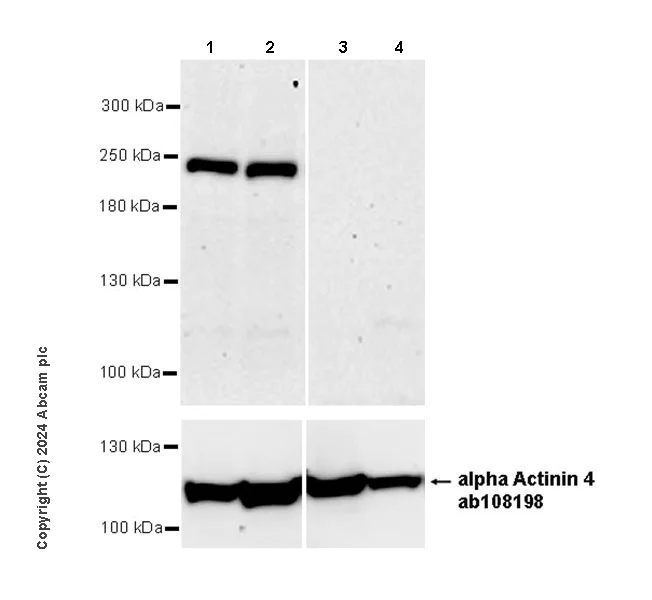

Western blot - Anti-KIF13A antibody [EPR29130-81] (AB323873)

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

Negative control : THP-1; MOLT-4

The molecular weight observed is consistent with what has been described in the literature (PMID : 33179593; PMID : 33179593).

In Western blot, Anti-alpha Actinin 4 antibody [EPR2533 (2)](ab108198) staining at 105KDa dilution.

All lanes:

Western blot - Anti-KIF13A antibody [EPR29130-81] (ab323873) at 1/1000 dilution

Lane 1:

K-562 (human chronic myelogenous leukemia lymphoblast) whole cell lysate at 40 µg

Lane 2:

TF-1 (human erythroleukemia erythroblast) whole cell lysate at 40 µg

Lane 3:

THP-1 (human monocytic leukemia monocyte) whole cell lysate at 40 µg

Lane 4:

MOLT-4 (human lymphoblastic leukemia T lymphoblast) whole cell lysate at 40 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Observed band size: 250 kDa,105 kDa

false

Exposure time: 180s

• WB

Supplier Data

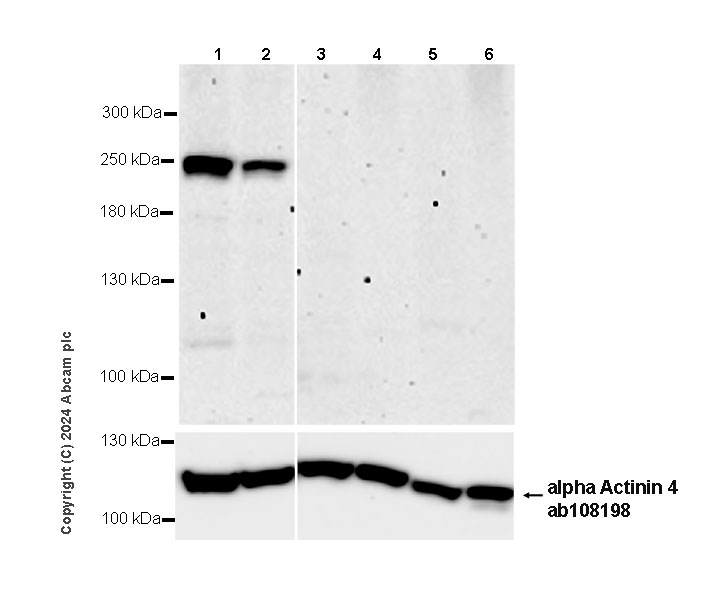

Western blot - Anti-KIF13A antibody [EPR29130-81] (AB323873)

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

Negative control : Daudi, Jurkat, U-937, HL-60.

The molecular weight observed is consistent with what has been described in the literature (PMID : 33179593; PMID : 33179593).

In Western blot, Anti-alpha Actinin 4 antibody [EPR2533 (2)](ab108198) staining at 105KDa dilution.

All lanes:

Western blot - Anti-KIF13A antibody [EPR29130-81] (ab323873) at 1/1000 dilution

Lane 1:

HeLa (human cervical adenocarcinoma epithelial cell) whole cell lysate at 40 µg

Lane 2:

LN-229 (human brain glioblastoma epithelial cell) whole cell lysate at 40 µg

Lane 3:

Daudi (human Burkitt's lymphoma lymphoblast) whole cell lysate at 40 µg

Lane 4:

U-937 (human histiocytic lymphoma monocyte) whole cell lysate at 40 µg

Lane 5:

Jurkat (human T cell leukemia T lymphocyte from peripheral blood) whole cell lysate at 40 µg

Lane 6:

HL-60 (human acute promyelocytic leukemia promyeloblast) whole cell lysate at 40 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Observed band size: 250 kDa,105 kDa

false

Exposure time: 180s

• Dot

Supplier Data

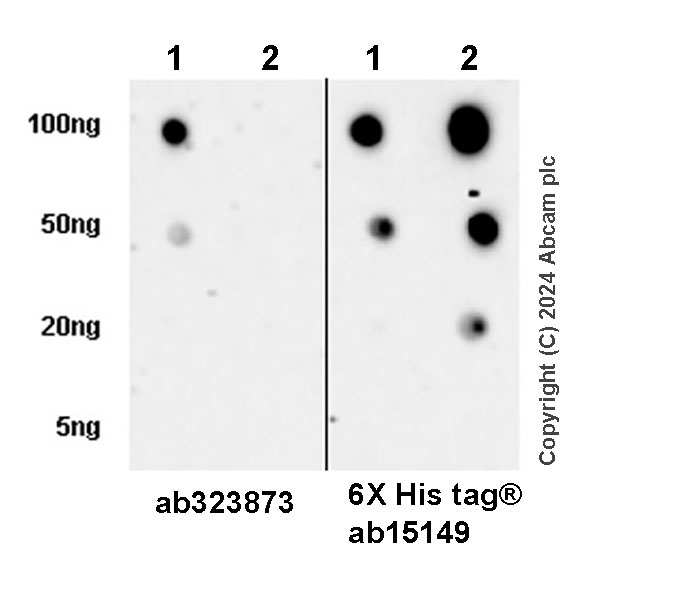

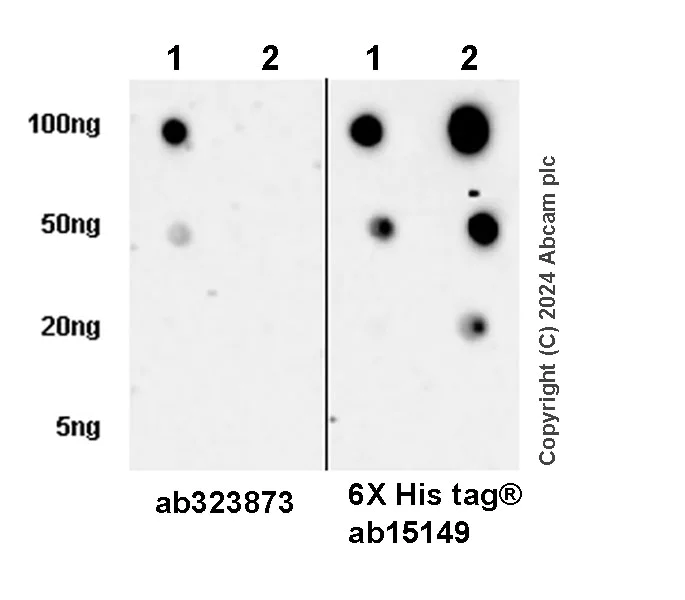

Dot Blot - Anti-KIF13A antibody [EPR29130-81] (AB323873)

This antibody does not cross-react with human KIF13B.

#In Dot Blot, Anti-6X His tag® antibody [AD1.1.10] (ab15149) staining at 1/1000 dilution.

All lanes:

Dot Blot - Anti-KIF13A antibody [EPR29130-81] (ab323873) at 1/1000 dilution

Lane 1:

Purified 293T cells transfected with a human KIF13A expression vector containing a His-tag, whole cell lysate

Lane 2:

Purified 293T cells transfected with a human KIF13B expression vector containing a His-tag, whole cell lysate

Secondary

All lanes:

Dot Blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

false

Exposure time: 180s
