AB224697

Anti-KIR2DL3 + KIR2DL1 + KIR2DL2 antibody [EPR22541-47]

RabMAb
Recombinant
What is this?

Be the first to review this product! Submit a review

(1 Publication)

Rabbit Recombinant Monoclonal KIR2DL1 antibody. Suitable for Flow Cyt, WB, IHC-P and reacts with Human, Recombinant fragment - Human samples. Cited in 1 publication.

View Alternative Names

CD158a, CD158A, NKAT1, KIR2DL1, Killer cell immunoglobulin-like receptor 2DL1, CD158 antigen-like family member A, Natural killer-associated transcript 1, p58 natural killer cell receptor clones CL-42/47.11, p58.1 MHC class-I-specific NK receptor, NKAT-1, p58 NK receptor CL-42/47.11

4 Images

Flow Cytometry - Anti-KIR2DL3 + KIR2DL1 + KIR2DL2 antibody [EPR22541-47] (AB224697)

Flow Cyt

Unknown

Flow Cytometry - Anti-KIR2DL3 + KIR2DL1 + KIR2DL2 antibody [EPR22541-47] (AB224697)

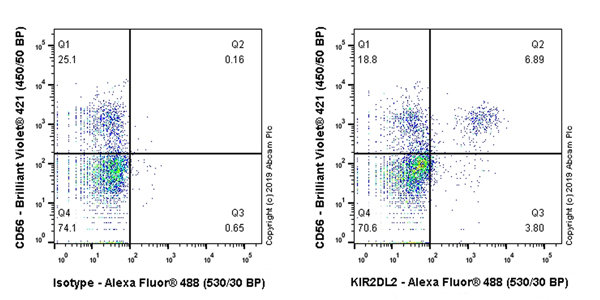

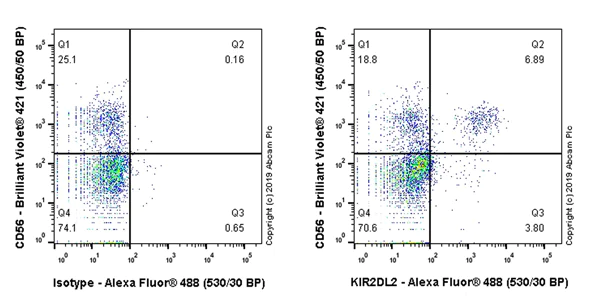

Flow cytometric analysis of human peripheral blood mononuclear cell (PBMC) cells labeling KIR2DL2+KIR2DL1+KIR2DL3 with ab224697 at 1/600 compared with a Rabbit monoclonal IgG (ab172730) / Left isotype control. Goat anti rabbit IgG (Alexa Fluor^® 488, ab150097) at 1/5000 dilution was used as the secondary antibody. Cells were stained with rabbit IgG (Left) or ab224697 (Right). Then stained with anti-CD56 conjugated to BV421. Gated on viable cells.

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-KIR2DL3 + KIR2DL1 + KIR2DL2 antibody [EPR22541-47] (AB224697)

IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-KIR2DL3 + KIR2DL1 + KIR2DL2 antibody [EPR22541-47] (AB224697)

Immunohistochemical analysis of paraffin-embedded human endometrium tissue labeling KIR2DL2+KIR2DL1+KIR2DL3 with ab224697 at 1/500 dilution (1.13μg/ml) followed by a ready to use Goat Anti-Rabbit IgG H&L (HRP). Positive staining in natural killer (NK) cells in human endometrium (PMID : 7749980). Counterstained with hematoxylin. Heat mediated antigen retrieval using ab93684 (Tris/EDTA buffer, pH 9.0).

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is a ready to use Goat Anti-Rabbit IgG H&L (HRP).

Supplier Data

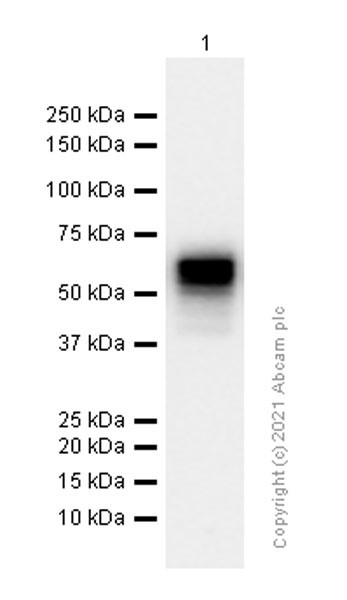

Western blot - Anti-KIR2DL3 + KIR2DL1 + KIR2DL2 antibody [EPR22541-47] (AB224697)

Blocking and diluting buffer : 5% NFDM/TBST

The actual band size higher than predicted is mainly due to glycosylation.

The molecular weight observed is consistent with what has been described in the literatures

(PMID : 11454312 and PMID : 12370356).

All lanes:

Western blot - Anti-KIR2DL3 + KIR2DL1 + KIR2DL2 antibody [EPR22541-47] (ab224697) at 1/2000 dilution

All lanes:

HuT-78 (Human Sezary syndrome cutaneous T lymphocyte) whole cell lysate at 15 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Observed band size: 38-60 kDa

false

Exposure time: 40s

Lab

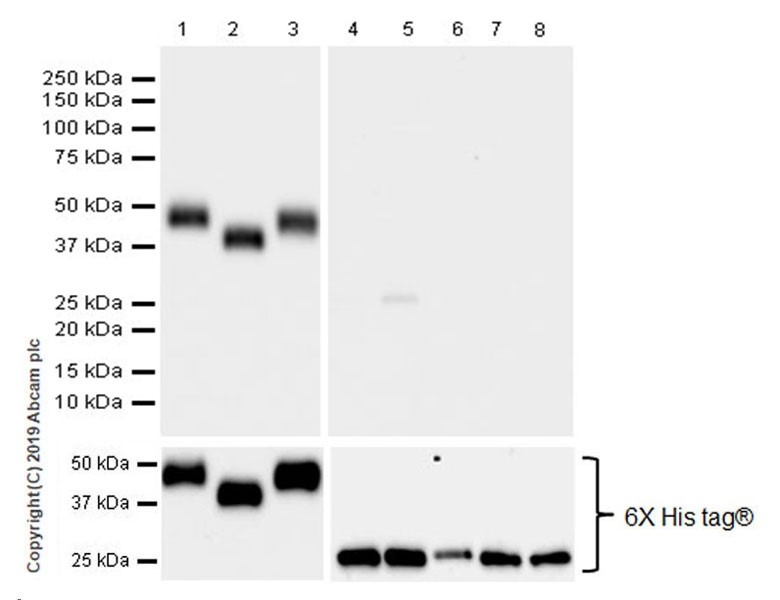

Western blot - Anti-KIR2DL3 + KIR2DL1 + KIR2DL2 antibody [EPR22541-47] (AB224697)

Blocking/Dilution buffer : 5% NFDM/TBST.

All lanes:

Western blot - Anti-KIR2DL3 + KIR2DL1 + KIR2DL2 antibody [EPR22541-47] (ab224697) at 1/1000 dilution

Lane 1:

His-tagged human KIR2DL1 recombinant protein (aa1-245)

Lane 2:

His and LIF-tagged human KIR2DL2 recombinant protein (aa26-221)

Lane 3:

His-tagged human KIR2DL3 recombinant protein (aa1-245)

Lane 4:

His-tagged human KIR2DS1 recombinant protein (aa22-221)

Lane 5:

His-tagged human KIR2DS2 recombinant protein (aa22-221)

Lane 6:

His-tagged human KIR2DS3 recombinant protein (aa22-221)

Lane 7:

His-tagged human KIR2DS4 recombinant protein (aa22-221)

Lane 8:

His-tagged human KIR2DS5 recombinant protein (aa22-221) 20 ng

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

false

Exposure time: 15s

Carrier free

Anti-KIR2DL3 + KIR2DL1 + KIR2DL2 antibody [EPR22541-47] - BSA and Azide free

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR22541-47

Isotype

IgG

Carrier free

Reacts with

Human

Applications

WB, IHC-P, Flow Cyt

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style

left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "FlowCyt" : {"fullname" : "Flow Cytometry", "shortname":"Flow Cyt"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "FlowCyt-species-checked": "testedAndGuaranteed", "FlowCyt-species-dilution-info": "1/600", "FlowCyt-species-notes": "", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/1000", "WB-species-notes": "", "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "1/500", "IHCP-species-notes": "" }, "Recombinant fragment - Human": { "FlowCyt-species-checked": "notRecommended", "FlowCyt-species-dilution-info": "", "FlowCyt-species-notes": "", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/1000", "WB-species-notes": "", "IHCP-species-checked": "notRecommended", "IHCP-species-dilution-info": "", "IHCP-species-notes": "" } } }

style

left-column

Product details

Patented technology
Our RabMAb^® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb^® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

- High batch-to-batch consistency and reproducibility
- Improved sensitivity and specificity
- Long-term security of supply
- Animal-free batch production

For more information, read more on recombinant antibodies.

style

left-column

Properties and storage information

Form

Liquid

Purification technique

Affinity purification Protein A

Storage buffer

pH: 7.2 - 7.4 Preservative: 0.01% Sodium azide Constituents: PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA

Shipped at conditions

Blue Ice

Appropriate short-term storage duration

1-2 weeks

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

-20°C

Aliquoting information

Upon delivery aliquot

Storage information

Avoid freeze / thaw cycle

style

left-column

style

left-column

style

left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:

Visit the General protocols
Visit the Troubleshooting

style

left-column

Target data

Receptor on natural killer (NK) cells for some HLA-C alleles such as w4 and w6. Inhibits the activity of NK cells thus preventing cell lysis.

See full target information KIR2DL1

Additional targets

KIR2DL1,KIR2DL3

style

left-column

Publications (1)

Recent publications for all applications. Explore the full list and refine your search

Scientific reports 12:6769 PubMed35474089

2022

Blockade of inhibitory killer cell immunoglobulin-like receptors and IL-2 triggering reverses the functional hypoactivity of tumor-derived NK-cells in glioblastomas.

Applications

Unspecified application

Species

Unspecified reactive species

Cüneyt Sönmez,Johannes Wölfer,Markus Holling,Benjamin Brokinkel,Walter Stummer,Heinz Wiendl,Christian Thomas,Andreas Schulte-Mecklenbeck,Oliver M Grauer
