AB282280

Anti-KIR3DL1 + KIR2DS4 + KIR2DS2 + KIR3DS1 antibody [EPR24357-139] - BSA and Azide free

Be the first to review this product! Submit a review

|

(0 Publication)

Rabbit Recombinant Monoclonal KIR3DL1 antibody. Carrier free. Suitable for ICC/IF, IP, Flow Cyt, WB and reacts with Human samples.

View Alternative Names

CD158e, CD158E, NKAT3, NKB1, KIR3DL1, Killer cell immunoglobulin-like receptor 3DL1, CD158 antigen-like family member E, HLA-BW4-specific inhibitory NK cell receptor, Natural killer-associated transcript 3, p70 natural killer cell receptor clones CL-2/CL-11, NKAT-3, p70 NK receptor CL-2/CL-11, CD158i, CD158I, KKA3, NKAT8, KIR2DS4, Killer cell immunoglobulin-like receptor 2DS4, CD158 antigen-like family member I, Natural killer-associated transcript 8, P58 natural killer cell receptor clones CL-39/CL-17, NKAT-8, p58 NK receptor CL-39/CL-17, CD158j, CD158J, NKAT5, KIR2DS2, Killer cell immunoglobulin-like receptor 2DS2, CD158 antigen-like family member J, NK receptor 183 ActI, Natural killer-associated transcript 5, p58 natural killer cell receptor clone CL-49, NKAT-5, p58 NK receptor CL-49, NKAT10, KIR3DS1, Killer cell immunoglobulin-like receptor 3DS1, Natural killer-associated transcript 10, NKAT-10

6 Images

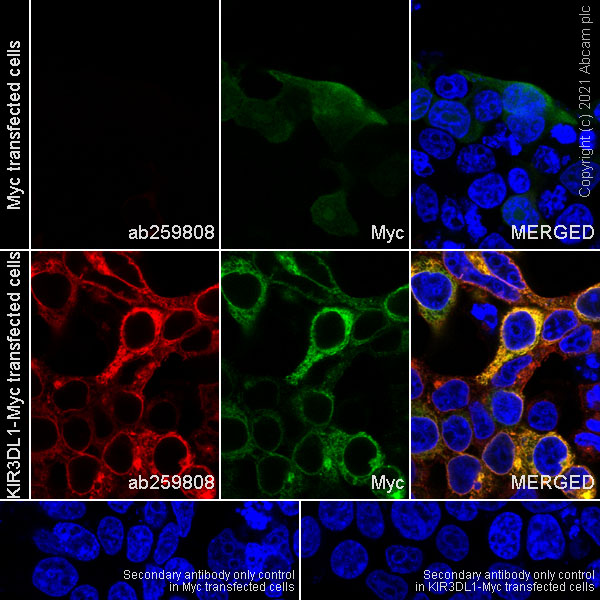

Immunocytochemistry/ Immunofluorescence - Anti-KIR3DL1 + KIR2DS4 + KIR2DS2 + KIR3DS1 antibody [EPR24357-139] - BSA and Azide free (AB282280)
  • ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-KIR3DL1 + KIR2DS4 + KIR2DS2 + KIR3DS1 antibody [EPR24357-139] - BSA and Azide free (AB282280)

This data was developed using ab259808, the same antibody clone in a different buffer formulation.

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized 293T (human embryonic kidney) cells labelling KIR3DL1+KIR3DS1+KIR2DS2+KIR2DS4 with ab259808 at 1/50 dilution (10.2 ug/ml), followed by ab150080 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 594) antibody at 1/500 dilution (Green). Confocal image showing cytoplasmic staining in 293T cells transfected with myc-tagged KIR3DL1 expression vector is observed.

Myc-Tag Mouse mAb (Alexa Fluor® 488) was used to counterstain myc-tag at 1/200 dilution (Red). The Nuclear counterstain was DAPI (Blue).

Secondary antibody only control : Secondary antibody is ab150080 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 594) at 1/500 dilution.

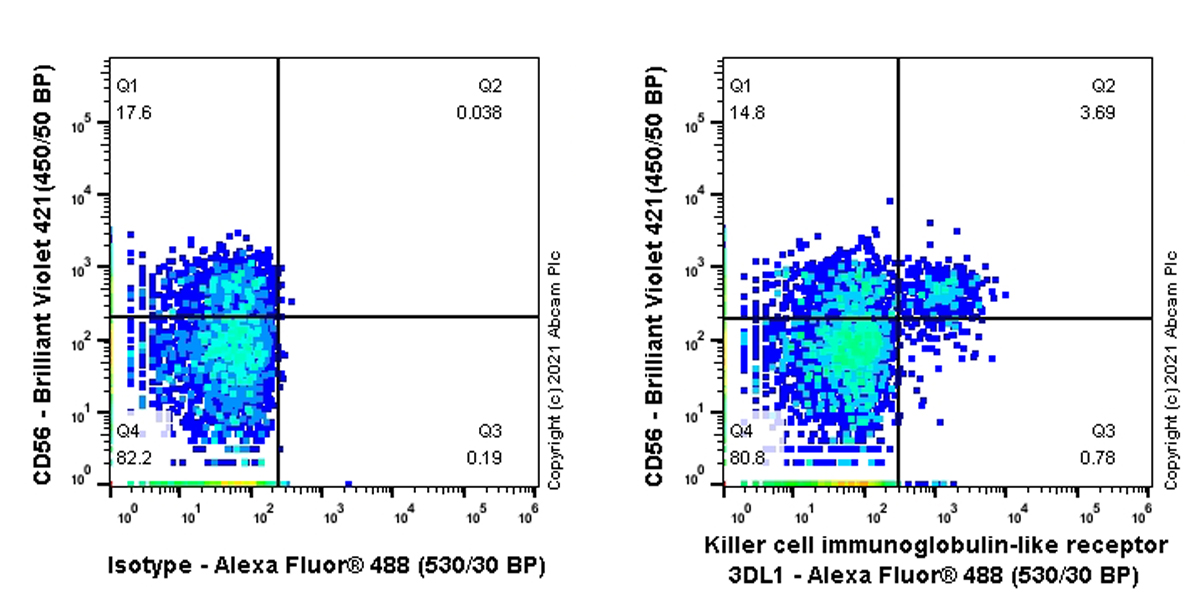

Flow Cytometry - Anti-KIR3DL1 + KIR2DS4 + KIR2DS2 + KIR3DS1 antibody [EPR24357-139] - BSA and Azide free (AB282280)
  • Flow Cyt

Supplier Data

Flow Cytometry - Anti-KIR3DL1 + KIR2DS4 + KIR2DS2 + KIR3DS1 antibody [EPR24357-139] - BSA and Azide free (AB282280)

This data was developed using ab259808, the same antibody clone in a different buffer formulation.

Flow cytometric analysis of Human peripheral blood mononuclear cell (PBMC) cells labelling KIR3DL1+KIR3DS1+KIR2DS2+KIR2DS4 with ab259808 at 1/500 dilution (0.1ug)/ Right compared with a Rabbit monoclonal IgG (ab172730) / Left isotype control. Goat anti rabbit IgG (Alexa Fluor® 647, ab150079) at 1/2000 dilution was used as the secondary antibody. Cells were stained with rabbit IgG or ab259808. Then stained with anti-CD56 conjugated to BV421. Gated on viable cells.

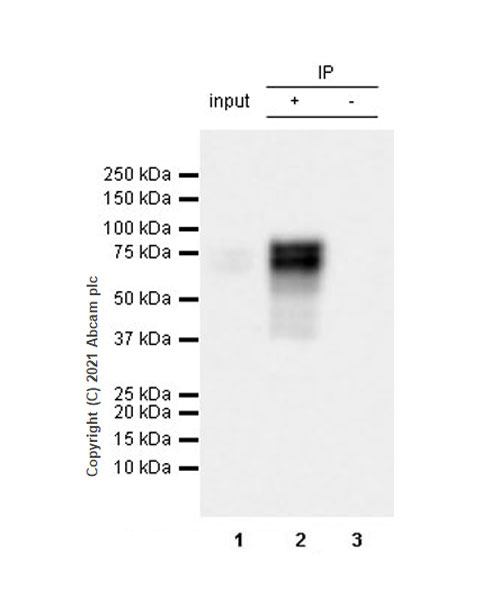

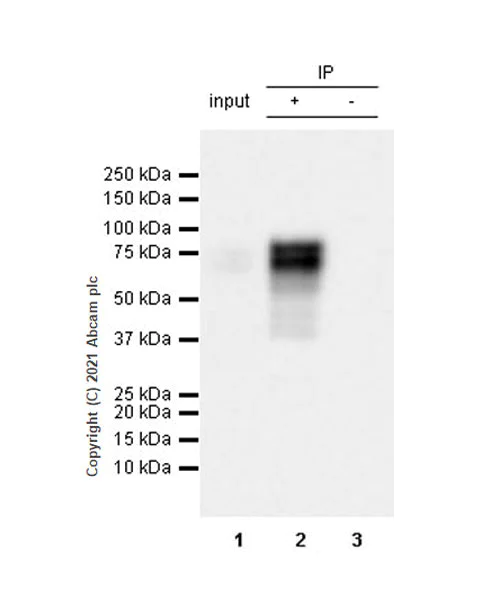

Immunoprecipitation - Anti-KIR3DL1 + KIR2DS4 + KIR2DS2 + KIR3DS1 antibody [EPR24357-139] - BSA and Azide free (AB282280)
  • IP

Supplier Data

Immunoprecipitation - Anti-KIR3DL1 + KIR2DS4 + KIR2DS2 + KIR3DS1 antibody [EPR24357-139] - BSA and Azide free (AB282280)

This data was developed using ab259808, the same antibody clone in a different buffer formulation.

KIR3DL1+KIR3DS1+KIR2DS2+KIR2DS4 was immunoprecipitated from 0.35 mg 293T transfected with human KIR3DL1 expression vector containing a myc-His-tag®, whole cell lysate with ab259808 at 1/30 dilution (2ug in 0.35mg lysates). Western blot was performed on the immunoprecipitate using ab259808 at 1/1000 dilution. VeriBlot for IP secondary antibody(HRP)(ab131366) was used at 1/5000 dilution.

Lane 1 : 293T (human embryonic kidney) transfected with human KIR3DL1 expression vector containing a myc-His-tag®, whole cell lysate 10 ug

Lane 2 : ab259808 IP in 293T transfected with human KIR3DL1 expression vector containing a myc-His-tag®, whole cell lysate

Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab259808 in 293T transfected with human KIR3DL1 expression vector containing a myc-His-tag®, whole cell lysate

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

Exposure time : 10 seconds

All lanes:

Immunoprecipitation - Anti-KIR3DL1 + KIR2DS4 + KIR2DS2 + KIR3DS1 antibody [EPR24357-139] (<a href='/en-us/products/primary-antibodies/kir3dl1-kir2ds4-kir2ds2-kir3ds1-antibody-epr24357-139-ab259808'>ab259808</a>)

Observed band size: 60-80 kDa

false

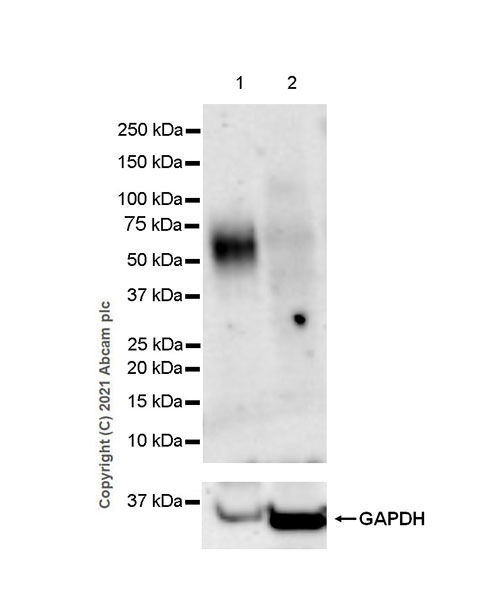

Western blot - Anti-KIR3DL1 + KIR2DS4 + KIR2DS2 + KIR3DS1 antibody [EPR24357-139] - BSA and Azide free (AB282280)
  • WB

Lab

Western blot - Anti-KIR3DL1 + KIR2DS4 + KIR2DS2 + KIR3DS1 antibody [EPR24357-139] - BSA and Azide free (AB282280)

This data was developed using ab259808, the same antibody clone in a different buffer formulation.

Blocking and diluting buffer and concentration : 5% NFDM/TBST

The expression pattern & observed MW are consistent with what has been described in the literature (PMID : 17911614).

Negative control : human tonsil (PMID : 14734722）

Exposure time : 3 minutes

All lanes:

Western blot - Anti-KIR3DL1 + KIR2DS4 + KIR2DS2 + KIR3DS1 antibody [EPR24357-139] (<a href='/en-us/products/primary-antibodies/kir3dl1-kir2ds4-kir2ds2-kir3ds1-antibody-epr24357-139-ab259808'>ab259808</a>) at 1/1000 dilution

Lane 1:

Human spleen tissue lysate at 60 µg

Lane 2:

Human tonsil tissue lysate at 60 µg

Secondary

All lanes:

Goat Anti-Rabbit IgG (HRP) with minimal cross-reactivity with human IgG at 1/2000 dilution

Observed band size: 60-80 kDa

false

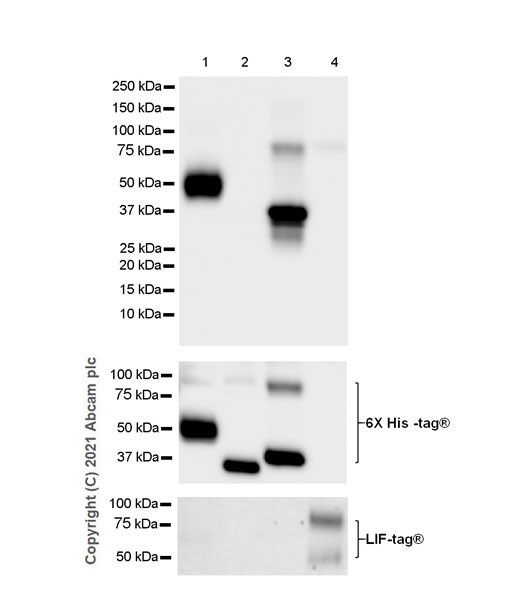

Western blot - Anti-KIR3DL1 + KIR2DS4 + KIR2DS2 + KIR3DS1 antibody [EPR24357-139] - BSA and Azide free (AB282280)
  • WB

Lab

Western blot - Anti-KIR3DL1 + KIR2DS4 + KIR2DS2 + KIR3DS1 antibody [EPR24357-139] - BSA and Azide free (AB282280)

This data was developed using ab259808, the same antibody clone in a different buffer formulation.

Blocking and diluting buffer and concentration : 5% NFDM/TBST

This antibody has high cross-reactivity with human KIR2DS4, and low with human KIR2DS2. This antibody does not recognize human KIR3DL3.

All of the rec proteins were made in-house. KIR3DL1 and KIR2DS2 were expressed from HEK-293 expression systems. KIR3DL3 and KIR2DS4 were expressed from E.coli expression systems.

Exposure time : 15 seconds

All lanes:

Western blot - Anti-KIR3DL1 + KIR2DS4 + KIR2DS2 + KIR3DS1 antibody [EPR24357-139] (<a href='/en-us/products/primary-antibodies/kir3dl1-kir2ds4-kir2ds2-kir3ds1-antibody-epr24357-139-ab259808'>ab259808</a>) at 1/1000 dilution

Lane 1:

His-tagged human KIR3DL1 recombinant protein at 0.01 µg

Lane 2:

His-tagged human KIR3DL3 recombinant protein at 0.01 µg

Lane 3:

His-tagged human KIR2DS4 recombinant protein at 0.01 µg

Lane 4:

LIF/His-tagged human KIR2DS2 recombinant protein at 0.01 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 33-87 kDa

false

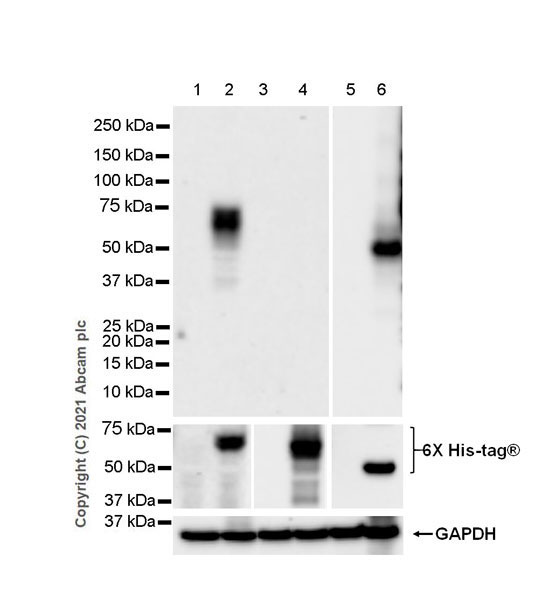

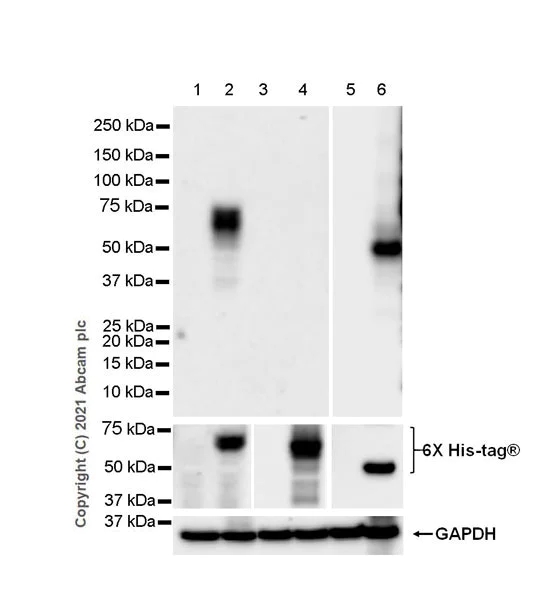

Western blot - Anti-KIR3DL1 + KIR2DS4 + KIR2DS2 + KIR3DS1 antibody [EPR24357-139] - BSA and Azide free (AB282280)
  • WB

Lab

Western blot - Anti-KIR3DL1 + KIR2DS4 + KIR2DS2 + KIR3DS1 antibody [EPR24357-139] - BSA and Azide free (AB282280)

This data was developed using ab259808, the same antibody clone in a different buffer formulation.

Blocking and diluting buffer and concentration : 5% NFDM/TBST

This antibody can recognize human KIR3DS1 but can not recognize human KIR3DL2.

Exposure time : Lane 1-4 : 3 minutes Lane 5-6 : 59 seconds

All lanes:

Western blot - Anti-KIR3DL1 + KIR2DS4 + KIR2DS2 + KIR3DS1 antibody [EPR24357-139] (<a href='/en-us/products/primary-antibodies/kir3dl1-kir2ds4-kir2ds2-kir3ds1-antibody-epr24357-139-ab259808'>ab259808</a>) at 1/1000 dilution

Lanes 1, 3 and 5:

293T (human embryonic kidney) transfected with an empty vector (vector control), containing a myc-His-tag®, whole cell lysate at 20 µg

Lane 2:

293T transfected with human KIR3DL1 expression vector containing a myc-His-tag®, whole cell lysate at 20 µg

Lane 4:

293T transfected with human KIR3DL2 expression vector containing a myc-His-tag®, whole cell lysate 20 at 20 µg

Lane 6:

293T transfected with human KIR3DS1 expression vector containing a myc-His-tag®, whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 45-70 kDa

false

  • Unconjugated

    Anti-KIR3DL1 + KIR2DS4 + KIR2DS2 + KIR3DS1 antibody [EPR24357-139]

  • 519 Alexa Fluor® 488

    Alexa Fluor® 488 Anti-KIR3DL1 antibody [EPR24357-139]

  • 665 Alexa Fluor® 647

    Alexa Fluor® 647 Anti-KIR3DL1 + KIR2DS4 + KIR2DS2 + KIR3DS1 antibody [EPR24357-139]

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR24357-139

Isotype

IgG

Carrier free

Yes

Reacts with

Human

Applications

Flow Cyt, WB, IP, ICC/IF

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style
left-column

Complementary Products

Primary Antibodies

AB255857

Anti-KIR2DL1 + KIR2DL2 antibody [EPR22492-79] - BSA and Azide free

RabMAb|Recombinant

Flow Cytometry - Anti-KIR2DL1 + KIR2DL2 antibody [EPR22492-79] - BSA and Azide free (AB255857)

  • 0
  • 0
Primary Antibodies

AB229186

Anti-LILRB1 antibody [EPR21007]

RabMAb|Recombinant|Trial Size

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-LILRB1 antibody [EPR21007] (AB229186)

  • 0
  • 0
Primary Antibodies

AB250119

Anti-KIR2DL3 antibody [EPR12281] - BSA and Azide free

RabMAb|Recombinant

Flow Cytometry - Anti-KIR2DL3 antibody [EPR12281] - BSA and Azide free (AB250119)

  • 0
  • 0
Primary Antibodies

AB245756

Anti-CD134 / OX40L receptor antibody [SP195] - BSA and Azide free

RabMAb|Recombinant

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD134 / OX40L receptor antibody [SP195] - BSA and Azide free (AB245756)

  • 0
  • 0
style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"}, "IP" : {"fullname" : "Immunoprecipitation", "shortname":"IP"}, "FlowCyt" : {"fullname" : "Flow Cytometry", "shortname":"Flow Cyt"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "IHCP-species-checked": "notRecommended", "IHCP-species-dilution-info": "", "IHCP-species-notes": "<p></p>", "ICCIF-species-checked": "testedAndGuaranteed", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "<p></p>", "IP-species-checked": "testedAndGuaranteed", "IP-species-dilution-info": "", "IP-species-notes": "<p></p>", "FlowCyt-species-checked": "testedAndGuaranteed", "FlowCyt-species-dilution-info": "", "FlowCyt-species-notes": "<p></p>", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "", "WB-species-notes": "<p></p>" } } }
style
left-column

Product details

ab282280 is the carrier-free version of ab259808.

Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Conjugation ready
Our carrier-free antibodies are typically supplied in a PBS-only formulation, purified and free of BSA, sodium azide and glycerol. This conjugation-ready format is designed for use with fluorochromes, metal isotopes, oligonucleotides, and enzymes, which makes them ideal for antibody labelling, functional and cell-based assays, flow-based assays (e.g. mass cytometry) and Multiplex Imaging applications.

Use our conjugation kits for antibody conjugates that are ready-to-use in as little as 20 minutes with 1 minute hands-on-time and 100% antibody recovery: available for fluorescent dyes, HRP, biotin and gold.

Compatibility
This product is compatible with the Maxpar® Antibody Labeling Kit from Fluidigm, without the need for antibody preparation. Maxpar® is a trademark of Fluidigm Canada Inc.

style
left-column

Properties and storage information

Form
Liquid
Purification technique
Affinity purification Protein A
Storage buffer
pH: 7.2 - 7.4 Constituents: PBS
Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
style
left-column
style
left-column
style
left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:
style
left-column

Target data

Receptor on natural killer (NK) cells for HLA Bw4 allele. Inhibits the activity of NK cells thus preventing cell lysis.
See full target information KIR3DL1

Additional targets

,,KIR2DS4
style
left-column
style
left-column
style
right-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.
For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
