AB306550

Anti-Kir4.1/KCNJ10 antibody [EPR27251-79]

BOND RX™ Validated
20ul selling size
RabMAb
Recombinant
What is this?

Be the first to review this product! Submit a review

(1 Publication)

Rabbit Recombinant Monoclonal Kir4.1/KCNJ10 antibody. Suitable for IHC-P, WB and reacts with Rat, Mouse samples. Cited in 1 publication.

View Alternative Names

ATP-sensitive inward rectifier potassium channel 10, Inward rectifier K(+) channel Kir4.1, Kcnj10

9 Images

Supplier Data

Immunohistochemistry - Anti-Kir4.1/KCNJ10 antibody [EPR27251-79] (AB306550)

Immunohistochemical analysis of paraffin-embedded rat cardiac muscle tissue labeling Kir4.1/KCNJ10 with ab306550 at 1/500 (1.0 ug/ml) followed by ready to use LeicaDS9800 (Bond® Polymer Refine Detection). Negative control : No staining on rat cardiac muscle. The section was incubated with ab306550 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin. Secondary antibody only control : Secondary antibody is ready to use LeicaDS9800 (Bond® Polymer Refine Detection). Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

Supplier Data

Immunohistochemistry - Anti-Kir4.1/KCNJ10 antibody [EPR27251-79] (AB306550)

Immunohistochemical analysis of paraffin-embedded mouse cardiac muscle tissue labeling Kir4.1/KCNJ10 with ab306550 at 1/500 (1.0 ug/ml) followed by ready to use LeicaDS9800 (Bond® Polymer Refine Detection). Negative control : No staining on mouse cardiac muscle. The section was incubated with ab306550 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin. Secondary antibody only control : Secondary antibody is ready to use LeicaDS9800 (Bond® Polymer Refine Detection). Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

Supplier Data

Immunohistochemistry - Anti-Kir4.1/KCNJ10 antibody [EPR27251-79] (AB306550)

Immunohistochemical analysis of paraffin-embedded rat kidney tissue labeling Kir4.1/KCNJ10 with ab306550 at 1/500 (1.0 ug/ml) followed by ready to use LeicaDS9800 (Bond® Polymer Refine Detection). Positive staining on distal tubules in rat kidney (PMID : 8654579). The section was incubated with ab306550 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin. Secondary antibody only control : Secondary antibody is ready to use LeicaDS9800 (Bond® Polymer Refine Detection). Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

Supplier Data

Immunohistochemistry - Anti-Kir4.1/KCNJ10 antibody [EPR27251-79] (AB306550)

Immunohistochemical analysis of paraffin-embedded mouse cerebrum tissue labeling Kir4.1/KCNJ10 with ab306550 at 1/500 (1.0 ug/ml) followed by ready to use LeicaDS9800 (Bond® Polymer Refine Detection). Positive staining on stellate cells in mouse cerebrum (PMID : 11169792). The section was incubated with ab306550 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin. Secondary antibody only control : Secondary antibody is ready to use LeicaDS9800 (Bond® Polymer Refine Detection). Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

Supplier Data

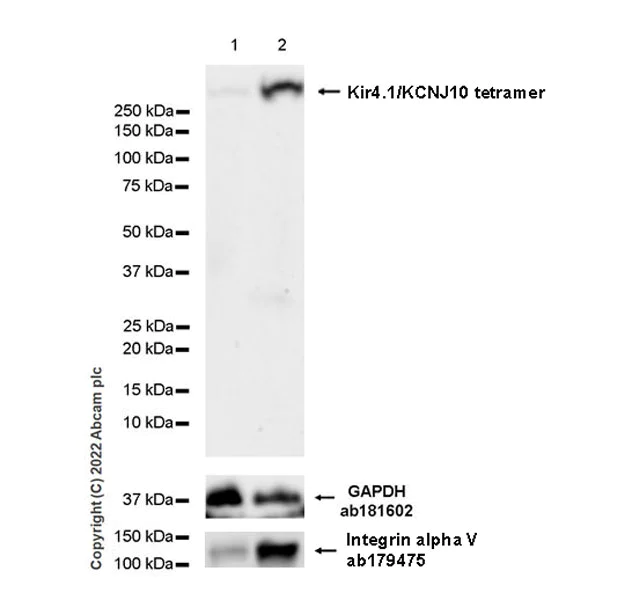

Western blot - Anti-Kir4.1/KCNJ10 antibody [EPR27251-79] (AB306550)

Blocking and diluting buffer and concentration : 5% NFDM/TBST. Kir4.1/KCNJ10 is expressed in vivo as a homotetramer (four units of KIR4.1) or a heterotetramer with KIR5.1 (PMID : 33348803; PMID : 15310750 ). This antibody can only detect the tetramer of Kir4.1/KCNJ10. Samples are non-boiled as boiling may cause protein aggregation. Exposure time : 180 seconds

All lanes:

Western blot - Anti-Kir4.1/KCNJ10 antibody [EPR27251-79] (ab306550) at 1/1000 dilution

Lane 1:

Mouse brain non-membrane fraction 20 μg

Lane 2:

Mouse brain membrane fraction 20 μg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/50000 dilution

Observed band size: 250 kDa

false

Exposure time: 180s

Supplier Data

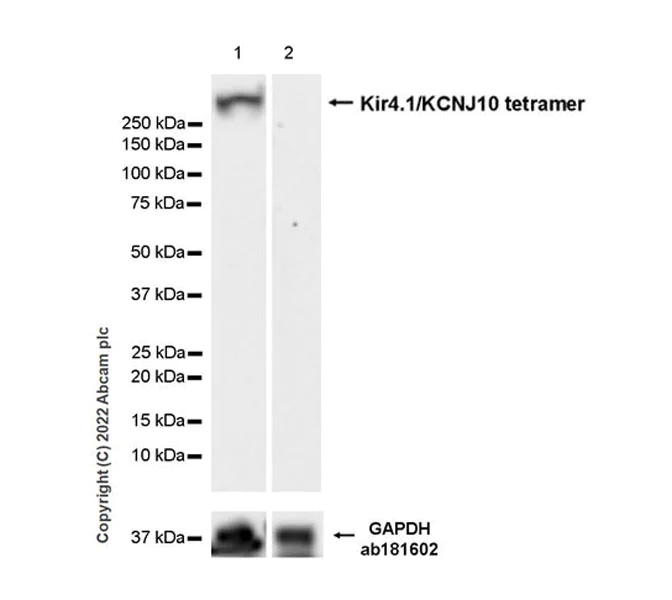

Western blot - Anti-Kir4.1/KCNJ10 antibody [EPR27251-79] (AB306550)

Blocking and diluting buffer and concentration : 5% NFDM/TBST Samples are non-boiled as boiling may cause protein aggregation. Kir4.1/KCNJ10 is expressed in vivo as a homotetramer (four units of KIR4.1) or a heterotetramer with KIR5.1 (PMID : 33348803; PMID : 15310750 ). This antibody can only detect the tetramer of Kir4.1/KCNJ10. Exposure time : 70 seconds

All lanes:

Western blot - Anti-Kir4.1/KCNJ10 antibody [EPR27251-79] (ab306550) at 1/1000 dilution

Lane 1:

Rat brain non-membrane fraction 40 μg

Lane 2:

Rat brain membrane fraction 40 μg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 250 kDa

false

Exposure time: 70s

Supplier Data

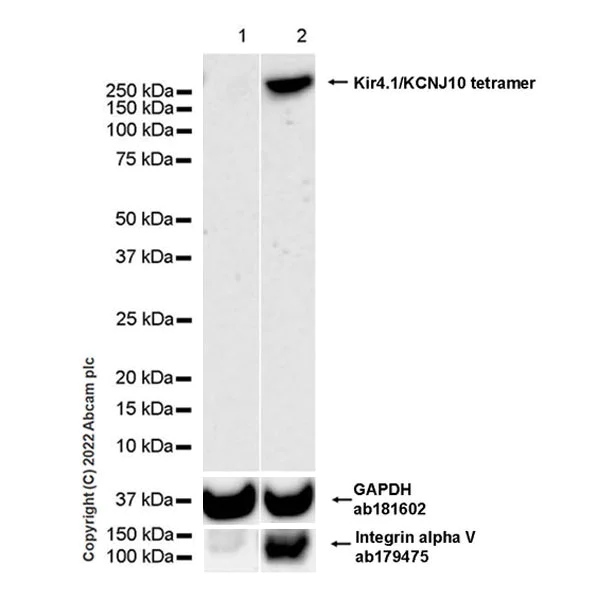

Western blot - Anti-Kir4.1/KCNJ10 antibody [EPR27251-79] (AB306550)

Blocking and diluting buffer and concentration : 5% NFDM/TBST. Samples are non-boiled as boiling may cause protein aggregation. Kir4.1/KCNJ10 is expressed in vivo as a homotetramer (four units of KIR4.1) or a heterotetramer with KIR5.1 (PMID : 33348803; PMID : 15310750 ). This antibody can only detect the tetramer of Kir4.1/KCNJ10. Exposure time : 70 seconds

All lanes:

Western blot - Anti-Kir4.1/KCNJ10 antibody [EPR27251-79] (ab306550) at 1/1000 dilution

Lane 1:

Rat brain tissue lysate 40 μg

Lane 2:

Rat heart tissue lysate 40 μg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 250 kDa

false

Exposure time: 70s

Supplier Data

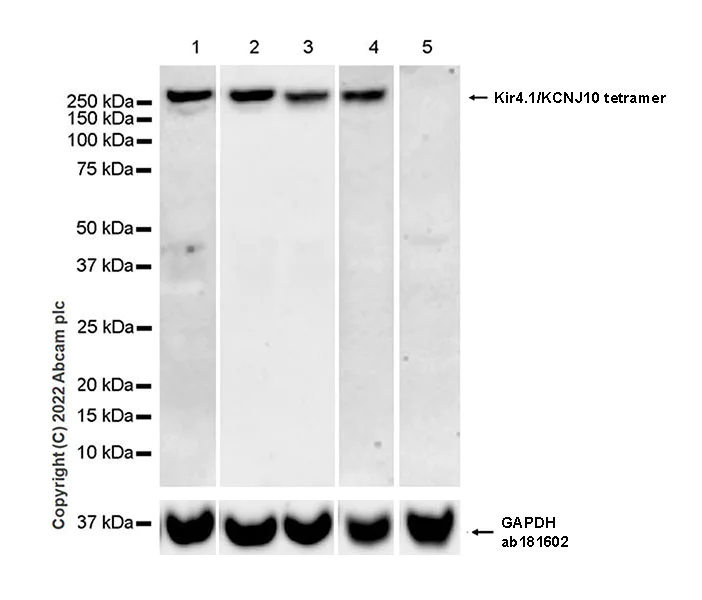

Western blot - Anti-Kir4.1/KCNJ10 antibody [EPR27251-79] (AB306550)

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

Kir4.1/KCNJ10 is specifically expressed in the brain and kidney (PMID : 11169792; PMID : 15310750; PMID : 11169792; PMID : 24561201).

Samples are non-boiled as boiling may cause protein aggregation.

Kir4.1/KCNJ10 is expressed in vivo as a homotetramer (four units of KIR4.1) or a heterotetramer with KIR5.1(two units of KIR4.1 and KIR5.1). (PMID : 33348803; PMID : 15310750 ). This antibody can only detect the tetramer of Kir4.1/KCNJ10.

This blot was developed using a high sensitivity ECL substrate. The high-sensitivity ECL substrate used allows for the detection of proteins in the mid-femtogram range.

Exposure time :

Lanes 1, 4 and 5 : 180 seconds

Lanes 2 and 3 : 37 seconds

All lanes:

Western blot - Anti-Kir4.1/KCNJ10 antibody [EPR27251-79] (ab306550) at 1/1000 dilution

Lane 1:

Mouse cerebral cortex tissue lysate at 20 µg

Lane 2:

Mouse cerebellum tissue lysate at 20 µg

Lane 3:

Mouse brain tissue lysate at 20 µg

Lane 4:

Mouse kidney lysate at 20 µg

Lane 5:

Mouse heart tissue lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/50000 dilution

Observed band size: 250 kDa

true

Supplier Data

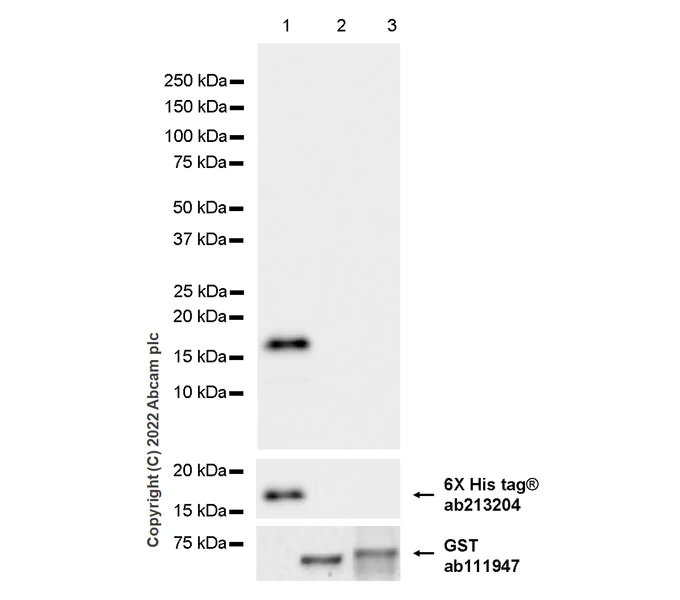

Western blot - Anti-Kir4.1/KCNJ10 antibody [EPR27251-79] (AB306550)

Blocking and diluting buffer and concentration : 5% NFDM/TBST. This antibody does not cross-react with human Kir4.2/KCNJ15 and human Kir1.1/KCNJ1. Exposure time : 15 seconds.

All lanes:

Western blot - Anti-Kir4.1/KCNJ10 antibody [EPR27251-79] (ab306550) at 1/1000 dilution

Lane 1:

His-tagged human Kir4.1/KCNJ10 fragment 10 ng

Lane 2:

GST-tagged human Kir4.2/KCNJ15 recombinant protein 10 ng

Lane 3:

GST-tagged human Kir1.1/KCNJ1 recombinant protein 10 ng

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/50000 dilution

Observed band size: 17 kDa

false

Exposure time: 15s

Carrier free

Anti-Kir4.1/KCNJ10 antibody [EPR27251-79] - BSA and Azide free

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR27251-79

Isotype

IgG

Carrier free

Reacts with

Mouse, Rat

Applications

IHC-P, WB

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style

left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "IP" : {"fullname" : "Immunoprecipitation", "shortname":"IP"}, "FlowCytIntra" : {"fullname" : "Flow Cytometry (Intracellular)", "shortname":"Flow Cyt (Intra)"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"}, "IHCFr" : {"fullname" : "Immunohistochemistry (Frozen sections)", "shortname":"IHC-Fr"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "IP-species-checked": "notRecommended", "IP-species-dilution-info": "", "IP-species-notes": "", "FlowCytIntra-species-checked": "notRecommended", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "", "ICCIF-species-checked": "notRecommended", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "IHCP-species-checked": "notRecommended", "IHCP-species-dilution-info": "1/500", "IHCP-species-notes": "", "WB-species-checked": "notRecommended", "WB-species-dilution-info": "1/1000", "WB-species-notes": "", "IHCFr-species-checked": "notRecommended", "IHCFr-species-dilution-info": "", "IHCFr-species-notes": "" }, "Mouse": { "IP-species-checked": "notRecommended", "IP-species-dilution-info": "", "IP-species-notes": "", "FlowCytIntra-species-checked": "notRecommended", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "", "ICCIF-species-checked": "notRecommended", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "IHCP-species-checked": "guaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": "", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/1000", "WB-species-notes": "", "IHCFr-species-checked": "notRecommended", "IHCFr-species-dilution-info": "", "IHCFr-species-notes": "" }, "Rat": { "IP-species-checked": "notRecommended", "IP-species-dilution-info": "", "IP-species-notes": "", "FlowCytIntra-species-checked": "notRecommended", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "", "ICCIF-species-checked": "notRecommended", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "1/500", "IHCP-species-notes": "", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/1000", "WB-species-notes": "", "IHCFr-species-checked": "notRecommended", "IHCFr-species-dilution-info": "", "IHCFr-species-notes": "" } } }

style

left-column

Product details

Patented technology
Our RabMAb^® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb^® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

- High batch-to-batch consistency and reproducibility
- Improved sensitivity and specificity
- Long-term security of supply
- Animal-free batch production

For more information, read more on recombinant antibodies.

style

left-column

Properties and storage information

Form

Liquid

Purification technique

Affinity purification Protein A

Storage buffer

pH: 7.2 - 7.4 Preservative: 0.01% Sodium azide Constituents: PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA

Shipped at conditions

Blue Ice

Appropriate short-term storage duration

1-2 weeks

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

-20°C

Aliquoting information

Upon delivery aliquot

Storage information

Avoid freeze / thaw cycle

style

left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

Kir4.1 also known as KCNJ10 is an inwardly rectifying potassium channel. It is a protein with a mass of approximately 45 kDa. Kir4.1 facilitates the movement of potassium ions across the cell membrane helping maintain the membrane potential in certain cells. This channel prominently expresses in the brain kidney and inner ear. In glial cells of the central nervous system it plays an important role in maintaining potassium homeostasis. This is important for the correct functioning of neurons and other glial cells.

Biological function summary

The potassium channel Kir4.1 functions to balance potassium levels in the extracellular space which is important for nerve impulse propagation and muscle contraction. Kir4.1 frequently forms a complex with another potassium channel Kir5.1 (KCNJ16). Together these complexes contribute to fine-tuning the electrochemical gradient impacting various cell types. Its distribution and activity affect neuronal signaling renal function and endolymph generation in the ear.

Pathways

Kir4.1 plays essential roles in neural signaling pathways and renal reabsorption processes. This target interacts with proteins like AQP4 in the brain influencing water transport and ion homeostasis. Its functionality is part of the regulatory mechanisms within the distal convoluted tubule of the kidney impacting water and salt balance. These interactions facilitate proper electrical signaling and osmoregulation in the body.

Kir4.1 has associations with disorders such as epilepsy and EAST syndrome. Defects or dysregulation in the Kir4.1 channel can disrupt potassium ion balance which may lead to abnormal neuronal excitability manifesting as epilepsy. Additionally mutations in this channel can contribute to EAST syndrome a condition involving epilepsy ataxia sensorineural deafness and renal tubulopathy. Related proteins like AQP4 can also be implicated highlighting the complexity of physiological processes involving Kir4.1.

style

left-column

style

left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:

Visit the General protocols
Visit the Troubleshooting

style

left-column

Target data

May be responsible for potassium buffering action of glial cells in the brain (By similarity). Inward rectifier potassium channels are characterized by a greater tendency to allow potassium to flow into the cell rather than out of it. Their voltage dependence is regulated by the concentration of extracellular potassium; as external potassium is raised, the voltage range of the channel opening shifts to more positive voltages. The inward rectification is mainly due to the blockage of outward current by internal magnesium. Can be blocked by extracellular barium and cesium (By similarity). In the kidney, together with KCNJ16, mediates basolateral K(+) recycling in distal tubules; this process is critical for Na(+) reabsorption at the tubules (By similarity).

See full target information Kir4.1/KCNJ10

style

left-column

Publications (1)

Recent publications for all applications. Explore the full list and refine your search

PloS one 19:e0312565 PubMed39689088

2024

Acteoside relieves diabetic retinopathy through the inhibition of Müller cell reactive hyperplasia by regulating TXNIP and mediating Kir4.1 channels in a PI3K/Akt-dependent manner.

Applications

Unspecified application

Species

Unspecified reactive species

Xiaoting Xi,Xiaolei Liu,Qianbo Chen,Jia Ma,Xuewei Wang,Yufei Gui,Yuxin Zhang,Yan Li

View all publications

style

left-column

style

left-column

style

right-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.

For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.

For licensing inquiries, please contact partnerships@abcam.com
