AB192761

Anti-Kv2.1/KCNB1 antibody [K89/34]

Be the first to review this product! Submit a review

|

(10 Publications)

Mouse Monoclonal Kv2.1/KCNB1 antibody. Suitable for WB, IHC-P and reacts with Mouse, Rat, Human samples. Cited in 10 publications.

View Alternative Names

Potassium voltage-gated channel subfamily B member 1, Delayed rectifier potassium channel 1, Voltage-gated potassium channel subunit Kv2.1, DRK1, h-DRK1, KCNB1

2 Images
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Kv2.1/KCNB1 antibody [K89/34] (AB192761)
  • IHC-P

Ap

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Kv2.1/KCNB1 antibody [K89/34] (AB192761)

IHC image of Kv2.1/KCNB1 staining in Human Normal Hippocampus formalin fixed paraffin embedded tissue section*, performed on a Leica Bond™ system using the standard protocol F. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH6, epitope retrieval solution 1) for 20 mins. The section was then incubated with ab192761, 1μg/ml, for 15 mins at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX.

For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times.

*Tissue obtained from the Human Research Tissue Bank, supported by the NIHR Cambridge Biomedical Research Centre

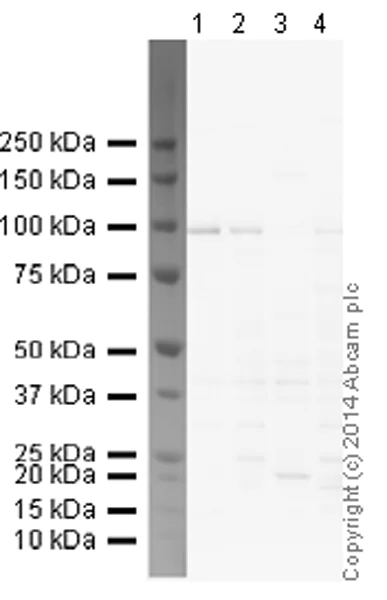

Western blot - Anti-Kv2.1/KCNB1 antibody [K89/34] (AB192761)
  • WB

Lab

Western blot - Anti-Kv2.1/KCNB1 antibody [K89/34] (AB192761)

All lanes:

Western blot - Anti-Kv2.1/KCNB1 antibody [K89/34] (ab192761) at 1 µg/mL

Lane 1:

Rat brain normal tissue lysate - total protein (<a href='/en-us/products/unavailable/rat-brain-normal-tissue-lysate-total-protein-ab29475'>ab29475</a>) at 20 µg

Lane 2:

Hippocampus (Mouse) Tissue Lysate at 20 µg

Lane 3:

Human brain tissue lysate - total protein (<a href='/en-us/products/unavailable/human-brain-tissue-lysate-total-protein-ab29466'>ab29466</a>) at 20 µg

Lane 4:

Rat Olfactory Bulb Lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Mouse IgG H&L (HRP) preadsorbed (<a href='/en-us/products/secondary-antibodies/goat-mouse-igg-h-l-hrp-preadsorbed-ab97040'>ab97040</a>) at 1/50000 dilution

Predicted band size: 95 kDa

Observed band size: 98 kDa

true

Exposure time: 20min

Key facts

Host species

Mouse

Clonality

Monoclonal

Clone number

K89/34

Isotype

IgG1

Light chain type

kappa

Carrier free

No

Reacts with

Mouse, Rat, Human

Applications

IHC-P, WB

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "WB-species-checked": "guaranteed", "WB-species-dilution-info": "", "WB-species-notes": "", "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "1 µg/mL", "IHCP-species-notes": "<p></p>" }, "Mouse": { "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1-5 µg/mL", "WB-species-notes": "<p></p>", "IHCP-species-checked": "guaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": "" }, "Rat": { "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1-5 µg/mL", "WB-species-notes": "<p></p>", "IHCP-species-checked": "guaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": "" } } }

Product details

Want a custom formulation?
This antibody clone is manufactured by Abcam. If you require a custom buffer formulation or conjugation for your experiments, please contact orders@abcam.com

Properties and storage information

Form
Liquid
Purification technique
Affinity purification
Storage buffer
pH: 7.4 Preservative: 0.02% Sodium azide Constituents: PBS, 6.97% L-Arginine
Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

The Kv2.1 channel also known as KCNB1 is a voltage-gated potassium channel with a mass of approximately 110 kDa. It is important for maintaining the electrical excitability of neurons. Kv2.1 channels are found in the brain specifically within the cortex and hippocampus. They contribute to the regulation of neuronal firing and neurotransmitter release. The presence of these channels influences how neurons respond to stimuli affecting overall neural activity.
Biological function summary

Kv2.1 channels modulate potassium ion flow across the cell membrane contributing to repolarization after neuronal action potentials. These channels form homotetrameric complexes but can also heteromerize with other Kv channels such as Kv8 and Kv9 which alter their biophysical properties. The ability to form diverse channel complexes allows for varied neuronal responses critical for synaptic plasticity and adaptation to different signaling needs.

Pathways

Kv2.1 channels play a role in the regulation of neural activity by participating in the MAPK signaling pathway. This pathway is essential for the transmission of synaptic signals and neuronal survival. Kv2 channels also interact with proteins like calcineurin which influences channel dephosphorylation and activity. Through these interactions Kv2.1 aligns closely with mechanisms controlling neural excitability and response to environmental changes.

Kv2.1 channels are linked with temporal lobe epilepsy and ischemic stroke. Mutations in the KCNB1 gene can alter channel function leading to abnormal neuronal excitability and increased seizure susceptibility. Kv2.1 activity also affects the function of related proteins such as the NMDA receptor which is involved in excitotoxicity during stroke. Understanding Kv2.1's role in these conditions can aid in the development of therapeutic strategies targeting these disorders.

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:

Target data

Voltage-gated potassium channel that mediates transmembrane potassium transport in excitable membranes, primarily in the brain, but also in the pancreas and cardiovascular system. Contributes to the regulation of the action potential (AP) repolarization, duration and frequency of repetitive AP firing in neurons, muscle cells and endocrine cells and plays a role in homeostatic attenuation of electrical excitability throughout the brain (PubMed : 23161216). Plays also a role in the regulation of exocytosis independently of its electrical function (By similarity). Forms tetrameric potassium-selective channels through which potassium ions pass in accordance with their electrochemical gradient. The channel alternates between opened and closed conformations in response to the voltage difference across the membrane. Homotetrameric channels mediate a delayed-rectifier voltage-dependent outward potassium current that display rapid activation and slow inactivation in response to membrane depolarization (PubMed : 10484328, PubMed : 12560340, PubMed : 1283219, PubMed : 19074135, PubMed : 19717558, PubMed : 24901643, PubMed : 8081723). Can form functional homotetrameric and heterotetrameric channels that contain variable proportions of KCNB2; channel properties depend on the type of alpha subunits that are part of the channel (By similarity). Can also form functional heterotetrameric channels with other alpha subunits that are non-conducting when expressed alone, such as KCNF1, KCNG1, KCNG3, KCNG4, KCNH1, KCNH2, KCNS1, KCNS2, KCNS3 and KCNV1, creating a functionally diverse range of channel complexes (PubMed : 10484328, PubMed : 11852086, PubMed : 12060745, PubMed : 19074135, PubMed : 19717558, PubMed : 24901643). Heterotetrameric channel activity formed with KCNS3 show increased current amplitude with the threshold for action potential activation shifted towards more negative values in hypoxic-treated pulmonary artery smooth muscle cells (By similarity). Channel properties are also modulated by cytoplasmic ancillary beta subunits such as AMIGO1, KCNE1, KCNE2 and KCNE3, slowing activation and inactivation rate of the delayed rectifier potassium channels (By similarity). In vivo, membranes probably contain a mixture of heteromeric potassium channel complexes, making it difficult to assign currents observed in intact tissues to any particular potassium channel family member. Major contributor to the slowly inactivating delayed-rectifier voltage-gated potassium current in neurons of the central nervous system, sympathetic ganglion neurons, neuroendocrine cells, pancreatic beta cells, cardiomyocytes and smooth muscle cells. Mediates the major part of the somatodendritic delayed-rectifier potassium current in hippocampal and cortical pyramidal neurons and sympathetic superior cervical ganglion (CGC) neurons that acts to slow down periods of firing, especially during high frequency stimulation. Plays a role in the induction of long-term potentiation (LTP) of neuron excitability in the CA3 layer of the hippocampus (By similarity). Contributes to the regulation of glucose-induced action potential amplitude and duration in pancreatic beta cells, hence limiting calcium influx and insulin secretion (PubMed : 23161216). Plays a role in the regulation of resting membrane potential and contraction in hypoxia-treated pulmonary artery smooth muscle cells. May contribute to the regulation of the duration of both the action potential of cardiomyocytes and the heart ventricular repolarization QT interval. Contributes to the pronounced pro-apoptotic potassium current surge during neuronal apoptotic cell death in response to oxidative injury. May confer neuroprotection in response to hypoxia/ischemic insults by suppressing pyramidal neurons hyperexcitability in hippocampal and cortical regions (By similarity). Promotes trafficking of KCNG3, KCNH1 and KCNH2 to the cell surface membrane, presumably by forming heterotetrameric channels with these subunits (PubMed : 12060745). Plays a role in the calcium-dependent recruitment and release of fusion-competent vesicles from the soma of neurons, neuroendocrine and glucose-induced pancreatic beta cells by binding key components of the fusion machinery in a pore-independent manner (By similarity).
See full target information Potassium voltage-gated channel subfamily B member 1

Publications (10)

Recent publications for all applications. Explore the full list and refine your search

Biomedicines 13: PubMed40426946

2025

Regulation of Kv2.1 Channels by Kv9.1 Variants.

Applications

Unspecified application

Species

Unspecified reactive species

Hedaythul Choudhury,Muruj Barri,Kay Osborn,Mohan Rajasekaran,Marina Popova,Owen S Wells,Edward B Stevens,Ruth D Murrell-Lagnado

FASEB journal : official publication of the Federation of American Societies for Experimental Biology 38:e70111 PubMed39436109

2024

KCNB1-Leptin receptor complexes couple electric and endocrine function in the melanocortin neurons of the hypothalamus.

Applications

Unspecified application

Species

Unspecified reactive species

Elena Forzisi-Kathera-Ibarra,Chanmee Jo,Leonard Castillo,Anika Gaur,Prachi Lad,Alessandro Bortolami,Christian Roser,Srinidi Venkateswaran,Stefania Dutto,Matthew Selby,Harini Sampath,Ping-Yue Pan,Federico Sesti

The Journal of neuroscience : the official journal of the Society for Neuroscience 44: PubMed39299804

2024

Glucocorticoids Rapidly Modulate Ca1.2-Mediated Calcium Signals through Kv2.1 Channel Clusters in Hippocampal Neurons.

Applications

Unspecified application

Species

Unspecified reactive species

Di Wan,Tongchuang Lu,Chenyang Li,Changlong Hu

Neurobiology of stress 28:100593 PubMed38075025

2023

Glucocorticoids modulate neural activity via a rapid non-genomic effect on Kv2.2 channels in the central nervous system.

Applications

Unspecified application

Species

Unspecified reactive species

Yuqi Wang,Yuchen Zhang,Jiawei Hu,Chengfang Pan,Yiming Gao,Qingzhuo Liu,Wendong Xu,Lei Xue,Changlong Hu

Frontiers in pediatrics 9:755344 PubMed35071126

2022

Correlation Analyses of Clinical Manifestations and Variant Effects in -Related Neurodevelopmental Disorder.

Applications

Unspecified application

Species

Unspecified reactive species

Juan Xiong,Zhonghua Liu,Shimeng Chen,Miriam Kessi,Baiyu Chen,Haolin Duan,Xiaolu Deng,Lifen Yang,Jing Peng,Fei Yin

Bioengineered 12:10073-10088 PubMed34709988

2021

Screening and cellular validation of prognostic genes regulated by super enhancers in oral squamous cell carcinoma.

Applications

Unspecified application

Species

Unspecified reactive species

Liru Zhang,Huanju Li,Yongle Qiu,Yuanhang Liu,Xin Liu,Wenjing Wang

Iranian journal of basic medical sciences 24:460-468 PubMed34094027

2021

Voltage-gated potassium channels are involved in oxymatrine-regulated islet function in rat islet β cells and INS-1 cells.

Applications

Unspecified application

Species

Unspecified reactive species

Jingying Gao,Lixia Xia,Yuanyuan Wei

Cell reports 32:107941 PubMed32697988

2020

Human Labor Pain Is Influenced by the Voltage-Gated Potassium Channel K6.4 Subunit.

Applications

Unspecified application

Species

Unspecified reactive species

Michael C Lee,Michael S Nahorski,James R F Hockley,Van B Lu,Gillian Ison,Luke A Pattison,Gerard Callejo,Kaitlin Stouffer,Emily Fletcher,Christopher Brown,Ichrak Drissi,Daniel Wheeler,Patrik Ernfors,David Menon,Frank Reimann,Ewan St John Smith,C Geoffrey Woods

Science advances 6: PubMed32937450

2020

Targeted disruption of Kv2.1-VAPA association provides neuroprotection against ischemic stroke in mice by declustering Kv2.1 channels.

Applications

Unspecified application

Species

Unspecified reactive species

Anthony J Schulien,Chung-Yang Yeh,Bailey N Orange,Olivia J Pav,Madelynn P Hopkins,Aubin Moutal,Rajesh Khanna,Dandan Sun,Jason A Justice,Elias Aizenman

The Journal of neuroscience : the official journal 38:6102-6113 PubMed29875265

2018

Activating Transcription Factor 4 (ATF4) Regulates Neuronal Activity by Controlling GABAR Trafficking.

Applications

Unspecified application

Species

Unspecified reactive species

Carlo Corona,Silvia Pasini,Jin Liu,Fatou Amar,Lloyd A Greene,Michael L Shelanski
