Rabbit Polyclonal LAG-3 antibody. Suitable for WB, IHC-P, ICC/IF and reacts with Rat, Human samples. Immunogen corresponding to Recombinant Fragment Protein within Human LAG3 aa 1-450.
Images
Key facts
- Isotype
- IgG
- Host species
- Rabbit
- Storage buffer
pH: 7.4
Preservative: 0.03% Proclin 300
Constituents: PBS, 50% Glycerol (glycerin, glycerine)- Form
- Liquid
- Clonality
- Polyclonal
Immunogen
- Recombinant Fragment Protein within Human LAG3 aa 1-450. The exact immunogen used to generate this antibody is proprietary information. Database link P18627
Reactivity data
Select an application| WB | IHC-P | ICC/IF | |
|---|---|---|---|
| Human | Tested | Tested | Tested |
| Rat | Tested | Expected | Expected |
WB
TestedTested
| Species | Dilution info | Notes |
|---|---|---|
Species Rat | Dilution info 1/500 - 1/5000 | Notes - |
Species Human | Dilution info 1/500 - 1/5000 | Notes - |
IHC-P
TestedTested
| Species | Dilution info | Notes |
|---|---|---|
Species Human | Dilution info 1/200 - 1/500 | Notes - |
ExpectedExpected
| Species | Dilution info | Notes |
|---|---|---|
Species Rat | Dilution info Use at an assay dependent concentration. | Notes - |
ICC/IF
TestedTested
| Species | Dilution info | Notes |
|---|---|---|
Species Human | Dilution info 1/50 - 1/200 | Notes - |
ExpectedExpected
| Species | Dilution info | Notes |
|---|---|---|
Species Rat | Dilution info Use at an assay dependent concentration. | Notes - |
Associated Products
Select an associated product type
13 products for Alternative Product
Target data
Function
Lymphocyte activation gene 3 protein: Inhibitory receptor on antigen activated T-cells (PubMed:20421648, PubMed:7805750, PubMed:8647185). Delivers inhibitory signals upon binding to ligands, such as FGL1 (By similarity). FGL1 constitutes a major ligand of LAG3 and is responsible for LAG3 T-cell inhibitory function (By similarity). Following TCR engagement, LAG3 associates with CD3-TCR in the immunological synapse and directly inhibits T-cell activation (By similarity). May inhibit antigen-specific T-cell activation in synergy with PDCD1/PD-1, possibly by acting as a coreceptor for PDCD1/PD-1 (By similarity). Negatively regulates the proliferation, activation, effector function and homeostasis of both CD8(+) and CD4(+) T-cells (PubMed:20421648, PubMed:7805750, PubMed:8647185). Also mediates immune tolerance: constitutively expressed on a subset of regulatory T-cells (Tregs) and contributes to their suppressive function (By similarity). Also acts as a negative regulator of plasmacytoid dendritic cell (pDCs) activation (By similarity). Binds MHC class II (MHC-II); the precise role of MHC-II-binding is however unclear (PubMed:8647185). Secreted lymphocyte activation gene 3 protein. May function as a ligand for MHC class II (MHC-II) on antigen-presenting cells (APC), promoting APC activation/maturation and driving Th1 immune response.
Alternative names
CD223, FDC, LAG3, Lymphocyte activation gene 3 protein, LAG-3
Recommended products
Rabbit Polyclonal LAG-3 antibody. Suitable for WB, IHC-P, ICC/IF and reacts with Rat, Human samples. Immunogen corresponding to Recombinant Fragment Protein within Human LAG3 aa 1-450.
Key facts
- Isotype
- IgG
- Host species
- Rabbit
- Storage buffer
pH: 7.4
Preservative: 0.03% Proclin 300
Constituents: PBS, 50% Glycerol (glycerin, glycerine)- Form
- Liquid
- Clonality
- Polyclonal
- Immunogen
- Recombinant Fragment Protein within Human LAG3 aa 1-450. The exact immunogen used to generate this antibody is proprietary information. Database link P18627
- Purification technique
- Affinity purification Protein G
- Concentration
- Purification notes
Purity >95%.
Storage
- Shipped at conditions
- Blue Ice
- Appropriate short-term storage duration
- 1-2 weeks
- Appropriate short-term storage conditions
- +4°C
- Appropriate long-term storage conditions
- -20°C
- Aliquoting information
- Upon delivery aliquot
- Storage information
- Avoid freeze / thaw cycle
Supplementary info
- This supplementary information is collated from multiple sources and compiled automatically.
- Activity summary
LAG-3 also known as CD223 is a transmembrane protein with a mass of approximately 70 kDa. It acts as a checkpoint molecule similar to CTLA-4 and PD-1 in the immune system. LAG-3 is expressed on activated T cells natural killer cells and some dendritic cells. It interacts with its ligand MHC class II leading to inhibition of cellular proliferation and cytokine secretion an important part of immune response regulation.
- Biological function summary
LAG-3 is involved in maintaining immune homeostasis and preventing autoimmunity. It is not part of a complex but works in synergy with other immune checkpoint molecules. When interacting with MHC class II LAG-3 transmits inhibitory signals that attenuate immune cell responses. Its role in immune regulation helps to balance immune activation and tolerance which is essential for preventing tissue damage while protecting against pathogens.
- Pathways
The inhibitory role of LAG-3 integrates into the T cell receptor (TCR) signaling pathway and is also linked to the PD-1 signaling pathway. In TCR signaling LAG-3 negatively regulates T cell activation. LAG-3 is functionally related to proteins like PD-1 and CTLA-4 sharing similar roles in immune checkpoint pathways that are critical for maintaining immune balance.
- Associated diseases and disorders
LAG-3 has links to cancer and autoimmune diseases. In cancer LAG-3 expression on tumor-infiltrating lymphocytes correlates with immune evasion by tumors. This relationship appears in various cancers including melanoma and renal cell carcinoma. In autoimmune diseases LAG-3's expression on regulatory T cells helps control conditions such as multiple sclerosis. It collaborates with CTLA-4 in modulating immune responses that prevent excessive immune activation and tissue damage associated with autoimmunity.
Product promise
Tested
We have tested this species and application combination and it works. It is covered by our product promise.
Expected
We have not tested this specific species and application combination in-house, but expect it will work. It is covered by our product promise.
Predicted
This species and application combination has not been tested, but we predict it will work based on strong homology. However, this combination is not covered by our product promise.
Not recommended
We do not recommend this combination. It is not covered by our product promise.
We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.
In the unlikely event of one of our products not working as expected, you are covered by our product promise.
Full details and terms and conditions can be found here:
Terms & Conditions.
4 product images
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-LAG-3 antibody (ab235907)
Paraffin-embedded human tonsil tissue stained for LAG-3 using ab235907 at 1/200 dilution in immunohistochemical analysis.
After dewaxing and hydration, antigen retrieval was mediated by high pressure in a citrate buffer (pH 6.0). Section was blocked with 10% normal goat serum 30 minutes at RT. Then primary antibody (1% BSA) was incubated at 4°C overnight. The primary is detected by a biotinylated secondary antibody and visualized tissue using an HRP conjugated SP system.

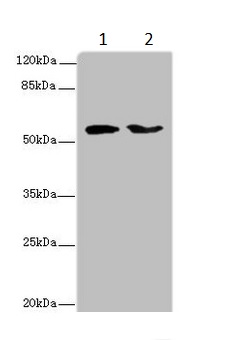

Western blot - Anti-LAG-3 antibody (ab235907)
All lanes: Western blot - Anti-LAG-3 antibody (ab235907) at 1/500 dilution
Lane 1: Rat liver lysate
Lane 2: Jurkat (human T cell leukemia cell line from peripheral blood) whole cell lysate
SecondaryAll lanes: Goat polyclonal to Rabbit IgG at 1/10000 dilution
Predicted band size: 57 kDa
Western blot - Anti-LAG-3 antibody (ab235907)
All lanes: Western blot - Anti-LAG-3 antibody (ab235907) at 1/500 dilution
All lanes: HepG2 (human liver hepatocellular carcinoma cell line) whole cell lysate
SecondaryAll lanes: Goat polyclonal to rabbit IgG at 1/50000 dilution
Predicted band size: 57 kDa
Immunocytochemistry/ Immunofluorescence - Anti-LAG-3 antibody (ab235907)
4% formaldehyde-fixed, 0.2% Triton X-100 permeabilized HepG2 (human liver hepatocellular carcinoma cell line) cells stained for LAG-3 (green) using ab235907 at 1/66 dilution in ICC/IF, followed by Alexa Fluor 488® conjugated Goat Anti-Rabbit IgG (H+L).
