Anti-LAG-3 antibody [CAL26] - BSA and Azide free

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-LAG-3 antibody [CAL26] - BSA and Azide free (AB251605)

Immunohistochemical analysis of paraffin-embedded human tonsil tissue labeling LAG-3 with ab237719 at 1/400 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) ready to use. Positive staining on the human tonsil is observed. Counter stained with hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) ready to use.

Heat mediated antigen retrieval using ab93684 (Tris/EDTA buffer, pH 9.0).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab237719).

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-LAG-3 antibody [CAL26] - BSA and Azide free (AB251605)

Formalin-fixed, paraffin-embedded human tonsil tissue stained for LAG-3 using ab237719 at 0.3 μg/ml in immunohistochemical analysis.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab237719).

• Flow Cyt (Intra)

Supplier Data

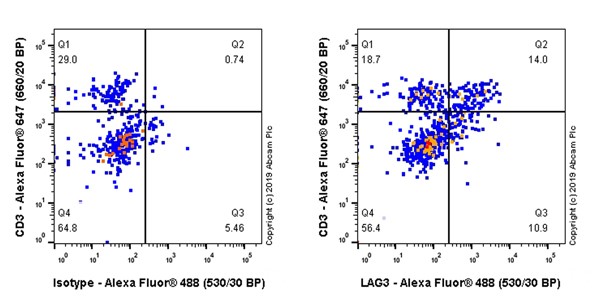

Flow Cytometry (Intracellular) - Anti-LAG-3 antibody [CAL26] - BSA and Azide free (AB251605)

Intracellular flow cytometric analysis of2% paraformaldehyde-fixed, 0.1% Tween-20 permeabilized human peripheral blood mononuclear cells ( (PBMC) (treated with 10μg/ml PHA for 48 hours) cell line labeling LAG-3 with ab237719 at 1/250 dilution (Right) compared with Recombinant Rabbit IgG, monoclonal [EPR25A] - Isotype Control (ab172730) (Left).

Goat Anti-Rabbit IgG Fc (Alexa Fluor^®488) preadsorbed (ab150097), at 1/5000 dilution was used as the secondary antibody.

Cells were surface stained with anti-CD3 conjugated to Alexa Fluor^®647. Then fixed with 2% PFA for 10min followed by intracellular staining rabbit IgG (Left) or ab237719 (Right).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab237719).

• IP

Supplier Data

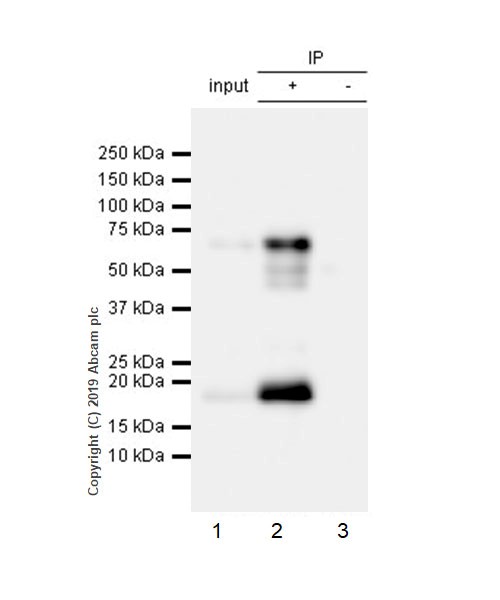

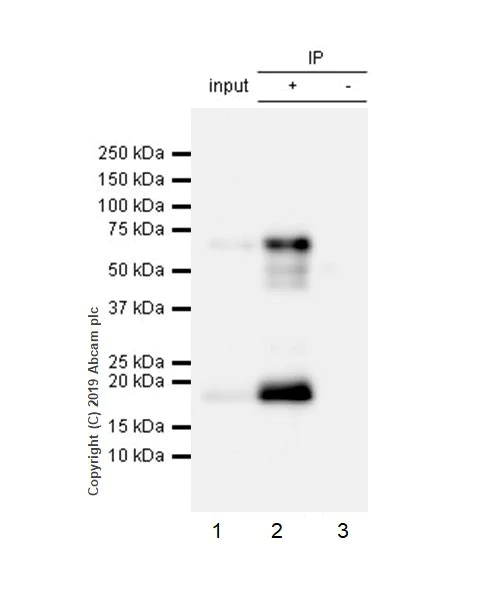

Immunoprecipitation - Anti-LAG-3 antibody [CAL26] - BSA and Azide free (AB251605)

LAG-3 was immunoprecipitated from 0.35 mg of LAG-3-GFP transfected HEK-293T (human epithelial cell line from embryonic kidney transformed with large T antigen) whole cell lysate with ab237719 at 1/20 dilution. Western blot was performed from the immunoprecipitate using ab237719 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP) (ab131366), was used as secondary antibody at 1/5000 dilution.

Lane 1 : LAG-3-GFP transfected HEK-293T whole cell lysate 10 μg (Input).
Lane 2 : ab237719 IP in LAG-3-GFP transfected HEK-293T whole cell lysate.
Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab237719 in LAG-3-GFP transfected HEK-293T whole cell lysate.

Blocking and dilution buffer and concentration : 5% NFDM/TBST.
Exposure time : 30 seconds.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab237719).

All lanes:

Immunoprecipitation - Anti-LAG-3 antibody [CAL26] (<a href='/en-us/products/primary-antibodies/lag-3-antibody-cal26-ab237719'>ab237719</a>)

Predicted band size: 57 kDa

Observed band size: 16 kDa,70 kDa

false

• WB

Lab

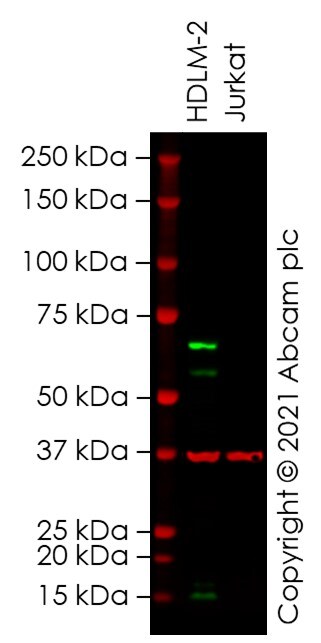

Western blot - Anti-LAG-3 antibody [CAL26] - BSA and Azide free (AB251605)

False colour image of Western blot : Anti-LAG-3 antibody [CAL26] staining at 1/1000 dilution, shown in green; Mouse anti-GAPDH antibody [6C5] (ab8245) loading control staining at 1/20000 dilution, shown in red. In Western blot, ab237719 was shown to bind specifically to LAG-3. First, samples were run on an SDS-PAGE gel then transferred onto a nitrocellulose membrane. Membranes were blocked in fluorescent western blot (TBS-based) blocking solution before incubation with primary antibodies overnight at 4°C. Blots were washed four times in TBS-T, incubated with secondary antibodies for 1 h at room temperature, washed again four times then imaged. Secondary antibodies used were Goat anti-Rabbit IgG H&L (IRDye^® 800CW) preabsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye^® 680RD) preabsorbed (ab216776) at 1/20000 dilution.

All lanes:

Western blot - Anti-LAG-3 antibody [CAL26] - BSA and Azide free (ab251605) at 1/1000 dilution

Lane 1:

HDLM-2 cell lysate at 20 µg

Lane 2:

Jurkat cell lysate at 20 µg

Predicted band size: 57 kDa

Observed band size: 57 kDa,70 kDa

false
