Anti-Lamin B Receptor/LBR antibody [E398L]

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Lamin B Receptor/LBR antibody [E398L] (AB32535)

IHC image of ab32535 staining in human breast cancer formalin fixed paraffin embedded tissue section, performed on a Leica Bond^TM system using the standard protocol F. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH6, epitope retrieval solution 1) for 20 mins. The section was then incubated with ab32535, 5µg/ml, for 15 mins at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX.

For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times.

• Flow Cyt (Intra)

Unknown

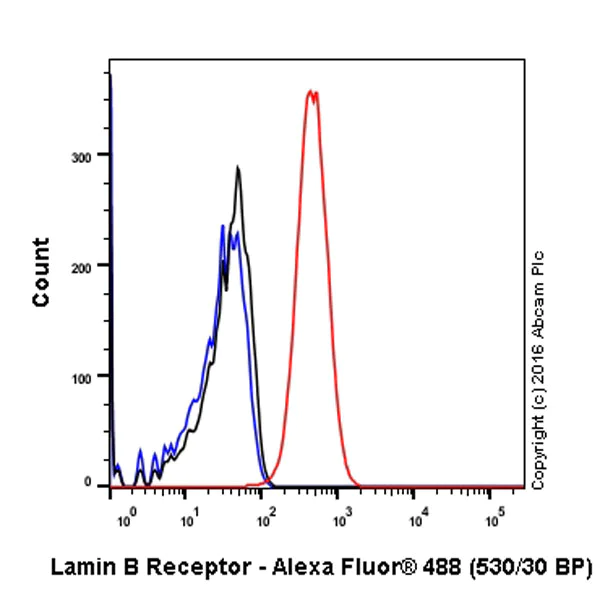

Flow Cytometry (Intracellular) - Anti-Lamin B Receptor/LBR antibody [E398L] (AB32535)

Intracellular Flow Cytometry analysis of HeLa (human cervix adenocarcinoma) cells labeling Lamin B Receptor/LBR with unpurified ab32535 at 1/20 dilutionc (10ug/ml) (red). Cells were fixed with 4% paraformaldehyde and permeabilised with 90% methanol. A Goat anti rabbit IgG (Alexa Fluor^® 488) (1/2000 dilution) was used as the secondary antibody. Rabbit monoclonal IgG (Black) was used as the isotype control, cells without incubation with primary antibody and secondary antibody (Blue) were used as the unlabeled control.

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-Lamin B Receptor/LBR antibody [E398L] (AB32535)

ab32535, at a 1/500 dilution, staining Lamin B Receptor/LBR in HeLa cells by Immunofluorescence.

• WB

Lab

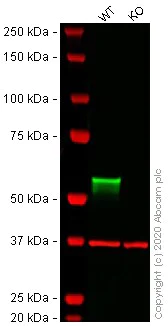

Western blot - Anti-Lamin B Receptor/LBR antibody [E398L] (AB32535)

Lanes 1 - 2 : Merged signal (red and green). Green - ab32535 observed at 58 kDa. Red - loading control, ab8245 (Mouse anti-GAPDH antibody [6C5]) observed at 37kDa.

ab32535 was shown to react with Lamin B Receptor/LBR in wild-type HEK-293 cells in western blot. Loss of signal was observed when LBR knockout lysate ab257503 was used. Wild-type and LBR knockout HEK-293 cell lysates were subjected to SDS-PAGE. Membranes were blocked in 3% milk before incubation with ab32535 and ab8245 (Mouse anti-GAPDH antibody [6C5]) overnight at 4°C at a 1 in 500 dilution and a 1 in 20000 dilution respectively. Blots were incubated with Goat anti-Mouse IgG H&L (IRDye^® 800CW) preabsorbed (ab216772) and Goat anti-Rabbit IgG H&L (IRDye^® 680RD) preabsorbed (ab216777) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-Lamin B Receptor/LBR antibody [E398L] (ab32535) at 1/500 dilution

Lane 1:

Wild-type HEK-293 cell lysate at 20 µg

Lane 2:

Western blot - Human LBR (Lamin B Receptor) knockout HEK-293T cell lysate (<a href='/en-us/products/cell-lysates/human-lbr-lamin-b-receptor-knockout-hek-293t-cell-lysate-ab257503'>ab257503</a>) at 20 µg

Lane 2:

Western blot - Human LBR (Lamin B Receptor) knockout HEK-293T cell line (<a href='/en-us/products/cell-lines/human-lbr-lamin-b-receptor-knockout-hek-293t-cell-line-ab266308'>ab266308</a>)

Predicted band size: 71 kDa

Observed band size: 58 kDa

false

• WB

Lab

Western blot - Anti-Lamin B Receptor/LBR antibody [E398L] (AB32535)

Lanes 1 - 2 : Merged signal (red and green). Green - ab32535 observed at 58 kDa. Red - loading control, ab8245 (Mouse anti-GAPDH antibody [6C5]) observed at 37kDa.

ab32535 was shown to react with Lamin B Receptor/LBR in wild-type HEK-293 cells in western blot. Loss of signal was observed when LBR knockout lysate ab257503 was used. Wild-type and LBR knockout HEK-293 cell lysates were subjected to SDS-PAGE. Membranes were blocked in 3% milk before incubation with ab32535 and ab8245 (Mouse anti-GAPDH antibody [6C5]) overnight at 4°C at a 1 in 500 dilution and a 1 in 20000 dilution respectively. Blots were incubated with Goat anti-Mouse IgG H&L (IRDye^® 800CW) preabsorbed (ab216772) and Goat anti-Rabbit IgG H&L (IRDye^® 680RD) preabsorbed (ab216777) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-Lamin B Receptor/LBR antibody [E398L] (ab32535) at 1/500 dilution

Lane 1:

Wild-type HEK-293 cell lysate at 20 µg

Lane 2:

LBR knockout HEK-293 cell lysate at 20 µg

Predicted band size: 71 kDa

Observed band size: 58 kDa

false

• WB

Unknown

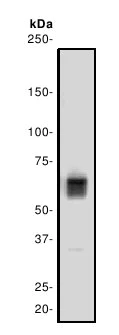

Western blot - Anti-Lamin B Receptor/LBR antibody [E398L] (AB32535)

All lanes:

Western blot - Anti-Lamin B Receptor/LBR antibody [E398L] (ab32535) at 1/500 dilution

All lanes:

Jurkat cell lysate

Predicted band size: 71 kDa

Observed band size: 67 kDa

false
