Anti-Lamin C antibody [EPR28295-16] KO Tested (ab314500)

Knockout Tested Rabbit Recombinant Monoclonal Lamin-A/C antibody. Suitable for IHC-P, ICC/IF, WB, IP, Dot and reacts with Human, Mouse, Rat, Synthetic peptide samples.

Be the first to review this product! Submit a review

Images

Western blot - Anti-Lamin C antibody [EPR28295-16] (AB314500), expandable thumbnail

Key facts

Isotype: IgG
Host species: Rabbit
Storage buffer: pH: 7.2 - 7.4
Preservative: 0.01% Sodium azide
Constituents: 59% PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA
Form: Liquid
Clonality: Monoclonal

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application

Product promiseTestedExpectedPredictedNot recommended

	IHC-P	ICC/IF	WB	IP	Dot	Flow Cyt (Intra)
Human	Tested	Tested	Tested	Tested	Expected	Not recommended
Mouse	Tested	Tested	Tested	Expected	Expected	Not recommended
Rat	Tested	Expected	Tested	Expected	Expected	Not recommended
Synthetic peptide	Not recommended	Not recommended	Not recommended	Not recommended	Tested	Not recommended

Tested
Tested

Species	Dilution info	Notes
Species Human	Dilution info 1/2000	Notes Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
Species Mouse	Dilution info 1/2000	Notes Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
Species Rat	Dilution info 1/2000	Notes Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Not recommended
Not recommended

Species	Dilution info	Notes
Species Synthetic peptide	Dilution info -	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Human	Dilution info 1/250	Notes -
Species Mouse	Dilution info 1/250	Notes -

Expected
Expected

Species	Dilution info	Notes
Species Rat	Dilution info Use at an assay dependent concentration.	Notes -

Not recommended
Not recommended

Species	Dilution info	Notes
Species Synthetic peptide	Dilution info -	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Human	Dilution info 1/1000	Notes -
Species Mouse	Dilution info 1/1000	Notes -
Species Rat	Dilution info 1/1000	Notes -

Not recommended
Not recommended

Species	Dilution info	Notes
Species Synthetic peptide	Dilution info -	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Human	Dilution info 1/30	Notes -

Expected
Expected

Species	Dilution info	Notes
Species Mouse, Rat	Dilution info Use at an assay dependent concentration.	Notes -

Not recommended
Not recommended

Species	Dilution info	Notes
Species Synthetic peptide	Dilution info -	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Synthetic peptide	Dilution info 1/1000	Notes -

Expected
Expected

Species	Dilution info	Notes
Species Human, Mouse, Rat	Dilution info Use at an assay dependent concentration.	Notes -

Not recommended
Not recommended

Species	Dilution info	Notes
Species Human, Mouse, Rat, Synthetic peptide	Dilution info -	Notes -

Associated Products

Select an associated product type

1 product for Alternative Version

Target data

See full target information LMNA

Function

Lamin-A/C. Lamins are intermediate filament proteins that assemble into a filamentous meshwork, and which constitute the major components of the nuclear lamina, a fibrous layer on the nucleoplasmic side of the inner nuclear membrane (PubMed:10080180, PubMed:10580070, PubMed:10587585, PubMed:10814726, PubMed:11799477, PubMed:12075506, PubMed:12927431, PubMed:15317753, PubMed:18551513, PubMed:18611980, PubMed:2188730, PubMed:22431096, PubMed:2344612, PubMed:23666920, PubMed:24741066, PubMed:31434876, PubMed:31548606, PubMed:37788673, PubMed:37832547). Lamins provide a framework for the nuclear envelope, bridging the nuclear envelope and chromatin, thereby playing an important role in nuclear assembly, chromatin organization, nuclear membrane and telomere dynamics (PubMed:10080180, PubMed:10580070, PubMed:10587585, PubMed:10814726, PubMed:11799477, PubMed:12075506, PubMed:12927431, PubMed:15317753, PubMed:18551513, PubMed:18611980, PubMed:22431096, PubMed:23666920, PubMed:24741066, PubMed:31548606, PubMed:37788673, PubMed:37832547). Lamin A and C also regulate matrix stiffness by conferring nuclear mechanical properties (PubMed:23990565, PubMed:25127216). The structural integrity of the lamina is strictly controlled by the cell cycle, as seen by the disintegration and formation of the nuclear envelope in prophase and telophase, respectively (PubMed:2188730, PubMed:2344612). Lamin A and C are present in equal amounts in the lamina of mammals (PubMed:10080180, PubMed:10580070, PubMed:10587585, PubMed:10814726, PubMed:11799477, PubMed:12075506, PubMed:12927431, PubMed:15317753, PubMed:18551513, PubMed:18611980, PubMed:22431096, PubMed:23666920, PubMed:31548606). Also invoved in DNA repair: recruited by DNA repair proteins XRCC4 and IFFO1 to the DNA double-strand breaks (DSBs) to prevent chromosome translocation by immobilizing broken DNA ends (PubMed:31548606). Required for normal development of peripheral nervous system and skeletal muscle and for muscle satellite cell proliferation (PubMed:10080180, PubMed:10814726, PubMed:11799477, PubMed:18551513, PubMed:22431096). Required for osteoblastogenesis and bone formation (PubMed:12075506, PubMed:15317753, PubMed:18611980). Also prevents fat infiltration of muscle and bone marrow, helping to maintain the volume and strength of skeletal muscle and bone (PubMed:10587585). Required for cardiac homeostasis (PubMed:10580070, PubMed:12927431, PubMed:18611980, PubMed:23666920). Prelamin-A/C. Prelamin-A/C can accelerate smooth muscle cell senescence (PubMed:20458013). It acts to disrupt mitosis and induce DNA damage in vascular smooth muscle cells (VSMCs), leading to mitotic failure, genomic instability, and premature senescence (PubMed:20458013).

Alternative names

LMN1, LMNA, Prelamin-A/C

Recommended products

Knockout Tested Rabbit Recombinant Monoclonal Lamin-A/C antibody. Suitable for IHC-P, ICC/IF, WB, IP, Dot and reacts with Human, Mouse, Rat, Synthetic peptide samples.

Key facts

Isotype: IgG
Host species: Rabbit
Storage buffer: pH: 7.2 - 7.4
Preservative: 0.01% Sodium azide
Constituents: 59% PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA
Form: Liquid
Clonality: Monoclonal
Immunogen: The exact immunogen used to generate this antibody is proprietary information.
Clone number: EPR28295-16
Purification technique: Affinity purification Protein A
Concentration

Storage

Shipped at conditions: Blue Ice
Appropriate short-term storage duration: 1-2 weeks
Appropriate short-term storage conditions: +4°C
Appropriate long-term storage conditions: -20°C
Aliquoting information: Upon delivery aliquot
Storage information: Avoid freeze / thaw cycle

Notes

Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

This product is a recombinant monoclonal antibody, which offers several advantages including:

- High batch-to-batch consistency and reproducibility
- Improved sensitivity and specificity
- Long-term security of supply
- Animal-free batch production

For more information, read more on recombinant antibodies.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.

Activity summary

Lamin C also known as LMNA forms part of the nuclear lamina which provides structural support to the cell nucleus. It has a molecular weight of approximately 65 kDa. Lamin C is expressed in various cell types especially in differentiated cells within tissues such as muscle cardiac and certain epithelial cells. It helps to maintain nuclear stability and influences gene expression by interacting with chromatin.

Biological function summary

Lamin C contributes to the architecture of the nuclear envelope as part of the lamina complex. This structural role influences the mechanical properties of cells which affects how cells respond to mechanical stress. Lamin C associates with proteins from the inner nuclear membrane and chromatin playing an essential role in nuclear organization. Disruptions in Lamin C function can affect the physical properties of nuclei impacting gene regulation and cell function.

Pathways

Multiple processes integrate Lamin C including the mitogen-activated protein kinase (MAPK) signaling pathway and the PI3K/AKT pathway. In these pathways Lamin C can interact with proteins like MAPK and Akt which are important for transmitting signals that regulate cell growth survival and differentiation. In these processes Lamin C ensures proper cell cycle progression and nuclear structural integrity highlighting its significant involvement in cellular dynamics.

Associated diseases and disorders

Mutations and malfunctions in Lamin C are connected to muscular dystrophies and cardiomyopathies. These diseases highlight the importance of Lamin C in maintaining muscle tissue integrity and proper cardiac function. Lamin C mutations often co-occur with dysfunctions in Lamin A as both arise from the same precursor protein leading to overlapping symptoms in conditions like Emery-Dreifuss muscular dystrophy and dilated cardiomyopathy.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

11 product images

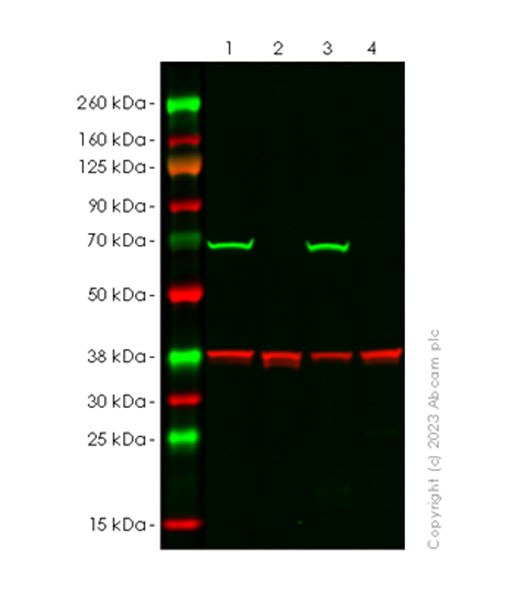

Western blot - Anti-Lamin C antibody [EPR28295-16] (ab314500)
Blocking and diluting buffer and concentration: Intercept® (TBS) Blocking Buffer diluted with an equal volume of TBS
Lysates at 20 µg per lane.

Western blot: Anti-Lamin C antibody (ab314500) staining at 1/1000 dilution, shown in green; Mouse anti-GAPDH antibody [6C5] (Anti-GAPDH antibody [6C5] - Loading Control ab8245) loading control staining at 1/20000 dilution, shown in red.
In Western blot, ab314500 was shown to bind specifically to Lamin C. Target of interest was observed at 65 kDa in wild-type HeLa cell lysates (lane 1) with no signal observed at this size in LMNA knockout cell line (lane 2, knockout cell line Human LMNA (Lamin A) knockout HeLa cell line ab261787 / knockout cell lysate Human LMNA (Lamin A) knockout HeLa cell lysate ab256979). To generate this image, samples were first run on an SDS-PAGE gel then transferred onto an immobilon-FL PVDF membrane. Membranes were blocked in a fluorescent western blot (TBS-based) blocking solution before incubation with primary antibodies overnight at 4 °C. Blots were washed in TBS-T, incubated with secondary antibodies Goat anti-Rabbit IgG H&L 800CW and Goat anti-Mouse IgG H&L 680RD at 1/20000 dilution for 1 h at room temperature, washed again then imaged.
Negative control: Jurkat (PMID: 15867203).
All lanes: Western blot - Anti-Lamin C antibody [EPR28295-16] (ab314500) at 1/1000 dilution
Lane 1: Wild-type HeLa (human cervical adenocarcinoma epithelial cell) whole cell lysate at 20 µg
Lane 2: LMNA knockout HeLa whole cell lysate at 20 µg
Lane 3: HepG2 (human hepatocellar carcinoma epithelial cell) whole cell lysate at 20 µg
Lane 4: Jurkat (human t cell leukemia t lymphocyte from peripheral blood) whole cell lysate at 20 µg
Secondary
All lanes: Goat Anti-Rabbit IgG H&L (800CW) and Goat Anti-Mouse IgG H&L (680RD) at 1/20000 dilution
Performed under reducing conditions.
Observed band size: 63 kDa

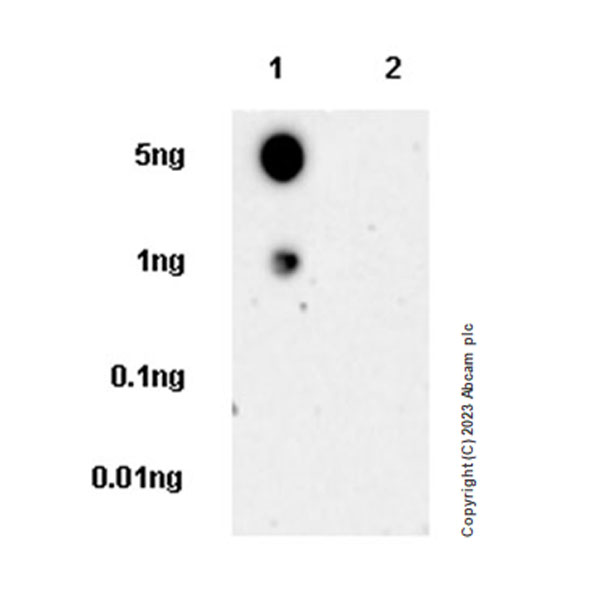

Dot Blot - Anti-Lamin C antibody [EPR28295-16] (ab314500)
Dot blot analysis of Lamin C using ab314500 at 1:1000 (0.515 ug/ml) followed by a Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1:100,000 dilution.
Exposure time: 180 seconds
Blocking and diluting buffer and concentration: 5% NFDM/TBST
Immunocytochemistry/ Immunofluorescence - Anti-Lamin C antibody [EPR28295-16] (ab314500)
Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized NIH/3T3 (mouse embryonic fibroblast) cells labelling Lamin C with ab314500 at 1/250 (2.06 ug/ml) dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1003 (2ug/ml) dilution (Green). Confocal image showing nuclear staining in NIH/3T3 cells. Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8). Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) was used to counterstain tubulin at 1/200 (2.5ug/ml) dilution (Red). The Nuclear counterstain was DAPI (Blue).
Secondary antibody only control: Secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1003 (2ug/ml) dilution.
Immunocytochemistry/ Immunofluorescence - Anti-Lamin C antibody [EPR28295-16] (ab314500)
Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized LMNA KO HeLa (LMNA knockout human cervical adenocarcinoma epithelial cell) cells labelling Lamin C with ab314500 at 1/250 (2.06 ug/ml) dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1002 (2ug/ml) dilution (Green). Confocal image showing nuclear staining in parental HeLa cells, and no staining in LMNA knockout HeLa cells. Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8). Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) was used to counterstain tubulin at 1/200 (2.5ug/ml) dilution (Red). The Nuclear counterstain was DAPI (Blue).
Secondary antibody only control: Secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1002 (2ug/ml) dilution.
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Lamin C antibody [EPR28295-16] (ab314500)
Immunohistochemical analysis of paraffin-embedded rat liver tissue labeling Lamin C with ab314500 at 1/2000 (0.258 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Positive staining on rat liver. The section was incubated with ab314500 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin.
Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

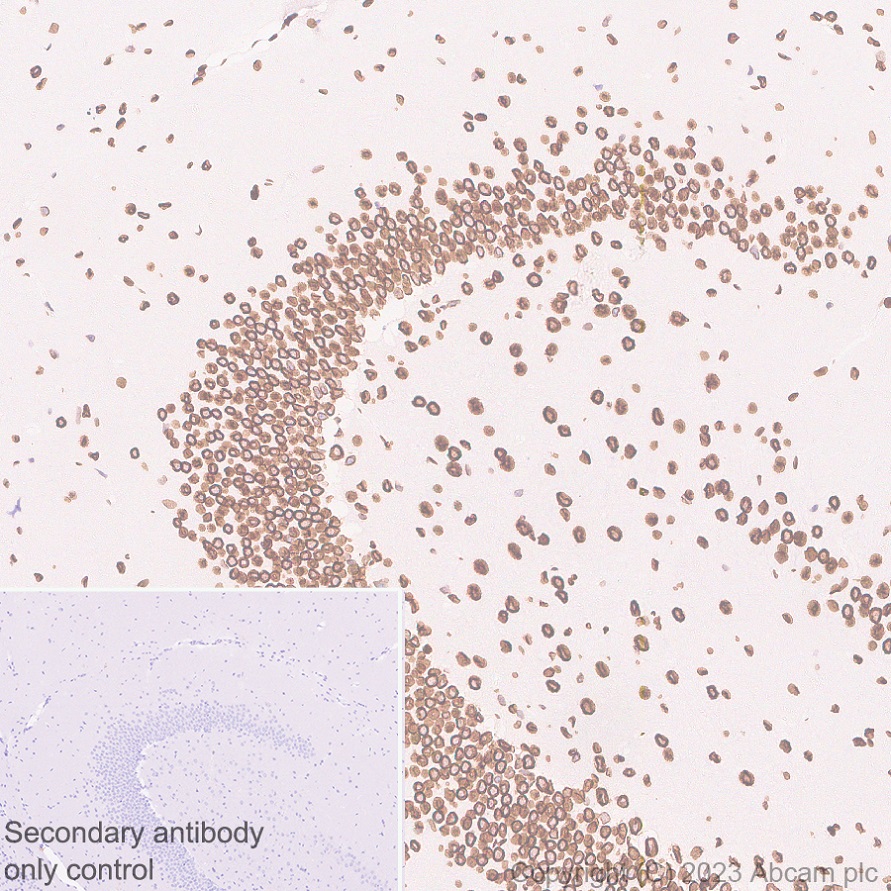

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Lamin C antibody [EPR28295-16] (ab314500)
Immunohistochemical analysis of paraffin-embedded mouse cerebrum tissue labeling Lamin C with ab314500 at 1/2000 (0.258 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Positive staining on mouse cerebrum (PMID: 22308344). The section was incubated with ab314500 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin.
Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

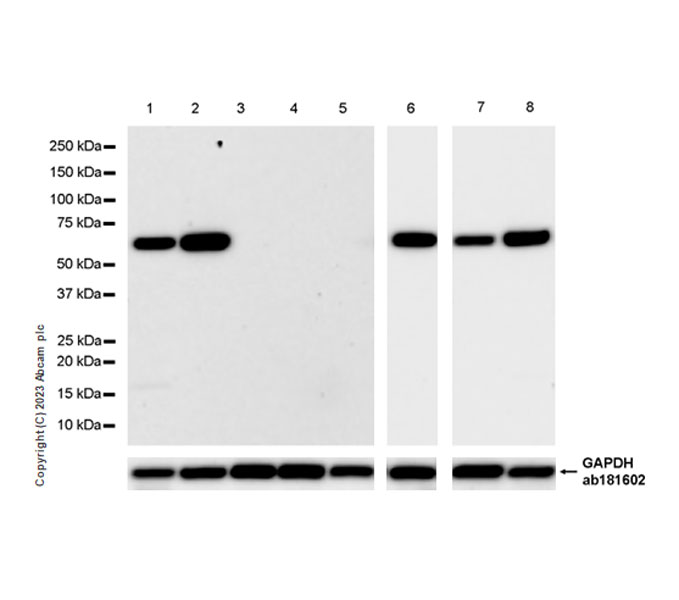

Western blot - Anti-Lamin C antibody [EPR28295-16] (ab314500)
Blocking and diluting buffer and concentration: 5% NFDM/TBST
Negative control: Daudi, HL-60, Raji (PMID: 15867203).
In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (Anti-GAPDH antibody [EPR16891] - Loading Control ab181602) staining at 1/200000 dilution.
Exposure time: Lanes 1-5: 81 seconds；
Lanes 6-8: 15 seconds.
All lanes: Western blot - Anti-Lamin C antibody [EPR28295-16] (ab314500) at 1/1000 dilution
Lane 1: A549 (human lung carcinoma epithelial cell) whole cell lysate at 20 µg
Lane 2: MCF7 (human breast adenocarcinoma epithelial cell) whole cell lysate at 20 µg
Lane 3: Raji (human burkitts lymphoma b lymphocyte) whole cell lysate at 20 µg
Lane 4: Daudi (human burkitts lymphoma lymphoblast) whole cell lysate at 20 µg
Lane 5: HL-60 (human acute promyelocytic leukemia promyeloblast) whole cell lysate at 20 µg
Lane 6: NIH/3T3 (mouse embryonic fibroblast) whole cell lysate at 20 µg
Lane 7: PC-12 (rat adrenal gland pheochromocytoma cell) whole cell lysate at 20 µg
Lane 8: L-929 (mouse connective tissue fibroblast) whole cell lysate at 20 µg
Secondary
All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/100000 dilution
Observed band size: 65 kDa

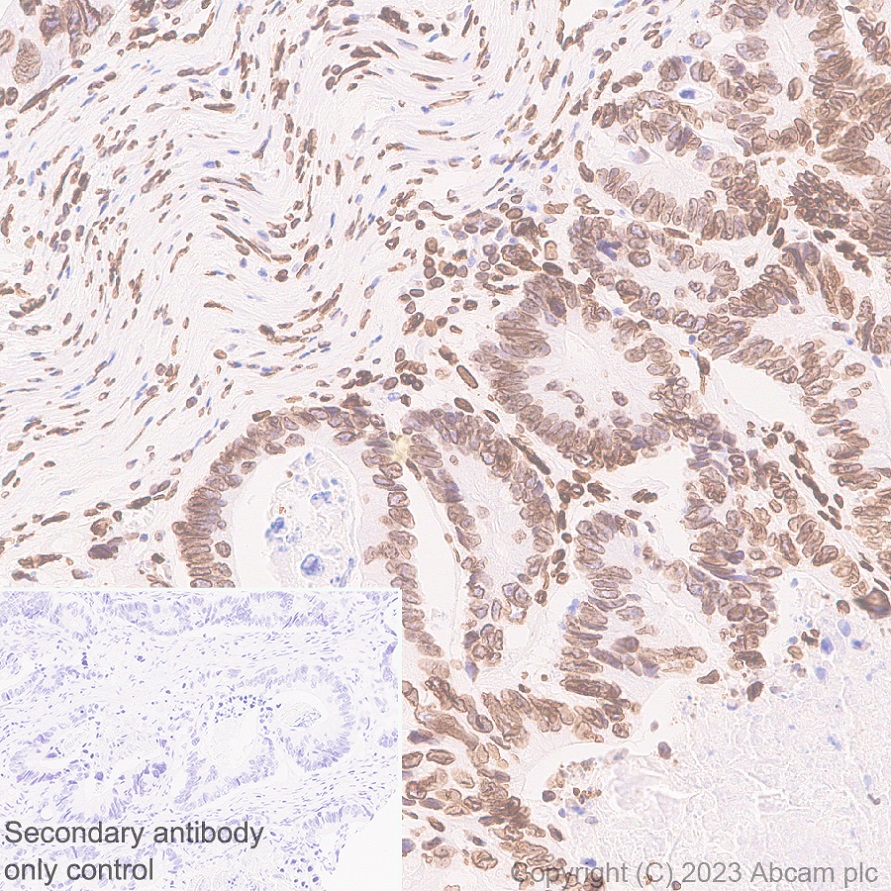

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Lamin C antibody [EPR28295-16] (ab314500)
Immunohistochemical analysis of paraffin-embedded human colorectal carcinoma tissue labeling Lamin C with ab314500 at 1/2000 (0.258 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Positive staining on human colorectal carcinoma (PMID: 21621406). The section was incubated with ab314500 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin.
Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Lamin C antibody [EPR28295-16] (ab314500)
Immunohistochemical analysis of paraffin-embedded human colon tissue labeling Lamin C with ab314500 at 1/2000 (0.258 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Positive staining on human colon (PMID: 21621406). The section was incubated with ab314500 for 30mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin.
Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

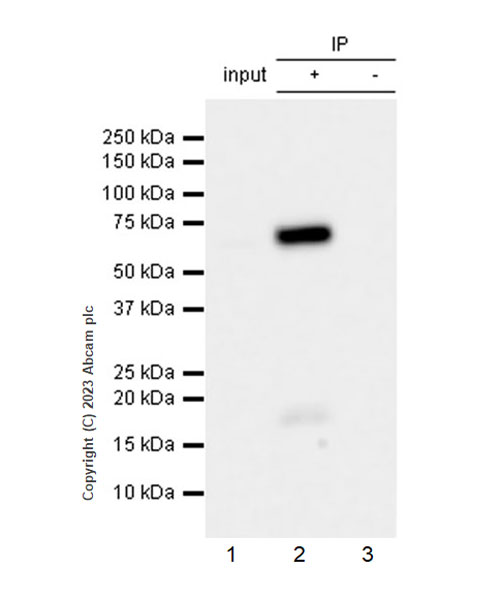

Immunoprecipitation - Anti-Lamin C antibody [EPR28295-16] (ab314500)
Lamin C was immunoprecipitated from 0.35 mg HepG2 (human hepatocellular carcinoma epithelial cell) whole cell lysate with ab314500 at 1/30 dilution (2ug in 0.35mg lysates). Western blot was performed on the immunoprecipitate using ab314500 at 1/1000 dilution. VeriBlot for IP secondary antibody(HRP)(VeriBlot for IP Detection Reagent (HRP) ab131366) was used at 1/5000 dilution.
Lane 1: HepG2 (human hepatocellular carcinoma epithelial cell) whole cell lysate
Lane 2: ab314500 IP in HepG2 (human hepatocellular carcinoma epithelial cell) whole cell lysate
Lane 3: Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of ab314500 in HepG2 whole cell lysate
Blocking and dilution buffer and concentration: 5% NFDM/TBST.
All lanes: Immunoprecipitation - Anti-Lamin C antibody [EPR28295-16] (ab314500) at 1/30 dilution
All lanes: HepG2 (human hepatocellular carcinoma epithelial cell) whole cell lysate
Secondary
All lanes: Immunoprecipitation - VeriBlot for IP Detection Reagent (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366) at 1/5000 dilution
Exposure time: 6s

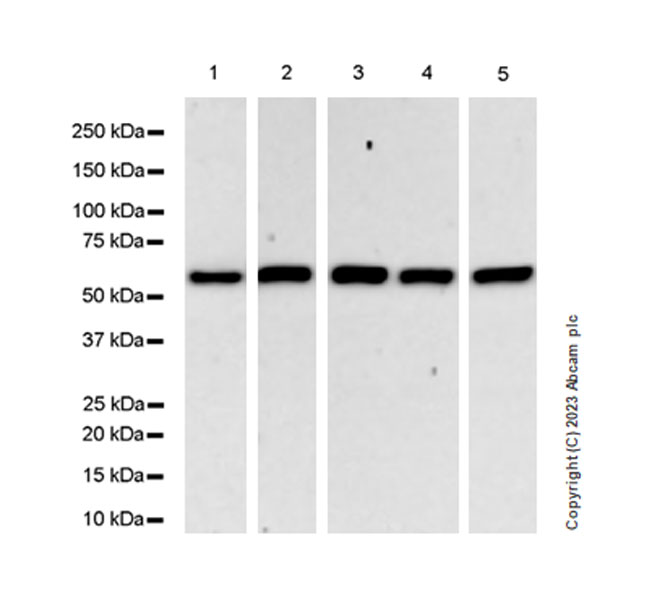

Western blot - Anti-Lamin C antibody [EPR28295-16] (ab314500)
Blocking and diluting buffer and concentration: 5% NFDM/TBST
All lanes: Western blot - Anti-Lamin C antibody [EPR28295-16] (ab314500) at 1/1000 dilution
Lane 1: Human colon cancer tissue lysate at 20 µg
Lane 2: Mouse brain tissue lysate at 20 µg
Lane 3: Mouse heart tissue lysate at 20 µg
Lane 4: Rat brain tissue lysate at 20 µg
Lane 5: Rat heart tissue lysate at 20 µg
Secondary
All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/100000 dilution
Observed band size: 65 kDa
Exposure time: 125s
