Anti-LAMP1 antibody [EPR24395-31] - BSA and Azide free

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-LAMP1 antibody [EPR24395-31] - BSA and Azide free (AB278046)

This data was developed using ab278043, the same antibody clone in a different buffer formulation.

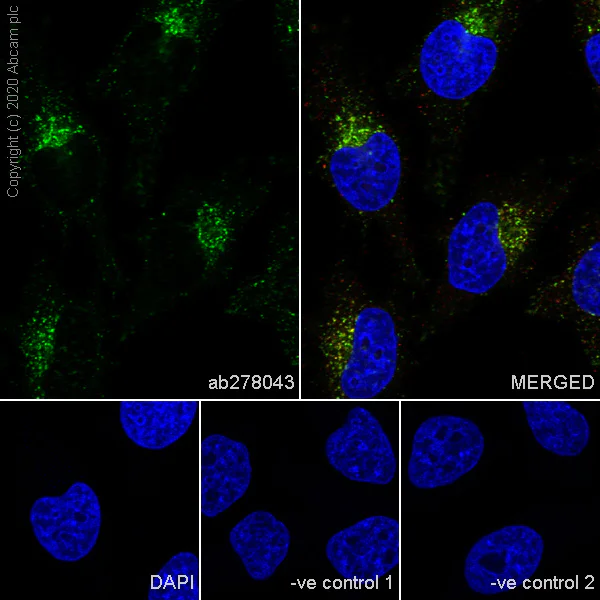

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized HeLa cells labelling LAMP1 with ab278043 at 1/100 (5.45 ug/ml) dilution, followed by ab150077 Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) antibody at 1/1000 (green). Confocal image showing cytoplasmic staining in HeLa. ab25630 Anti-LAMP1 mouse monoclonal antibody was used to counterstain at 1/500 (red). The Nuclear counterstain was DAPI (blue).

Secondary antibody only control : Secondary antibody is ab150077 Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) at 1/1000 dilution

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-LAMP1 antibody [EPR24395-31] - BSA and Azide free (AB278046)

This data was developed using ab278043, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded Human lung cancer tissue labelling LAMP1 with ab278043 at 1/5000 (0.109 ug/ml) dilution followed by a ready to use LeicaDS9800 (Bond® Polymer Refine Detection) was used. Cytoplasmic staining in human lung cancer. The section was incubated with ab278043 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument with Hematoxylin. Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond® Polymer Refine Detection) was used.

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins.

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-LAMP1 antibody [EPR24395-31] - BSA and Azide free (AB278046)

This data was developed using ab278043, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded Human liver tissue labeling LAMP1 with ab278043 at 1/5000 (0.109 ug/ml) dilution followed by a ready to use LeicaDS9800 (Bond® Polymer Refine Detection) was used. Cytoplasmic staining in human liver. The section was incubated with ab278043 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument with Hematoxylin. Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond® Polymer Refine Detection) was used.

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins.

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-LAMP1 antibody [EPR24395-31] - BSA and Azide free (AB278046)

This data was developed using ab278043, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded Human pancreas tissue labelling LAMP1 with ab278043 at 1/5000 (0.109 ug/ml) dilution followed by a ready to use LeicaDS9800 (Bond® Polymer Refine Detection) was used. Cytoplasmic staining in human pancreas. The section was incubated with ab278043 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument with Hematoxylin. Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond® Polymer Refine Detection) was used.

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins.

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-LAMP1 antibody [EPR24395-31] - BSA and Azide free (AB278046)

This data was developed using ab278043, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded Human tonsil labelling LAMP1 with ab278043 at 1/5000 (0.109 ug/ml) dilution followed by a ready to use LeicaDS9800 (Bond® Polymer Refine Detection) was used. Cytoplasmic staining in human tonsil. The section was incubated with ab278043 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument with Hematoxylin. Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond® Polymer Refine Detection) was used.

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins.

• Flow Cyt (Intra)

Lab

Flow Cytometry (Intracellular) - Anti-LAMP1 antibody [EPR24395-31] - BSA and Azide free (AB278046)

This data was developed using ab278043, the same antibody clone in a different buffer formulation.

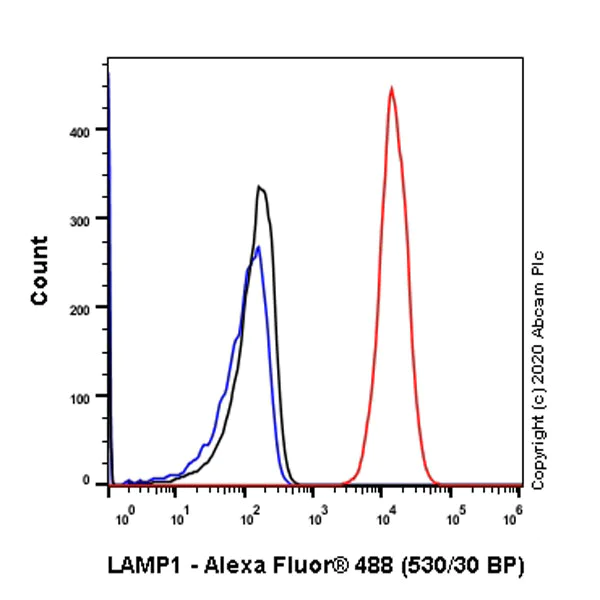

Intracellular flow cytometric analysis of HeLa (human cervix adenocarcinoma epithelial cell) cells labelling LAMP1 with ab278043 at 1/500 dilution (red) compared with a Rabbit monoclonal IgG (ab172730) (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). Goat anti rabbit IgG (Alexa Fluor^® 488, ab150077) at 1/2000 dilution was used as the secondary antibody.

• Flow Cyt (Intra)

Lab

Flow Cytometry (Intracellular) - Anti-LAMP1 antibody [EPR24395-31] - BSA and Azide free (AB278046)

This data was developed using ab278043, the same antibody clone in a different buffer formulation.

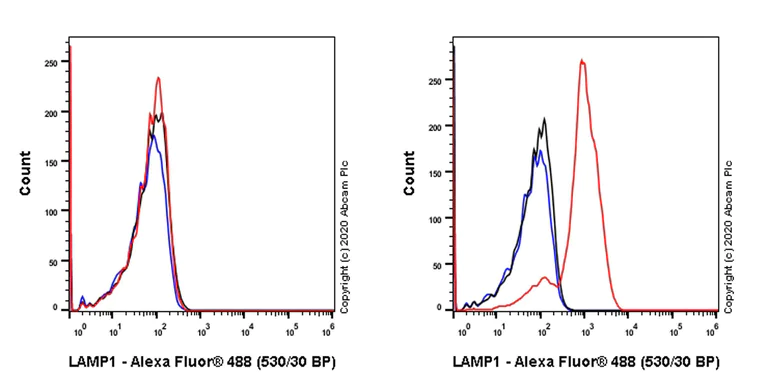

Intracellular flow cytometric analysis of Wild-type HAP1 (human chronic myelogenous leukemia near-haploid cell, Right)/ LAMP1 knockout HAP1 cells (Left) cells labelling LAMP1 with ab278043 at 1/500 dilution (red) compared with a Rabbit monoclonal IgG (ab172730) (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). Goat anti rabbit IgG (Alexa Fluor^® 488, ab150077) at 1/2000 dilution was used as the secondary antibody.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-LAMP1 antibody [EPR24395-31] - BSA and Azide free (AB278046)

This data was developed using ab278043, the same antibody clone in a different buffer formulation.

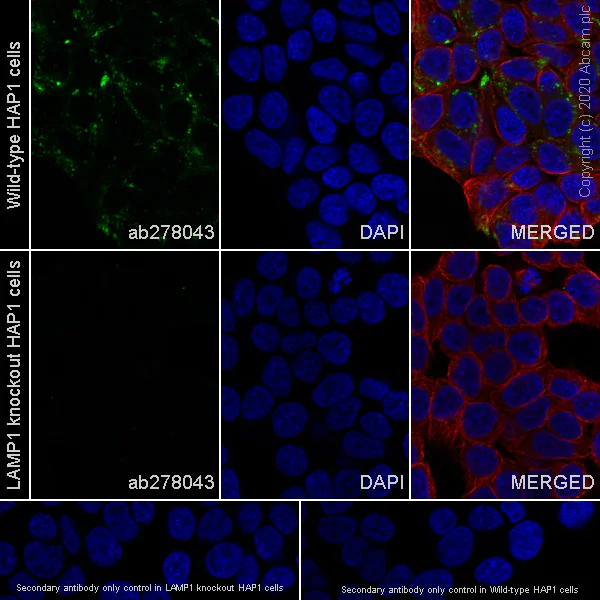

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized LAMP1 KO HAP1 cells labelling LAMP1 with ab278043 at 1/100 (5.45 ug/ml) dilution, followed by ab150077 Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) antibody at 1/1000 2 ug/ml dilution (green). Confocal image showing cytoplasmic staining in parental HAP1 cell line and no staining in LAMP1 KO HAP1 cell line. ab195889 Anti-alpha Tubulin mouse monoclonal antibody- Microtubule Marker (Alexa Fluor ^® 594) was used to counterstain at 1/200 (red).

Secondary antibody only control : Secondary antibody is ab150077 Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) at 1/1000 dilution.

• WB

Lab

Western blot - Anti-LAMP1 antibody [EPR24395-31] - BSA and Azide free (AB278046)

This data was developed using ab278043, the same antibody clone in a different buffer formulation.

Blocking and Diluting buffer : 5% NFDM/TBST

LAMP1 is a glycoprotein. The molecular weight observed is consistent with what has been described in the literature (PMID : 27061067, 15111122).

Exposure time : 3 minutes.

All lanes:

Western blot - Anti-LAMP1 antibody [EPR24395-31] - Lysosome Marker (<a href='/en-us/products/primary-antibodies/lamp1-antibody-epr24395-31-lysosome-marker-ab278043'>ab278043</a>) at 1/1000 dilution

Lane 1:

Human kidney tissue lysate at 20 µg

Lane 2:

Human spleen tissue lysate at 20 µg

Lane 3:

Human colon cancer tissue lysate at 20 µg

Secondary

All lanes:

Western blot - VeriBlot for IP Detection Reagent (HRP) (<a href='/en-us/products/reagents/veriblot-for-ip-detection-reagent-hrp-ab131366'>ab131366</a>) at 1/1000 dilution

Predicted band size: 45 kDa

Observed band size: 110 kDa

false

• WB

Lab

Western blot - Anti-LAMP1 antibody [EPR24395-31] - BSA and Azide free (AB278046)

This data was developed using ab278043, the same antibody clone in a different buffer formulation.

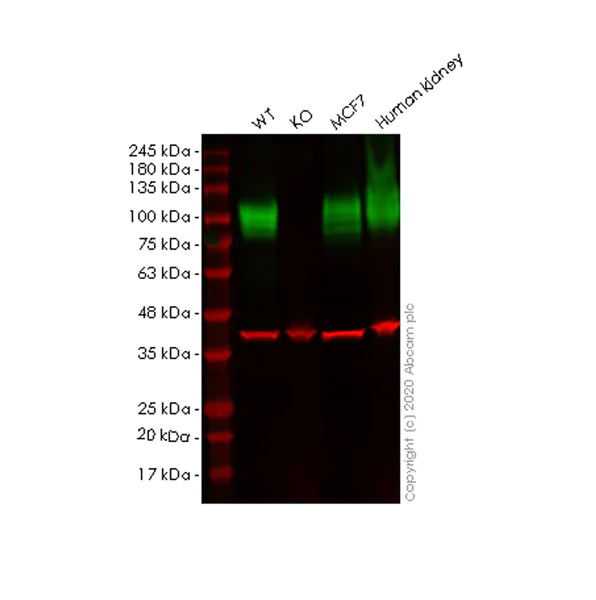

Blocking buffer and Diluting buffer : Intercept® (TBS) Blocking Buffer diluted with an equal volume of 0.1% TBS.

Lanes 1-4 : Merged signal (red and green). Green - ab278043 observed at 110 kDa. Red - loading control ab8245 observed at 36 kDa.

ab278043 Anti-LAMP1 antibody [EPR24395-31A] was shown to specifically react with LAMP1 in wild-type HAP1 cells. Loss of signal was observed when knockout cell line was used. Wild-type and LAMP1 knockout samples were subjected to SDS-PAGE. ab278043 and Anti-GAPDH antibody [6C5] - Loading Control (ab8245) were incubated at room temperature for 2. 5 hours at 1 in 1000 dilution and 1 in 20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed (ab216776) secondary antibodies at 1 in 10000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-LAMP1 antibody [EPR24395-31] - Lysosome Marker (<a href='/en-us/products/primary-antibodies/lamp1-antibody-epr24395-31-lysosome-marker-ab278043'>ab278043</a>) at 1/1000 dilution

Lane 1:

Wild-type HAP1 (human chronic myelogenous leukemia near-haploid cell) whole cell lysate at 20 µg

Lane 2:

LAMP1 knockout HAP1 whole cell lysate at 20 µg

Lane 3:

MCF7 (human breast adenocarcinoma epithelial cell) whole cell lysate at 20 µg

Lane 4:

Human kidney tissue lysate at 20 µg

Secondary

All lanes:

Western blot - Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed (<a href='/en-us/products/secondary-antibodies/goat-mouse-igg-h-l-irdye-680rd-preadsorbed-ab216776'>ab216776</a>) at 1/10000 dilution

Predicted band size: 45 kDa

Observed band size: 110 kDa

false

• WB

Lab

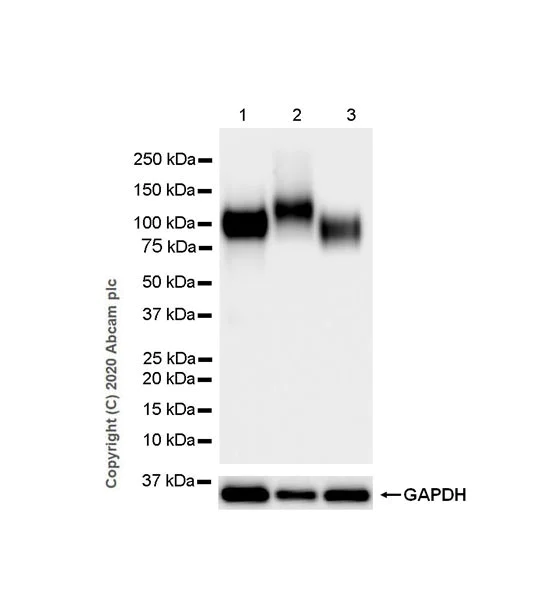

Western blot - Anti-LAMP1 antibody [EPR24395-31] - BSA and Azide free (AB278046)

This data was developed using ab278043, the same antibody clone in a different buffer formulation.

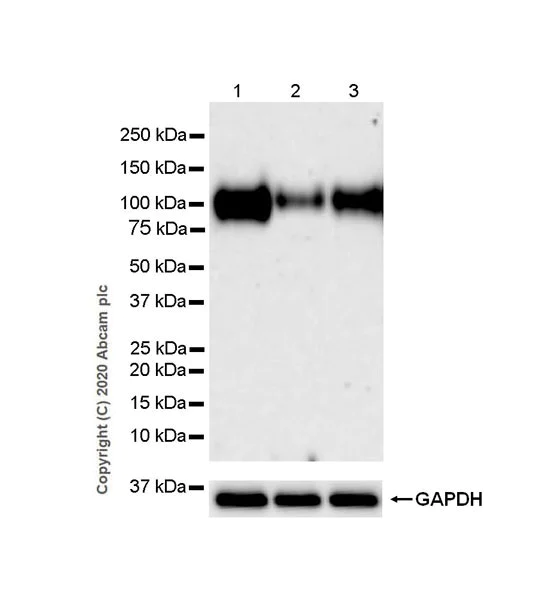

Blocking and Diluting buffer : 5% NFDM/TBST

LAMP1 is a glycoprotein. The molecular weight observed is consistent with what has been described in the literature (PMID : 27061067, 15111122).

Exposure time : 3 minutes.

All lanes:

Western blot - Anti-LAMP1 antibody [EPR24395-31] - Lysosome Marker (<a href='/en-us/products/primary-antibodies/lamp1-antibody-epr24395-31-lysosome-marker-ab278043'>ab278043</a>) at 1/1000 dilution

Lane 1:

HeLa (human cervix adenocarcinoma epithelial cell) whole cell lysate at 20 µg

Lane 2:

HepG2 (human hepatocellular carcinoma epithelial cell) whole cell lysate at 20 µg

Lane 3:

MCF7 (human breast adenocarcinoma epithelial cell) whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/50000 dilution

Predicted band size: 45 kDa

Observed band size: 110 kDa
