Rabbit Recombinant Monoclonal LAMP2 antibody. Suitable for WB, IHC-P and reacts with Human samples. Cited in 2 publications.

Be the first to review this product! Submit a review

Images

Western blot - Anti-LAMP2 antibody [EPR19531] - Lysosome Marker (AB199947), expandable thumbnail
  • Western blot - Anti-LAMP2 antibody [EPR19531] - Lysosome Marker (AB199947), expandable thumbnail
  • Western blot - Anti-LAMP2 antibody [EPR19531] - Lysosome Marker (AB199947), expandable thumbnail
  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-LAMP2 antibody [EPR19531] (AB199947), expandable thumbnail
  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-LAMP2 antibody [EPR19531] - Lysosome Marker (AB199947), expandable thumbnail

Publications

Key facts

Isotype
IgG
Host species
Rabbit
Storage buffer

pH: 7.2 - 7.4
Preservative: 0.01% Sodium azide
Constituents: 59% PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA

Form
Liquid
Clonality
Monoclonal

Immunogen

  • The exact immunogen used to generate this antibody is proprietary information.

Abcam Recommends

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
WBIHC-P
Human
Tested
Tested

Tested
Tested

Species
Human
Dilution info
1/1000
Notes

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Tested
Tested

Species
Human
Dilution info
1/2000
Notes

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Associated Products

Select an associated product type

9 products for Alternative Product

Target data

Function

Lysosomal membrane glycoprotein which plays an important role in lysosome biogenesis, lysosomal pH regulation and autophagy (PubMed:11082038, PubMed:18644871, PubMed:24880125, PubMed:27628032, PubMed:36586411, PubMed:37390818, PubMed:8662539). Acts as an important regulator of lysosomal lumen pH regulation by acting as a direct inhibitor of the proton channel TMEM175, facilitating lysosomal acidification for optimal hydrolase activity (PubMed:37390818). Plays an important role in chaperone-mediated autophagy, a process that mediates lysosomal degradation of proteins in response to various stresses and as part of the normal turnover of proteins with a long biological half-live (PubMed:11082038, PubMed:18644871, PubMed:24880125, PubMed:27628032, PubMed:36586411, PubMed:8662539). Functions by binding target proteins, such as GAPDH, NLRP3 and MLLT11, and targeting them for lysosomal degradation (PubMed:11082038, PubMed:18644871, PubMed:24880125, PubMed:36586411, PubMed:8662539). In the chaperone-mediated autophagy, acts downstream of chaperones, such as HSPA8/HSC70, which recognize and bind substrate proteins and mediate their recruitment to lysosomes, where target proteins bind LAMP2 (PubMed:36586411). Plays a role in lysosomal protein degradation in response to starvation (By similarity). Required for the fusion of autophagosomes with lysosomes during autophagy (PubMed:27628032). Cells that lack LAMP2 express normal levels of VAMP8, but fail to accumulate STX17 on autophagosomes, which is the most likely explanation for the lack of fusion between autophagosomes and lysosomes (PubMed:27628032). Required for normal degradation of the contents of autophagosomes (PubMed:27628032). Required for efficient MHC class II-mediated presentation of exogenous antigens via its function in lysosomal protein degradation; antigenic peptides generated by proteases in the endosomal/lysosomal compartment are captured by nascent MHC II subunits (PubMed:15894275, PubMed:20518820). Is not required for efficient MHC class II-mediated presentation of endogenous antigens (PubMed:20518820). Isoform LAMP-2C. Modulates chaperone-mediated autophagy. Decreases presentation of endogenous antigens by MHCII. Does not play a role in the presentation of exogenous and membrane-derived antigens by MHCII. (Microbial infection) Supports the FURIN-mediated cleavage of mumps virus fusion protein F by interacting with both FURIN and the unprocessed form but not the processed form of the viral protein F.

Alternative names

CD107b, Lysosome-associated membrane glycoprotein 2, LAMP-2, Lysosome-associated membrane protein 2, CD107 antigen-like family member B, LGP-96, LAMP2

Recommended products

Rabbit Recombinant Monoclonal LAMP2 antibody. Suitable for WB, IHC-P and reacts with Human samples. Cited in 2 publications.

Key facts

Isotype
IgG
Form
Liquid
Clonality
Monoclonal
Immunogen
  • The exact immunogen used to generate this antibody is proprietary information.
Clone number
EPR19531
Purification technique
Affinity purification Protein A
Concentration
Loading...

Storage

Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle

Notes

Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.
Activity summary

LAMP2 also known as CD107b is an important protein found in the lysosomal membrane. It plays a significant role in lysosome function facilitating autophagy and the degradation of cellular debris. LAMP2 proteins are expressed in most tissues especially in tissues with high lysosomal activity like the liver kidney and heart. The LAMP2 molecule has a molecular weight of approximately 45 kDa. Researchers frequently use LAMP2 staining and LAMP2 marker to study its cellular localization and expression levels.

Biological function summary

LAMP2 is essential for the normal fusion of lysosomes with autophagosomes. This process ensures the recycling of cellular components and maintenance of cellular homeostasis. LAMP2 acts in conjunction with other members of the lysosome-associated membrane protein family LAMP1 and LAMP3 forming part of a larger complex. This interaction is fundamental in managing the degradation pathways within the cell supporting processes such as lipid metabolism and protein turnover.

Pathways

The activity of LAMP2 is critical in the autophagic and degradation pathways within the cell. It particularly interacts in the autophagy-lysosome pathway where it aids the clearance of damaged organelles and protein aggregates. LAMP2 interaction with proteins such as the autophagy-related protein LC3 helps this degradation process. Additionally LAMP2 plays a role in endocytic pathways linking it to proteins involved in vesicle trafficking and membrane fusion.

Associated diseases and disorders

Mutations or deficiencies in LAMP2 are associated with Danon disease a type of lysosomal storage disorder. Patients with Danon disease exhibit symptoms such as cardiomyopathy skeletal myopathy and intellectual disabilities. LAMP2 is also implicated in other lysosomal disorders with a connection to the malfunction of autophagy processes. Its dysfunction is often linked with proteins responsible for cellular degradation affecting the normal homeostatic balance and leading to the accumulation of autophagic substrates.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

6 product images

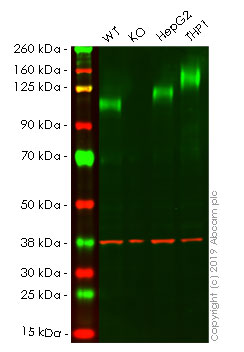

  • Western blot - Anti-LAMP2 antibody [EPR19531] - Lysosome Marker (ab199947), expandable thumbnail

    Western blot - Anti-LAMP2 antibody [EPR19531] - Lysosome Marker (ab199947)

    LAMP2 Western blot staining using rabbit Anti-LAMP2 antibody

    Lanes 1 - 4: Merged signal (red and green). Green - ab199947 observed at 45 kDa. Red - loading control, Anti-Vinculin antibody [VIN-54] ab130007, observed at 130 kDa.

    ab199947 was shown to specifically react with LAMP2 in wild-type HEK-293 cells as signal was lost in LAMP2 knockout cells. Wild-type and LAMP2 knockout samples were subjected to SDS-PAGE. ab199947 and Anti-Vinculin antibody [VIN-54] ab130007 (Mouse anti-Vinculin loading control) were incubated overnight at 4°C at 1/1000 dilution and 1/20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye® 800CW) preabsorbed Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed ab216773 and Goat anti-Mouse IgG H&L (IRDye® 680RD) preabsorbed Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed ab216776 secondary antibodies at 1/20000 dilution for 1 hour at room temperature before imaging.

    All lanes: Western blot - Anti-LAMP2 antibody [EPR19531] - Lysosome Marker (ab199947) at 1/1000 dilution

    Lane 1: Wild-type HEK-293 (Human epithelial cell line from embryonic kidney) whole cell lysate at 20 µg

    Lane 2: LAMP2 knockout HEK-293 (Human epithelial cell line from embryonic kidney) whole cell lysate at 20 µg

    Lane 2: Western blot - Human LAMP2 knockout HEK-293 cell line (Human LAMP2 knockout HEK-293 cell line ab260863)

    Lane 3: Hep G2 (Human liver hepatocellular carcinoma cell line) whole cell lysate at 20 µg

    Lane 4: THP-1 (Human monocytic leukemia cell line) whole cell lysate at 20 µg

    Performed under reducing conditions.

    Predicted band size: 45 kDa

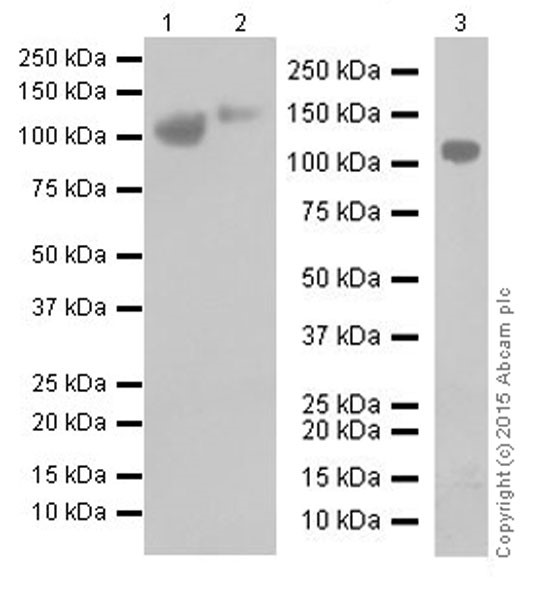

  • Western blot - Anti-LAMP2 antibody [EPR19531] - Lysosome Marker (ab199947), expandable thumbnail

    Western blot - Anti-LAMP2 antibody [EPR19531] - Lysosome Marker (ab199947)

    LAMP2 Western blot staining using rabbit Anti-LAMP2 antibody

    Blocking/Dilution buffer: 5% NFDM/TBST.

    The molecular weight observed is consistent with what has been described in the literature (PMID: 19828315) and lots of other products.

    All lanes: Western blot - Anti-LAMP2 antibody [EPR19531] - Lysosome Marker (ab199947) at 1/1000 dilution

    Lane 1: Human fetal kidney lysate at 10 µg

    Lane 2: Human fetal spleen lysate at 10 µg

    Lane 3: Human placenta lysate at 10 µg

    Secondary

    All lanes: Goat Anti-Rabbit IgG Peroxidase Conjugate, specific to the non-reduced form of IgG at 1/100000 dilution

    Predicted band size: 45 kDa

    Observed band size: 110-130 kDa

    Exposure time: 3min

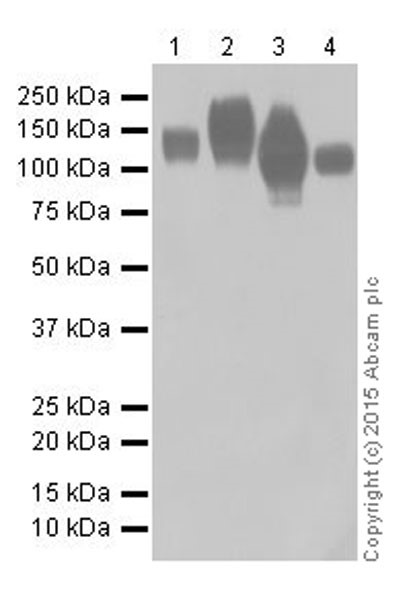

  • Western blot - Anti-LAMP2 antibody [EPR19531] - Lysosome Marker (ab199947), expandable thumbnail

    Western blot - Anti-LAMP2 antibody [EPR19531] - Lysosome Marker (ab199947)

    LAMP2 Western blot staining using rabbit Anti-LAMP2 antibody

    Blocking/Dilution buffer: 5% NFDM/TBST.

    The molecular weight observed is consistent with what has been described in the literature (PMID: 19828315) and lots of other products.

    All lanes: Western blot - Anti-LAMP2 antibody [EPR19531] - Lysosome Marker (ab199947) at 1/1000 dilution

    Lane 1: HeLa (Human epithelial cell line from cervix adenocarcinoma) whole cell lysate at 20 µg

    Lane 2: THP-1 (Human monocytic leukemia cell line) whole cell lysate at 20 µg

    Lane 3: JAR (Human placenta choriocarcinoma cell line) whole cell lysate at 20 µg

    Lane 4: Jurkat (Human T cell leukemia cell line from peripheral blood) whole cell lysate at 20 µg

    Secondary

    All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/100000 dilution

    Predicted band size: 45 kDa

    Observed band size: 110-130 kDa

    Exposure time: 3min

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-LAMP2 antibody [EPR19531] (ab199947), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-LAMP2 antibody [EPR19531] (ab199947)

    Immunohistochemical analysis of paraffin-embedded Human liver tissue labeling LAMP2 with ab199947 at 1/2000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/500 dilution.

    Cytoplasm staining on Human liver is observed.

    Counter stained with Hematoxylin.

    Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/500 dilution.

    Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-LAMP2 antibody [EPR19531] - Lysosome Marker (ab199947), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-LAMP2 antibody [EPR19531] - Lysosome Marker (ab199947)

    LAMP2 Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) staining using rabbit Anti-LAMP2 antibody

    Immunohistochemical analysis of paraffin-embedded Human breast cancer tissue labeling LAMP2 with ab199947 at 1/2000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/500 dilution.

    Cytoplasm staining on Human breast cancer is observed.

    Counter stained with Hematoxylin.

    Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/500 dilution.

    Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

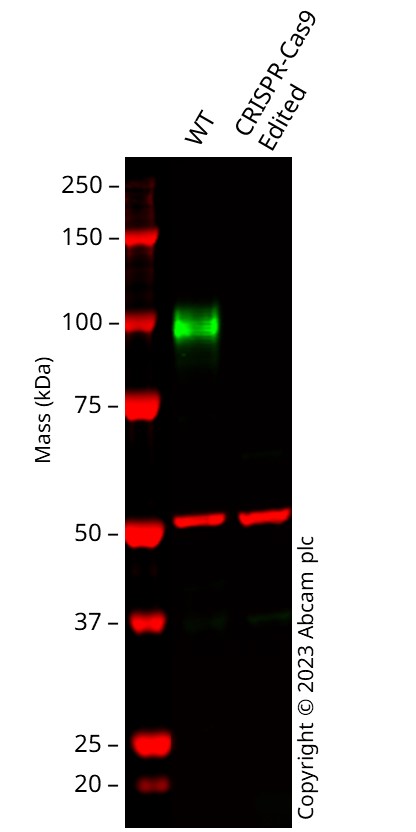

  • Western blot - Anti-LAMP2 antibody [EPR19531] - Lysosome Marker (ab199947), expandable thumbnail

    Western blot - Anti-LAMP2 antibody [EPR19531] - Lysosome Marker (ab199947)

    LAMP2 Western blot staining using rabbit Anti-LAMP2 antibody

    False colour image of Western blot: Anti-LAMP2 antibody [EPR19531] staining at 1/1000 dilution, shown in green; Mouse anti-Alpha Tubulin [DM1A] (Anti-alpha Tubulin antibody [DM1A] - Loading Control ab7291) loading control staining at 1/20000 dilution, shown in red. In Western blot, ab199947 was shown to bind specifically to LAMP2. A band was observed at 100 kDa in wild-type HeLa cell lysates with no signal observed at this size in LAMP2 CRISPR-Cas9 edited cell line Human LAMP2 knockout HeLa cell line ab255402 (CRISPR-Cas9 edited cell lysate Human LAMP2 knockout HeLa cell lysate ab263861). The band observed in the CRISPR-Cas9 edited lysate lane below 100 kDa is likely to represent a truncated form of LAMP2. This has not been investigated further and the functional properties of the gene product have not been determined. To generate this image, wild-type and LAMP2 CRISPR-Cas9 edited HeLa cell lysates were analysed. First, samples were run on an SDS-PAGE gel then transferred onto a nitrocellulose membrane. Membranes were blocked in 3 % milk in TBS-0.1 % Tween® 20 (TBS-T) before incubation with primary antibodies overnight at 4 °C. Blots were washed four times in TBS-T, incubated with secondary antibodies for 1 h at room temperature, washed again four times then imaged. Secondary antibodies used were Goat anti-Rabbit IgG H&L 800CW and Goat anti-Mouse IgG H&L 680RD at 1/20000 dilution.

    All lanes: Western blot - Anti-LAMP2 antibody [EPR19531] - Lysosome Marker (ab199947) at 1/1000 dilution

    Lane 1: Wild-type HeLa cell lysate at 20 µg

    Lane 2: LAMP2 CRISPR-Cas9 edited HeLa cell lysate at 20 µg

    Secondary

    All lanes: Goat anti-Rabbit IgG H&L 800CW and Goat anti-Mouse IgG H&L 680RD at 1/20000 dilution

    Performed under reducing conditions.

    Observed band size: 100 kDa
