Rabbit Recombinant Monoclonal LC3B antibody. Suitable for WB, IHC-P, ICC/IF and reacts with Human samples. Cited in 3 publications. Immunogen corresponding to Synthetic Peptide within Human MAP1LC3B.

Be the first to review this product! Submit a review

Images

Western blot - Anti-LC3B antibody [RM293] (AB222776), expandable thumbnail
  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-LC3B antibody [RM293] (AB222776), expandable thumbnail
  • Immunocytochemistry/ Immunofluorescence - Anti-LC3B antibody [RM293] (AB222776), expandable thumbnail

Publications

Key facts

Isotype
IgG
Host species
Rabbit
Storage buffer

Preservative: 0.09% Sodium azide
Constituents: PBS, 50% Glycerol (glycerin, glycerine), 1% BSA

Form
Liquid
Clonality
Monoclonal

Immunogen

  • Synthetic Peptide within Human MAP1LC3B. The exact immunogen used to generate this antibody is proprietary information. Database link Q9GZQ8

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
WBIHC-PICC/IF
Human
Tested
Tested
Tested
Mouse
Predicted
Predicted
Predicted
Rat
Predicted
Predicted
Predicted

Tested
Tested

Species
Human
Dilution info
1/100.00000 - 1/200.00000
Notes

-

Predicted
Predicted

Species
Mouse, Rat
Dilution info
-
Notes

-

Tested
Tested

Species
Human
Dilution info
1/100.00000 - 1/200.00000
Notes

-

Predicted
Predicted

Species
Mouse, Rat
Dilution info
-
Notes

-

Tested
Tested

Species
Human
Dilution info
1/100.00000 - 1/200.00000
Notes

-

Predicted
Predicted

Species
Mouse, Rat
Dilution info
-
Notes

-

Associated Products

Select an associated product type

7 products for Alternative Product

Target data

Function

Ubiquitin-like modifier involved in formation of autophagosomal vacuoles (autophagosomes) (PubMed:20418806, PubMed:23209295, PubMed:28017329). Plays a role in mitophagy which contributes to regulate mitochondrial quantity and quality by eliminating the mitochondria to a basal level to fulfill cellular energy requirements and preventing excess ROS production (PubMed:23209295, PubMed:28017329). In response to cellular stress and upon mitochondria fission, binds C-18 ceramides and anchors autophagolysosomes to outer mitochondrial membranes to eliminate damaged mitochondria (PubMed:22922758). While LC3s are involved in elongation of the phagophore membrane, the GABARAP/GATE-16 subfamily is essential for a later stage in autophagosome maturation (PubMed:20418806, PubMed:23209295, PubMed:28017329). Promotes primary ciliogenesis by removing OFD1 from centriolar satellites via the autophagic pathway (PubMed:24089205). Through its interaction with the reticulophagy receptor TEX264, participates in the remodeling of subdomains of the endoplasmic reticulum into autophagosomes upon nutrient stress, which then fuse with lysosomes for endoplasmic reticulum turnover (PubMed:31006537, PubMed:31006538). Upon nutrient stress, directly recruits cofactor JMY to the phagophore membrane surfaces and promotes JMY's actin nucleation activity and autophagosome biogenesis during autophagy (PubMed:30420355).

Alternative names

Recommended products

Rabbit Recombinant Monoclonal LC3B antibody. Suitable for WB, IHC-P, ICC/IF and reacts with Human samples. Cited in 3 publications. Immunogen corresponding to Synthetic Peptide within Human MAP1LC3B.

Key facts

Isotype
IgG
Form
Liquid
Clonality
Monoclonal
Immunogen
  • Synthetic Peptide within Human MAP1LC3B. The exact immunogen used to generate this antibody is proprietary information. Database link Q9GZQ8
Clone number
RM293
Purification technique
Affinity purification Protein A
Concentration
Loading...
Purification notes

ab222776 was purified from an animal origin–free culture supernatant.

Storage

Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.
Activity summary

LC3B also known as microtubule-associated protein 1 light chain 3 beta plays an important role in autophagy a process that maintains cellular homeostasis. The LC3B protein with a molecular weight of approximately 14 kDa undergoes lipidation to form LC3-II which associates with autophagosomal membranes. This protein expresses ubiquitously in various tissues including liver muscle and brain. Researchers often detect LC3B using techniques like LC3B western blot and LC3B immunofluorescence due to its function as a marker indicating autophagy levels.

Biological function summary

LC3B contributes significantly to the formation and maturation of autophagosomes. LC3B part of the autophagy-related protein complex binds to autophagic membranes. During this process LC3-I converts to LC3-II a lipid-phosphatidylethanolamine conjugate essential for autophagosome membrane expansion and closure. This mechanism helps remove damaged organelles and misfolded proteins from cells therefore contributing to cellular quality control.

Pathways

LC3B integrates into the autophagy pathway which is critical for cellular adaptive responses to stress. The mammalian target of rapamycin (mTOR) pathway regulates autophagy where mTOR inhibition activates LC3B promoting autophagosome formation. Moreover LC3B operates alongside other proteins like Beclin-1 and ULK1 facilitating the initiation and progression of autophagy under nutrient starvation conditions. These interactions highlight LC3's role in cellular energy balance and survival mechanisms.

Associated diseases and disorders

LC3B connects with conditions such as cancer and neurodegenerative diseases. Altered autophagy levels mediated by LC3B often associate with tumorigenesis where its dysregulation can affect cancer progression. Furthermore LC3B also links to neurodegenerative diseases like Alzheimer's where impaired autophagy disrupts neuronal function. LC3B interacts with proteins such as p62/SQSTM1 which affects protein aggregate clearance a critical factor in neurodegenerative pathology.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

3 product images

  • Western blot - Anti-LC3B antibody [RM293] (ab222776), expandable thumbnail

    Western blot - Anti-LC3B antibody [RM293] (ab222776)

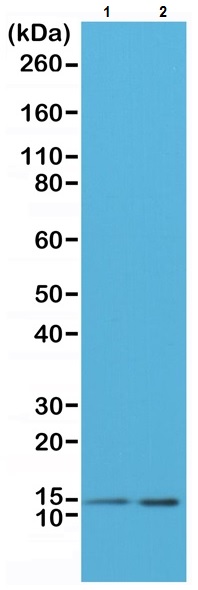

    All lanes: Western blot - Anti-LC3B antibody [RM293] (ab222776) at 1/200 dilution

    Lane 1: HeLa (human epithelial cell line from cervix adenocarcinoma) cell lysate

    Lane 2: HeLa (human epithelial cell line from cervix adenocarcinoma) treated with chloroquine, cell lysate

    Predicted band size: 15 kDa

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-LC3B antibody [RM293] (ab222776), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-LC3B antibody [RM293] (ab222776)

    Formalin-fixed, paraffin-embedded human brain tissue stained for LC3B with ab222776 at 1/200 dilution in immunohistochemical analysis.

  • Immunocytochemistry/ Immunofluorescence - Anti-LC3B antibody [RM293] (ab222776), expandable thumbnail

    Immunocytochemistry/ Immunofluorescence - Anti-LC3B antibody [RM293] (ab222776)

    HeLa (human epithelial cell line from cervix adenocarcinoma) cells, untreated (left panel) or treated with chloroquine (right panel) stained for LC3B (red) using ab222776 at 1/200 dilution in ICC/IF.

    Actin filaments were labeled with fluorescein phalloidin (green). Nuclei were labeled with DAPI (blue).

Downloads

Product protocols

For this product, it's our understanding that no specific protocols are required. You can:

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
