Anti-Leptin Receptor antibody [EPR28292-590]

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-Leptin Receptor antibody [EPR28292-590] (AB325970)

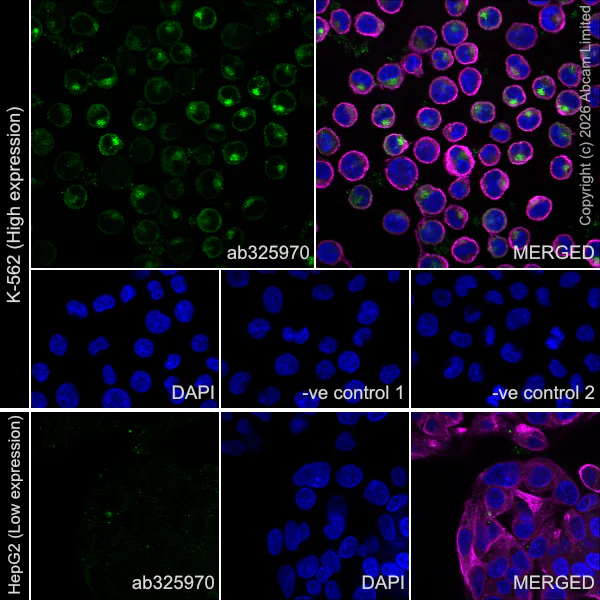

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized K-562 (human chronic myelogenous leukemia lymphoblast) HepG2 (human hepatocellular carcinoma epithelial cell) cells labelling Leptin Receptor with ab325970 at 1/50 (10.02 µg/ml) dilution , followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

Confocal image showing cytoplasmic staining in K-562 cells and weak staining in HepG2 cells (shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue). Low expression : HepG2(PMID : 22207628). Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

ab7291 Anti-alpha Tubulin mouse monoclonal antibody was used to counterstain tubulin at 1/1000 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

-ve control 1 : ab325970 at 1/50 dilution, followed by ab150120 at 1/1000 dilution.-ve control 2 : ab7291 at 1/1000 dilution, followed by ab150081 at 1/1000 dilution.

• Flow Cyt

Lab

Flow Cytometry - Anti-Leptin Receptor antibody [EPR28292-590] (AB325970)

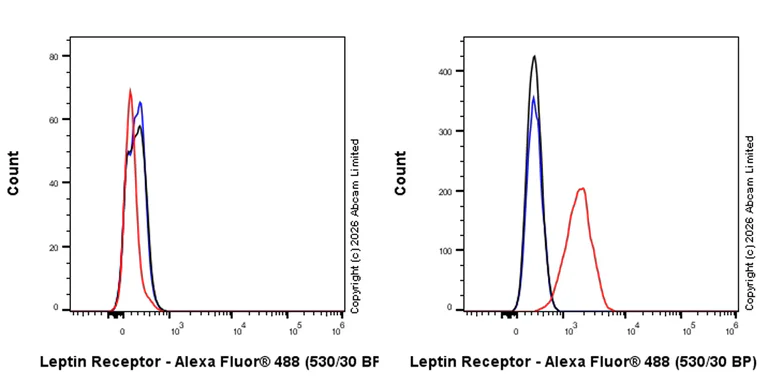

Flow cytometric analysis of Daudi (human Burkitt's lymphoma lymphoblast, Left) TF-1 (human erythroleukemia erythroblast, Right) cells labelling Leptin Receptor with ab325970 at 1/50 dilution (1ug) / Red compared with a Rabbit monoclonal IgG (ab172730) / Black isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody).

Goat Anti-Rabbit IgG (Alexa Fluor® 488, ab150081) at 1/5000 dilution was used as the secondary antibody.

Gated on viable cells. Low expression : Daudi.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-Leptin Receptor antibody [EPR28292-590] (AB325970)

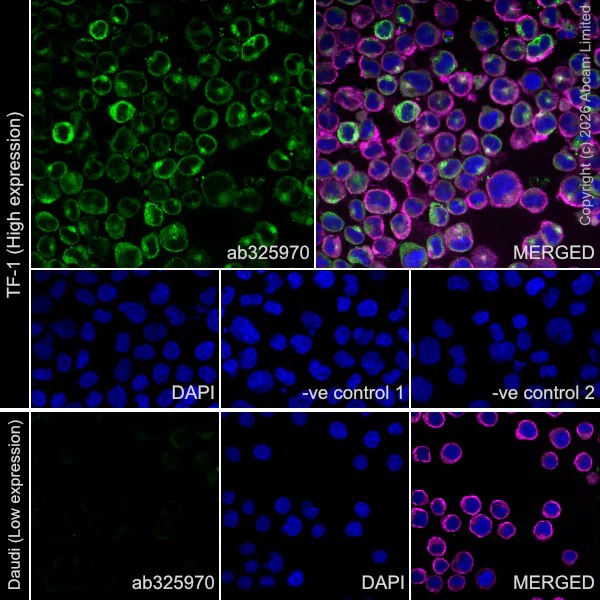

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized TF-1 (human erythroleukemia erythroblast) Daudi (human Burkitt's lymphoma lymphoblast) cells labelling Leptin Receptor with ab325970 at 1/50 (10.02 µg/ml) dilution , followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

Confocal image showing cytoplasmic staining in TF-1 cells and weak staining in Daudi cells (shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue). Low expression : Daudi. Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

ab7291 Anti-alpha Tubulin mouse monoclonal antibody was used to counterstain tubulin at 1/1000 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

-ve control 1 : ab325970 at 1/50 dilution, followed by ab150120 at 1/1000 dilution.-ve control 2 : ab7291 at 1/1000 dilution, followed by ab150081 at 1/1000 dilution.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-Leptin Receptor antibody [EPR28292-590] (AB325970)

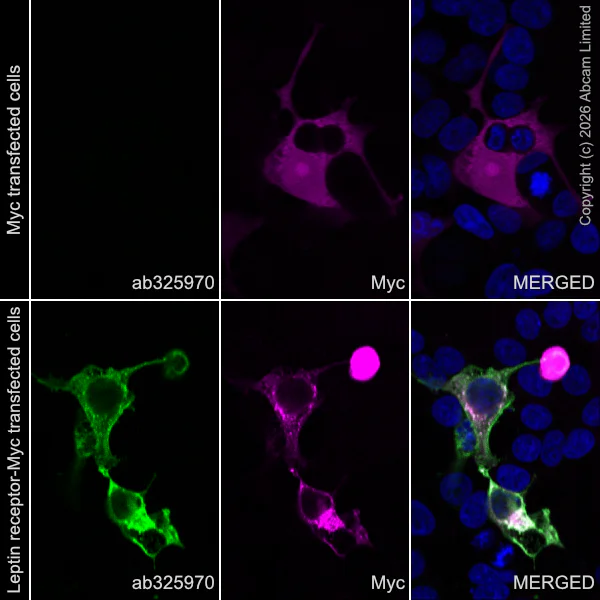

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized HEK-293T cells(human embryonic kidney epithelial cell) transfected with an empty expression vector containing a myc-His-tag®;293T cells transfected with a human Leptin receptor protein expression vector containing a myc-His-tag®. cells labelling Leptin Receptor with ab325970 at 1/100 (5.01 µg/ml) dilution , followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

Confocal image showing positive staining in 293T cells (shown in green) transfected with a human Leptin receptor protein expression vector containing a myc-His-tag®. The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue). Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

ab223894 Anti-Myc tag mouse monoclonal antibody (Alexa Fluor® 594) was used to counterstain tubulin at 1/100 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

Secondary antibody only control : Secondary antibody is ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution.
