Name: Anti-Lhx2/LH2 antibody [EPR20449]
SKU: ab184337
Rating: 5 (6 reviews)

Rabbit Recombinant Monoclonal Lhx2/LH2 antibody. Suitable for IP, WB, IHC-Fr, IHC-P and reacts with Rat, Mouse, Human samples. Cited in 12 publications.

Images

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Lhx2/LH2 antibody [EPR20449] (AB184337), expandable thumbnail

Publications

Key facts

Isotype: IgG
Host species: Rabbit
Storage buffer: pH: 7.2
Preservative: 0.01% Sodium azide
Constituents: PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA
Form: Liquid
Clonality: Monoclonal

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application

Product promiseTestedExpectedPredictedNot recommended

	IP	WB	IHC-Fr	IHC-P
Human	Expected	Tested	Expected	Expected
Mouse	Expected	Tested	Tested	Tested
Rat	Tested	Tested	Tested	Tested

Tested
Tested

Species	Dilution info	Notes
Species Rat	Dilution info 1/30	Notes Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Expected
Expected

Species	Dilution info	Notes
Species Mouse, Human	Dilution info Use at an assay dependent concentration.	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Mouse	Dilution info 1/1000	Notes Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
Species Rat	Dilution info 1/1000	Notes -
Species Human	Dilution info 1/1000	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Mouse	Dilution info 1/500	Notes Antigen retrieval: Heated citrate solution (10mM citrate pH 6.0 + 0.05% Tween-20).
Species Rat	Dilution info 1/500	Notes Antigen retrieval: Heated citrate solution (10mM citrate pH 6.0 + 0.05% Tween-20).

Expected
Expected

Species	Dilution info	Notes
Species Human	Dilution info Use at an assay dependent concentration.	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Mouse	Dilution info 1/500	Notes Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
Species Rat	Dilution info 1/500	Notes Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Expected
Expected

Species	Dilution info	Notes
Species Human	Dilution info Use at an assay dependent concentration.	Notes -

Associated Products

Select an associated product type

2 products for Alternative Product

Target data

See full target information LHX2

Function

Acts as a transcriptional activator. Stimulates the promoter of the alpha-glycoprotein gene. Transcriptional regulatory protein involved in the control of cell differentiation in developing lymphoid and neural cell types (By similarity).

Alternative names

LH2, LHX2, LIM/homeobox protein Lhx2, Homeobox protein LH-2, LIM homeobox protein 2

Recommended products

Rabbit Recombinant Monoclonal Lhx2/LH2 antibody. Suitable for IP, WB, IHC-Fr, IHC-P and reacts with Rat, Mouse, Human samples. Cited in 12 publications.

Key facts

Isotype: IgG
Host species: Rabbit
Storage buffer: pH: 7.2
Preservative: 0.01% Sodium azide
Constituents: PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA
Form: Liquid
Clonality: Monoclonal
Immunogen: The exact immunogen used to generate this antibody is proprietary information.
Clone number: EPR20449
Purification technique: Affinity purification Protein A
Concentration

Storage

Shipped at conditions: Blue Ice
Appropriate short-term storage duration: 1-2 weeks
Appropriate short-term storage conditions: +4°C
Appropriate long-term storage conditions: -20°C
Aliquoting information: Upon delivery aliquot
Storage information: Avoid freeze / thaw cycle

Notes

Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

This product is a recombinant monoclonal antibody, which offers several advantages including:

- High batch-to-batch consistency and reproducibility
- Improved sensitivity and specificity
- Long-term security of supply
- Animal-free batch production

For more information, read more on recombinant antibodies.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.

Activity summary

The Lhx2 protein also known as LH2 is a member of the LIM homeobox family of transcription factors. It has a molecular mass of approximately 45 kDa. Known for its dual LIM domains and a homeodomain Lhx2 directly binds DNA and regulates gene expression. This protein is expressed in various tissues including the developing brain retina and liver. Notably Lhx2 plays a role in embryonic development by impacting the growth and differentiation of several tissue types.

Biological function summary

Researchers link the Lhx2 protein to key processes in cellular differentiation and organ development. Lhx2 often partners within transcriptional complexes that guide cellular fate decisions. By interacting with other cofactors Lhx2 influences the expression of genes involved in tissue-specific differentiation and morphogenesis. This regulatory action is essential for the proper formation and function of certain organs and structures in the body.

Pathways

Lhx2 impacts several intricate biological pathways notably in neural development. It functions within the Wnt signaling pathway where it modulates neural progenitor cell populations in the central nervous system. Through this pathway Lhx2 associates with proteins like β-catenin to control gene expression linked to brain development. Additionally Lhx2 is involved in the Sonic hedgehog (Shh) signaling pathway aligning with proteins such as Gli1 to influence neuronal patterning.

Associated diseases and disorders

Mutations or dysregulation of Lhx2 have connections to conditions like anophthalmia and brain malformations. Aberrant expression of Lhx2 can disrupt normal development contributing to these congenital anomalies. Furthermore Lhx2's interaction with proteins including Pax6 plays a role in ocular development and anomalies in these interactions can lead to abnormal eye formation. Researchers continue to investigate the significance of Lhx2 in various developmental diseases to develop targeted therapeutic approaches.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

13 product images

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Lhx2/LH2 antibody [EPR20449] (ab184337)
Immunohistochemical analysis of paraffin-embedded mouse olfactory epithelium tissue labeling Lhx2/LH2 with ab184337 at 1/500 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) Ready to use. Nuclear staining on mouse olfactory epithelium [PMID: 15456728].
Counter stained with Hematoxylin.
Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) Ready to use.
Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

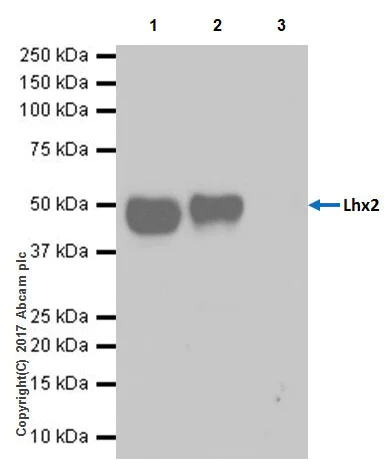

Immunoprecipitation - Anti-Lhx2/LH2 antibody [EPR20449] (ab184337)
Lhx2/LH2 was immunoprecipitated from 0.35 mg of E18 rat brain lysate with ab184337 at 1/30 dilution. Western blot was performed from the immunoprecipitate using ab184337 at 1/500 dilution. VeriBlot for IP Detection Reagent (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366), was used for detection at 1/1000 dilution.
Lane 1: E18 rat brain lysate, 10 μg (Input).
Lane 2: ab184337 IP in E18 rat brain lysate.
Lane 3: Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of ab184337 in E18 rat brain lysate.
Blocking and dilution buffer and concentration: 5% NFDM/TBST.
Exposure time: 3 minutes.
All lanes: Immunoprecipitation - Anti-Lhx2/LH2 antibody [EPR20449] (ab184337)
Predicted band size: 44 kDa
Observed band size: 47 kDa

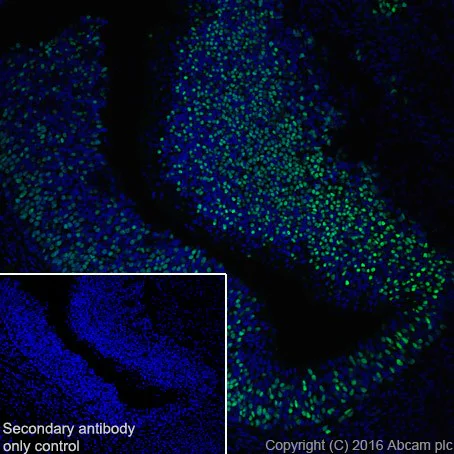

Immunohistochemistry (Frozen sections) - Anti-Lhx2/LH2 antibody [EPR20449] (ab184337)
Immunohistochemical analysis of 4% paraformaldehyde-fixed, 0.2% Triton X-100 permeabilized frozen mouse E14.5 labeling Lhx2/LH2 with ab184337 at 1/500 dilution, followed by Goat anti-rabbit IgG (Alexa Fluor^® 488) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) secondary antibody at 1/1000 dilution (green). Nuclear staining on vomeronasal organ of mouse E14.5 [PMID: 27521061].
The nuclear counterstain is DAPI (blue).
Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Goat anti-rabbit IgG (Alexa Fluor^® 488) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) secondary antibody at 1/1000 dilution.

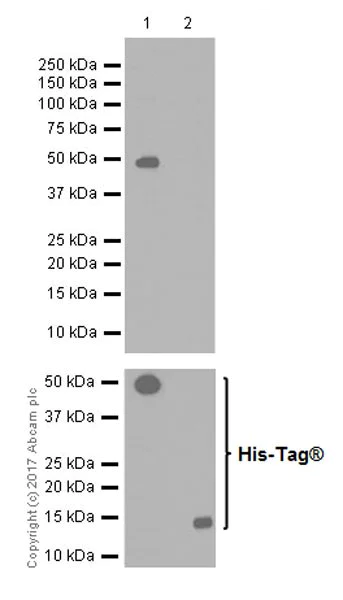

Western blot - Anti-Lhx2/LH2 antibody [EPR20449] (ab184337)
Blocking/Dilution buffer: 5% NFDM/TBST.
All lanes: Western blot - Anti-Lhx2/LH2 antibody [EPR20449] (ab184337) at 1/1000 dilution
Lane 1: His-tagged rat Lhx2/LH2 recombinant protein fragment (aa43-426) at 0.01 µg
Lane 2: His-tagged rat Lhx9 recombinant protein fragment (aa54-172) at 0.01 µg
Secondary
All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/100000 dilution
Predicted band size: 44 kDa
Observed band size: 47 kDa
Exposure time: 3min
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Lhx2/LH2 antibody [EPR20449] (ab184337)
Immunohistochemical analysis of paraffin-embedded Mouse E14.5 labeling Lhx2/LH2 with ab184337 at 1/500 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) Ready to use. Nuclear staining on telencephalon and olfactory epithelium of mouse E14.5 [PMID: 25071464].
Counter stained with Hematoxylin.
Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) Ready to use.
Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Lhx2/LH2 antibody [EPR20449] (ab184337)
Immunohistochemical analysis of paraffin-embedded rat olfactory epithelium tissue labeling Lhx2/LH2 with ab184337 at 1/500 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) Ready to use. Nuclear staining on rat olfactory epithelium [PMID: 15456728].
Counter stained with Hematoxylin.
Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) Ready to use.
Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
Immunohistochemistry (Frozen sections) - Anti-Lhx2/LH2 antibody [EPR20449] (ab184337)
Immunohistochemical analysis of 4% paraformaldehyde-fixed, 0.2% Triton X-100 permeabilized frozen rat E14.5 labeling Lhx2/LH2 with ab184337 at 1/500 dilution, followed by Goat anti-rabbit IgG (Alexa Fluor^® 488) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) secondary antibody at 1/1000 dilution (green). Nuclear staining on olfactory epithelium of rat E14.5 [PMID: 15456728].
The nuclear counterstain is DAPI (blue).
Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Goat anti-rabbit IgG (Alexa Fluor^® 488) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) secondary antibody at 1/1000 dilution.

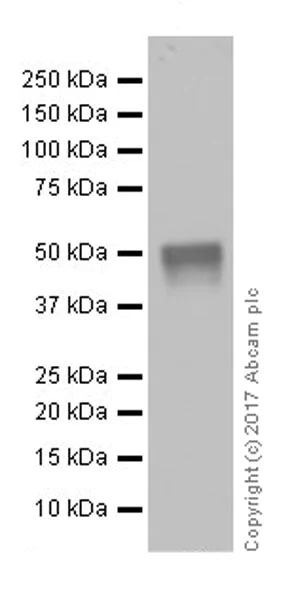

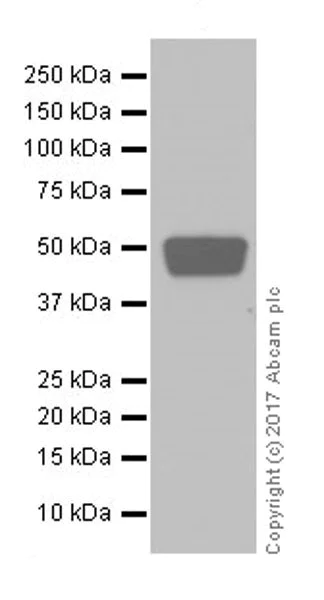

Western blot - Anti-Lhx2/LH2 antibody [EPR20449] (ab184337)
Blocking/Dilution buffer: 5% NFDM/TBST.
All lanes: Western blot - Anti-Lhx2/LH2 antibody [EPR20449] (ab184337) at 1/1000 dilution
All lanes: E18 rat brain lysate at 20 µg
Secondary
All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution
Predicted band size: 44 kDa
Observed band size: 47 kDa
Exposure time: 3min
Western blot - Anti-Lhx2/LH2 antibody [EPR20449] (ab184337)
Blocking/Dilution buffer: 5% NFDM/TBST.
Molecular weight observed is consistent with what has been described in the literature, PMID 22028024, PMID 25128627.
All lanes: Western blot - Anti-Lhx2/LH2 antibody [EPR20449] (ab184337) at 1/200 dilution
All lanes: E12.5 mouse brain lysate at 20 µg
Secondary
All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution
Predicted band size: 44 kDa
Observed band size: 47 kDa
Exposure time: 30s
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Lhx2/LH2 antibody [EPR20449] (ab184337)
Immunohistochemical analysis of paraffin-embedded Rat E14.5 labeling Lhx2/LH2 with ab184337 at 1/500 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) Ready to use. Nuclear staining on telencephalon and olfactory epithelium of rat E14.5 [PMID: 25071464].
Counter stained with Hematoxylin.
Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) Ready to use.
Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Lhx2/LH2 antibody [EPR20449] (ab184337)
Immunohistochemical analysis of paraffin-embedded nose skin of P0 mouse labeling Lhx2/LH2 with ab184337 at 1/500 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) Ready to use. Nuclear staining on hair follicle of mouse nose skin [PMID: 20386748].
Counter stained with Hematoxylin.
Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) Ready to use.
Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Lhx2/LH2 antibody [EPR20449] (ab184337)
Immunohistochemical analysis of paraffin-embedded nose skin of P0 rat labeling Lhx2/LH2 with ab184337 at 1/500 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) Ready to use. Nuclear staining on hair follicle of rat nose skin [PMID: 20386748].
Counter stained with Hematoxylin.
Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) Ready to use.
Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

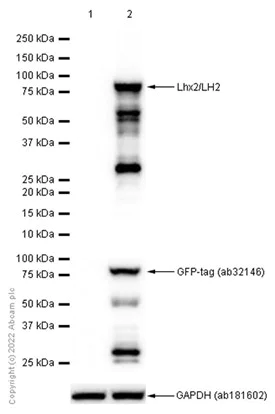

Western blot - Anti-Lhx2/LH2 antibody [EPR20449] (ab184337)
Blocking buffer and concentration : 5% NFDM/TBST
Diluting buffer and concentration : 5% NFDM/TBST
Lanes 1 - 2: Western blot - Anti-Lhx2/LH2 antibody [EPR20449] - BSA and Azide free (Anti-Lhx2/LH2 antibody [EPR20449] - BSA and Azide free ab236037) at 1/1000 dilution
Lanes 1 - 2: Western blot - Anti-Lhx2/LH2 antibody [EPR20449] (ab184337) at 1/1000 dilution
Lane 1: 293T (Human embryonic kidney epithelial cell) whole cell lysate at 20 µg
Lane 2: 293T transfected with human Lhx2/LH2 (WT) expression vector containing a GFP-tag, whole cell lysate at 20 µg
Secondary
All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution
Predicted band size: 44 kDa
Observed band size: 80 kDa
Exposure time: 3s
