Anti-Loricrin antibody [EPR7148(2)(B)]

3 product images

•

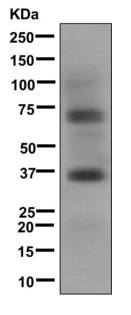

  Western blot - Anti-Loricrin antibody [EPR7148(2)(B)] (ab176322)

  All lanes: Western blot - Anti-Loricrin antibody [EPR7148(2)(B)] (ab176322) at 1/10000 dilution

  All lanes: Human skin lysate at 10 µg

  Predicted band size: 26 kDa

•

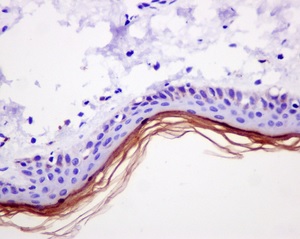

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Loricrin antibody [EPR7148(2)(B)] (ab176322)

  Immunohistochemical analysis of paraffin-embedded Human skin tissue labeling Loricrin using ab176322 at a 1/250 dilution.


  Perform heat mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.

•

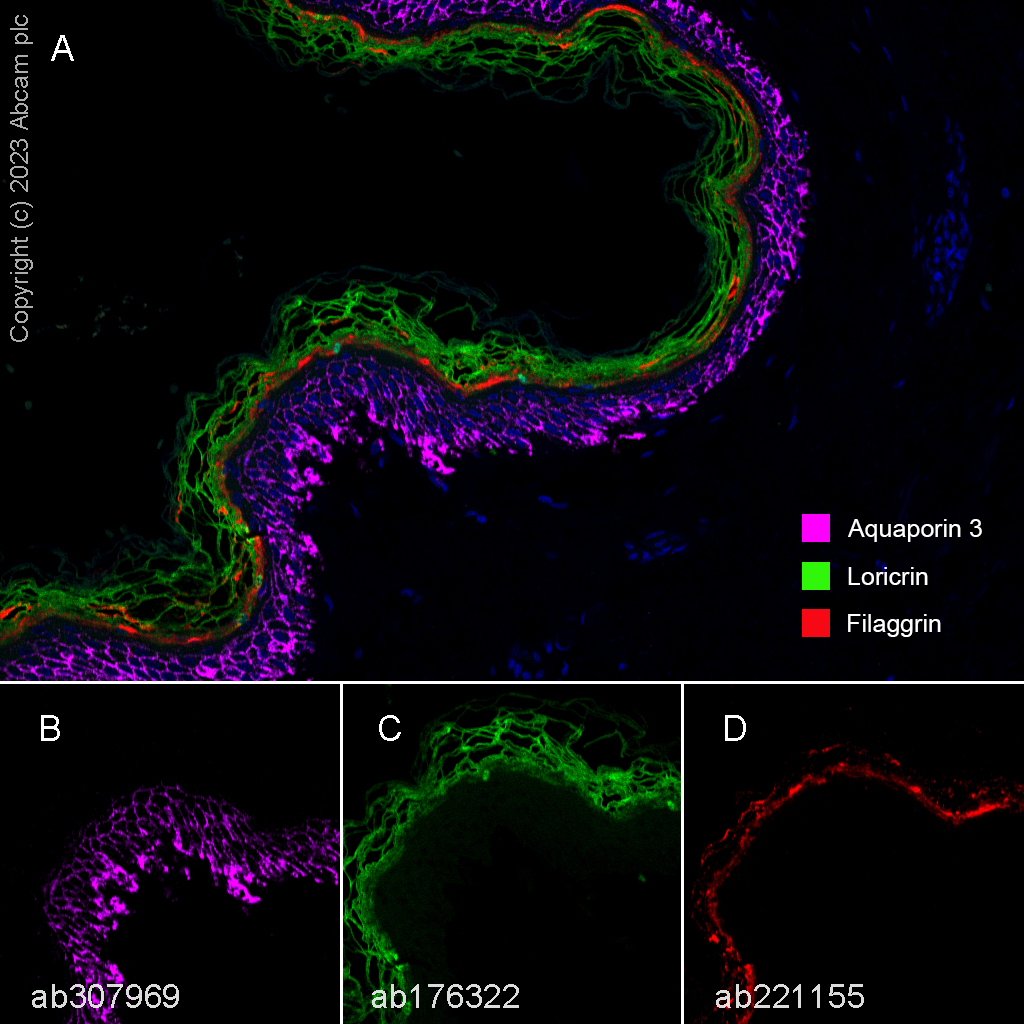

  Multiplex immunohistochemistry - Anti-Loricrin antibody [EPR7148(2)(B)] (ab176322)

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of Human skin tissue labelling Aquaporin 3 with Anti-Aquaporin 3 antibody [EPR28053-11] ab307969 at 1/5000 dilution (0.094 µg/mL) (B), Loricrin with ab176322 at 1/3000 dilution (0.031 μg/ml) (C) and Filaggrin with Anti-Filaggrin antibody [EPR21892] ab221155 at 1/2000 dilution (0.523 μg/ml) (D). Opal Polymer HRP Ms + Rb was used as a secondary antibody, and DAPI was used for a nuclear counter stain. Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins.

  Panel A: merged staining of anti-Aquaporin 3 (magenta; Opal™690), anti-Loricrin (green; Opal™520) and anti-Filaggrin (red; Opal™570) on human skin.
  Panel B: anti-Aquaporin 3 stained on keratinocytes from the stratum basale to the stratum granulosum of the epidermis.
  Panel C: anti-Loricrin stained on stratum corneum.
  Panel D: anti-Filaggrin stained on the granular to stratum corneum transition.

  The section was incubated in three rounds of staining: in the order of Anti-Aquaporin 3 antibody [EPR28053-11] ab307969, ab176322, and Anti-Filaggrin antibody [EPR21892] ab221155 for 30 mins at room temperature. Each round was followed by a separate fluorescent tyramide signal amplification system.

  The immunostaining was performed on a Leica Biosystems BOND® RX instrument with an Opal™ 4-color kit. Image acquisition was performed with Leica SP8 confocal microscope.
