Anti-MAGEC2 antibody [EPR19064] - BSA and Azide free

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-MAGEC2 antibody [EPR19064] - BSA and Azide free (AB223794)

Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized A-375 (Human malignant melanoma cell line) and HeLa (Human epithelial cell line from cervix adenocarcinoma) cells labeling MAGEC2 with ab209667 at 1/500 dilution, followed by Goat anti-rabbit IgG (Alexa Fluor^® 488) (ab150077) secondary antibody at 1/1000 dilution (green).

Confocal image showing nuclear and weakly cytoplasmic staining on A-375 cell line

Negative expression in HeLa cells.

The nuclear counter stain is DAPI (blue).

Tubulin is detected with ab7291 (anti-Tubulin mouse mAb) at 1/1000 dilution and ab150120 (AlexaFluor^®594 Goat anti-Mouse secondary) at 1/1000 dilution (red).

The negative controls are as follows :
-ve control 1 : ab209667 at 1/500 dilution followed by ab150120 (AlexaFluor^®594 Goat anti-Mouse secondary) at 1/1000 dilution.
-ve control 2 : ab7291 (anti-Tubulin mouse mAb) at 1/1000 dilution followed by ab150077 (Alexa Fluor^®488 Goat Anti-Rabbit IgG H&L) at 1/1000 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab209667).

• Flow Cyt (Intra)

Supplier Data

Flow Cytometry (Intracellular) - Anti-MAGEC2 antibody [EPR19064] - BSA and Azide free (AB223794)

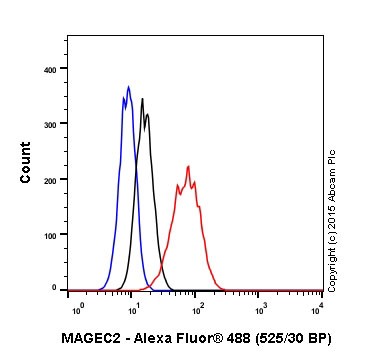

Intracellular flow cytometric analysis of 4% paraformaldehyde-fixed A-375 (Human malignant melanoma cell line) cells labeling MAGEC2 with ab209667 at 1/150 dilution (red) compared with a rabbit monoclonal IgG isotype control (ab172730; black) and an unlabelled control (cells without incubation with primary antibody and secondary antibody; blue). Goat anti rabbit IgG (Alexa Fluor^® 488) at 1/500 dilution was used as the secondary antibody.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab209667).

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MAGEC2 antibody [EPR19064] - BSA and Azide free (AB223794)

Immunohistochemical analysis of paraffin-embedded Human testis tissue labeling MAGEC2 with ab209667 at 1/1000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution. Nucleus staining on Human germ cells is observed. Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab209667).

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MAGEC2 antibody [EPR19064] - BSA and Azide free (AB223794)

This IHC data was generated using the same anti-MAGEC2 antibody clone [EPR19064] in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (cat# ab209667).

Immunohistochemical analysis of paraffin-embedded Human gastric cancer tissue labeling MAGEC2 with ab209667 at 1/1000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution. Nucleus staining on Human gastric cancer is observed. Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MAGEC2 antibody [EPR19064] - BSA and Azide free (AB223794)

Immunohistochemical analysis of paraffin-embedded Human stomach tissue labeling MAGEC2 with ab209667 at 1/1000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution. Negative staining on Human stomach. Counter stained with Hematoxylin.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab209667).

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MAGEC2 antibody [EPR19064] - BSA and Azide free (AB223794)

Immunohistochemical analysis of paraffin-embedded Human melanoma tissue labeling MAGEC2 with ab209667 at 1/1000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution. Nucleus staining on melanoma is observed. Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab209667).

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• IP

Supplier Data

Immunoprecipitation - Anti-MAGEC2 antibody [EPR19064] - BSA and Azide free (AB223794)

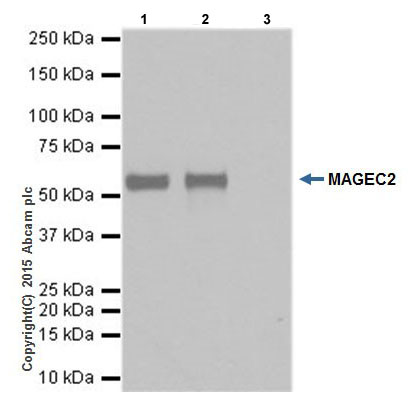

MAGEC2 was immunoprecipitated from 1mg of A-375 (Human malignant melanoma cell line) whole cell lysate with ab209667 at 1/40 dilution. Western blot was performed from the immunoprecipitate using ab209667 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP) (ab131366), was used for detection at 1/10000 dilution.

Lane 1 : A-375 whole cell lysate 10μg (Input).

Lane 2 : ab209667 IP in A-375 whole cell lysate.

Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab209667 in A-375 whole cell lysate.

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

Exposure time : 1 second.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab209667).

All lanes:

Immunoprecipitation - Anti-MAGEC2 antibody [EPR19064] (<a href='/en-us/products/primary-antibodies/magec2-antibody-epr19064-ab209667'>ab209667</a>)

Predicted band size: 41 kDa
