Anti-MAP2 antibody [EPR19691] – Chicken IgY (Chimeric) – BSA and Azide Free

4 product images

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MAP2 antibody [EPR19691] – Chicken IgY (Chimeric) – BSA and Azide Free (ab319980)

  Immunofluorescence staining of MAP2 in sections of formalin-fixed paraffin-embedded rat brain (positive) and rat liver (negative).
  Performed on a Leica BOND. The section was pre-treated using heat mediated antigen retrieval with sodium citrate (pH6.0) for 20 minutes. The section was then incubated at room temperature for 1 hour with ab319980 at 1/100 dilution, and then incubated for 1 hour with Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed ab150173 Goat Anti-Chicken IgY H&L (Alexa Fluor 488) preadsorbed at 1/1000 dilution (shown in green). Nuclear DNA was labelled with DAPI (shown in blue). The section was then mounted using Dako Fluorescence Mounting Medium.

  Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

  For other IHC staining systems (automated and non-automated), customers should optimize variable parameters such as antigen retrieval conditions, antibody concentrations and incubation times.

•

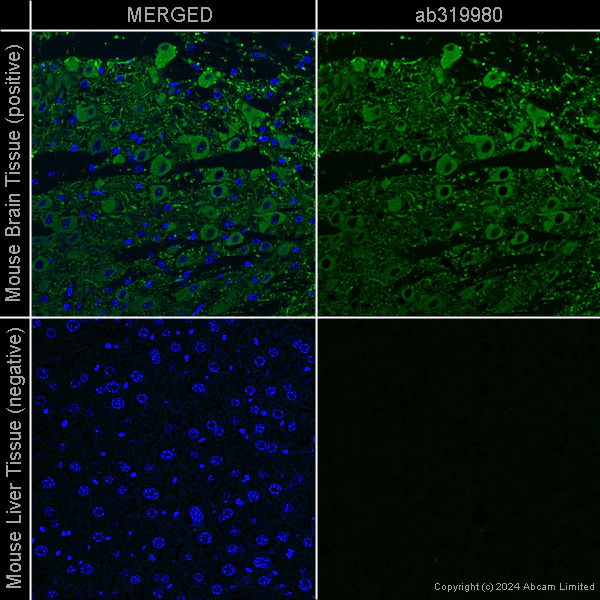

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MAP2 antibody [EPR19691] – Chicken IgY (Chimeric) – BSA and Azide Free (ab319980)

  Immunofluorescence staining of MAP2 in sections of formalin-fixed paraffin-embedded mouse brain (positive) and mouse liver (negative).
  Performed on a Leica BOND. The section was pre-treated using heat mediated antigen retrieval with sodium citrate (pH6.0) for 20 minutes. The section was then incubated at room temperature for 1 hour with ab319980 at 1/100 dilution, and then incubated for 1 hour with Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed ab150173 Goat Anti-Chicken IgY H&L (Alexa Fluor 488) preadsorbed at 1/1000 dilution (shown in green). Nuclear DNA was labelled with DAPI (shown in blue). The section was then mounted using Dako Fluorescence Mounting Medium.

  Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

  For other IHC staining systems (automated and non-automated), customers should optimize variable parameters such as antigen retrieval conditions, antibody concentrations and incubation times.

•

  Immunocytochemistry/ Immunofluorescence - Anti-MAP2 antibody [EPR19691] – Chicken IgY (Chimeric) – BSA and Azide Free (ab319980)

  ab319980 staining MAP2 in Mouse hippocampal neurons (positive) and NIH/3T3 (negative) cells. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4°C with ab319980 at 1µg/ml and Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker ab202272, Alexa Fluor 594 Rabbit monoclonal [EP1332Y] to alpha Tubulin - Microtubule Marker (shown in pseudocolour magenta). Cells were then incubated with Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed ab150173, Goat Anti-Chicken IgY H&L (Alexa Fluor 488) preadsorbed at 1/1000 dilution (shown in green). Nuclear DNA was labelled with DAPI (shown in blue).

  Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

•

  Immunocytochemistry/ Immunofluorescence - Anti-MAP2 antibody [EPR19691] – Chicken IgY (Chimeric) – BSA and Azide Free (ab319980)

  ab319980 staining MAP2 in Rat hippocampal neurons (positive) and SV40LT-SMC (negative) cells. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4°C with ab319980 at 1µg/ml and Alexa Fluor® 594 Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker ab202272, Alexa Fluor 594 Rabbit monoclonal [EP1332Y] to alpha Tubulin - Microtubule Marker (shown in pseudocolour magenta). Cells were then incubated with Goat Anti-Chicken IgY H&L (Alexa Fluor® 488) preadsorbed ab150173, Goat Anti-Chicken IgY H&L (Alexa Fluor 488) preadsorbed at 1/1000 dilution (shown in green). Nuclear DNA was labelled with DAPI (shown in blue).

  Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.
