Rabbit Recombinant Monoclonal MASP2 antibody. Suitable for mIHC, WB, IHC-P and reacts with Human, Mouse, Rat samples.


Images

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MASP2 antibody [EPR23588-44] (AB277520), expandable thumbnail
  • Western blot - Anti-MASP2 antibody [EPR23588-44] (AB277520), expandable thumbnail
  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MASP2 antibody [EPR23588-44] (AB277520), expandable thumbnail
  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MASP2 antibody [EPR23588-44] (AB277520), expandable thumbnail
  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MASP2 antibody [EPR23588-44] (AB277520), expandable thumbnail

Key facts

Isotype

IgG

Host species

Rabbit

Storage buffer

Preservative: 0.01% Sodium azide
Constituents: 59.94% PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA

Form

Liquid

Clonality

Monoclonal

Immunogen

  • The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
mIHCWBIHC-PICC/IFFlow CytIP
Human
Tested
Tested
Tested
Not recommended
Not recommended
Not recommended
Mouse
Expected
Not recommended
Tested
Not recommended
Not recommended
Not recommended
Rat
Expected
Not recommended
Tested
Not recommended
Not recommended
Not recommended

Tested
Tested

Species

Human

Dilution info

1/100

Notes

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Expected
Expected

Species

Mouse, Rat

Dilution info

Use at an assay dependent concentration.

Notes

-

Tested
Tested

Species

Human

Dilution info

1/1000

Notes

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Not recommended
Not recommended

Species

Mouse, Rat

Dilution info

-

Notes

-

Tested
Tested

Species

Mouse

Dilution info

1/100

Notes

Can be used at 1/500 dilution for human tissue.

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Species

Rat

Dilution info

1/100

Notes

Can be used at 1/500 dilution for human tissue.

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Species

Human

Dilution info

1/100

Notes

Can be used at 1/500 dilution for human tissue.

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Not recommended
Not recommended

Species

Human, Mouse, Rat

Dilution info

-

Notes

-

Not recommended
Not recommended

Species

Human, Mouse, Rat

Dilution info

-

Notes

-

Not recommended
Not recommended

Species

Human, Mouse, Rat

Dilution info

-

Notes

-

Target data

Function

Serum protease that plays an important role in the activation of the complement system via mannose-binding lectin. After activation by auto-catalytic cleavage it cleaves C2 and C4, leading to their activation and to the formation of C3 convertase.

Alternative names

Mannan-binding lectin serine protease 2, MBL-associated serine protease 2, Mannose-binding protein-associated serine protease 2, MASP-2, MASP2

Recommended products

Rabbit Recombinant Monoclonal MASP2 antibody. Suitable for mIHC, WB, IHC-P and reacts with Human, Mouse, Rat samples.

Key facts

Isotype

IgG

Form

Liquid

Clonality

Monoclonal

Immunogen
  • The exact immunogen used to generate this antibody is proprietary information.
Clone number

EPR23588-44

Purification technique

Affinity purification Protein A

Specificity

The mouse and rat recommendation is based on the IHC results. We do not guarantee WB for mouse and rat.

Concentration
Loading...

Storage

Shipped at conditions

Blue Ice

Appropriate short-term storage duration

1-2 weeks

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

-20°C

Aliquoting information

Upon delivery aliquot

Storage information

Avoid freeze / thaw cycle

Notes

Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.

Activity summary

MASP-2 also known as Mannan-binding lectin serine protease 2 is an important component of the innate immune system. This protein has a molecular mass of approximately 76 kDa and is expressed in the liver before being released into the bloodstream. MASP-2 primarily acts during the lectin pathway of the complement system where it plays an essential role in immune defense. The protein activates the complement cascade upon binding with carbohydrate molecules on pathogen surfaces contributing to opsonization and direct lysis of pathogens.

Biological function summary

MASP-2 associates with MBL (Mannose-binding lectin) and forms a complex critical for the lectin pathway's function. In this complex MASP-2 initiates the cleavage of complement proteins C4 and C2 forming the C3 convertase. This action enhances the immune response by promoting the clearance of pathogens. MASP-1 is another protease that works closely with MASP-2 in this pathway although the two have distinct roles—MASP-2 is primarily responsible for the activation of the downstream components of the cascade.

Pathways

MASP-2 plays an integral role in the complement system and particularly in the lectin pathway which is one of the three pathways of complement activation. It connects with both the classical and alternative pathways through the formation of C3 convertase a critical step in the complement cascade. The interactions with other proteins like MASP-1 and MBL are significant; MASP-1 has an additional role in the activation sequence by further augmenting MASP-2's activity and facilitating efficient pathogen clearance.

Associated diseases and disorders

MASP-2 is connected to conditions like autoimmune diseases and recurrent infections due to its involvement in the complement system. For instance MASP-2 deficiency can lead to increased susceptibility to infections reflecting its role in pathogen clearance. The protein has been studied in relation to systemic lupus erythematosus where dysregulation of the complement pathway can exacerbate disease symptoms. Proteins such as MBL and MASP-1 which interact closely with MASP-2 also have roles in these disease states and further illustrate the importance of proper complement system functioning in disease prevention and control.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

7 product images

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MASP2 antibody [EPR23588-44] (ab277520), expandable thumbnail

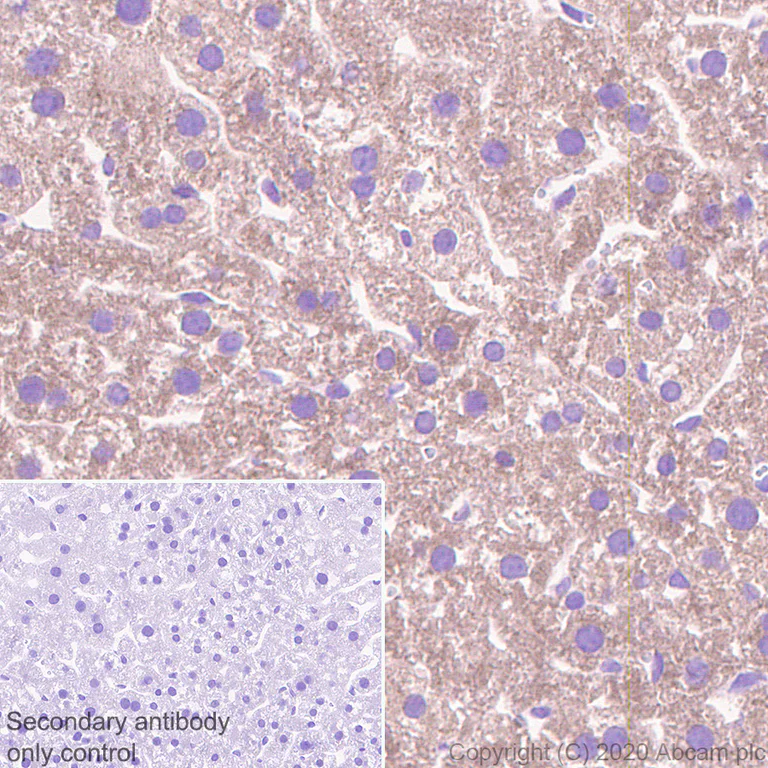

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MASP2 antibody [EPR23588-44] (ab277520)

    Immunohistochemical analysis of paraffin-embedded human liver tissue labeling MASP2 with ab277520 at 1/500 dilution, followed by Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101). Positive staining on human liver (PMID: 16395704). Counter stained with Hematoxylin. The section was incubated with ab277520 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument

    Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101).

    Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins.

  • Western blot - Anti-MASP2 antibody [EPR23588-44] (ab277520), expandable thumbnail

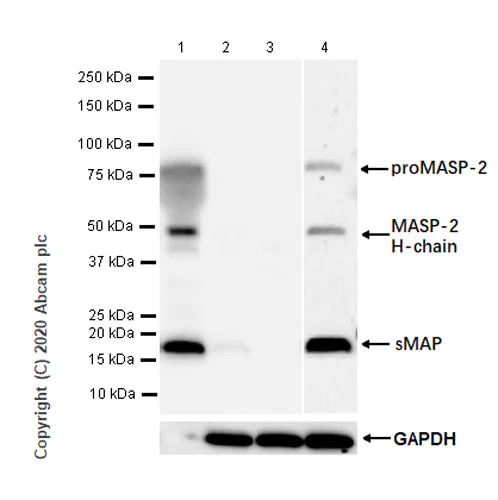

    Western blot - Anti-MASP2 antibody [EPR23588-44] (ab277520)

    Blocking and dilution buffer: 5% NFDM/TBST.

    The molecular weight is consistent with what has been described in the literature (PMID: 16116205, 23785123, 21871896, 15078867).

    Negative control: A549 (PMID:17131120).
    Low expression: HepG2 (PMID:17131120).

    Exposure times: Lanes 1-3, 15 seconds.

    Lane 4: 180 seconds.

    All lanes: Western blot - Anti-MASP2 antibody [EPR23588-44] (ab277520) at 1/1000 dilution

    Lane 1: Human plasma at 20 µg

    Lane 2: HepG2 (human hepatocellular carcinoma epithelial cell), whole cell lysate at 20 µg

    Lane 3: A549 (Human lung carcinoma epithelial cell ), whole cell lysate at 20 µg

    Lane 4: Human kidney tissue lysate at 20 µg

    Secondary

    All lanes: Goat Anti-Rabbit IgG (HRP) with minimal cross-reactivity with human IgG at 1/2000 dilution

    Predicted band size: 76 kDa

    Observed band size: 19 kDa, 50 kDa, 75 kDa

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MASP2 antibody [EPR23588-44] (ab277520), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MASP2 antibody [EPR23588-44] (ab277520)

    Immunohistochemical analysis of paraffin-embedded human kidney tissue labeling MASP2 with ab277520 at 1/500 dilution, followed by Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101). Positive staining on human kidney (PMID: 30286468). Counter stained with Hematoxylin. The section was incubated with ab277520 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument

    Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101).

    Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins.

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MASP2 antibody [EPR23588-44] (ab277520), expandable thumbnail

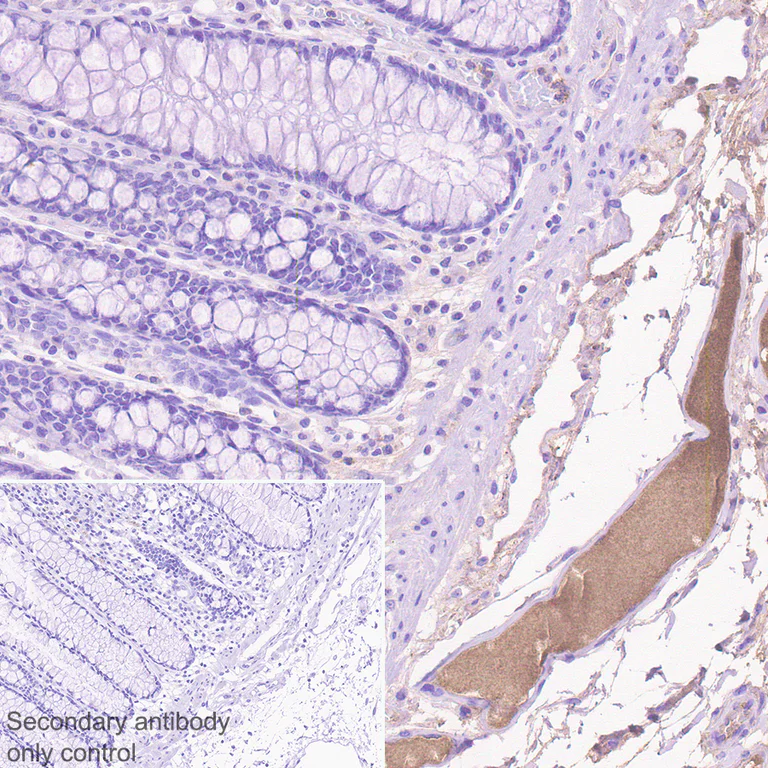

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MASP2 antibody [EPR23588-44] (ab277520)

    Immunohistochemical analysis of paraffin-embedded human colon tissue labeling MASP2 with ab277520 at 1/500 dilution, followed by Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101). Positive staining on plasma of human colon (PMID: 32771488). Counter stained with Hematoxylin. The section was incubated with ab277520 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument

    Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101).

    Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins.

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MASP2 antibody [EPR23588-44] (ab277520), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MASP2 antibody [EPR23588-44] (ab277520)

    Immunohistochemical analysis of paraffin-embedded mouse liver tissue labeling MASP2 with ab277520 at 1/100 dilution, followed by Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101). Positive staining on mouse liver. Counter stained with Hematoxylin. The section was incubated with ab277520 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument.

    Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101).

    Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins.

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MASP2 antibody [EPR23588-44] (ab277520), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MASP2 antibody [EPR23588-44] (ab277520)

    Immunohistochemical analysis of paraffin-embedded rat liver tissue labeling MASP2 with ab277520 at 1/100 dilution, followed by Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101). Positive staining on rat liver. Counter stained with Hematoxylin. The section was incubated with ab277520 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument

    Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101).

    Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins.

  • Multiplex immunohistochemistry - Anti-MASP2 antibody [EPR23588-44] (ab277520), expandable thumbnail

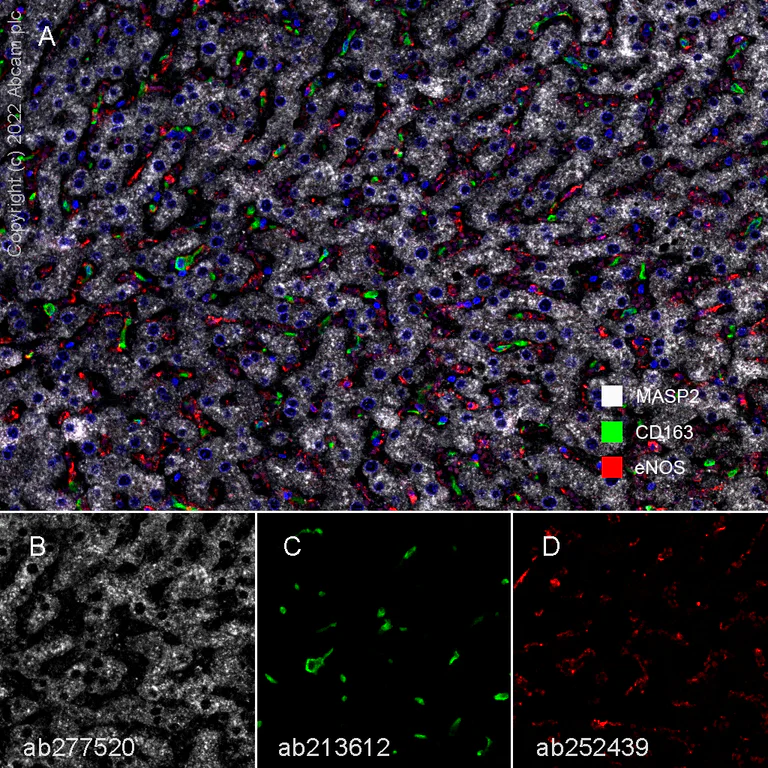

    Multiplex immunohistochemistry - Anti-MASP2 antibody [EPR23588-44] (ab277520)

    Fluorescence multiplex immunohistochemical analysis of human liver (formalin-fixed paraffin-embedded section). Panel A shows merged staining of anti-MASP2 stained on cytoplasm of hepatocytes (ab277520; gray; Opal™690) at 1:100 ( 5.22 μg/ml) [Panel B] , anti-CD163 stained on Kupffer cells (Anti-CD163 antibody [EPR19518] - BSA and Azide free ab213612; green; Opal™520) at 1:8000 ( 0.13 μg/ml) [Panel C], and anti-eNOS tained on endothelial cells (Anti-eNOS antibody [EPR23750-3] ab252439; red; Opal™570) at 1:200 ( 3.005 μg/ml) [Panel D] on human liver. DAPI was used as a nuclear counter stain. Followed by Opal Polymer HRP Ms + Rb secondary. The immunostaining was performed on a Leica Biosystems BOND® RX instrument with an Opal™ 4-color kit. Image acquisition was performed with Leica SP8 confocal microscope. The section was incubated in three rounds of staining: in the order of ab277520, Anti-CD163 antibody [EPR19518] - BSA and Azide free ab213612, and Anti-eNOS antibody [EPR23750-3] ab252439 for 30 mins at room temperature. Each round was followed by a separate fluorescent tyramide signal amplification system. Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins was used.
