Anti-MAVS antibody [EPR28262-28]

7 product images

•

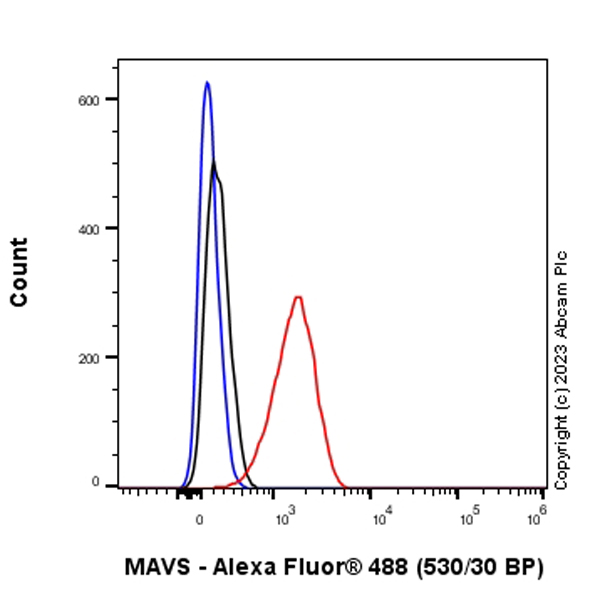

  Flow Cytometry (Intracellular) - Anti-MAVS antibody [EPR28262-28] (ab314444)

  Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized C2C12 (mouse myoblast) cells labelling MAVS with ab314444 at 1/500 dilution (0.1 ug)/Red (Red) compared with a Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). A Goat Anti-Rabbit IgG (Alexa Fluor® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081) at 1/5000 dilution was used as the secondary antibody.

•

  Immunocytochemistry/ Immunofluorescence - Anti-MAVS antibody [EPR28262-28] (ab314444)

  Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized C2C12 (mouse myoblast) cells labelling MAVS with ab314444 at 1/50 (10.46 ug/ml) dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 (2 ug/ml) dilution (Green). Confocal image showing cytoplasmic staining in C2C12 cell line. Image was taken with a confocal microscope(Leica-Microsystems, TCS SP8). Anti-COX IV mouse monoclonal antibody - Mitochondrial Marker was used to counterstain at 1/50 (5ug/ml) dilution (Red). The Nuclear counterstain was DAPI (Blue).
  Secondary antibody only control: Secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 (2 ug/ml) dilution.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MAVS antibody [EPR28262-28] (ab314444)

  Immunohistochemical analysis of paraffin-embedded mouse liver cancer tissue labeling MAVS with ab314444 at 1/500 (1.046 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Positive staining on mouse liver cancer. The section was incubated with ab314444 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin.
  Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
  Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MAVS antibody [EPR28262-28] (ab314444)

  Immunohistochemical analysis of paraffin-embedded mouse kidney tissue labeling MAVS with ab314444 at 1/500 (1.046 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Positive staining on mouse kidney. The section was incubated with ab314444 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin.
  Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
  Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MAVS antibody [EPR28262-28] (ab314444)

  Immunohistochemical analysis of paraffin-embedded mouse testis tissue labeling MAVS with ab314444 at 1/500 (1.046 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Positive staining on mouse testis. The section was incubated with ab314444 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin.
  Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
  Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

•

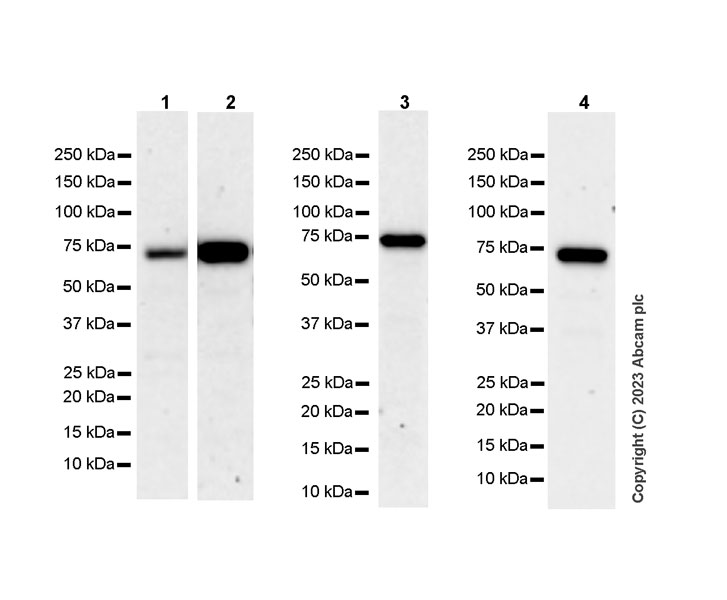

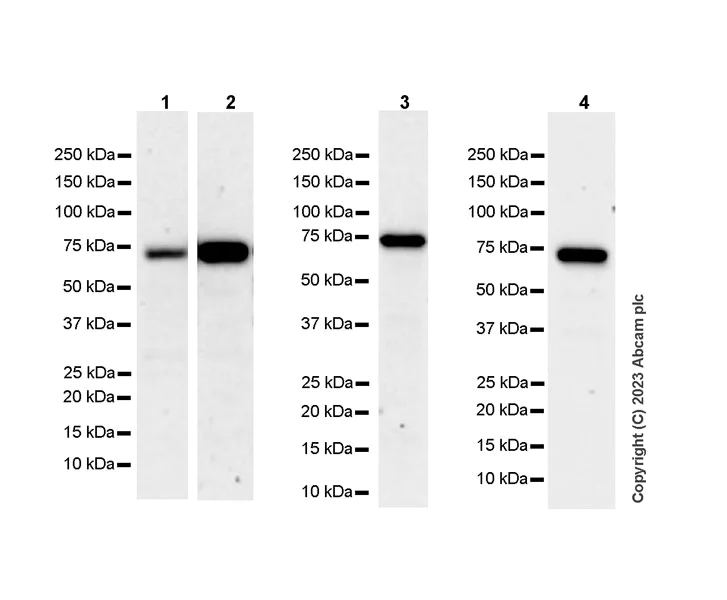

  Western blot - Anti-MAVS antibody [EPR28262-28] (ab314444)

  Blocking and diluting buffer and concentration: 5% NFDM/TBST
  Lysates were freshly made and used for Western blotting immediately to minimize protein degradation.
  Exposure time: Lane 1-3: 180 seconds, Lane 4: 48 seconds.

  All lanes: Western blot - Anti-MAVS antibody [EPR28262-28] (ab314444) at 1/1000 dilution

  Lane 1: Mouse brain tissue lysate at 20 µg

  Lane 2: Mouse testis tissue lysate at 20 µg

  Lane 3: C2C12 (mouse myoblast) whole cell lysate at 20 µg

  Lane 4: Hepa1-6 (mouse hepatoma epithelial cell) whole cell lysate at 20 µg

  Secondary

  All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution

  Observed band size: 75 kDa

•

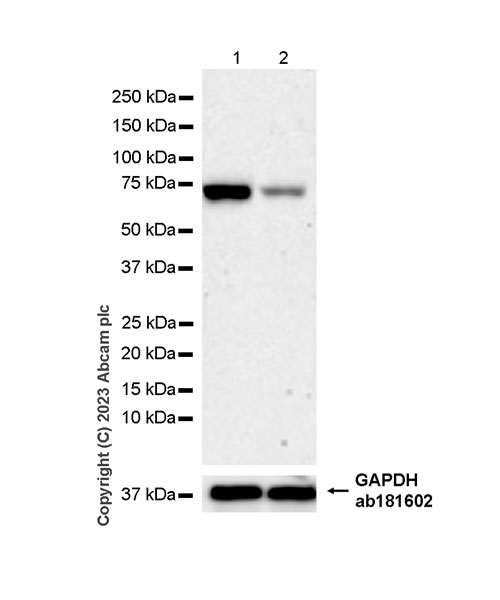

  Western blot - Anti-MAVS antibody [EPR28262-28] (ab314444)

  Blocking and diluting buffer and concentration: 5% NFDM/TBST
  In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (Anti-GAPDH antibody [EPR16891] - Loading Control ab181602) staining at 1/200000 dilution.

  All lanes: Western blot - Anti-MAVS antibody [EPR28262-28] (ab314444) at 1/1000 dilution

  Lane 1: NIH/3T3 (mouse embryonic fibroblast) transfected with scrambled siRNA control whole cell lysate at 60 µg

  Lane 2: NIH/3T3 transfected with siRNA specifically targeting MAVS whole cell lysate at 60 µg

  Secondary

  All lanes: Goat Anti-Rabbit IgG (HRP) with minimal cross-reactivity with human IgG at 1/2000 dilution

  Observed band size: 75 kDa

  Exposure time: 180s
