Anti-MAVS antibody [EPR28262-28] - BSA and Azide free

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-MAVS antibody [EPR28262-28] - BSA and Azide free (AB314445)

This data was developed using ab314444, the same antibody clone in a different buffer formulation. Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized C2C12 (mouse myoblast) cells labelling MAVS with ab314444 at 1/50 (10.46 ug/ml) dilution, followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 (2 ug/ml) dilution (Green). Confocal image showing cytoplasmic staining in C2C12 cell line. Image was taken with a confocal microscope(Leica-Microsystems, TCS SP8). Anti-COX IV mouse monoclonal antibody - Mitochondrial Marker was used to counterstain at 1/50 (5ug/ml) dilution (Red). The Nuclear counterstain was DAPI (Blue). Secondary antibody only control : Secondary antibody is ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 (2 ug/ml) dilution.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MAVS antibody [EPR28262-28] - BSA and Azide free (AB314445)

This data was developed using ab314444, the same antibody clone in a different buffer formulation. Immunohistochemical analysis of paraffin-embedded mouse testis tissue labeling MAVS with ab314444 at 1/500 (1.046 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Positive staining on mouse testis. The section was incubated with ab314444 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin. Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MAVS antibody [EPR28262-28] - BSA and Azide free (AB314445)

This data was developed using ab314444, the same antibody clone in a different buffer formulation. Immunohistochemical analysis of paraffin-embedded mouse liver cancer tissue labeling MAVS with ab314444 at 1/500 (1.046 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Positive staining on mouse liver cancer. The section was incubated with ab314444 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin. Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MAVS antibody [EPR28262-28] - BSA and Azide free (AB314445)

This data was developed using ab314444, the same antibody clone in a different buffer formulation. Immunohistochemical analysis of paraffin-embedded mouse kidney tissue labeling MAVS with ab314444 at 1/500 (1.046 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Positive staining on mouse kidney. The section was incubated with ab314444 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin. Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

• Flow Cyt (Intra)

Supplier Data

Flow Cytometry (Intracellular) - Anti-MAVS antibody [EPR28262-28] - BSA and Azide free (AB314445)

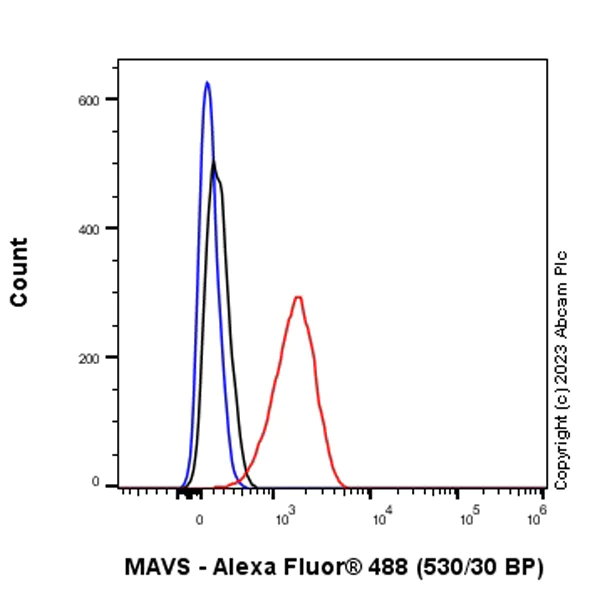

This data was developed using ab314444, the same antibody clone in a different buffer formulation.Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized C2C12 (mouse myoblast) cells labelling MAVS with ab314444 at 1/500 dilution (0.1 ug)/Red (Red) compared with a Rabbit monoclonal IgG (ab172730) (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). A Goat Anti-Rabbit IgG (Alexa Fluor® 488, ab150081) at 1/5000 dilution was used as the secondary antibody.

• WB

Supplier Data

Western blot - Anti-MAVS antibody [EPR28262-28] - BSA and Azide free (AB314445)

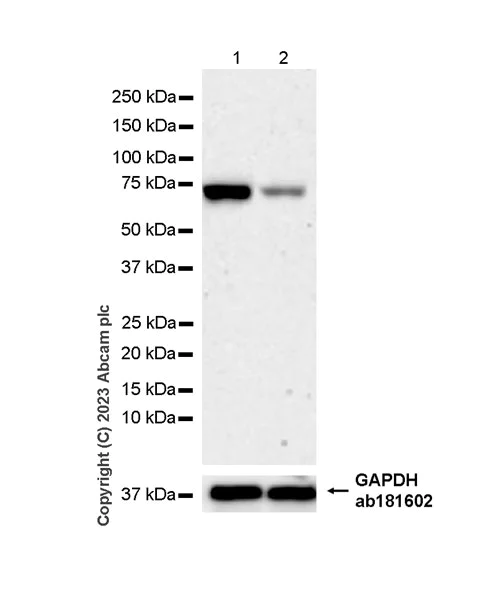

This data was developed using ab314444, the same antibody clone in a different buffer formulation. Blocking and diluting buffer and concentration : 5% NFDM/TBST In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) staining at 1/200000 dilution.

All lanes:

Western blot - Anti-MAVS antibody [EPR28262-28] (<a href='/en-us/products/primary-antibodies/mavs-antibody-epr28262-28-ab314444'>ab314444</a>) at 1/1000 dilution

Lane 1:

NIH/3T3 (mouse embryonic fibroblast) transfected with scrambled siRNA control whole cell lysate at 60 µg

Lane 2:

NIH/3T3 transfected with siRNA specifically targeting MAVS whole cell lysate at 60 µg

Secondary

All lanes:

Goat Anti-Rabbit IgG (HRP) with minimal cross-reactivity with human IgG at 1/2000 dilution

Observed band size: 75 kDa

false

Exposure time: 180s

• WB

Supplier Data

Western blot - Anti-MAVS antibody [EPR28262-28] - BSA and Azide free (AB314445)

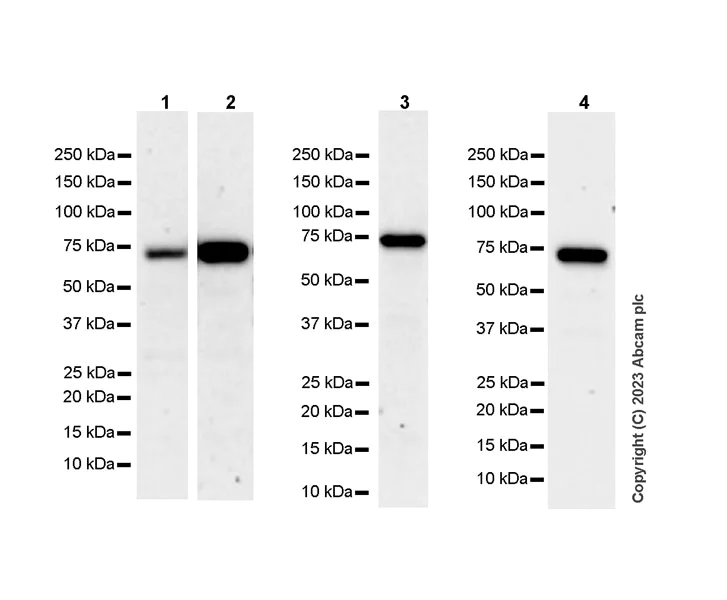

This data was developed using ab314444, the same antibody clone in a different buffer formulation. Blocking and diluting buffer and concentration : 5% NFDM/TBST Lysates were freshly made and used for Western blotting immediately to minimize protein degradation. Exposure time : Lane 1-3 : 180 seconds, Lane 4 : 48 seconds.

All lanes:

Western blot - Anti-MAVS antibody [EPR28262-28] (<a href='/en-us/products/primary-antibodies/mavs-antibody-epr28262-28-ab314444'>ab314444</a>) at 1/1000 dilution

Lane 1:

Mouse brain tissue lysate at 20 µg

Lane 2:

Mouse testis tissue lysate at 20 µg

Lane 3:

C2C12 (mouse myoblast) whole cell lysate at 20 µg

Lane 4:

Hepa1-6 (mouse hepatoma epithelial cell) whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Observed band size: 75 kDa

false
