Anti-MBD3 antibody [EPR18258]

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MBD3 antibody [EPR18258] (AB188401)

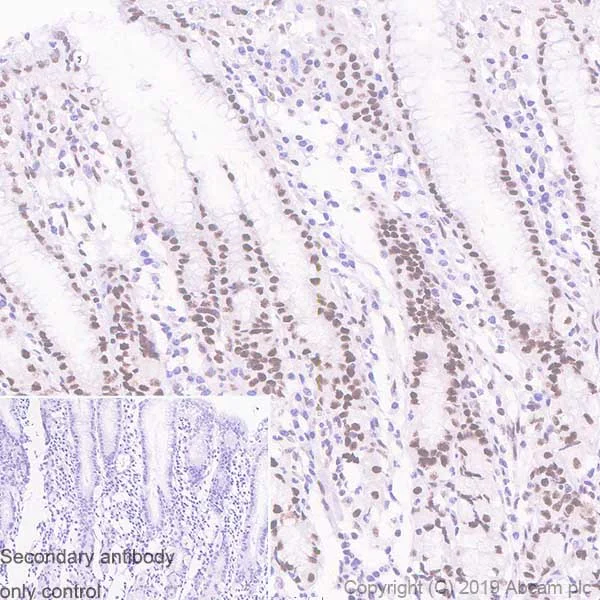

Immunohistochemical analysis of paraffin-embedded Human stomach tissue labeling MBD3 with ab188401 at 1/200 dilution (6.17 μg/ml) followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). Nuclear staining on the human stomach. The section was incubated with ab188401 for 15 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin. Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0 epitope retrieval solution 2) for 20 mins.

Secondary antibody only control : Used PBS instead of primary antibody secondary antibody is a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101).

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-MBD3 antibody [EPR18258] (AB188401)

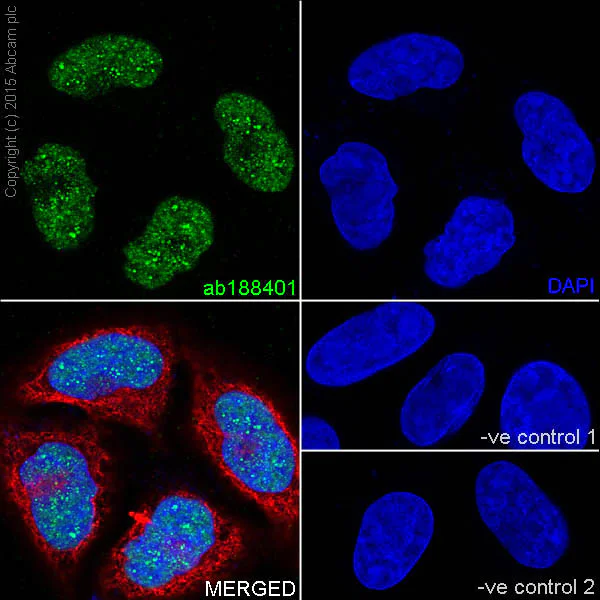

Immunofluorescent analysis of 4% paraformaldehyde-fixed 0.1% Triton X-100 permeabilized HeLa (Human epithelial cells from cervix adenocarcinoma) cells labeling MBD3 with ab188401 at 1/500 dilution followed by Goat anti-rabbit IgG (Alexa Fluor® 488) (ab150077) secondary antibody at 1/1000 dilution (green). Confocal image showing nuclear staining on HeLa cell line. The nuclear counter stain is DAPI (blue). Tubulin is detected with ab7291 (anti-Tubulin mouse mAb) at 1/1000 dilution and ab150120 (AlexaFluor®594 Goat anti-Mouse secondary) at 1/1000 dilution (red).

The negative controls are as follows :
-ve control 1 : ab188401 at 1/500 dilution followed by ab150120 (AlexaFluor®594 Goat anti-Mouse secondary) at 1/1000 dilution.
-ve control 2 : ab7291 (anti-Tubulin mouse mAb) at 1/1000 dilution followed by ab150077 (Alexa Fluor®488 Goat Anti-Rabbit IgG H&L) at 1/1000 dilution.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MBD3 antibody [EPR18258] (AB188401)

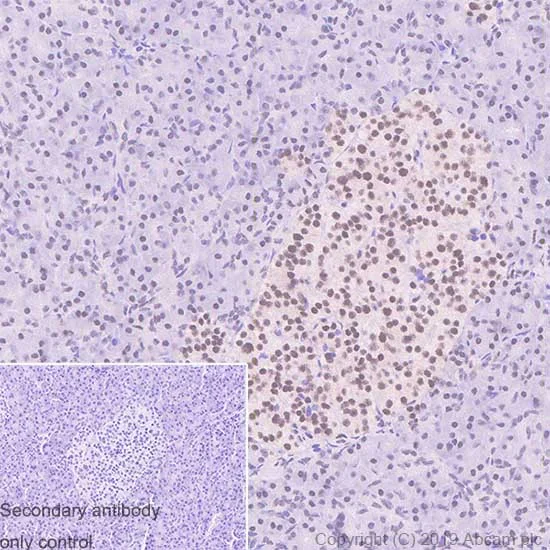

Immunohistochemical analysis of paraffin-embedded Human pancreas tissue labeling MBD3 with ab188401 at 1/200 dilution (6.17 μg/ml) followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). Nuclear staining on the human pancreas (PMID : 27898661). The section was incubated with ab188401 for 15 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin. Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0 epitope retrieval solution 2) for 20 mins.

Secondary antibody only control : Used PBS instead of primary antibody secondary antibody is a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101).

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-MBD3 antibody [EPR18258] (AB188401)

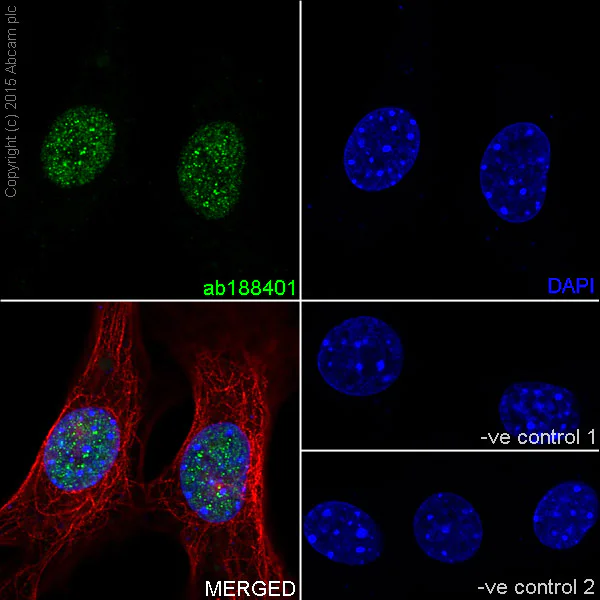

Immunofluorescent analysis of 4% paraformaldehyde-fixed 0.1% Triton X-100 permeabilized NIH/3T3 (Mouse embyro fibroblast cells) cells labeling MBD3 with ab188401 at 1/500 dilution followed by Goat anti-rabbit IgG (Alexa Fluor® 488) (ab150077) secondary antibody at 1/1000 dilution (green). Confocal image showing nuclear staining on NIH/3T3 cell line. The nuclear counter stain is DAPI (blue). Tubulin is detected with ab7291 (anti-Tubulin mouse mAb) at 1/1000 dilution and ab150120 (AlexaFluor®594 Goat anti-Mouse secondary) at 1/1000 dilution (red).

The negative controls are as follows :
-ve control 1 : ab188401 at 1/500 dilution followed by ab150120 (AlexaFluor®594 Goat anti-Mouse secondary) at 1/1000 dilution.
-ve control 2 : ab7291 (anti-Tubulin mouse mAb) at 1/1000 dilution followed by ab150077 (Alexa Fluor®488 Goat Anti-Rabbit IgG H&L) at 1/1000 dilution.

• WB

Lab

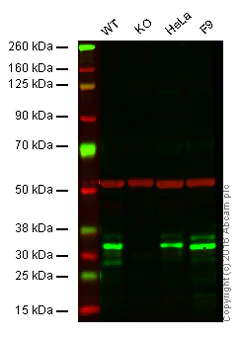

Western blot - Anti-MBD3 antibody [EPR18258] (AB188401)

Lane 1 : Wild-type HAP1 cell lysate (20 μg)
Lane 2 : MBD3 knockout HAP1 cell lysate (20 μg)
Lane 3 : HeLa cell lysate (20 μg)
Lane 4 : F9 cell lysate (20 μg)
Lanes 1 - 4 : Merged signal (red and green). Green - ab188401 observed at 33 kDa. Red - loading control, ab8245, observed at 37 kDa.

ab188401 was shown to specifically react with MBD3 when MBD3 knockout samples were used. Wild-type and MBD3 knockout samples were subjected to SDS-PAGE. ab188401 and ab8245 (loading control to GAPDH) were diluted 1/5000 and 1/10000 and incubated respectively overnight at 4°C. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye^® 800CW) preadsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye^® 680RD) preadsorbed (ab216776) secondary antibodies at 1/10000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-MBD3 antibody [EPR18258] (ab188401)

Predicted band size: 33 kDa

false

• WB

Supplier Data

Western blot - Anti-MBD3 antibody [EPR18258] (AB188401)

Blocking/Dilution buffer : 5% NFDM/TBST.

The 33 and 29 kDa bands correspond to Isoforms 1 and 2.

All lanes:

Western blot - Anti-MBD3 antibody [EPR18258] (ab188401) at 1/5000 dilution

Lane 1:

HeLa (Human epithelial cells from cervix adenocarcinoma) whole cell lysate at 10 µg

Lane 2:

293 (Human epithelial cells from embryonic kidney) whole cell lysate at 10 µg

Lane 3:

F9 (Mouse embyro testicular cancer cell line) whole cell lysate at 10 µg

Lane 4:

WEHI-3 (Mouse leukemia cell line) whole cell lysate at 10 µg

Lane 5:

T-47D (Human ductal breast epithelial tumor cell line) whole cell lysate at 10 µg

Lane 6:

HepG2 (Human liver hepatocellular carcinoma) whole cell lysate at 10 µg

Secondary

All lanes:

Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated at 1/1000 dilution

Predicted band size: 33 kDa

Observed band size: 29 kDa,33 kDa

false

Exposure time: 1min

• WB

Supplier Data

Western blot - Anti-MBD3 antibody [EPR18258] (AB188401)

Blocking/Dilution buffer : 5% NFDM/TBST.

All lanes:

Western blot - Anti-MBD3 antibody [EPR18258] (ab188401) at 1/2000 dilution

All lanes:

Human fetal kidney tissue lysate at 10 µg

Secondary

All lanes:

Anti-Rabbit IgG (HRP), specific to the non-reduced form of IgG at 1/1000 dilution

Predicted band size: 33 kDa

Observed band size: 29 kDa,33 kDa

false

Exposure time: 3min

• WB

Supplier Data

Western blot - Anti-MBD3 antibody [EPR18258] (AB188401)

Blocking/Dilution buffer : 5% NFDM/TBST.

The 33 and 29 kDa bands correspond to Isoforms 1 and 2.

All lanes:

Western blot - Anti-MBD3 antibody [EPR18258] (ab188401) at 1/2000 dilution

Lane 1:

C6 (Rat glial tumor cells) whole cell lysate at 10 µg

Lane 2:

RAW 264.7 (Mouse macrophage cells transformed with Abelson murine leukemia virus) whole cell lysate at 10 µg

Lane 3:

PC-12 (Rat adrenal gland pheochromocytoma) whole cell lysate at 10 µg

Lane 4:

NIH/3T3 (Mouse embyro fibroblast cells) whole cell lysate at 10 µg

Secondary

All lanes:

Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated at 1/1000 dilution

Predicted band size: 33 kDa

Observed band size: 29 kDa,33 kDa

false

Exposure time: 15s

• WB

Supplier Data

Western blot - Anti-MBD3 antibody [EPR18258] (AB188401)

Blocking/Dilution buffer : 5% NFDM/TBST.

The 33 and 29 kDa bands correspond to Isoforms 1 and 2.

All lanes:

Western blot - Anti-MBD3 antibody [EPR18258] (ab188401) at 1/2000 dilution

All lanes:

Mouse spleen tissue lysate at 10 µg

Secondary

All lanes:

Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated at 1/1000 dilution

Predicted band size: 33 kDa

Observed band size: 29 kDa,33 kDa

false

Exposure time: 3min
