Anti-MCL1 antibody [Y37] - BSA and Azide free

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-MCL1 antibody [Y37] - BSA and Azide free (AB186822)

Immunocytochemistry/Immunofluorescence analysis of HCT 116 (human colorectal carcinoma cell line) cells treated with wogonin (ab142471) labelling MCL1 with unpurified ab32087. Decrease of MCL1 expression correlates with increased concentration of wogonin, as described in literature. Cells were incubated at 37°C for 2h in media containing different concentrations of ab142471 (wogonin) in DMSO, fixed with 4% formaldehyde for 10 minutes at room temperature and blocked with PBS containing 10% goat serum, 0.3 M glycine, 1% BSA and 0.1% tween for 2h at room temperature. Staining of the treated cells with ab32087 (1/100) dilution was performed overnight at 4°C in PBS containing 1% BSA and 0.1% tween. A DyLight^® 488 anti-rabbit polyclonal antibody (ab96899) at 1/250 dilution was used as the secondary antibody. DAPI (blue) was used as the nuclear counterstain.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32087).

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-MCL1 antibody [Y37] - BSA and Azide free (AB186822)

Clone Y37 (ab186822) has been successfully conjugated by Abcam. This image was generated using Anti-MCL1 antibody [Y37] (Alexa Fluor® 488). Please refer to ab197529 for protocol details.

ab197529 staining MCL1 in HeLa cells. The cells were fixed with 100% methanol (5 min), permeabilised in 0.1% Triton X-100 for 5 minutes and then blocked in 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated with ab197529 at 1/100 dilution (shown in green) and ab195889, Mouse monoclonal [DM1A] to alpha Tubulin (Alexa Fluor^® 594, shown in red) at 1/167 dilution overnight at +4°C. Nuclear DNA was labelled in blue with DAPI.

Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

• Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Anti-MCL1 antibody [Y37] - BSA and Azide free (AB186822)

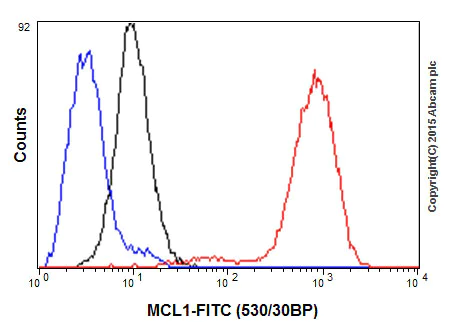

Intracellular Flow Cytometry analysis of Ramos (human Burkitt's lymphoma cell line) cells labelling MCL1 with purified ab32087 at 1/250 (red). Cells were fixed with 4% paraformaldehyde. A FITC-conjugated goat anti-rabbit IgG (1/500) was used as the secondary antibody. Black - Isotype control, rabbit monoclonal IgG. Blue - Unlabelled control, cells without incubation with primary and secondary antibodies.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32087).

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-MCL1 antibody [Y37] - BSA and Azide free (AB186822)

This ICC/IF data was generated using the same anti-MCL1 antibody clone, Y37, in a different buffer formulation (cat# ab32087).

Immunocytochemistry/Immunofluorescence analysis of H1299 cells labelling MCL1 with unpurified ab32087. Cells were PFA-fixed and permeabilized in 0.5% Triton X-100 prior to blocking in 3% Serum for 1 hour at 24°C. The primary antibody was diluted 1/100 and incubated with the sample for 1 hour at 24°C. The secondary antibody was an Alexa Fluor^® 488-conjugated Goat anti-Rabbit polyclonal, diluted 1/2000. DAPI (blue) was used as the nuclear counterstain.

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-MCL1 antibody [Y37] - BSA and Azide free (AB186822)

Immunocytochemistry/Immunofluorescence analysis of HCT 116 (human colorectal carcinoma cell line) cells labelling MCL1 with purified ab32087 at 1/500. Cells were fixed with 4% paraformaldehyde and permeabilized with 0.1% Triton X-100. ab150077, an Alexa Fluor^® 488-conjugated goat anti-rabbit IgG (1/500) was used as the secondary antibody. DAPI (blue) was used as the nuclear counterstain. ab7291, a mouse anti-tubulin (1/1000) and ab150120, an Alexa Fluor^® 594-conjugated goat anti-mouse IgG (1/1000) were also used.

Control 1 : primary antibody (1/100) and secondary antibody, ab150120, an Alexa Fluor^® 594-conjugated goat anti-mouse IgG (1/500).

Control 2 : ab7291 (1/1000) and secondary antibody, ab150077, an Alexa Fluor^® 488-conjugated goat anti-rabbit IgG (1/500).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32087).

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-MCL1 antibody [Y37] - BSA and Azide free (AB186822)

Clone Y37 (ab186822) has been successfully conjugated by Abcam. This image was generated using Anti-MCL1 antibody [Y37] (Alexa Fluor® 647). Please refer to ab197035 for protocol details.

ab197035 staining MCL1 in HCT116 cells. The cells were fixed with 4% formaldehyde (10 min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated overnight at +4°C with ab at a 1/100 dilution (shown in red) and ab195887, Mouse monoclonal to alpha Tubulin (Alexa Fluor^® 488), at a 1/250 dilution (shown in green). Nuclear DNA was labelled with DAPI (shown in blue).

Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

• Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Anti-MCL1 antibody [Y37] - BSA and Azide free (AB186822)

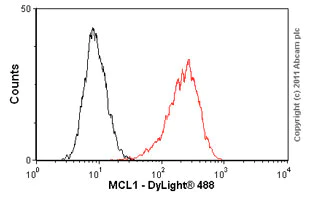

Intracellular Flow Cytometry analysis of A431 (human epidermoid carcinoma cell line) cells labelling MCL1 with unpurified ab32087 (red line). Cells were fixed with methanol (5 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab32087, 1μg/1x10⁶ cells) for 30 min at 22°C. The secondary antibody used was DyLight^® 488 goat anti-rabbit IgG (H+L) (ab96899) at 1/500 dilution for 30 min at 22°C.

Black - Isotype control, rabbit monoclonal IgG.

Acquisition of >5,000 events was performed. This antibody gave a decreased signal in A431 cells fixed with 4% paraformaldehyde (10 min)/permeabilized with 0.1% PBS-Tween used under the same conditions.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32087).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MCL1 antibody [Y37] - BSA and Azide free (AB186822)

This IHC data was generated using the same anti-MCL1 antibody clone, Y37, in a different buffer formulation (cat# ab32087).

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human colon adenocarcinoma tissue labelling MCL1 with purified ab32087 at 1/100. Heat mediated antigen retrieval was performed using Tris/EDTA buffer pH 9. ab97051, a goat anti-rabbit IgG H&L (HRP) was used as the secondary antibody (1/500). Negative control using PBS instead of primary antibody. Counterstained with hematoxylin.

• Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Anti-MCL1 antibody [Y37] - BSA and Azide free (AB186822)

Clone Y37 (ab186822) has been successfully conjugated by Abcam. This image was generated using Anti-MCL1 antibody [Y37] (PE). Please refer to ab209289 for protocol details.

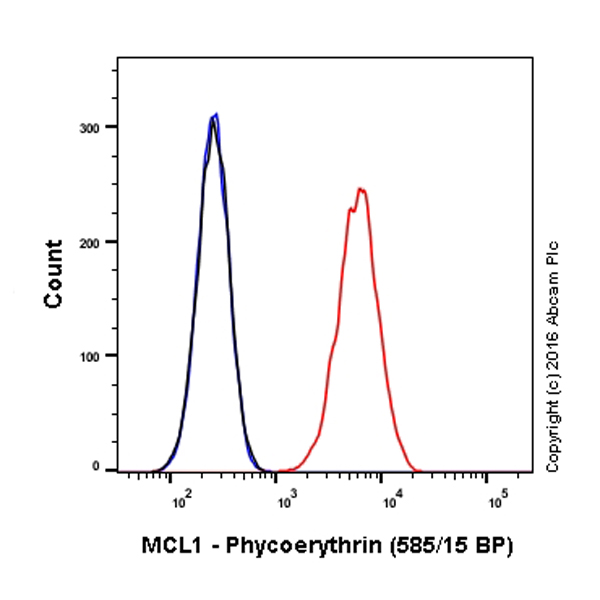

Overlay histogram showing MCF7 cells stained with ab209289 (red line). The cells were fixed with 4% formaldehyde (10 min) and then permeabilized with 90% methanol for 30 min at -20°C. The cells were then incubated in 1x PBS / 10% normal goat serum to block non-specific protein-protein interactions followed by the antibody (ab209289, 1/2500 dilution) for 30 min at 22°C.

Isotype control antibody (black line) was rabbit IgG (monoclonal) Phycoerythrin (ab209478) used at the same concentration and conditions as the primary antibody. Unlabelled sample (blue line) was also used as a control.

Acquisition of >5,000 events were collected using a 50 mW Yellow/Green laser (561nm) and 586/15 bandpass filter.

• WB

Lab

Western blot - Anti-MCL1 antibody [Y37] - BSA and Azide free (AB186822)

This data was developed using the same antibody clone in a different buffer formulation (ab32087).

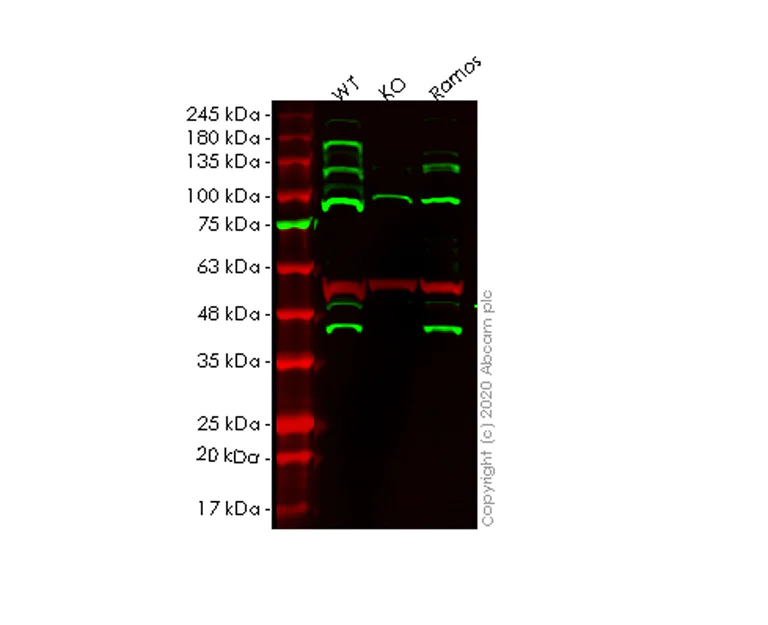

Lanes 1-3 : Merged signal (red and green). Green - ab32087 observed at 37 kDa. Red - loading control ab7291 observed at 50 kDa.

ab32087 Anti-MCL1 antibody [Y37] was shown to specifically react with MCL1 in wild-type HEK293T cells. Loss of signal was observed when knockout cell line ab266838 (knockout cell lysate ab256986) was used. Wild-type and MCL1 knockout samples were subjected to SDS-PAGE. ab32087 and Anti-alpha Tubulin antibody [DM1A] - Loading Control (ab7291) were incubated overnight at 4°C at 1 in 1000 dilution and 1 in 20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye^® 800CW) preadsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye^® 680RD) preadsorbed (ab216776) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-MCL1 antibody [Y37] (<a href='/en-us/products/primary-antibodies/mcl1-antibody-y37-ab32087'>ab32087</a>) at 1/1000 dilution

Lane 1:

Wild-type HEK293T cell lysate at 20 µg

Lane 2:

MCL1 knockout HEK293T cell lysate at 20 µg

Lane 2:

Western blot - Human MCL1 knockout HEK-293T cell line (<a href='/en-us/products/cell-lines/human-mcl1-knockout-hek-293t-cell-line-ab266838'>ab266838</a>)

Lane 3:

Ramos cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-irdye-800cw-preadsorbed-ab216773'>ab216773</a>) at 1/10000 dilution

Predicted band size: 37 kDa

Observed band size: 37 kDa
