Anti-MCM5 antibody [EP2683Y] - BSA and Azide free

• Flow Cyt (Intra)

Lab

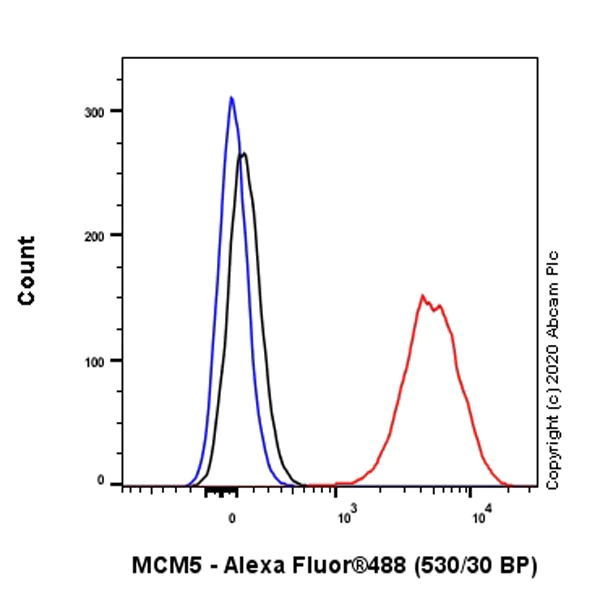

Flow Cytometry (Intracellular) - Anti-MCM5 antibody [EP2683Y] - BSA and Azide free (AB247419)

This data was developed using ab75975, the same antibody clone in a different buffer formulation. Intracellular Flow Cytometry analysis of MCF7 (Human breast adenocarcinoma epithelial cell) cells labeling MCM5 with Purified ab75975 at 1/20 dilution (10 μg/ml) (Red). Cells were fixed with 4% Paraformaldehyde and permeabilised with 90% Methanol. A Goat anti rabbit IgG (Alexa Fluor^® 488 ,ab150077) secondary antibody was used at 1/2000. Isotype control - Rabbit monoclonal IgG (Black). Unlabeled control - Cell without incubation with primary antibody and secondary antibody (Blue).

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MCM5 antibody [EP2683Y] - BSA and Azide free (AB247419)

This data was developed using ab75975, the same antibody clone in a different buffer formulation.
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of Human tonsil tissue sections labeling MCM5 with purified ab75975 at 1/1000 dilution (0.11 μg/mL). Perform heat mediated antigen retrieval using ab93684 (Tris/EDTA buffer, pH 9.0). ImmunoHistoProbe one step HRP Polymer (ready to use) was used as the secondary antibody. Negative control : PBS instead of the primary antibody. Hematoxylin was used as a counterstain.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-MCM5 antibody [EP2683Y] - BSA and Azide free (AB247419)

This data was developed using ab75975, the same antibody clone in a different buffer formulation.
Immunocytochemistry analysis of MCF7 (Human breast adenocarcinoma epithelial cell) cells labeling MCM5 with Purified ab75975 at 1 : 50 dilution (2.1 μg/ml). Cells were fixed in 4% Paraformaldehyde and permeabilized with 0.1% tritonX-100. Cells were counterstained with ab195889 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor® 594) 1 : 200 (2.5 μg/ml). Goat anti rabbit IgG (Alexa Fluor® 488,ab150077) was used as the secondary antibody at 1 : 1000 (2 μg/ml) dilution. DAPI (blue) was used as nuclear counterstain. PBS instead of the primary antibody was used as the secondary antibody only control.

• WB

Unknown

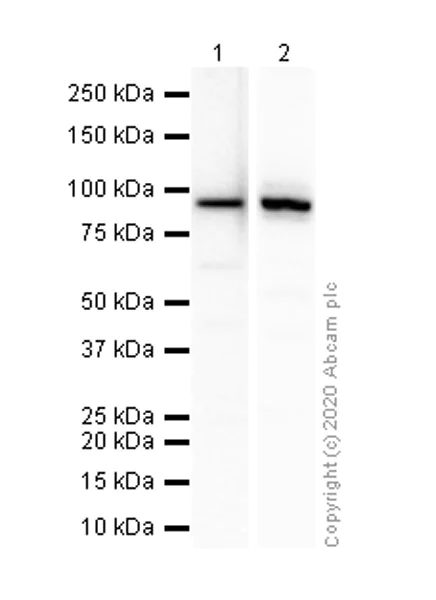

Western blot - Anti-MCM5 antibody [EP2683Y] - BSA and Azide free (AB247419)

This data was developed using ab75975, the same antibody clone in a different buffer formulation.

Blocking Buffer and concentration : 5% NFDM/TBST.

All lanes:

Western blot - Anti-MCM5 antibody [EP2683Y] (<a href='/en-us/products/primary-antibodies/mcm5-antibody-ep2683y-ab75975'>ab75975</a>) at 1/1000 dilution

Lane 1:

MCF7 (Human breast adenocarcinoma epithelial cell) whole cell lysate at 15 µg

Lane 2:

Mouse spleen lysate at 20 µg

Secondary

All lanes:

Goat Anti-Rabbit IgG (HRP) with minimal cross-reactivity with human IgG at 1/2000 dilution

Predicted band size: 82 kDa

Observed band size: 82 kDa
