Anti-MEF2C antibody [EPR19089-202] - BSA and Azide free

• Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Anti-MEF2C antibody [EPR19089-202] - BSA and Azide free (AB231859)

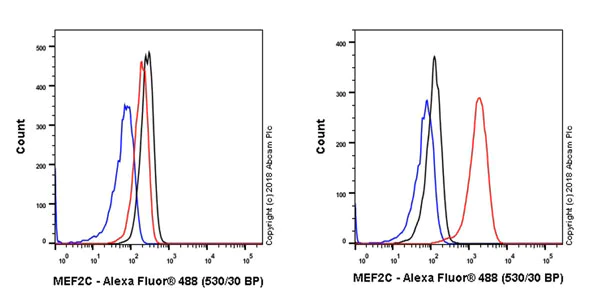

Intracellular flow cytometric analysis of 4% paraformaldehyde-fixed, 90% methanol permeabilsed Jurkat (Human T cell leukemia T lymphocyte, Left) / Raji (Human Burkitt's lymphoma B lymphocyte, Right) cell lines labelling MEF2C with ab211493 at 1/500 dilution (Red) compared with the isotype control Rabbit monoclonal IgG (ab172730) (Black) and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). Goat anti rabbit IgG Alexa Fluor^® 488 (ab150077), at 1/2000 dilution was used as the secondary antibody.

Negative control : Jurkat (PMID : 27876533).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab211493).

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MEF2C antibody [EPR19089-202] - BSA and Azide free (AB231859)

Immunohistochemical analysis of paraffin-embedded human skeletal muscle tissue labelling MEF2C with ab211493 at 1/500 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) ready to use. Nuclear staining in human skeletal muscle cells is observed(PMID : 8506376, PMID 15703219). Counterstained with hematoxylin.
Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) ready to use.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab211493).

Perform heat mediated antigen retrieval with EDTA buffer pH 9 before commencing with IHC staining protocol.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MEF2C antibody [EPR19089-202] - BSA and Azide free (AB231859)

Immunohistochemical analysis of paraffin-embedded human endometrial carcinoma tissue labelling MEF2C with ab211493 at 1/500 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) ready to use. Nuclear staining in leukocytes but not in tumor cells of human endometrial carcinoma is observed (PMID : 8506376, PMID 15703219). Counterstained with hematoxylin.
Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP)ready to use.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab211493).

Perform heat mediated antigen retrieval with EDTA buffer pH 9 before commencing with IHC staining protocol.

• ChIP

Unknown

ChIP - Anti-MEF2C antibody [EPR19089-202] - BSA and Azide free (AB231859)

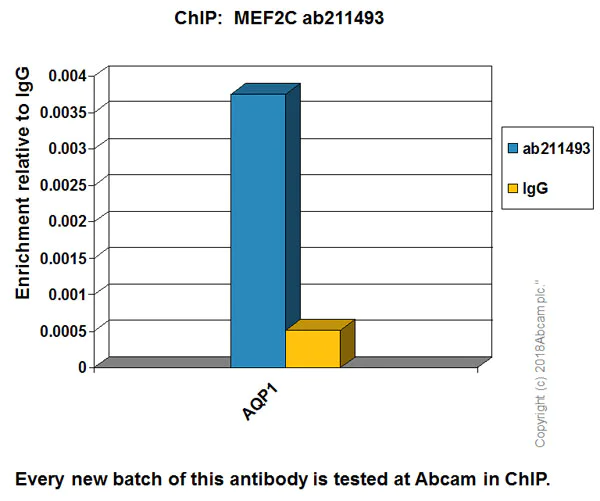

Chromatin was prepared from HUVEC cells according to the Abcam X-ChIP protocol. Cells were fixed with formaldehyde for 10 minutes. The ChIP was performed with : 25 µg of chromatin, 5 µg of ab211493 (blue), and 20 µl of protein A/G sepharose beads slurry (10 µl of sepharose A beads + 10 µl of sepharose G beads). 5 μg of rabbit normal IgG was added to the beads control (yellow). The immunoprecipitated DNA was quantified by real time PCR (SYBR green chemistry).

ChIP was performed according to the literature (PMID : 26923194).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab211493).

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MEF2C antibody [EPR19089-202] - BSA and Azide free (AB231859)

Immunohistochemical analysis of paraffin-embedded mouse spleen tissue labelling MEF2C with ab211493 at 1/1000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) ready to use. Nuclear staining in B lymphocytes of mouse spleen but not in T cells in the periarterial lymphatic sheath is observed (PMID : 8506376, PMID 15703219). Counterstained with hematoxylin.
Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP)ready to use.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab211493).

Perform heat mediated antigen retrieval with EDTA buffer pH 9 before commencing with IHC staining protocol.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MEF2C antibody [EPR19089-202] - BSA and Azide free (AB231859)

Immunohistochemical analysis of paraffin-embedded rat spleen tissue labelling MEF2C with ab211493 at 1/1000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) ready to use. Nuclear staining in B lymphocytes of rat spleen but not in T cells in the periarterial lymphatic sheath is observed (PMID : 8506376, PMID 15703219). Counterstained with hematoxylin.
Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP)ready to use.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab211493).

Perform heat mediated antigen retrieval with EDTA buffer pH 9 before commencing with IHC staining protocol.

• WB

Supplier Data

Western blot - Anti-MEF2C antibody [EPR19089-202] - BSA and Azide free (AB231859)

False colour image of Western blot : Anti-MEF2C antibody [EPR19089-202] - ChIP Grade staining at 1/1000 dilution, shown in green; Mouse anti-GAPDH antibody [6C5] (ab8245) loading control staining at 1/20000 dilution, shown in red. In Western blot, ab211493 was shown to bind specifically to MEF2C. A band was observed at 55/60 kDa in wild-type THP-1 cell lysates with no signal observed at this size in MEF2C knockout cell line (ab313739). To generate this image, wild-type and MEF2C knockout THP-1 cell lysates were analysed. First, samples were run on an SDS-PAGE gel then transferred onto a nitrocellulose membrane. Membranes were blocked in 3 % milk in TBS-0.1 % Tween^® 20 (TBS-T) before incubation with primary antibodies overnight at 4 °C. Blots were washed four times in TBS-T, incubated with secondary antibodies for 1 h at room temperature, washed again four times then imaged. Secondary antibodies used were Goat anti-Rabbit IgG H&L 800CW and Goat anti-Mouse IgG H&L 680RD at 1/20000 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab211493).

All lanes:

Western blot - Anti-MEF2C antibody [EPR19089-202] - ChIP Grade (<a href='/en-us/products/primary-antibodies/mef2c-antibody-epr19089-202-chip-grade-ab211493'>ab211493</a>) at 1/1000 dilution

Lane 1:

Wild-type THP-1 cell lysate at 20 µg

Lane 2:

MEF2C knockout THP-1 cell lysate at 20 µg

Lane 2:

Western blot - Human MEF2C knockout THP-1 cell line (<a href='/en-us/products/cell-lines/human-mef2c-knockout-thp-1-cell-line-ab313739'>ab313739</a>)

Lane 3:

Daudi cell lysate at 20 µg

Lane 4:

Jurkat cell lysate at 20 µg

Secondary

All lanes:

Goat anti-Rabbit IgG H&L 800CW and Goat anti-Mouse IgG H&L 680RD at 1/20000 dilution

Predicted band size: 51 kDa

Observed band size: 55/60 kDa,37 kDa

false

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-MEF2C antibody [EPR19089-202] - BSA and Azide free (AB231859)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% Triton X-100 permeabilised Raji (human Burkitt's lymphoma B lymphocyte) cells labelling MEF2C with ab211493 at 1/500 dilution, followed by AlexaFluor®488 Goat anti-Rabbit secondary (ab150077) at 1/1000 dilution (green). Confocal image showing nuclear staining in Raji cell line. Negative control : Jurkat (PMID : 27876533). DAPI was used as the nuclear counterstain, and the Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor® 594) (ab195889 antibody was used as a counterstain at 1/200 dilution.

The negetive controls are as follows :
-ve control 1 : ab197070 on jurkat (human T cell leukemia cell line from peripheral blood) cells.
-ve control 2 : Jurkat cells stained with DAPI.
-ve control 3 : Merged negetive contol images.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab211493).
