Anti-MEF2C antibody [EPR19089-202] - ChIP Grade

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-MEF2C antibody [EPR19089-202] - ChIP Grade (AB211493)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% Triton X-100 permeabilised Raji (human Burkitt's lymphoma B lymphocyte) cells labelling MEF2C with ab211493 at 1/500 dilution, followed by AlexaFluor®488 Goat anti-Rabbit secondary (ab150077) at 1/1000 dilution (green). Confocal image showing nuclear staining in Raji cell line. Negative control : Jurkat (PMID : 27876533). DAPI was used as the nuclear counterstain, and the Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor® 594) (ab195889 antibody was used as a counterstain at 1/200 dilution.

The negetive controls are as follows :
-ve control 1 : ab197070 on jurkat (human T cell leukemia cell line from peripheral blood) cells.
-ve control 2 : Jurkat cells stained with DAPI.
-ve control 3 : Merged negetive contol images.

• Flow Cyt (Intra)

Unknown

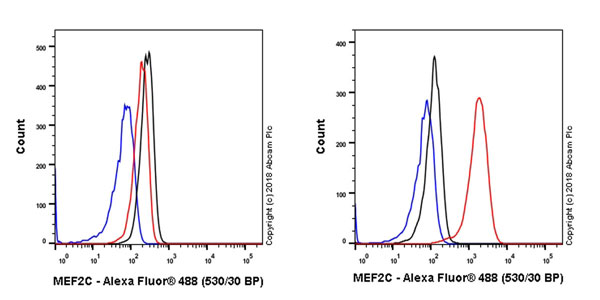

Flow Cytometry (Intracellular) - Anti-MEF2C antibody [EPR19089-202] - ChIP Grade (AB211493)

Intracellular flow cytometric analysis of 4% paraformaldehyde-fixed, 90% methanol permeabilsed Jurkat (Human T cell leukemia T lymphocyte, Left) / Raji (Human Burkitt's lymphoma B lymphocyte, Right) cell lines labelling MEF2C with ab211493 at 1/500 dilution (Red) compared with the isotype control Rabbit monoclonal IgG (ab172730) (Black) and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). Goat anti rabbit IgG Alexa Fluor^® 488 (ab150077), at 1/2000 dilution was used as the secondary antibody.

Negative control : Jurkat (PMID : 27876533).

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MEF2C antibody [EPR19089-202] - ChIP Grade (AB211493)

Immunohistochemical analysis of paraffin-embedded human skeletal muscle tissue labelling MEF2C with ab211493 at 1/500 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) ready to use. Nuclear staining in human skeletal muscle cells is observed(PMID : 8506376, PMID 15703219). Counterstained with hematoxylin.
Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP)ready to use.

Perform heat mediated antigen retrieval with EDTA buffer pH 9 before commencing with IHC staining protocol.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MEF2C antibody [EPR19089-202] - ChIP Grade (AB211493)

Immunohistochemical analysis of paraffin-embedded human endometrial carcinoma tissue labelling MEF2C with ab211493 at 1/500 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) ready to use. Nuclear staining in leukocytes but not in tumor cells of human endometrial carcinoma is observed (PMID : 8506376, PMID 15703219). Counterstained with hematoxylin.
Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP)ready to use.

Perform heat mediated antigen retrieval with EDTA buffer pH 9 before commencing with IHC staining protocol.

• ChIP

Unknown

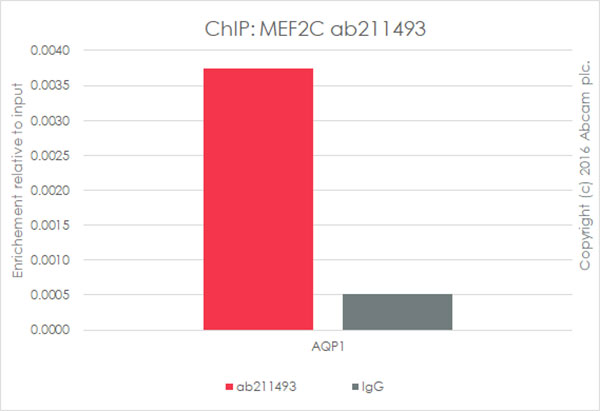

ChIP - Anti-MEF2C antibody [EPR19089-202] - ChIP Grade (AB211493)

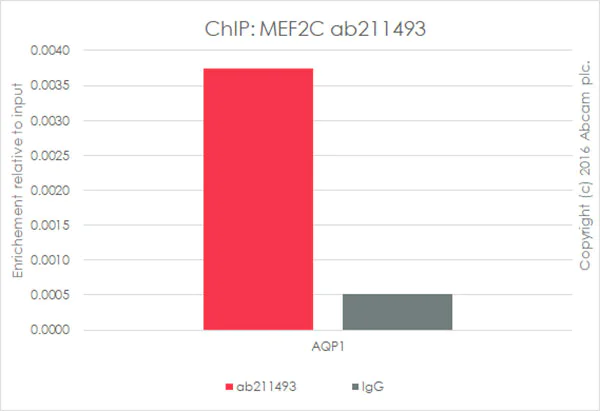

Chromatin was prepared from HUVEC cells according to the Abcam X-ChIP protocol. Cells were fixed with formaldehyde for 10 minutes. The ChIP was performed with : 25 μg of chromatin, 5 μg of ab211493 (red), and 20 μl of protein A/G sepharose beads slurry (10 μl of sepharose A beads + 10 μl of sepharose G beads). 5 μg of rabbit normal IgG was added to the beads control (grey). The immunoprecipitated DNA was quantified by real time PCR (SYBR green chemistry).

ChIP was performed according to the literature (PMID : 26923194).

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MEF2C antibody [EPR19089-202] - ChIP Grade (AB211493)

Immunohistochemical analysis of paraffin-embedded mouse spleen tissue labelling MEF2C with ab211493 at 1/1000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) ready to use. Nuclear staining in B lymphocytes of mouse spleen but not in T cells in the periarterial lymphatic sheath is observed (PMID : 8506376, PMID 15703219). Counterstained with hematoxylin.
Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP)ready to use.

Perform heat mediated antigen retrieval with EDTA buffer pH 9 before commencing with IHC staining protocol.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MEF2C antibody [EPR19089-202] - ChIP Grade (AB211493)

Immunohistochemical analysis of paraffin-embedded rat spleen tissue labelling MEF2C with ab211493 at 1/1000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) ready to use. Nuclear staining in B lymphocytes of rat spleen but not in T cells in the periarterial lymphatic sheath is observed (PMID : 8506376, PMID 15703219). Counterstained with hematoxylin.
Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP)ready to use.

Perform heat mediated antigen retrieval with EDTA buffer pH 9 before commencing with IHC staining protocol.

• WB

Supplier Data

Western blot - Anti-MEF2C antibody [EPR19089-202] - ChIP Grade (AB211493)

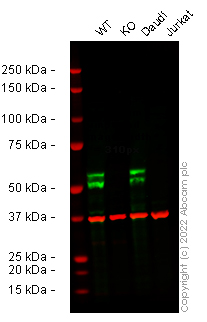

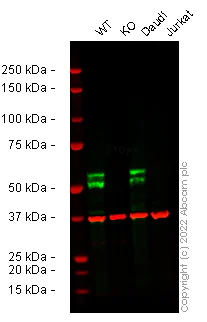

False colour image of Western blot : Anti-MEF2C antibody [EPR19089-202] - ChIP Grade staining at 1/1000 dilution, shown in green; Mouse anti-GAPDH antibody [6C5] (ab8245) loading control staining at 1/20000 dilution, shown in red. In Western blot, ab211493 was shown to bind specifically to MEF2C. A band was observed at 55/60 kDa in wild-type THP-1 cell lysates with no signal observed at this size in MEF2C knockout cell line (ab313739). To generate this image, wild-type and MEF2C knockout THP-1 cell lysates were analysed. First, samples were run on an SDS-PAGE gel then transferred onto a nitrocellulose membrane. Membranes were blocked in 3 % milk in TBS-0.1 % Tween^® 20 (TBS-T) before incubation with primary antibodies overnight at 4 °C. Blots were washed four times in TBS-T, incubated with secondary antibodies for 1 h at room temperature, washed again four times then imaged. Secondary antibodies used were Goat anti-Rabbit IgG H&L 800CW and Goat anti-Mouse IgG H&L 680RD at 1/20000 dilution.

All lanes:

Western blot - Anti-MEF2C antibody [EPR19089-202] - ChIP Grade (ab211493) at 1/1000 dilution

Lane 1:

Wild-type THP-1 cell lysate at 20 µg

Lane 2:

MEF2C knockout THP-1 cell lysate at 20 µg

Lane 2:

Western blot - Human MEF2C knockout THP-1 cell line (<a href='/en-us/products/cell-lines/human-mef2c-knockout-thp-1-cell-line-ab313739'>ab313739</a>)

Lane 3:

Daudi cell lysate at 20 µg

Lane 4:

Jurkat cell lysate at 20 µg

Secondary

All lanes:

Goat anti-Rabbit IgG H&L 800CW and Goat anti-Mouse IgG H&L 680RD at 1/20000 dilution

Predicted band size: 51 kDa

Observed band size: 55/60 kDa,37 kDa

false

• WB

Unknown

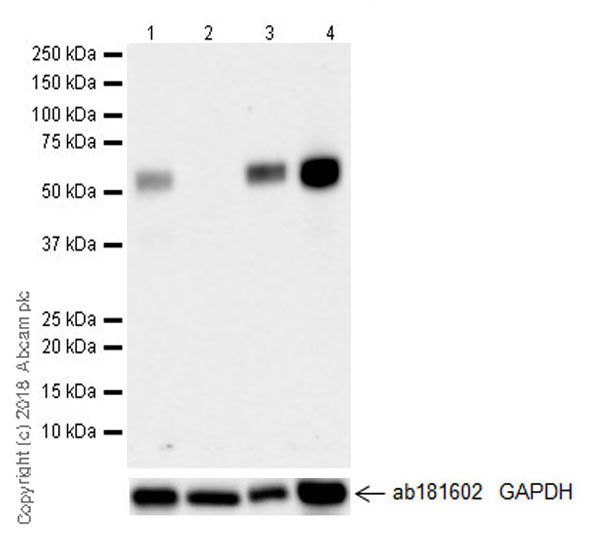

Western blot - Anti-MEF2C antibody [EPR19089-202] - ChIP Grade (AB211493)

Blocking and diluting buffer and concentration : 5% NFDM/TBST

Exposure time : 92 seconds.

The expression profile observed is consistent with the literature (PMID : 18450586). Negative control : Jurkat (PMID : 27876533)

All lanes:

Western blot - Anti-MEF2C antibody [EPR19089-202] - ChIP Grade (ab211493) at 1/1000 dilution

Lane 1:

Raji (human Burkitt's lymphoma B lymphocyte), whole cell lysate 20 μg

Lane 2:

Jurkat (human T cell leukemia T lymphocyte), whole cell lysate 20 μg

Lane 3:

Ramos (human Burkitt's lymphoma B lymphocyte), whole cell lysate 20μg

Lane 4:

Daudi (human Burkitt's lymphoma lymphoblast), whole cell lysate 20 μg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/50000 dilution

Predicted band size: 51 kDa

Observed band size: 50-60 kDa

false

• WB

Unknown

Western blot - Anti-MEF2C antibody [EPR19089-202] - ChIP Grade (AB211493)

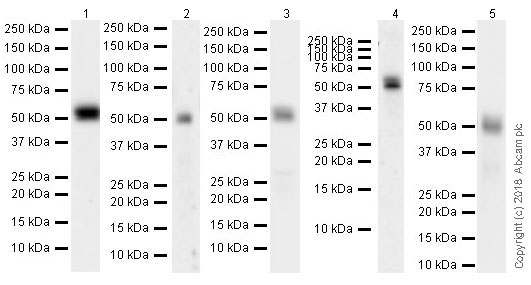

Blocking and diluting buffer and concentration : 5% NFDM/TBST

Exposure time :

Lanes 1-2,4 : 5 minutes

Lane 3 : 15 seconds

Lane 5 : 26 seconds

All lanes:

Western blot - Anti-MEF2C antibody [EPR19089-202] - ChIP Grade (ab211493) at 1/1000 dilution

Lane 1:

RAW264.7 (mouse Abelson murine leukemia virus-induced tumor macrophage), whole cell lysate at 10 µg

Lane 2:

NIH/3T3 (mouse embryonic fibroblast), whole cell lysate at 10 µg

Lane 3:

C6 (rat glial tumor glial cell), whole cell lysate at 10 µg

Lane 4:

Mouse brain lysate at 10 µg

Lane 5:

Rat brain lysate at 10 µg

Secondary

Lanes 1, 2, 3 and 5:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Lane 4:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/50000 dilution

Predicted band size: 51 kDa

Observed band size: 50-60 kDa

false

• WB

Unknown

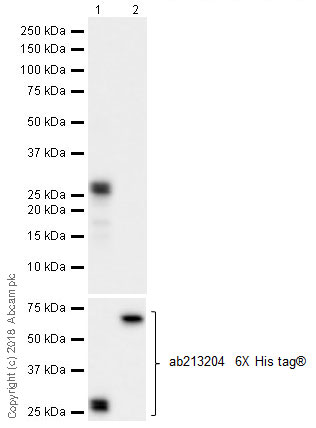

Western blot - Anti-MEF2C antibody [EPR19089-202] - ChIP Grade (AB211493)

Blocking and diluting buffer and concentration : 5% NFDM/TBST
Exposure time : 3 seconds.

All lanes:

Western blot - Anti-MEF2C antibody [EPR19089-202] - ChIP Grade (ab211493) at 1/1000 dilution

Lane 1:

Human MEF2C recombinant protein (aa271-493) 10 ng

Lane 2:

Human MEF2A recombinant protein (aa1-499, <a href='/en-us/products/proteins-peptides/recombinant-human-mef2a-protein-his-tag-ab204772'>ab204772</a>) 10 ng

Lane 2:

Western blot - Human MEF2C knockout THP-1 cell line (<a href='/en-us/products/cell-lines/human-mef2c-knockout-thp-1-cell-line-ab288702'>ab288702</a>)

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Predicted band size: 51 kDa

Observed band size: 26 kDa

false
