Anti-MEF2D antibody [EPR24993-10] - BSA and Azide free
- BOND RX™ Validated
- KO Validated
- RabMAb
- Recombinant
- What is this?
Be the first to review this product! Submit a review
|
(0 Publication)
Rabbit Recombinant Monoclonal MEF2D antibody. Carrier free. Suitable for ICC/IF, Flow Cyt (Intra), WB, IHC-P and reacts with Mouse, Human, Rat, Recombinant fragment - Human samples.
View Alternative Names
Myocyte-specific enhancer factor 2D, MEF2D

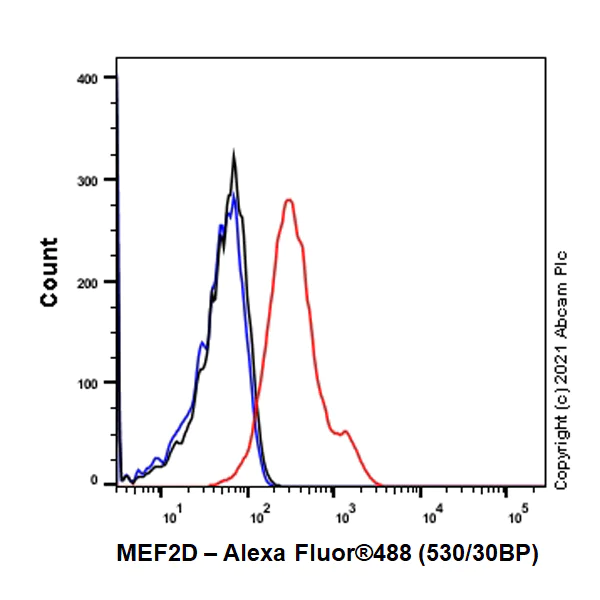

- Flow Cyt (Intra)
Supplier Data
Flow Cytometry (Intracellular) - Anti-MEF2D antibody [EPR24993-10] - BSA and Azide free (AB282733)
This data was developed using ab282731, the same antibody clone in a different buffer formulation.
Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized THP-1 (Human monocytic leukemia monocyte) cells labelling MEF2D with ab282731 at 1/500 dilution (0.1 ug) (Red) compared with a Rabbit monoclonal IgG (ab172730) (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). A Goat anti rabbit IgG (Alexa Fluor® 488, ab150077) at 1/2000 dilution was used as the secondary antibody.

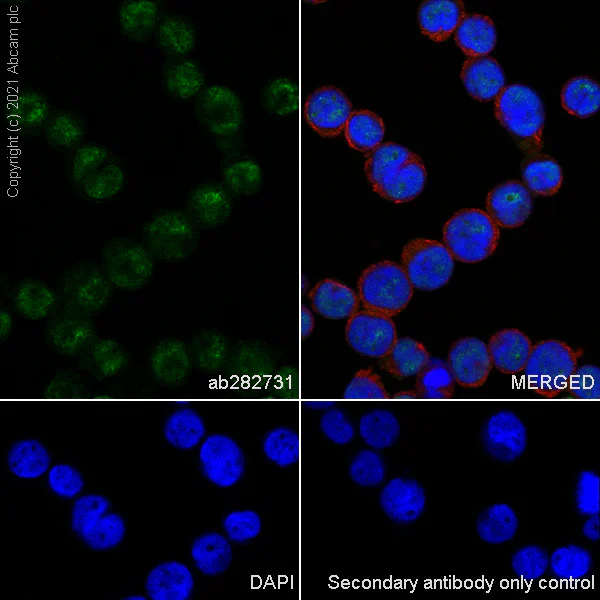

- ICC/IF
Supplier Data
Immunocytochemistry/ Immunofluorescence - Anti-MEF2D antibody [EPR24993-10] - BSA and Azide free (AB282733)
This data was developed using ab282731, the same antibody clone in a different buffer formulation.
Immunofluorescent analysis of 100% methanol-fixed, 0.1% TritonX-100 permeabilized RAW 264.7 cells labelling MEF2D with ab282731 at 1/50 (11.42 ug/ml) dilution, followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green) Confocal image showing mainly nuclear staining in RAW 264.7 cells is observed.
ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) was used to counterstain tubulin at 1/200 dilution (Red). The Nuclear counterstain was DAPI (Blue).
Secondary antibody only control : Secondary antibody is ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution.

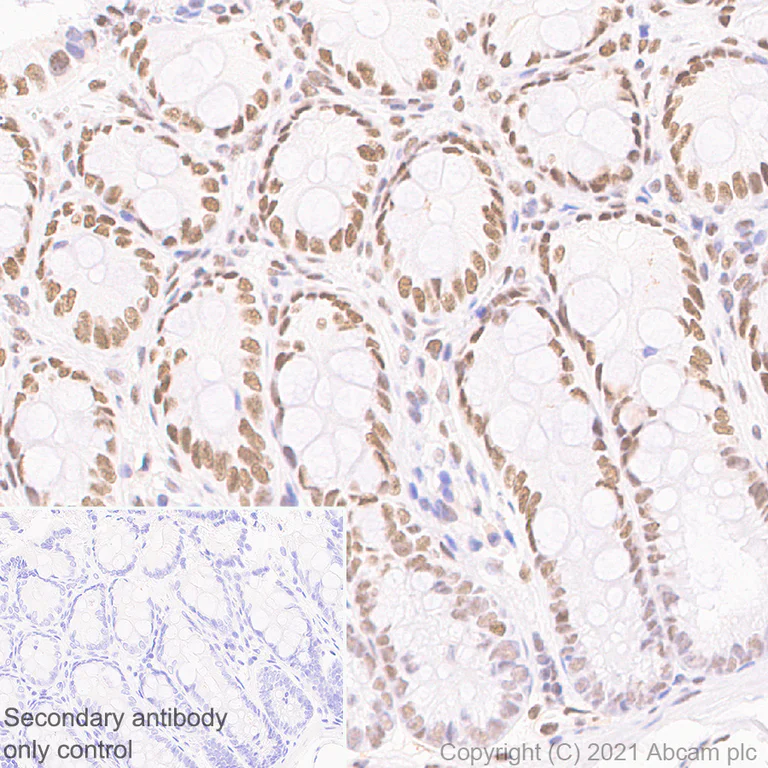

- IHC-P
Supplier Data
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MEF2D antibody [EPR24993-10] - BSA and Azide free (AB282733)
This data was developed using ab282731, the same antibody clone in a different buffer formulation.
Immunohistochemical analysis of paraffin-embedded Rat colon tissue labelling MEF2D with ab282731 at 1/2000 (0.286 ug/ml) dilution followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Nuclear staining on rat colon. The section was incubated with ab282731 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument Counterstained with Hematoxylin.
Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins

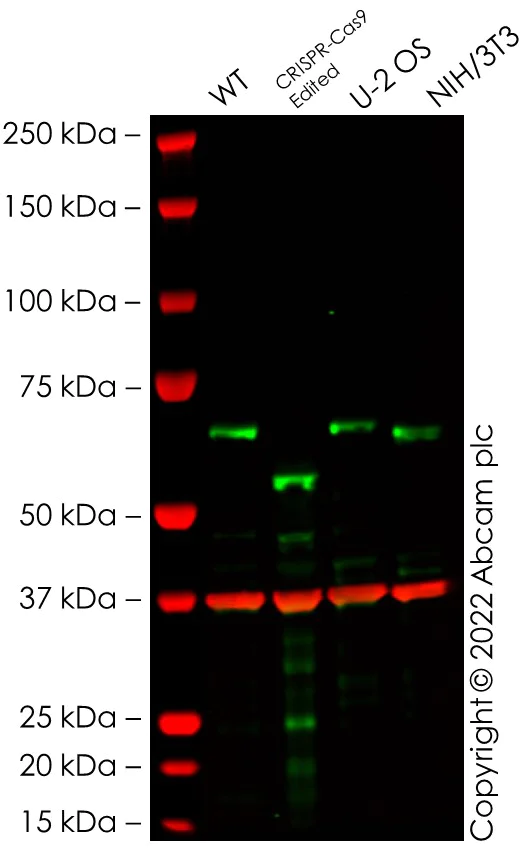

- WB
Lab
Western blot - Anti-MEF2D antibody [EPR24993-10] - BSA and Azide free (AB282733)
This data was developed using ab282731, the same antibody clone in a different buffer formulation. False colour image of Western blot : Anti-MEF2D antibody [EPR24993-10] staining at 1/1000 dilution, shown in green; Mouse anti-GAPDH antibody [6C5] (ab8245) loading control staining at 1/20000 dilution, shown in red. In Western blot, ab282731 was shown to bind specifically to MEF2D. A band was observed at 67 kDa in wild-type HeLa cell lysates with no signal observed at this size in mef2d CRISPR-Cas9 edited cell line ab281636. The band observed in the CRISPR-Cas9 edited lysate lane below 67 kDa is likely to represent a truncated form of MEF2D. This has not been investigated further and the functional properties of the gene product have not been determined. To generate this image, wild-type and mef2d CRISPR-Cas9 edited HeLa cell lysates were analysed. First, samples were run on an SDS-PAGE gel then transferred onto a nitrocellulose membrane. Membranes were blocked in 3 % milk in TBS-0.1 % Tween® 20 (TBS-T) before incubation with primary antibodies overnight at 4 °C. Blots were washed four times in TBS-T, incubated with secondary antibodies for 1 h at room temperature, washed again four times then imaged. Secondary antibodies used were Goat anti-Rabbit IgG H&L 800CW and Goat anti-Mouse IgG H&L 680RD at 1/20000 dilution.
Lanes 1 - 4:
Western blot - Anti-MEF2D antibody [EPR24993-10] (<a href='/en-us/products/primary-antibodies/mef2d-antibody-epr24993-10-ab282731'>ab282731</a>) at 1/1000 dilution
Lanes 1 - 4:
Western blot - Anti-MEF2D antibody [EPR24993-10] - BSA and Azide free (ab282733) at 1/1000 dilution
Lane 1:
Wild-type HeLa cell lysate at 20 µg
Lane 2:
Western blot - Human MEF2D knockout HeLa cell line (ab281636)
Lane 2:
mef2d CRISPR-Cas9 edited HeLa cell lysate at 20 µg
Lane 3:
U-2 OS cell lysate at 20 µg
Lane 4:
NIH/3T3 cell lysate at 20 µg
Secondary
All lanes:
oat anti-Rabbit IgG H&L 800CW and Goat anti-Mouse IgG H&L 680RD at 1/20000 dilution
Observed band size: 67 kDa
false

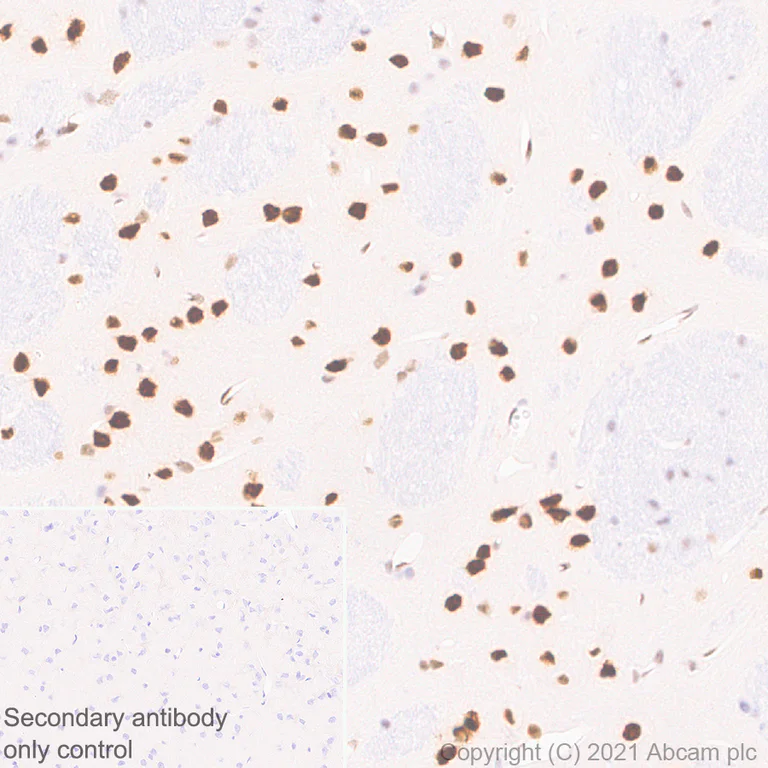

- IHC-P
Supplier Data
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MEF2D antibody [EPR24993-10] - BSA and Azide free (AB282733)
This data was developed using ab282731, the same antibody clone in a different buffer formulation.
Immunohistochemical analysis of paraffin-embedded Mouse cerebrum tissue labelling MEF2D with ab282731 at 1/2000 (0.286 ug/ml) dilution followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Nuclear staining on mouse cererbum (PMID : 28738418). The section was incubated with ab282731 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument Counterstained with Hematoxylin.
Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins
- ICC/IF
Supplier Data
Immunocytochemistry/ Immunofluorescence - Anti-MEF2D antibody [EPR24993-10] - BSA and Azide free (AB282733)
This data was developed using ab282731, the same antibody clone in a different buffer formulation.
Immunofluorescent analysis of 100% methanol-fixed, 0.1% TritonX-100 permeabilized THP-1 cells labelling MEF2D with ab282731 at 1/50 (11.42 ug/ml) dilution, followed by ab150077 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) antibody at 1/1000 dilution (Green) Confocal image showing mainly nuclear staining in THP-1 cells is observed.
ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) was used to counterstain tubulin at 1/200 dilution (Red). The Nuclear counterstain was DAPI (Blue).
Secondary antibody only control : Secondary antibody is ab150077 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) at 1/1000 dilution.
- IHC-P
Supplier Data
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MEF2D antibody [EPR24993-10] - BSA and Azide free (AB282733)
This data was developed using ab282731, the same antibody clone in a different buffer formulation.
Immunohistochemical analysis of paraffin-embedded Mouse testis tissue labelling MEF2D with ab282731 at 1/2000 (0.286 ug/ml) dilution followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Nuclear staining on mouse testis (PMID : 24694307). The section was incubated with ab282731 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument Counterstained with Hematoxylin.
Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins
- IHC-P
Supplier Data
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MEF2D antibody [EPR24993-10] - BSA and Azide free (AB282733)
This data was developed using ab282731, the same antibody clone in a different buffer formulation.
Immunohistochemical analysis of paraffin-embedded Rat cerebrum tissue labelling MEF2D with ab282731 at 1/2000 (0.286 ug/ml) dilution followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Nuclear staining on rat cererbum (PMID : 28738418). The section was incubated with ab282731 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument Counterstained with Hematoxylin.
Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins

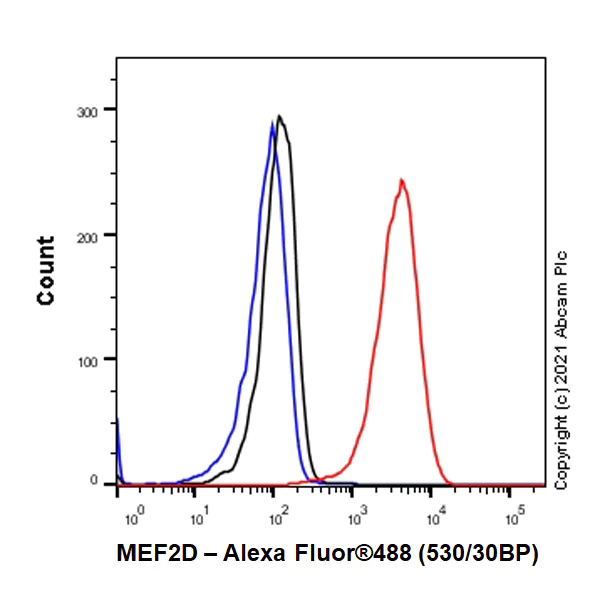

- Flow Cyt (Intra)
Supplier Data
Flow Cytometry (Intracellular) - Anti-MEF2D antibody [EPR24993-10] - BSA and Azide free (AB282733)
This data was developed using ab282731, the same antibody clone in a different buffer formulation.
Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized RAW 264.7 (mouse Abelson murine leukemia virus-induced tumor macrophage) cells labelling MEF2D with ab282731 at 1/500 dilution (0.1 ug) (Red) compared with a Rabbit monoclonal IgG (ab172730) (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). A Goat anti rabbit IgG (Alexa Fluor® 488, ab150077) at 1/2000 dilution was used as the secondary antibody.
- WB
Lab

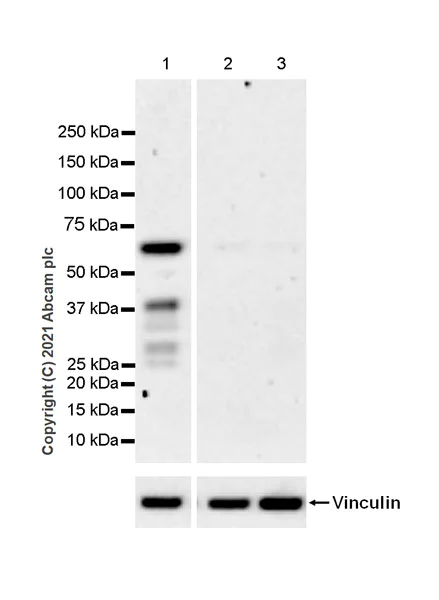

Western blot - Anti-MEF2D antibody [EPR24993-10] - BSA and Azide free (AB282733)
This data was developed using ab282731, the same antibody clone in a different buffer formulation.
Blocking and diluting buffer and concentration : 5% NFDM/TBST
Low expression : SW480/ DLD-1 (PMID : 27364559).
Exposure time : 147 seconds
All lanes:
Western blot - Anti-MEF2D antibody [EPR24993-10] (<a href='/en-us/products/primary-antibodies/mef2d-antibody-epr24993-10-ab282731'>ab282731</a>) at 1/1000 dilution
Lane 1:
THP-1 (Human monocytic leukemia monocyte) whole cell lysates at 20 µg
Lane 2:
SW480 (human colorectal adenocarcinoma epithelial cell) whole cell lysate at 20 µg
Lane 3:
DLD-1 (human colon epithelial) whole cell lysate at 20 µg
Secondary
All lanes:
Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/50000 dilution
Predicted band size: 56 kDa
Observed band size: 40 kDa,70 kDa
false

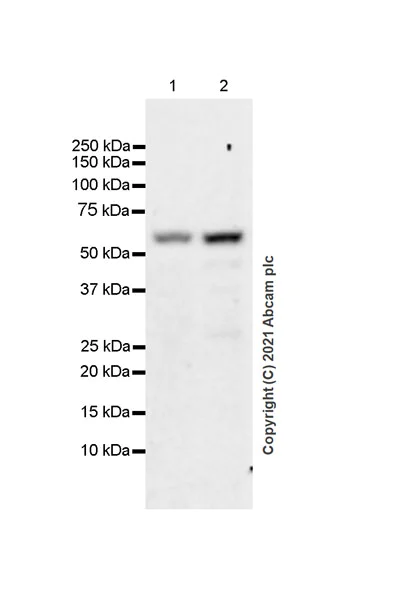

- WB
Lab
Western blot - Anti-MEF2D antibody [EPR24993-10] - BSA and Azide free (AB282733)
This data was developed using ab282731, the same antibody clone in a different buffer formulation.
Blocking and diluting buffer and concentration : 5% NFDM/TBST
Lysates were made freshly and used in WB test immediately to minimize protein degradation.
Exposure time : 147 seconds
All lanes:
Western blot - Anti-MEF2D antibody [EPR24993-10] (<a href='/en-us/products/primary-antibodies/mef2d-antibody-epr24993-10-ab282731'>ab282731</a>) at 1/1000 dilution
Lane 1:
RAW 264.7 (mouse Abelson murine leukemia virus-induced tumor macrophage) whole cell lysate at 20 µg
Lane 2:
2.4G2 (rat B cell lymphoma B lymphocyte) whole cell lysate at 20 µg
Secondary
All lanes:
Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/50000 dilution
Predicted band size: 56 kDa
Observed band size: 70 kDa
false

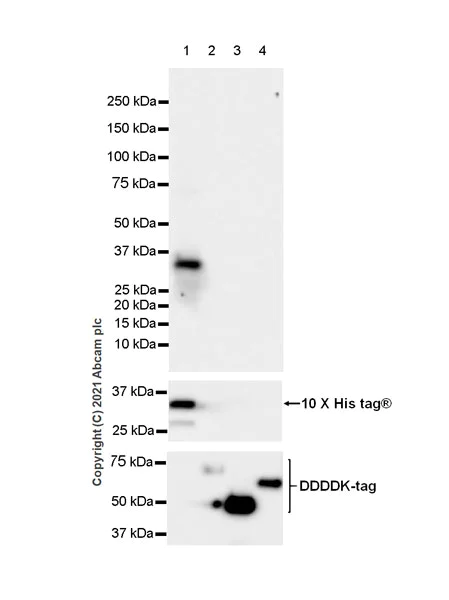

- WB
Lab
Western blot - Anti-MEF2D antibody [EPR24993-10] - BSA and Azide free (AB282733)
This data was developed using ab282731, the same antibody clone in a different buffer formulation.
Blocking and diluting buffer and concentration : 5% NFDM/TBST
His-tagged human MEF2D recombinant protein (aa54-328) 10ng
Myc/DDDDK-tagged human MEF2A recombinant protein 10ng
Myc/DDDDK-tagged human MEF2B recombinant protein 10ng
Myc/DDDDK-tagged human MEF2C recombinant protein 10ng
Exposure time : 10 seconds
All lanes:
Western blot - Anti-MEF2D antibody [EPR24993-10] (<a href='/en-us/products/primary-antibodies/mef2d-antibody-epr24993-10-ab282731'>ab282731</a>) at 1/1000 dilution
Lane 1:
His-tagged human MEF2D recombinant protein at 0.01 µg
Lane 2:
Myc/DDDDK-tagged human MEF2A recombinant protein at 0.01 µg
Lane 3:
Myc/DDDDK-tagged human MEF2B recombinant protein at 0.01 µg
Lane 4:
Myc/DDDDK-tagged human MEF2C recombinant protein at 0.01 µg
Secondary
All lanes:
Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/50000 dilution
Predicted band size: 56 kDa
Observed band size: 31 kDa
false
Related conjugates and formulations (1)
-
Anti-MEF2D antibody [EPR24993-10]
Reactivity data
Product details
ab282733 is the carrier-free version of ab282731.
Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.
What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:
- - High batch-to-batch consistency and reproducibility
- - Improved sensitivity and specificity
- - Long-term security of supply
- - Animal-free batch production
For more information, read more on recombinant antibodies.
Conjugation ready
Our carrier-free antibodies are typically supplied in a PBS-only formulation, purified and free of BSA, sodium azide and glycerol. This conjugation-ready format is designed for use with fluorochromes, metal isotopes, oligonucleotides, and enzymes, which makes them ideal for antibody labelling, functional and cell-based assays, flow-based assays (e.g. mass cytometry) and Multiplex Imaging applications.
Use our conjugation kits for antibody conjugates that are ready-to-use in as little as 20 minutes with 1 minute hands-on-time and 100% antibody recovery: available for fluorescent dyes, HRP, biotin and gold.
Compatibility
This product is compatible with the Maxpar® Antibody Labeling Kit from Fluidigm, without the need for antibody preparation. Maxpar® is a trademark of Fluidigm Canada Inc.
Properties and storage information
Form
Purification technique
Storage buffer
Shipped at conditions
Appropriate short-term storage conditions
Appropriate long-term storage conditions
Supplementary information
This supplementary information is collated from multiple sources and compiled automatically.
Biological function summary
MEF2D plays a significant role in muscle and neuronal development and is part of the MEF2 family which includes other factors such as MEF2A MEF2B and MEF2C. These transcription factors form a complex with other proteins including histone deacetylases (HDACs) to regulate gene expression. MEF2D acts as a mediator between signaling pathways and genes responsible for cell growth survival and apoptosis. It helps modulate cellular responses to various external and internal cues adjusting transcriptional programs accordingly.
Pathways
MEF2D is a significant component in the mitogen-activated protein kinase (MAPK) and calcium/calmodulin-dependent protein kinase (CaMK) signaling pathways. These pathways influence muscle differentiation and neuronal plasticity. MEF2D cooperates with related proteins such as CaMKIV which phosphorylates MEF2D leading to the activation of specific target genes. Its role interconnects with other members of the MEF2 family and influences cellular processes linked to differentiation and survival.
