Anti-MelanA antibody [EP1422Y] - Low endotoxin, Azide free

7 product images

•

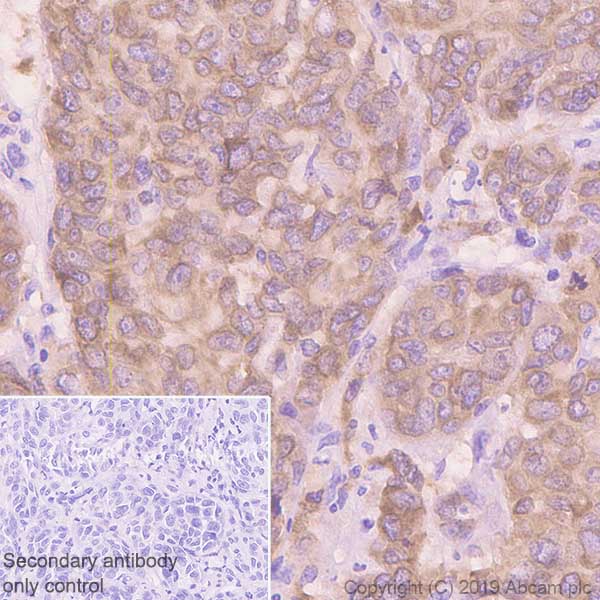

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MelanA antibody [EP1422Y] - Low endotoxin, Azide free (ab170090)

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human melanoma tissue sections labeling MelanA with Purified Anti-MelanA antibody [EP1422Y] ab51061 at 1/1000 dilution (1.15 μg/mL). Heat mediated antigen retrieval using Bond™™ Epitope Retrieval Solution 2 (pH 9.0). Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101) was used as the secondary antibody. Negative control: PBS instead of the primary antibody. Hematoxylin was used as a counterstain.
  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-MelanA antibody [EP1422Y] ab51061).

•

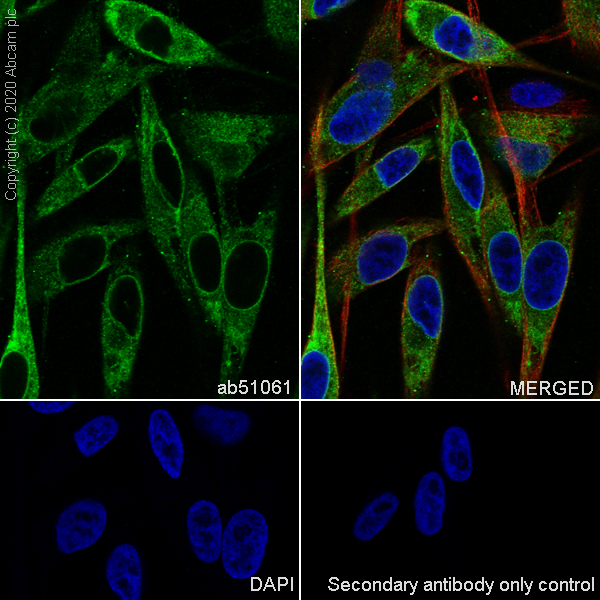

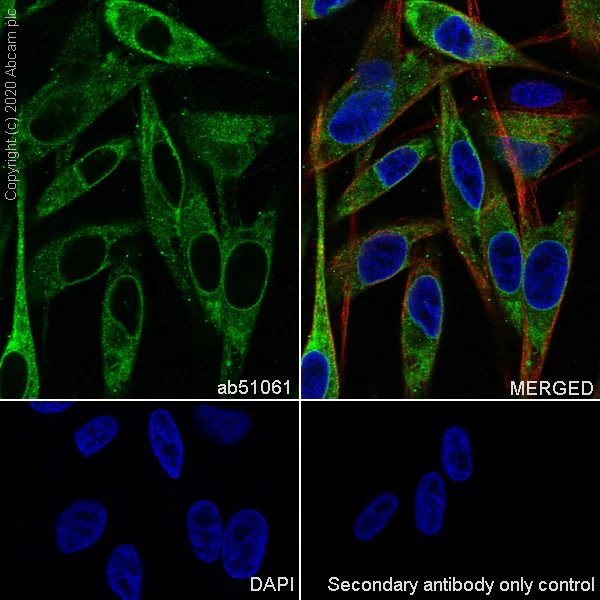

  Immunocytochemistry/ Immunofluorescence - Anti-MelanA antibody [EP1422Y] - Low endotoxin, Azide free (ab170090)

  Immunocytochemistry/ Immunofluorescence analysis of MeWo (Human malignant melanoma fibroblast) cells labeling MelanA with Purified Anti-MelanA antibody [EP1422Y] ab51061 at 1/100 dilution (10 µg/mL). Cells were fixed in 4% Paraformaldehyde and permeabilized with 0.1% tritonX-100. Cells were counterstained with Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor® 594) 1/200 (2.5 µg/mL). Goat anti rabbit IgG (Alexa Fluor® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) was used as the secondary antibody at 1/1000 (2 µg/mL) dilution. DAPI (blue) was used as nuclear counterstain. PBS instead of the primary antibody was used as the secondary antibody only control.
  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-MelanA antibody [EP1422Y] ab51061).

•

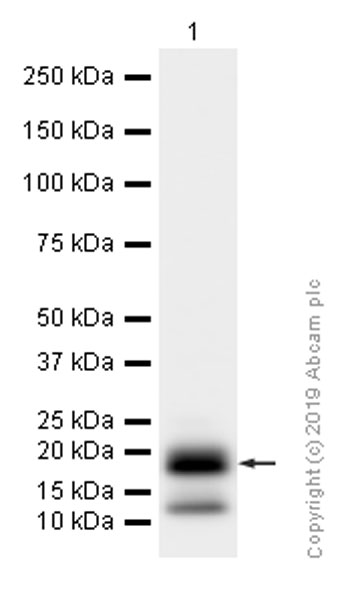

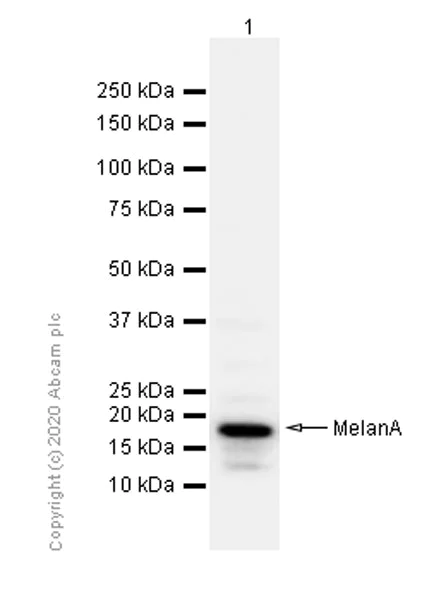

  Western blot - Anti-MelanA antibody [EP1422Y] - Low endotoxin, Azide free (ab170090)

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-MelanA antibody [EP1422Y] ab51061).

  All lanes: Western blot - Anti-MelanA antibody [EP1422Y] (Anti-MelanA antibody [EP1422Y] ab51061) at 1/20000 dilution

  All lanes: Human melanoma lysates at 15 µg

  Secondary

  All lanes: Goat Anti-Rabbit IgG (HRP) with minimal cross-reactivity with human IgG at 1/2000 dilution

  Predicted band size: 13 kDa

  Observed band size: 20 kDa

•

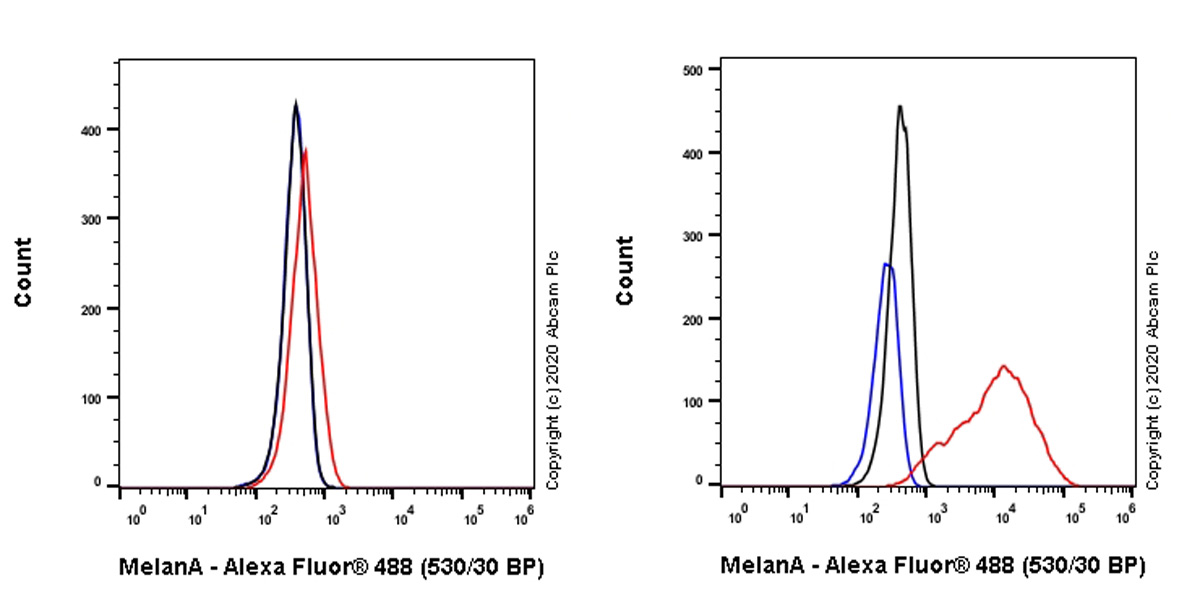

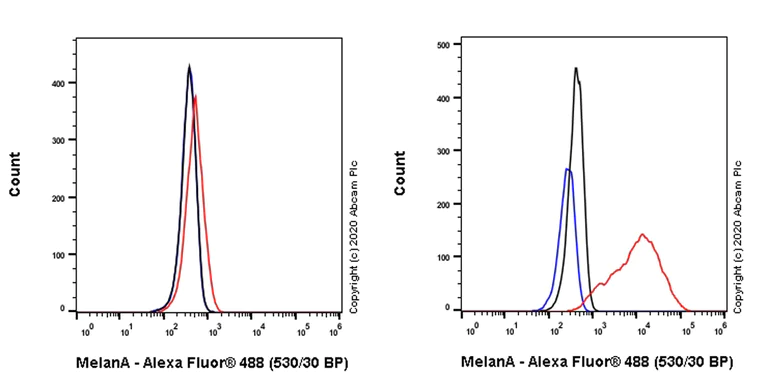

  Flow Cytometry (Intracellular) - Anti-MelanA antibody [EP1422Y] - Low endotoxin, Azide free (ab170090)

  Intracellular Flow Cytometry analysis of A375 (Human malignant melanoma epithelial cell, Left) / MeWo (Human malignant melanoma fibroblast, Right) cells labeling MelanA with Purified Anti-MelanA antibody [EP1422Y] ab51061 at 1/1000 dilution (1 μg/mL) (Red). Cells were fixed with 4% Paraformaldehyde and permeabilised with 90% Methanol. A Goat anti rabbit IgG (Alexa Fluor^® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) secondary antibody was used at 1/2000. Isotype control - Rabbit monoclonal IgG (Black). Unlabeled control - Cell without incubation with primary antibody and secondary antibody (Blue). This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-MelanA antibody [EP1422Y] ab51061).

•

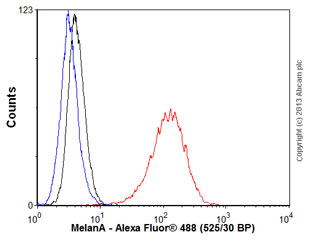

  Flow Cytometry (Intracellular) - Anti-MelanA antibody [EP1422Y] - Low endotoxin, Azide free (ab170090)

  Overlay histogram showing Malme-3M cells stained with Anti-MelanA antibody [EP1422Y] ab51061 (red line). The cells were fixed with 80% methanol (5 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (Anti-MelanA antibody [EP1422Y] ab51061, 1/1000 dilution) for 30 min at 22°C. The secondary antibody used was Alexa Fluor^® 488 goat anti-rabbit IgG (H+L) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) at 1/2000 dilution for 30 min at 22°C. Isotype control antibody (black line) was rabbit IgG (monoclonal) (0.1μg/1x10⁶ cells) used under the same conditions. Unlabelled sample (blue line) was also used as a control. Acquisition of >5,000 events were collected using a 20mW Argon ion laser (488nm) and 525/30 bandpass filter.


  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-MelanA antibody [EP1422Y] ab51061) (un-purified).

•

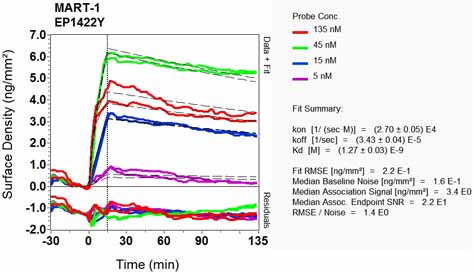

  OI-RD Scanning - Anti-MelanA antibody [EP1422Y] - Low endotoxin, Azide free (ab170090)

  We have systematically measured KD (the equilibrium dissociation constant between the antibody and its antigen), of more than 840 recombinant antibodies to assess not only their individual KD values but also to see the average affinity of antibody.
  Based on the comparison with published literature values for mouse monoclonal antibodies, Recombinant antibodies appear to be on average 1-2 order of magnitude higher affinity.

•

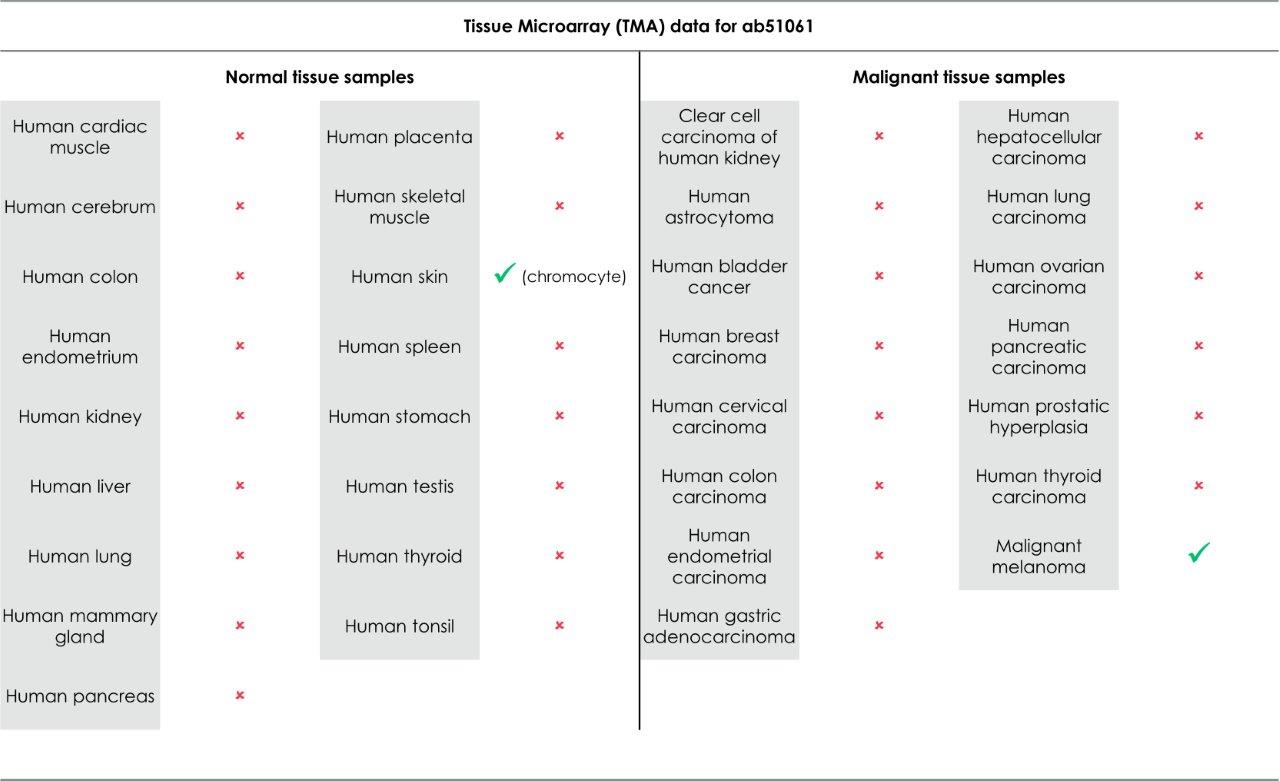

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MelanA antibody [EP1422Y] - Low endotoxin, Azide free (ab170090)

  Tissue Microarrays stained for "Anti-MelanA antibody [EP1422Y]" using "Anti-MelanA antibody [EP1422Y] ab51061"in immunohistochemical analysis. This table provides a detailed overview of positive (tick mark) and negative (cross mark) staining per sample type tested. The sections were pre-treated using Heat mediated antigen retrieval using Bond™ Epitope Retrieval Solution 2 (pH 9.0) for 20 minutes. The sections were incubated with Anti-MelanA antibody [EP1422Y] ab51061 for 30 mins at room temperature followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101). The immunostaining was performed on a Leica Biosystems BOND® RX instrument.
