Anti-MelanA antibody [EPR20380] - BSA and Azide free

8 product images

•

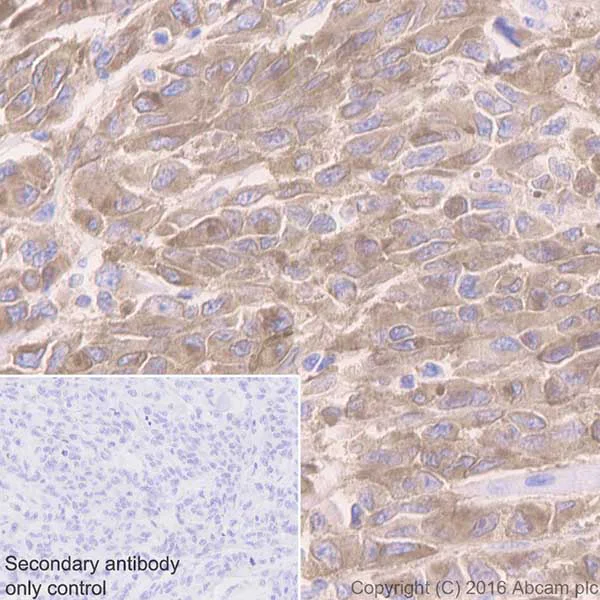

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MelanA antibody [EPR20380] - BSA and Azide free (ab222483)

  Immunohistochemical analysis of paraffin-embedded human malignant melanoma tissue labeling MelanA with Anti-MelanA antibody [EPR20380] ab210546 at 1/1000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/500 dilution.


  Cytoplasmic staining on human malignant melanoma is observed [PMID: 17445277] [PMID: 21840568].

  Counter stained with Hematoxylin.

  Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/500 dilution.

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-MelanA antibody [EPR20380] ab210546).

  Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

•

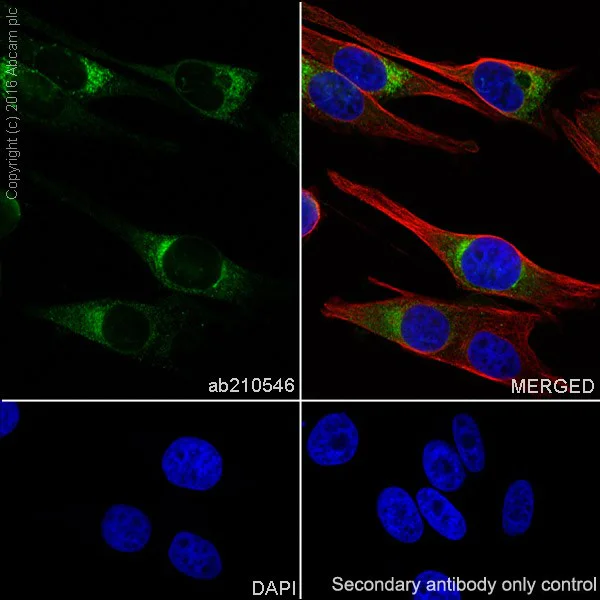

  Immunocytochemistry/ Immunofluorescence - Anti-MelanA antibody [EPR20380] - BSA and Azide free (ab222483)

  Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized MeWo (Human malignant melanoma cell line) cells labeling MelanA with Anti-MelanA antibody [EPR20380] ab210546 at 1/1000 dilution, followed by Goat anti-rabbit IgG (Alexa Fluor^® 488) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) secondary antibody at 1/1000 dilution (green).

  Confocal image showing cytoplasmic staining on MeWo cell line.

  The nuclear counterstain is DAPI (blue).

  Tubulin is detected with Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889 (Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor^® 594)) at 1/200 dilution (red).

  Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Goat anti-rabbit IgG (Alexa Fluor^® 488) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) at 1/1000 dilution.

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-MelanA antibody [EPR20380] ab210546).

•

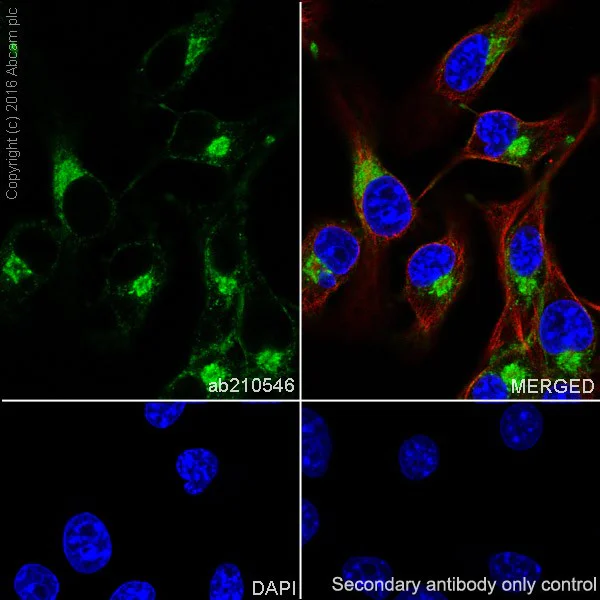

  Immunocytochemistry/ Immunofluorescence - Anti-MelanA antibody [EPR20380] - BSA and Azide free (ab222483)

  Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized B16F0 (Mouse melanoma cell line) cells labeling MelanA with Anti-MelanA antibody [EPR20380] ab210546 at 1/1000 dilution, followed by Goat anti-rabbit IgG (Alexa Fluor^® 488) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) secondary antibody at 1/1000 dilution (green).

  Confocal image showing cytoplasmic staining on B16F0 cell line.

  The nuclear counterstain is DAPI (blue).

  Tubulin is detected with Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889 (Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor^® 594)) at 1/200 dilution (red).

  Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Goat anti-rabbit IgG (Alexa Fluor^® 488) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) at 1/1000 dilution.

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-MelanA antibody [EPR20380] ab210546).

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MelanA antibody [EPR20380] - BSA and Azide free (ab222483)

  Immunohistochemical analysis of paraffin-embedded human metastatic malignant melanoma tissue labeling MelanA with Anti-MelanA antibody [EPR20380] ab210546 at 1/1000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/500 dilution.


  Cytoplasmic staining on human metastatic malignant melanoma is observed [PMID: 17445277] [PMID: 21840568].

  Counter stained with Hematoxylin.

  Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/500 dilution.

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-MelanA antibody [EPR20380] ab210546).

  Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MelanA antibody [EPR20380] - BSA and Azide free (ab222483)

  Immunohistochemical analysis of paraffin-embedded mouse hair bulb tissue labeling MelanA with Anti-MelanA antibody [EPR20380] ab210546 at 1/1000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/500 dilution.


  Cytoplasmic staining on melanocytes of mouse hair bulb is observed.

  Counter stained with Hematoxylin.

  Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/500 dilution.

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-MelanA antibody [EPR20380] ab210546).

  Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

•

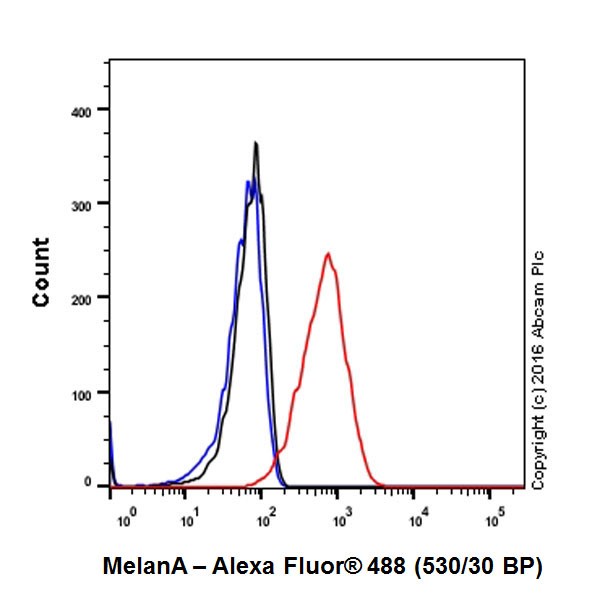

  Flow Cytometry (Intracellular) - Anti-MelanA antibody [EPR20380] - BSA and Azide free (ab222483)

  Intracellular flow cytometric analysis of 4% paraformaldehyde-fixed B16F0 (Mouse melanoma cell line) cells labeling MelanA with Anti-MelanA antibody [EPR20380] ab210546 at 1/500 dilution (red) compared with a rabbit monoclonal IgG isotype control (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730; black) and an unlabeled control (cells without incubation with primary antibody and secondary antibody; blue). Goat anti rabbit IgG (Alexa Fluor^® 488) at 1/2000 dilution was used as the secondary antibody.


  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-MelanA antibody [EPR20380] ab210546).

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MelanA antibody [EPR20380] - BSA and Azide free (ab222483)

  Immunohistochemical analysis of paraffin-embedded human liver cancer tissue labeling MelanA with Anti-MelanA antibody [EPR20380] ab210546 at 1/1000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/500 dilution.


  Negative control: no staining on human liver cancer [PMID: 10096358].

  Counter stained with Hematoxylin.

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-MelanA antibody [EPR20380] ab210546).

  Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

•

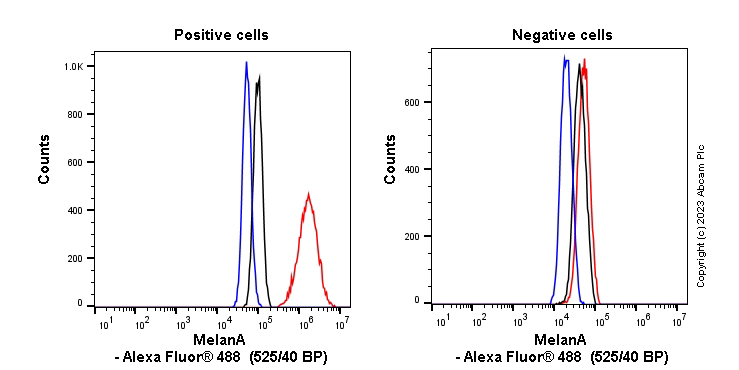

  Flow Cytometry (Intracellular) - Anti-MelanA antibody [EPR20380] - BSA and Azide free (ab222483)

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-MelanA antibody [EPR20380] ab210546).
  Flow cytometry overlay histogram showing left Malme-3M positive cells and right negative HEK293 stained with Anti-MelanA antibody [EPR20380] ab210546 (red line). The cells were fixed with 80% methanol (5 min) and then permeabilised with 0.1 % PBS-Triton X-100 for 15 min. The cells were then incubated in 1x PBS containing 10% normal goat serum to block non-specific protein-protein interaction followed by the antibody (Anti-MelanA antibody [EPR20380] ab210546) (1x 106 in 100μl at 0.2μg/ml (1/10500)) for 30min at 22°C.

  The secondary antibody Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed was incubated at 1/4000 for 30min at 22°C

  Isotype control antibody (black line) was Recombinant Rabbit IgG, monoclonal [EPR25A] - Isotype Control used at the same concentration and conditions as the primary antibody. Unlabelled sample (blue line) was also used as a control.

  Acquisition of >5000 events were collected using a 50 mW Blue laser (488nm) and 525/40 bandpass filter.

  This antibody gave a positive signal in Malme-3M Fixed with 4% formaldehyde (10 min) / permeabilised with 0.1 % PBS-Triton X-100 for 15 min under the same conditions.
