Anti-Metabotropic Glutamate Receptor 5 antibody [EPR2425Y]

9 product images

•

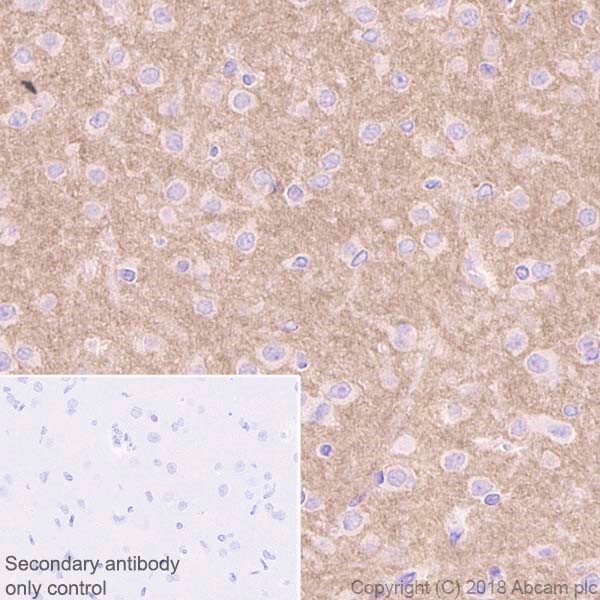

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Metabotropic Glutamate Receptor 5 antibody [EPR2425Y] (ab76316)

  Immunohistochemical analysis of Paraffin-embedded mouse cerebrum tissue sections labeling Metabotropic Glutamate Receptor 5 with ab76316 at 1/400 dilution followed by Goat Anti-Rabbit IgG H&L (HRP Polymer) secondary antibody. Sections were counterstained with Hematoxylin. Antigen retrieval was heat mediated using Antigen Retrieval Buffer (100X Tris-EDTA Buffer, pH 9.0) ab93684 (Tris/EDTA buffer, pH 9.0).Positive staining on mouse cerebrum.

•

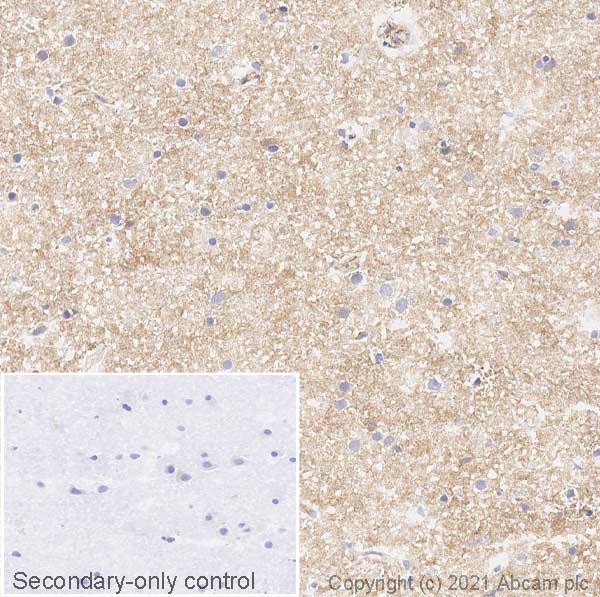

  Immunohistochemistry (Frozen sections) - Anti-Metabotropic Glutamate Receptor 5 antibody [EPR2425Y] (ab76316)

  IHC image of Metabotropic Glutamate Receptor 5 staining in a section of frozen normal human hippocampus* performed on a Leica BOND™ system using the standard protocol. The section was fixed in 10% paraformaldehyde (10 min) prior to staining. The section was incubated with ab76316, 1 μg/ml, for 15 mins at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX. The inset secondary-only control image is taken from an identical assay without primary antibody.



  For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times.


  *Tissue obtained from the Human Research Tissue Bank, supported by the NIHR Cambridge Biomedical Research Centre

•

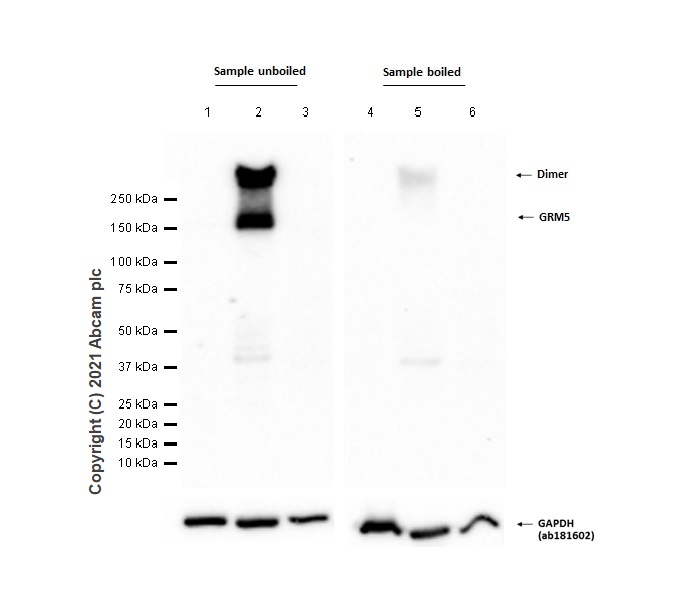

  Western blot - Anti-Metabotropic Glutamate Receptor 5 antibody [EPR2425Y] (ab76316)

  Buffer: 5% NFDM /TBST


  Please do not boil the sample before loading to the gel.

  GRM5 is a brain enriched protein, can be observed in most of the brain areas but low in spinal cord (PMID: 12783878).

  All lanes: Western blot - Anti-Metabotropic Glutamate Receptor 5 antibody [EPR2425Y] (ab76316) at 1/10000 dilution

  Lane 1: Human spinal cord tissue lysate was not boiled before loading to the gel at 20 µg

  Lane 2: Human hippocampus tissue lysate was not boiled before loading to the gel at 20 µg

  Lane 3: Human liver tissue lysate was not boiled before loading to the gel at 20 µg

  Lane 4: Human spinal cord tissue lysate was boiled before loading to the gel at 20 µg

  Lane 5: Human hippocampus tissue lysate was boiled before loading to the gel at 20 µg

  Lane 6: Human liver tissue lysate was boiled before loading to the gel at 20 µg

  Secondary

  All lanes: Goat Anti-Rabbit IgG (HRP) with minimal cross-reactivity with human IgG at 1/2000 dilution

  Predicted band size: 132 kDa

  Observed band size: 140 kDa, 280 kDa

•

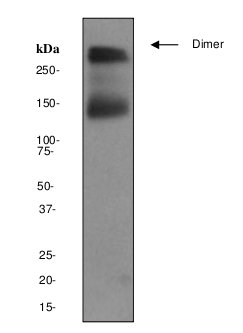

  Western blot - Anti-Metabotropic Glutamate Receptor 5 antibody [EPR2425Y] (ab76316)

  All lanes: Western blot - Anti-Metabotropic Glutamate Receptor 5 antibody [EPR2425Y] (ab76316) at 1/10000 dilution

  All lanes: mouse brain lysate at 10 µg

  Secondary

  All lanes: Goat anti-rabbit-HRP

  Developed using the ECL technique.

  Predicted band size: 132 kDa

  Observed band size: 140-150 kDa, >250 kDa

•

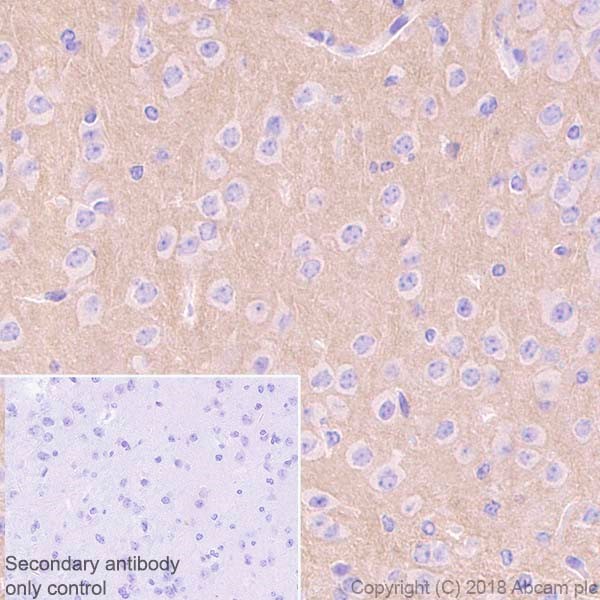

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Metabotropic Glutamate Receptor 5 antibody [EPR2425Y] (ab76316)

  Immunohistochemical analysis of Paraffin-embedded rat cerebrum tissue sections labeling Metabotropic Glutamate Receptor 5 with ab76316 at 1/400 dilution followed by Goat Anti-Rabbit IgG H&L (HRP Polymer) secondary antibody. Sections were counterstained with Hematoxylin. Antigen retrieval was heat mediated using Antigen Retrieval Buffer (100X Tris-EDTA Buffer, pH 9.0) ab93684 (Tris/EDTA buffer, pH 9.0).


  Positive staining on rat cerebrum.

•

  This image is courtesy of a customer review submitted by Carl Hobbs.

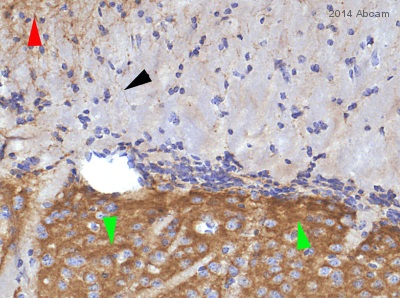

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Metabotropic Glutamate Receptor 5 antibody [EPR2425Y] (ab76316)

  ab76316 staining Metabotropic Glutmate Receptor 5 in mouse caudate putamen/ Corpus callosum by immunohistochemistry. Tissue was fixed with formaldehyde and citrate-mediated antigen retrieval was performed. Samples were blocked with 1% BSA for 10 minutes at 21°C, before incubation with the primary antibody (1/1000) for 2 hours at 21°C. A biotin conjugated goatanti-rabbit IgG secondary was used at 1/250.

•

  Flow Cytometry (Intracellular) - Anti-Metabotropic Glutamate Receptor 5 antibody [EPR2425Y] (ab76316)

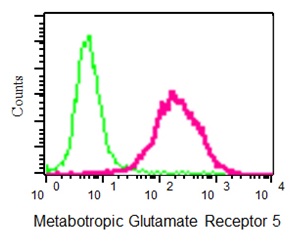

  Intracellular flow cytometric analysis of permeabilized SH-SY5Y cells using ab76316 (red) at 1/20 or a rabbit IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) as a negative control (green). The cells were permeabilized with 2% PFA and a goat anti-rabbit IgG FITC was used as the secondary at 1/150.


•

  Images courtesy of Professor Richard Weinberg, UNC School of Medicine

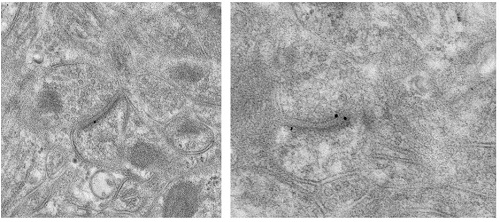

  Electron Microscopy - Anti-Metabotropic Glutamate Receptor 5 antibody [EPR2425Y] (ab76316)

  Postembedding immunogold labeling of mouse neocortex using Anti-Metabotropic Glutamate Receptor 5 antibody [EPR2425Y] (ab76316). The tissue was embedded in Lowicryl HM20 resin. 60 nm sections were then cut and mounted on nickel mesh grids before undergoing antigen retrieval for 15 minutes in 0.01 M citrate buffer, pH 6 at 60°C.


  The sections were then blocked in 1% BSA/TBSN pH 7.6 and incubated overnight at room temperature with Anti-Metabotropic Glutamate Receptor 5 antibody [EPR2425Y] (ab76316) at 1:250. Sections were washed twice in TBSN pH 7.6, treated with 1% normal donkey serum/TBSN pH 8.2 for 30 minutes, before being incubated with donkey anti-rabbit IgG-Au 10-20 nm at 1:20 for two hours at room temperature.

  Sections were then washed in TBSN pH 8.2, followed by water, before undergoing post-staining with 1% uranyl acetate and Sato's lead. They were then air dried before being transferred to an oven for 30 minutes at 60°C.

  In these images you can see gold immunoparticles on the postsynaptic density of synapses.

  (TBSN = 0.02M TRIS buffered saline (0.3 N, pH 7.6 or 8.2) with 0.005% Tergitol NP-10)

•

  Image collected and cropped by CiteAb under a CC-BY license from the publication

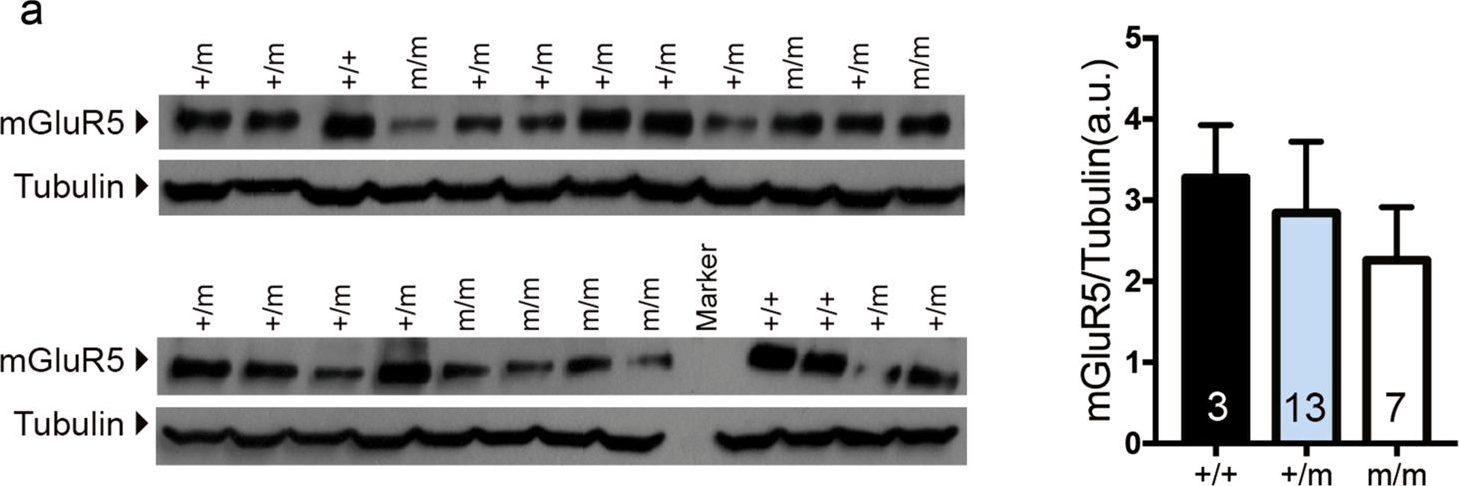

  Western blot - Anti-Metabotropic Glutamate Receptor 5 antibody [EPR2425Y] (ab76316)

  Metabotropic Glutamate Receptor 5 western blot using anti-Metabotropic Glutamate Receptor 5 antibody [EPR2425Y] ab76316. Publication image and figure legend from Chong, C. H., Li, Q., et al., 2019, Transl Psychiatry, PubMed 31582721.




  ab76316 was used in this publication in western blot. This may not be the same as the application(s) guaranteed by Abcam. For a full list of applications guaranteed by Abcam for ab76316 please see the product overview.

  Daily intraperitoneal injection of CDPPB in juvenile mutant mice has transient beneficial effects.a A trend of reduced synaptic mGluR5 in mutants (one-way ANOVA, P = 0.1707, n indicated in graph). b Schematic diagram of the CDPPB treatment protocol. The whole litter of mice from heterozygous breeding pairs was kept with their mother throughout the experiment. c Homozygous mutant mice had significantly better weight gain after drug treatment (two-way repeated measure ANOVA, group: F(3,490) = 6.59, P = 0.0012; no significant difference between +/+ and +/m. P < 0.001 for all other pairwise comparison between two groups. Number of mice (n) indicated in graph. Data collected from seven litters. d Same mice showed a trend of reduced injury when counted at postnatal day 26 in CDPPB-treated litters (P = 0.236). +/+, wild-type; +/m, heterozygotes; m/m, homozygous Lrrc7 mutant
