AB240598

Anti-MIC19 antibody

Be the first to review this product! Submit a review

|

(1 Publication)

Rabbit Polyclonal MIC19 antibody. Suitable for IP, WB and reacts with Human, Mouse samples. Cited in 1 publication. Immunogen corresponding to Synthetic Peptide within Human CHCHD3 aa 150 to C-terminus.

View Alternative Names

MIC19, MINOS3, CHCHD3, MICOS complex subunit MIC19, Coiled-coil-helix-coiled-coil-helix domain-containing protein 3

2 Images

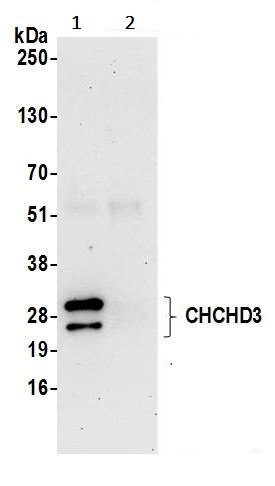

Immunoprecipitation - Anti-MIC19 antibody (AB240598)
  • IP

Supplier Data

Immunoprecipitation - Anti-MIC19 antibody (AB240598)

MIC19 was immunoprecipitated from Jurkat (human T cell leukemia cell line from peripheral blood) whole cell lysate (0.5 or 1 mg for IP, 20% of IP loaded) with ab240598 at 6 μg/reaction. Western blot was performed from the immunoprecipitate using ab240598 at 1 μg/ml.

Lane 1 : ab240598 IP in Jurkat whole cell lysate.
Lane 2 : Control IgG IP in Jurkat whole cell lysate.

Detection : Chemiluminescence with exposure time of 30 seconds.

All lanes:

Immunoprecipitation - Anti-MIC19 antibody (ab240598)

Predicted band size: 26 kDa

false

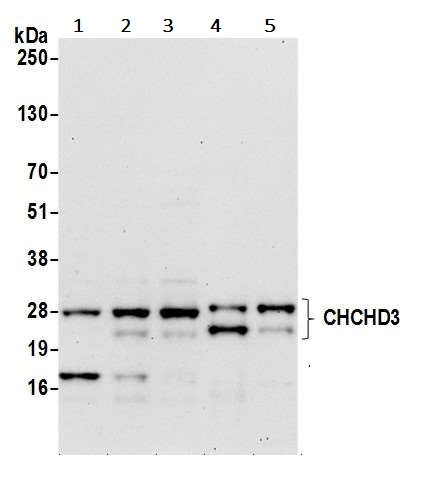

Western blot - Anti-MIC19 antibody (AB240598)
  • WB

Supplier Data

Western blot - Anti-MIC19 antibody (AB240598)

Lysates prepared using NETN lysis buffer.

All lanes:

Western blot - Anti-MIC19 antibody (ab240598) at 0.1 µg/mL

Lane 1:

HeLa (human epithelial cell line from cervix adenocarcinoma) whole cell lysate at 50 µg

Lane 2:

HEK-293T (human epithelial cell line from embryonic kidney transformed with large T antigen) whole cell lysate at 50 µg

Lane 3:

Jurkat (human T cell leukemia cell line from peripheral blood) whole cell lysate at 50 µg

Lane 4:

TCMK-1 (mouse kidney epithelial cell line) whole cell lysate at 50 µg

Lane 5:

NIH/3T3 (mouse embryo fibroblast cell line) whole cell lysate at 50 µg

Predicted band size: 26 kDa

true

Exposure time: 30s

Key facts

Host species

Rabbit

Clonality

Polyclonal

Isotype

IgG

Carrier free

No

Reacts with

Mouse, Human

Applications

IP, WB

applications

Immunogen

Synthetic Peptide within Human CHCHD3 aa 150 to C-terminus. The exact immunogen used to generate this antibody is proprietary information.

Q9NX63

style
left-column

Alternative Products

Primary Antibodies

AB154500

Anti-MIC19 antibody

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-MIC19 antibody (AB154500)

  • 0
  • 0
Primary Antibodies

AB224565

Anti-MIC19 antibody

Immunocytochemistry/ Immunofluorescence - Anti-MIC19 antibody (AB224565)

  • 0
  • 0

Complementary Products

Primary Antibodies

AB110329

Anti-Mitofilin antibody [2E4AD5] - Mitochondrial Marker

Lab Essentials

Western blot - Anti-Mitofilin antibody [2E4AD5] - Mitochondrial Marker (AB110329)

  • 5
  • 3
Primary Antibodies

AB197593

Anti-ketohexokinase antibody [EPR15847]

RabMAb|Recombinant|KO Validated

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ketohexokinase antibody [EPR15847] (AB197593)

  • 0
  • 0
Primary Antibodies

AB237760

Anti-SLC25A46/TB1 antibody

Immunocytochemistry/ Immunofluorescence - Anti-SLC25A46/TB1 antibody (AB237760)

  • 0
  • 0
Primary Antibodies

AB167096

Anti-TMEM135 antibody - C-terminal

Western blot - Anti-TMEM135 antibody - C-terminal (AB167096)

  • 0
  • 0
style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "IP" : {"fullname" : "Immunoprecipitation", "shortname":"IP"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "IP-species-checked": "testedAndGuaranteed", "IP-species-dilution-info": "2-10 µg/mg of lysate", "IP-species-notes": "<p></p>", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/2000 - 1/10000", "WB-species-notes": "<p></p>" }, "Mouse": { "IP-species-checked": "guaranteed", "IP-species-dilution-info": "", "IP-species-notes": "", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/2000 - 1/10000", "WB-species-notes": "<p></p>" } } }
style
left-column
style
left-column

Properties and storage information

Form
Liquid
Purification technique
Affinity purification Immunogen
Storage buffer
pH: 7 - 8 Preservative: 0.09% Sodium azide Constituents: Tris citrate/phosphate
Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

MIC19 also known as mitofilin is an integral component of the inner mitochondrial membrane part of the mitochondrial inner membrane organizing system (MINOS). It has a molecular mass of approximately 86 kDa. Expression of MIC19 occurs mainly in tissues with high energy demands including the heart and skeletal muscles. It plays a mechanical role in maintaining the structural integrity of mitochondrial cristae by anchoring specific protein components within the membrane.
Biological function summary

MIC19 contributes to the organization and functional maintenance of mitochondrial architecture by participating in the MINOS complex. This complex regulates the interaction between the inner and outer mitochondrial membranes ensuring efficient mitochondrial dynamics and biogenesis. Furthermore MIC19 supports mitochondrial bioenergetics by stabilizing cristae structures necessary for optimal electron transport chain function.

Pathways

MIC19 integrates into the processes controlling mitochondrial fusion and fission dynamics. It functions within the pathways that are essential for cellular energy metabolism and apoptosis. MIC19 influences these pathways through interactions with proteins such as OPA1 which regulates inner membrane fusion and with components of the electron transport chain. This integrative role highlights MIC19's involvement in maintaining cellular energy homeostasis and programmed cell death.

MIC19 associates with neurodegenerative diseases and cardiomyopathies. Altered expression or mutations in MIC19 can disrupt cristae architecture impairing mitochondrial function and energy production. This disruption relates to the disease processes seen in mitochondrial myopathy where proteins like OPA1 also play a role in mediating mitochondrial dysfunction. The interconnected roles of MIC19 and these associated proteins suggest potential therapeutic targets for intervention in mitochondrial-related conditions.
style
left-column
style
left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:
style
left-column

Target data

Component of the MICOS complex, a large protein complex of the mitochondrial inner membrane that plays crucial roles in the maintenance of crista junctions, inner membrane architecture, and formation of contact sites to the outer membrane (PubMed : 25781180, PubMed : 32567732, PubMed : 33130824). Plays an important role in the maintenance of the MICOS complex stability and the mitochondrial cristae morphology (PubMed : 25781180, PubMed : 32567732, PubMed : 33130824). Has also been shown to function as a transcription factor which binds to the BAG1 promoter and represses BAG1 transcription (PubMed : 22567091).
See full target information CHCHD3
style
left-column

Publications (1)

Recent publications for all applications. Explore the full list and refine your search

Heliyon 10:e39260 PubMed39669138

2024

Systematic exploration of the molecular characteristics of CD8 T cells to predict the response to immunotherapy and the prognosis of patients with colon adenocarcinoma.

Applications

Unspecified application

Species

Unspecified reactive species

Xin Shen,Lifeng Shang,Junwei Han,Yi Zhang,Wenkai Niu,Haiwang Liu,Hai Shi
