Anti-MiTF antibody [D5]

4 product images

•

  Immunocytochemistry - Anti-MiTF antibody [D5] (ab3201)

  ab3201 staining MiTF in Malme-3M cells. The cells were fixed with 4% paraformaldehyde (10 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4°C with ab3201 at 1µg/ml and Anti-beta Tubulin antibody - Loading Control ab6046, Rabbit polyclonal to beta Tubulin - Loading Control. Cells were then incubated with Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed ab150117, Goat polyclonal Secondary Antibody to Mouse IgG H&L (Alexa Fluor^® 488) preadsorbed at 1/1000 dilution (shown in green) and Goat Anti-Rabbit IgG H&L (Alexa Fluor® 594) ab150080, Goat polyclonal Secondary Antibody to Rabbit IgG - H&L (Alexa Fluor^® 594) at 1/1000 dilution (shown in pseudocolour red). Nuclear DNA was labelled with DAPI (shown in blue).

  Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

•

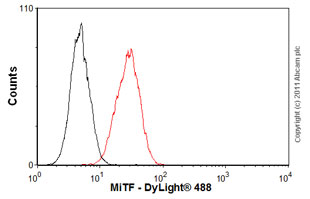

  Flow Cytometry (Intracellular) - Anti-MiTF antibody [D5] (ab3201)

  Overlay histogram showing Malme-3 (Human skin fibroblast cell line) cells stained with ab3201 (red line). The cells were fixed with 80% methanol (5 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions. The cells were then incubated with the antibody (ab3201, 1μg/1x10⁶ cells) for 30 min at 22°C. The secondary antibody used was DyLight® 488 goat anti-mouse IgG (H+L) (Goat Anti-Mouse IgG H&L (DyLight® 488) preadsorbed ab96879) at 1/500 dilution for 30 min at 22°C. Isotype control antibody (black line) was mouse IgG1 [ICIGG1] (Mouse IgG1, Kappa Monoclonal [B11/6] - Isotype Control ab91353, 2μg/1x10⁶ cells ) used under the same conditions. Acquisition of >5,000 events was performed.



•

  This image is courtesy of an anonymous customer review

  Immunocytochemistry - Anti-MiTF antibody [D5] (ab3201)

  ab3201 staining MiTF in the SK-MEL-28 (Human cutaneous melanoma cell line) cells by ICC/IF (Immunocytochemistry/immunofluorescence). Cells were fixed with Paraformaldehyde and permeabilized with Triton X-100 0.5% in PBS. Samples were incubated with primary antibody (1/100) for 24 hours at 4°C. An Alexa Fluor^®488-conjugated Goat anti-mouse IgG polyclonal(1/1000) was used as the secondary antibody. SK-MEL-28 cells was grown on chamber slide. MiTF was found to strictly localised in the nucleus. Cells were counter-stained with DAPI.

•

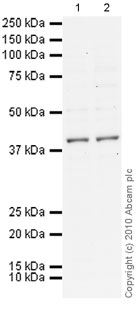

  Western blot - Anti-MiTF antibody [D5] (ab3201)

  All lanes: Western blot - Anti-MiTF antibody [D5] (ab3201) at 5 µg/mL

  Lane 1: HeLa (Human epithelial carcinoma cell line) whole cell lysate at 10 µg

  Lane 2: HeLa nuclear lysate at 10 µg

  Secondary

  All lanes: Goat polyclonal to Mouse IgG - H&L - Pre-Adsorbed (HRP) at 1/3000 dilution

  Developed using the ECL technique.

  Performed under reducing conditions.

  Predicted band size: 58 kDa

  Observed band size: 40 kDa

  Exposure time: 10min
