Anti-Mitochondria antibody [113-1] - BSA and Azide free

7 product images

•

  Chen, H. et al PLoS One. 2015 Feb 6;10(2):e0115482. doi: 10.1371/journal.pone.0115482. eCollection 2015 Reproduced under the Creative Commons license http://creativecommons.org/licenses/by/4.0/

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Mitochondria antibody [113-1] - BSA and Azide free (ab92824)

  Immunostained human cells in spleen and temporal artery (TA) xenograft sections demonstrate persistent human PBMC colonization at 28 days

  Mitochondria in spleen (B) and temporal artery xenografts (E) were detected using ab92824 at 1/400 dilution in immunohistochemical analysis.

  Magnification: 400X for spleen, 200X for TA grafts and 800X for insets.

  (From Figure 2 of Chen et al)

•

  Western blot - Anti-Mitochondria antibody [113-1] - BSA and Azide free (ab92824)

  All lanes: Western blot - Anti-Mitochondria antibody [113-1] - BSA and Azide free (ab92824) at 1/1000 dilution

  All lanes: HeLa lysate

  Observed band size: 60 kDa

•

  Flow Cytometry - Anti-Mitochondria antibody [113-1] - BSA and Azide free (ab92824)

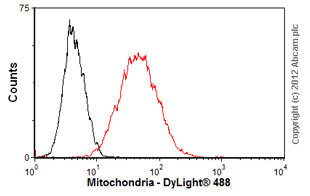

  Overlay histogram showing HepG2 cells stained with ab92824 (red line). The cells were fixed with 80% methanol (5 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab92824, 1/100 dilution) for 30 min at 22ºC. The secondary antibody used was DyLight® 488 goat anti-mouse IgG (H+L) (Goat Anti-Mouse IgG H&L (DyLight® 488) preadsorbed ab96879) at 1/500 dilution for 30 min at 22ºC. Isotype control antibody (black line) was Mouse IgG1 [ICIGG1] (Mouse IgG1, Kappa Monoclonal [B11/6] - Isotype Control ab91353, 2µg/1x10⁶ cells) used under the same conditions. Acquisition of >5,000 events was performed. This antibody gave a positive signal in HepG2 cells fixed with 4% paraformaldehyde (10 min) permeabilized with 0.1% PBS-Tween for 20 min used under the same conditions.



•

  Immunocytochemistry/ Immunofluorescence - Anti-Mitochondria antibody [113-1] - BSA and Azide free (ab92824)

  ICC/IF image of ab92824 stained HeLa cells. The cells were 4% formaldehyde fixed (10 min) and then incubated in 1%BSA / 10% normal goat serum / 0.3M glycine in 0.1% PBS-Tween for 1h to permeabilise the cells and block non-specific protein-protein interactions. The cells were then incubated with the antibody (ab92824, 5µg/ml) overnight at +4°C. The secondary antibody (green) was Goat Anti-Mouse IgG H&L (DyLight® 488) preadsorbed ab96879, DyLight® 488 goat anti-mouse IgG (H+L) used at a 1/250 dilution for 1h.Alexa Fluor® 594 WGA was used to label plasma membranes (red) at a 1/200 dilution for 1h. DAPI was used to stain the cell nuclei (blue) at a concentration of 1.43µM.



•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Mitochondria antibody [113-1] - BSA and Azide free (ab92824)

  IHC image of ab92824 staining in Breast Cancer formalin fixed paraffin embedded tissue section, performed on a Leica Bond^TM system using the standard protocol F. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH6, epitope retrieval solution 1) for 20 mins. The section was then incubated with ab92824, 1/1000 dilution, for 15 mins at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX.
  For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times.

•

  Image is courtesy of Virginia Hoglund

  Immunocytochemistry/ Immunofluorescence - Anti-Mitochondria antibody [113-1] - BSA and Azide free (ab92824)

  ab92824 staining mitochondria in the Human U87 glioblastoma cell by ICC/IF (Immunocytochemistry/immunofluorescence). Cells were fixed with 10% NBF, permeabilized with Triton X-100 and blocked with 2% serum for 90 minutes at 22°C. Samples were incubated with primary antibody (1/1000 in 0.2% BSA + 2% NGS) for 15 hours at 4°C. An Alexa Fluor® 568-conjugated Goat anti-mouse IgG1 polyclonal was used as the secondary antibody (1/500). Co stained with ActinGreen, 2 drops/ml PBS, 10 min and Hoechst 2ug/ml in H2O 10 min

•

  Image collected and cropped by CiteAb under a CC-BY license from the publication

  Western blot - Anti-Mitochondria antibody [113-1] - BSA and Azide free (ab92824)

  Mitochondria western blot using anti-Mitochondria antibody [113-1] - BSA and Azide free ab92824. Publication image and figure legend from Liu, L., Chen, Y., et al., 2019, Channels (Austin), PubMed 31354026.




  ab92824 was used in this publication in western blot. This may not be the same as the application(s) guaranteed by Abcam. For a full list of applications guaranteed by Abcam for ab92824 please see the product overview.

  KCNA1 was highly expressed in cervical cancer tissues and cell lines and correlates with poor prognosis. a. The heat map showing the high-rich expression of KCNA1 in 20 cervical cancer patient tissues compared with adjacent non-tumor tissues (p < 0.01). b. The mRNA levels of KCNA1 were higher (ratio >2) in 17/20 representative cervical cancer patient tissues than in adjacent non-tumor tissues by PCR. c. The patient number and survival months were calculated with different KCNA1 expression (KCNA1 ratio from 1–2.9; 3–6.9 and >7) (**p < 0.01 compared with KCNA1 ratio 1–2.9 group). Meanwhile, the percentages of stage IV (%) in different KCNA1 expression (KCNA1 ratio from 1–2.9; 3–6.9 and >7) were calculated. d. The KCNA1 protein levels in 3 cervical cancer cell lines were normalized to the β-actin protein level and plotted. The data were shown as mean ± S.D. Quantitation by densitometry was shown on below (P < 0.01, n = 16, compared with normal human cervical epithelial cell line-Ect/E6E7). Three independent experiments were repeated.
